Questions on bar taping

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Questions on bar taping

Old 01-23-22, 03:06 PM
  #1
Wyoguy
Member
Thread Starter

Join Date: Jan 2022
Location: Jackson Wyoming
Posts: 35

Bikes: Gravel, Mtn, Road

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked 10 Times in 6 Posts
Questions on bar taping

I am rebuilding my bike and retaping the handlebars after rebuilding the headset and replacing the cables, I am retaping the bars. The Brifters are older Campys guessing about 30 years old? I used the Up and over technique to get around the shifters. Because of the thumb shifters it is running into and interfering with the tape coming up and over. Can this tape be cut and glued into place? I also have the extra piece of tape on the back of the shifters causing issues that would benefit from a touch of glue. Is there a glue that could be used to hold a cut or small piece of tape in place?

Here is a video of the method I am trying to use. Method starts at 8:10

Last edited by Wyoguy; 01-23-22 at 03:07 PM. Reason: added time to video
Wyoguy is offline
Old 01-23-22, 03:09 PM
  #2
Wyoguy
Member
Thread Starter

Join Date: Jan 2022
Location: Jackson Wyoming
Posts: 35

Bikes: Gravel, Mtn, Road

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked 10 Times in 6 Posts

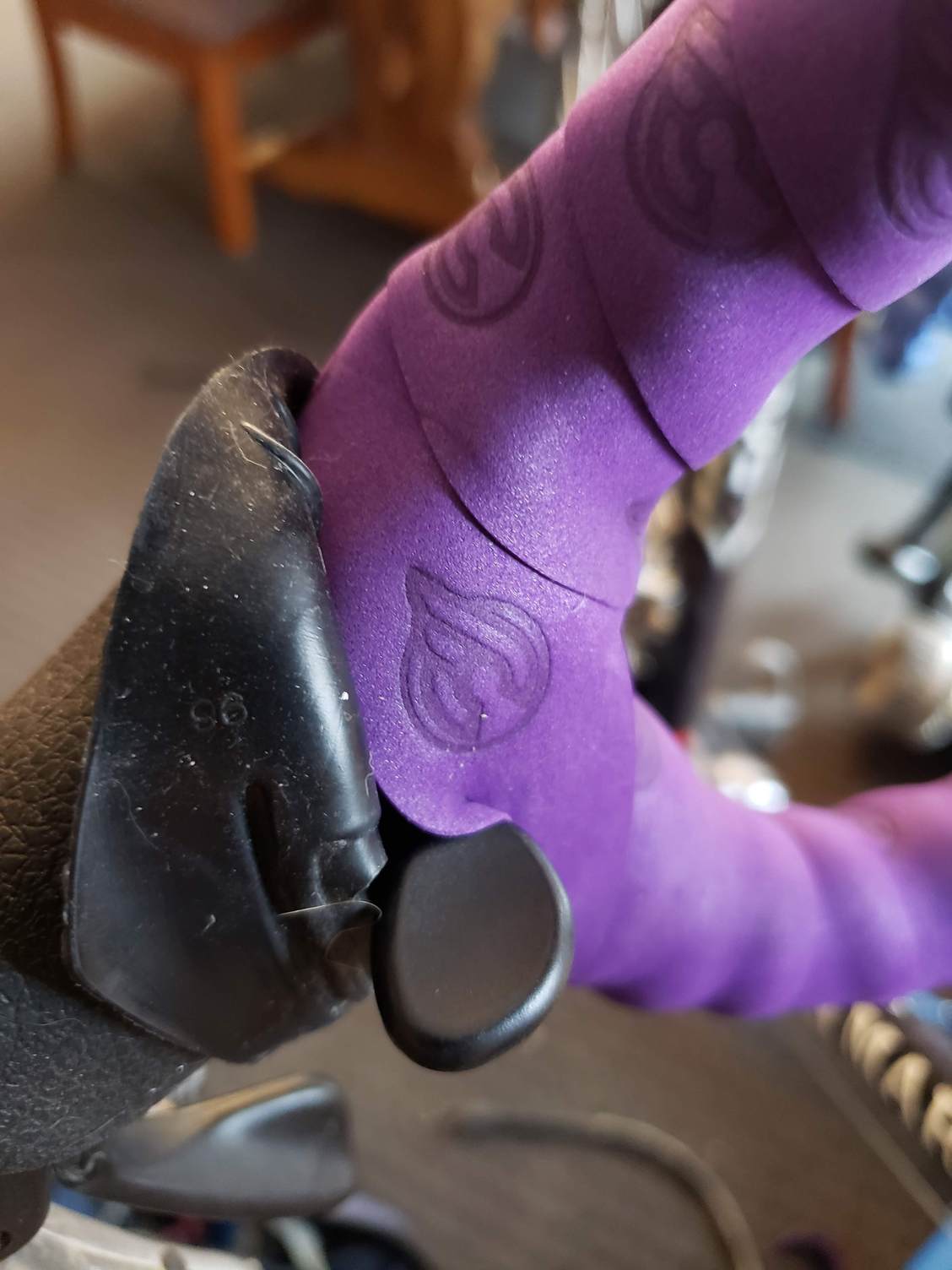

Here is a picture of the problem I am having.

Tape interfering with Shifter.
Wyoguy is offline
Old 01-23-22, 03:34 PM
  #3
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 2,849

Bikes: lots

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1393 Post(s)
Liked 1,941 Times in 1,031 Posts
You should do the figure 8 wrap. Also you MUST cut the tape so it doesn't go into the gap where the thumb button moves. If you tape like you have the shifters won't work. I've built hundreds of bikes w/ old Campy Ergo levers, I know what I'm talking about. Pull the hood forward and slice the tape along the edge of that slot.
cxwrench is offline
Likes For cxwrench:
Old 01-23-22, 06:51 PM
  #4
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,502

Bikes: Old school lightweights

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2286 Post(s)
Liked 2,914 Times in 1,588 Posts
Originally Posted by cxwrench View Post
You should do the figure 8 wrap.
Here's my favorite video on that. Short and sweet.

.
SurferRosa is offline
Old 01-29-22, 09:58 PM
  #5
frogman
Senior Member

frogman's Avatar

Join Date: Sep 2006
Location: Napa Valley, CA
Posts: 850

Bikes: Wife says I have too many :-)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 306 Post(s)
Liked 228 Times in 146 Posts
Thanks for the video. I always have trouble with the figure 8 wrap.
frogman is offline
