Rear derailleur cage rubs on freewheel

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Rear derailleur cage rubs on freewheel

Old 02-12-22, 10:00 AM
  #1
Jicafold
Senior Member
Thread Starter

Join Date: Jun 2013
Posts: 940
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 85 Times in 63 Posts
Rear derailleur cage rubs on freewheel

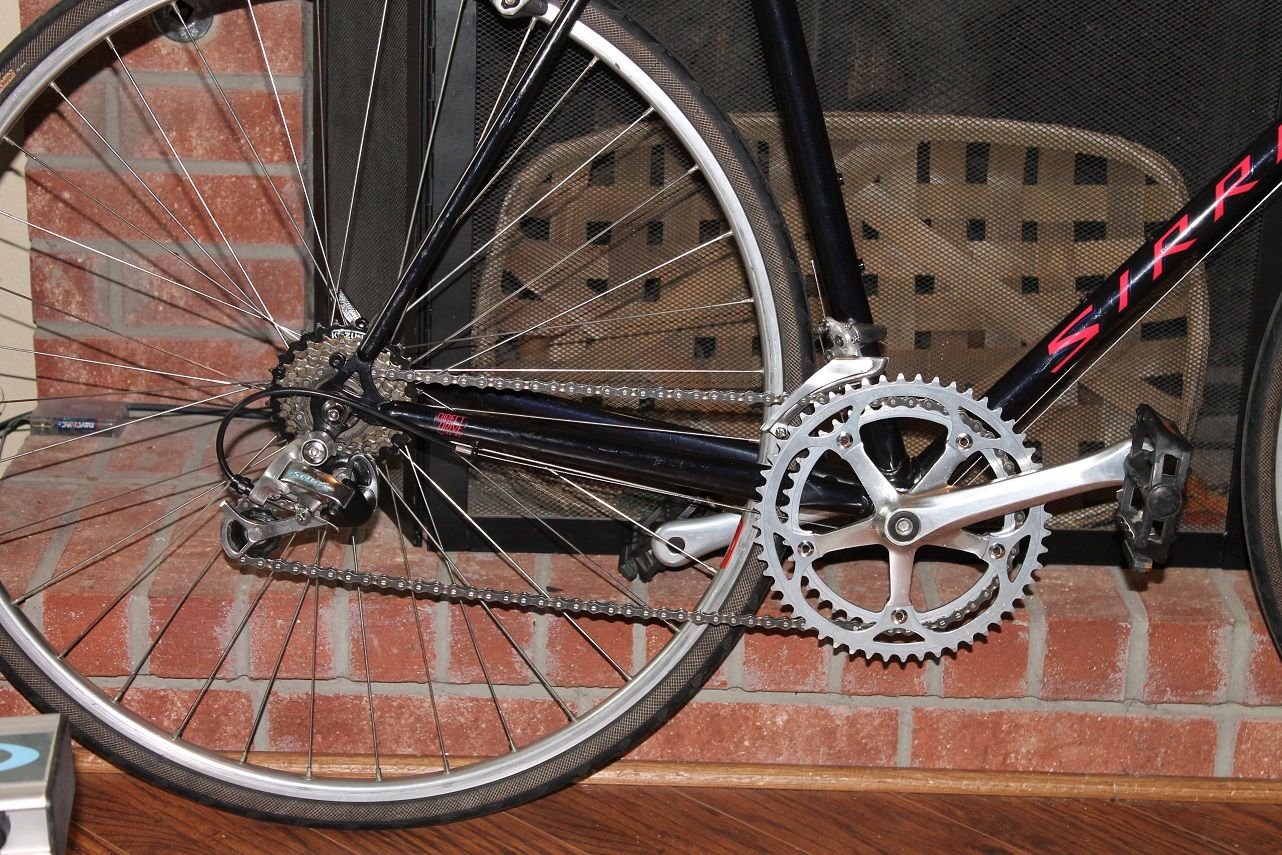

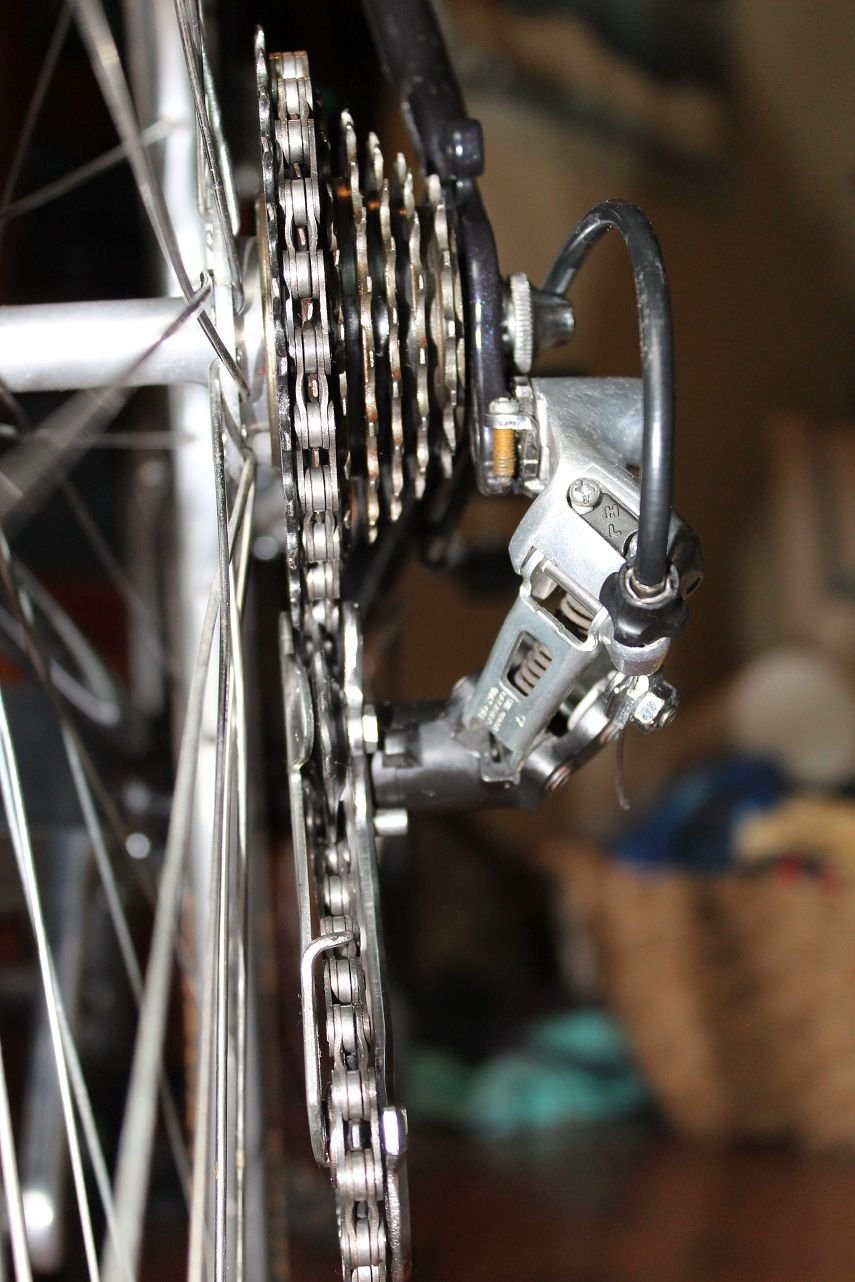

So I am assembling this Specialized Sirrus. No original parts. 14 speed index shifting. The top of the rear derailleur cage will rub on the 2 largest sprockets when running in the lower gears. See in photo #1. The B adjustment screw is maxed out. The chain is not too long as shown when in small/small in photo #2. I have had the rear cable barrel adjuster all over the map with little improvement, although the pulleys are a bit off in the photo. What else is there to consider to stop it rubbing? Thank you.


Jicafold is offline
Old 02-12-22, 12:22 PM
  #2
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,447

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4650 Post(s)
Liked 3,147 Times in 2,191 Posts
Do you know if the specification for the DR say it's supposed to be able to clear a cog with that many teeth?
Iride01 is offline
Old 02-12-22, 12:36 PM
  #3
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,482

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5001 Post(s)
Liked 2,583 Times in 1,524 Posts
Originally Posted by Jicafold View Post
So I am assembling this Specialized Sirrus. No original parts. 14 speed index shifting. The top of the rear derailleur cage will rub on the 2 largest sprockets when running in the lower gears. See in photo #1. The B adjustment screw is maxed out. The chain is not too long as shown when in small/small in photo #2. I have had the rear cable barrel adjuster all over the map with little improvement, although the pulleys are a bit off in the photo. What else is there to consider to stop it rubbing? Thank you.
Itís probably time to get a different derailer. Your derailer appears to be a Sora RD-3300 which has a maximum large cog capacity of 27 teeth. While you can push some derailers outside of that, Shimano road derailers are usually pretty strict about that limit. You could add a Wolf Tooth Road Link but thatís a bit expensive for an inexpensive derailer. You could get a more modern 9 speed Sora (still works) for about $35. Or you could get a 9 speed Altus for around $25. Both would handle what appears to be a 14-34 Mega Range freewheel.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 02-12-22, 01:02 PM
  #4
Jicafold
Senior Member
Thread Starter

Join Date: Jun 2013
Posts: 940
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 85 Times in 63 Posts
Originally Posted by cyccommute View Post
IYour derailer appears to be a Sora RD-3300 which has a maximum large cog capacity of 27 teeth. .
I was thinking that may be true for the short cage and I have the long cage, but literature says it has 27 tooth capacity for short and long cage. I have a box of derailleurs. I'll try a different one. Thank you.

Last edited by Jicafold; 02-12-22 at 01:06 PM.
Jicafold is offline
Old 02-12-22, 04:28 PM
  #5
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,597

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3580 Post(s)
Liked 2,438 Times in 1,547 Posts
Try removing the cage inner plate and reinstalling it right side up. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 02-12-22, 05:19 PM
  #6
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,447

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4650 Post(s)
Liked 3,147 Times in 2,191 Posts
Originally Posted by Andrew R Stewart View Post
Try removing the cage inner plate and reinstalling it right side up. Andy
I think your are right.

Quite obviously some of us deserve a slap to the back of the head. I looked at the picture originally, thought it odd the cage plate came so high, then immediately forgot it and went on to other what if's.

https://si.shimano.com/api/publish/s...-3300-1882.pdf
Iride01 is offline
Old 02-12-22, 05:53 PM
  #7
Jicafold
Senior Member
Thread Starter

Join Date: Jun 2013
Posts: 940
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 85 Times in 63 Posts
Originally Posted by Andrew R Stewart View Post
Try removing the cage inner plate and reinstalling it right side up. Andy
Ahhh.....Andy you are a wiz. It is upside down. Thank you.
Jicafold is offline
Likes For Jicafold:
