Cassette hub too far gone?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.
View Poll Results: What should I do?
It's nothing, get a cassette that doesn't eat the hub and move on.
3
75.00%
Get a cassette that doesn't eat the hub but notify potential buyers of the damage.
1
25.00%
Just replace it.
0
0%
Voters: 4. You may not vote on this poll

Cassette hub too far gone?

Old 02-17-22, 06:33 PM
  #1
degan
Mote of Dust
Thread Starter

degan's Avatar

Join Date: Nov 2010
Location: Oregon
Posts: 901
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 114 Post(s)
Liked 66 Times in 42 Posts
Cassette hub too far gone?

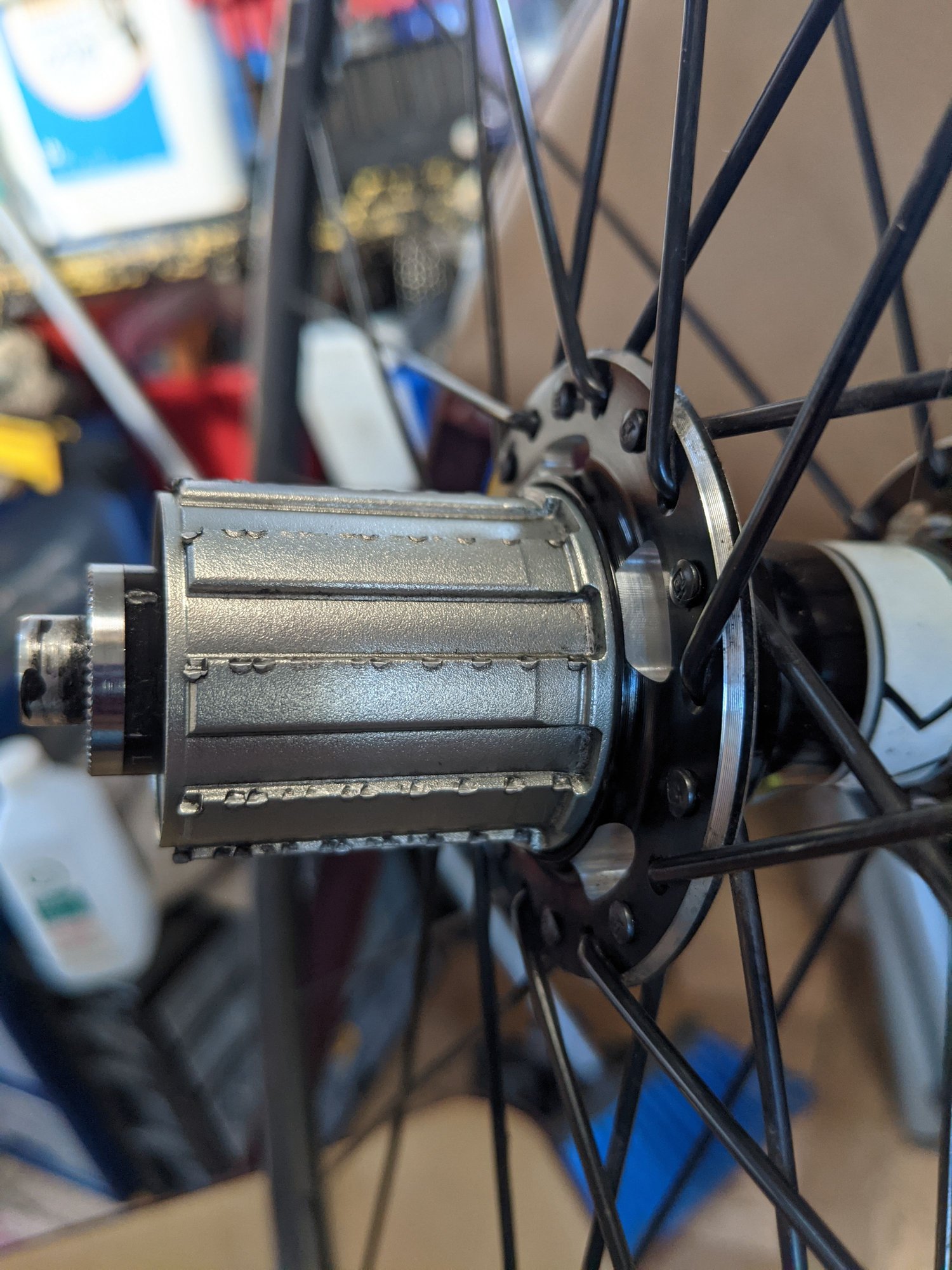

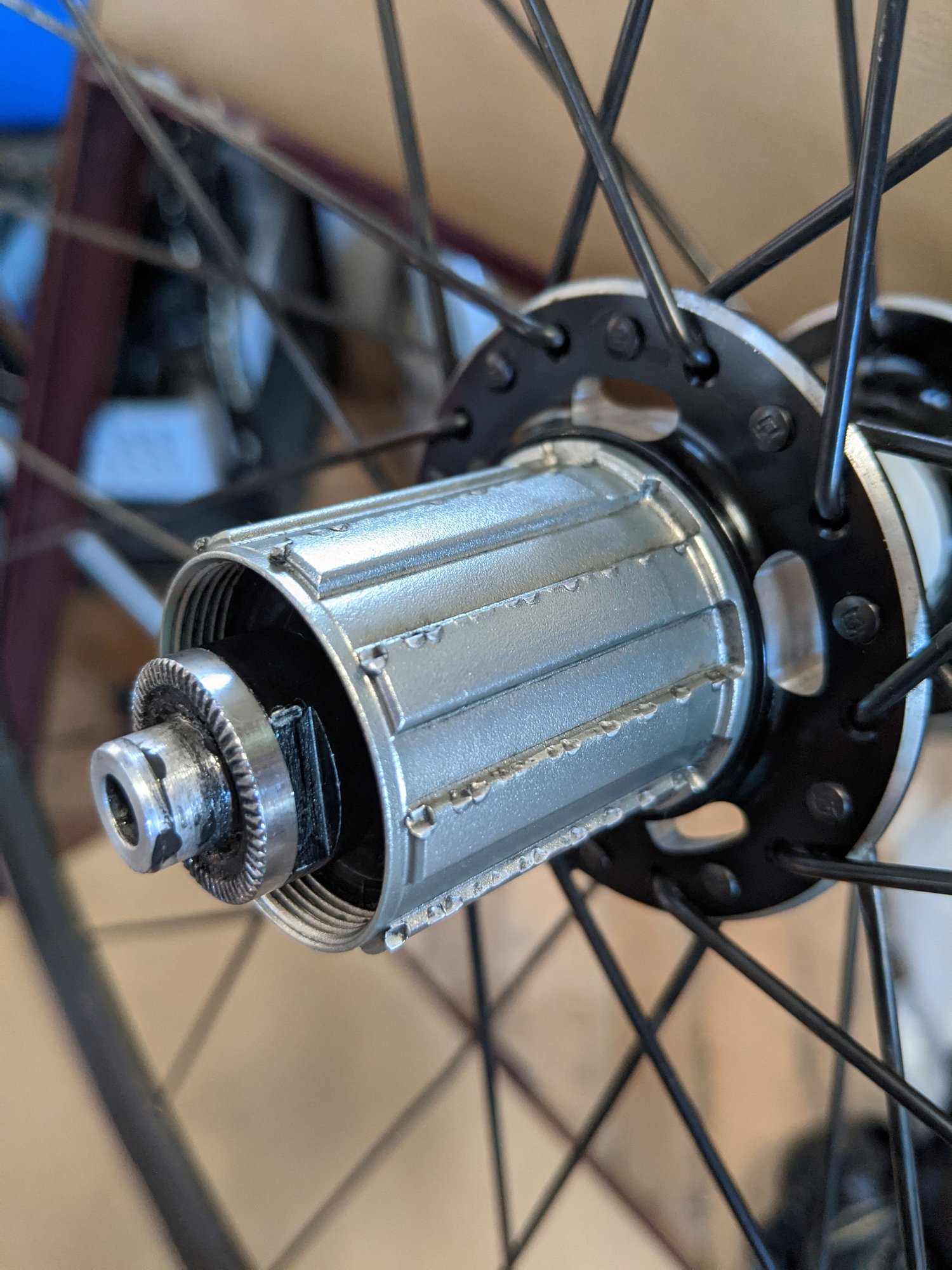

When I got the wheelset there was a little play from a loose nut on the rear wheel so I removed the cassette to examine it and found this. A gouge on every spindle edge and the tops of every spindle are gouged to the point of not being square anymore. I don't think the play in the hub had much to do with it, I think it was mostly the steel Shimano cassette on the soft aluminum cassette hub. I'm thinking about filing down any high spots and giving it a go with a less destructive cassette. Should I just replace it? It's one of those hub bodies that sort of just pop out so replacing would be easy, but if I want a steel cassette hub to prevent this from happening in the future I may be out of luck. Also it's going on a bike that is most likely going to be sold. If it were staying with me I would use it as is and just keep the cassette hub issue in mind, but it's not. Writing this out has just about guilted me into just replacing it. What are your thoughts/what would you do?

degan is offline
Old 02-17-22, 06:41 PM
  #2
am8117
Senior Member

Join Date: Jan 2020
Posts: 264
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 28 Times in 23 Posts
Originally Posted by degan View Post
Should I just replace it? It's one of those hub bodies that sort of just pop out so replacing would be easy, but if I want a steel cassette hub to prevent this from happening in the future I may be out of luck. Also it's going on a bike that is most likely going to be sold. If it were staying with me I would use it as is and just keep the cassette hub issue in mind, but it's not. Writing this out has just about guilted me into just replacing it. What are your thoughts/what would you do?
It's not a problem until it becomes hard to take the next cassette off or put it on. It might be good to check availability of that freehub nowadays because few years later it might become more economical to relace the whole rim with new hub just because there's no freehub to order and not even the same hub made anymore.
am8117 is offline
Old 02-17-22, 06:48 PM
  #3
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,980

Bikes: Bob Jackson, Wizard, Pegoretti Duende, Merckx ProSLX, Pelizzoli, Cannondale ST, Schwinn Tempo, Davidson Sport Custom, Canyon Endurace, Richard Sachs, Davidson Discovery

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 1746 Post(s)
Liked 1,698 Times in 696 Posts
I would not bother to replace that. Perfectly serviceable.
Clearly not as issued, but it will work just fine for another 10K miles.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 02-17-22, 08:02 PM
  #4
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,887
Mentioned: 213 Post(s)
Tagged: 0 Thread(s)
Quoted: 15745 Post(s)
Liked 3,166 Times in 2,357 Posts
Make sure you get your cassette tight!!! There isn't some slop, like needing a spacer is there?

The high-end cassettes (Ultegra, Dura Ace, and I think some SRAM) use a common carrier on the larger sprockets. That will cause less wear for those sprockets. But, it won't do anything for the smaller sprockets.

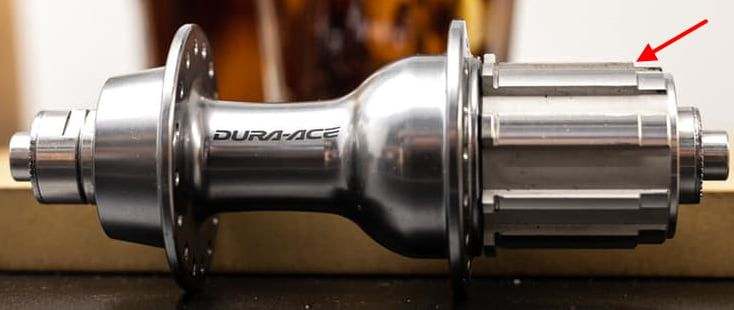

Shimano put a deep spline on their 7800 aluminum freehubs, but that concept never really took off, and it still wasn't damage proof. Shimano mainly went to either steel or titanium freehubs.

CliffordK is online now
Old 02-17-22, 09:31 PM
  #5
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,066

Bikes: lots

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1515 Post(s)
Liked 2,174 Times in 1,132 Posts
File it down and use it til it's a huge pain to get the cogs off.
cxwrench is offline
Likes For cxwrench:
Old 02-17-22, 09:41 PM
  #6
TPL
Senior Member

Join Date: Jul 2017
Posts: 248
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Likes: 0
Liked 88 Times in 63 Posts
Not 'spindles' ....they are called 'splines'
TPL is offline
Likes For TPL:
Old 02-18-22, 01:28 AM
  #7
degan
Mote of Dust
Thread Starter

degan's Avatar

Join Date: Nov 2010
Location: Oregon
Posts: 901
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 114 Post(s)
Liked 66 Times in 42 Posts
More info: it's a matching DT Swiss wheelset so I'd prefer not to just toss the whole wheel, though I hadn't thought of cassette hub availability as an issue until now. The cassette itself was tight, but the locknuts that holds the cassette hub in place was loose, so the whole cassette hub was able to move a little. Also I'm not sure why I kept saying spindles, especially since I've gone through a bunch of threads and just read the word spines like 100 times. I think I'm leaning towards finding the right cassette and moving on, though I might stop by the co-op and see what they have just in case I can grab one cheap.
degan is offline
Old 02-18-22, 04:51 AM
  #8
jgwilliams
Senior Member

jgwilliams's Avatar

Join Date: Aug 2004
Location: Surrey, UK
Posts: 708

Bikes: Mekk Poggion with SRAM Force, custom built 653 and 531 bikes with frames by Barry Witcomb, Giant XTC 4 mountain bike and a Brompton folding bike.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 229 Post(s)
Liked 85 Times in 62 Posts
My experience with Mavic and Fulcrum is that the same freehub tends to be used across a lot of different wheels so parts remain easily available. Never had a DT Swiss wheel, more's the shame, but I think the same is likely to apply there.
jgwilliams is offline
Old 02-18-22, 07:52 AM
  #9
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 2,063

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 792 Post(s)
Liked 341 Times in 249 Posts
Originally Posted by degan View Post
Also I'm not sure why I kept saying spindles, especially since I've gone through a bunch of threads and just read the word spines like 100 times.
They're not "spines" either! >>>> SPLINES
sweeks is offline
Likes For sweeks:
Old 02-18-22, 01:55 PM
  #10
degan
Mote of Dust
Thread Starter

degan's Avatar

Join Date: Nov 2010
Location: Oregon
Posts: 901
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 114 Post(s)
Liked 66 Times in 42 Posts
Originally Posted by sweeks View Post
They're not "spines" either! >>>> SPLINES
Oof, autocorrect. Let me make sure: spines. PHEW. Yep, I definitely types the L and it took it out for me. I guess my phone assumes this is just another of my many spine conversations.
degan is offline
Old 02-18-22, 02:52 PM
  #11
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 2,063

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 792 Post(s)
Liked 341 Times in 249 Posts
Originally Posted by degan View Post
Oof, autocorrect.
I suspected as much! The cause of 99% of recent misunderstandings, to say nothing of humorous typos, on this pale blue dot.
Your avatar is admirable.
sweeks is offline
Likes For sweeks:
