Long cage for first gen Dura Ace DI2...

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Long cage for first gen Dura Ace DI2...

Old 02-19-22, 08:51 PM
  #1
Team THREE 4est
Junior Member
Thread Starter

Join Date: Feb 2022
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Long cage for first gen Dura Ace DI2...

I am trying to upgrade my wife's road bike rear cassette from 27t to 34t max teeth. I will need new derailleur cages (long). I cannot find them anywhere online. Can I use long cages from another Shimano derailleur (Deore or XT)? Will those SGS cages fit and function on the Dura Ace?

Advice please.
Team THREE 4est is offline
Old 02-19-22, 09:14 PM
  #2
Polaris OBark
ignominious poltroon

Polaris OBark's Avatar

Join Date: Jan 2022
Posts: 2,290
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1311 Post(s)
Liked 1,914 Times in 1,054 Posts
Unfortunately, they aren't interchangeable. Maybe Di2 Ultegra medium cage might work, if you can find a dead one as a donor. Dura Ace never seems to go up past 28 or so. They never made the longer cage.

The most cost-effective work-around might be to get a Wolf Tooth derailleur hanger extender.

https://www.wolftoothcomponents.com/products/roadlink

The nuclear option is to get a Di2 XT rear derailleur. I am almost certain this will also force you to get an XT front derailleur. But the good news is Di2 lets you use that with your extant road shifters.
Polaris OBark is offline
Old 02-19-22, 11:09 PM
  #3
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 11,169

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), R+M Supercharger2 Rohloff, Habanero Ti 26

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 3425 Post(s)
Liked 2,729 Times in 1,825 Posts
Originally Posted by Polaris OBark View Post
Unfortunately, they aren't interchangeable. Maybe Di2 Ultegra medium cage might work, if you can find a dead one as a donor. Dura Ace never seems to go up past 28 or so. They never made the longer cage.

The most cost-effective work-around might be to get a Wolf Tooth derailleur hanger extender.

https://www.wolftoothcomponents.com/products/roadlink

The nuclear option is to get a Di2 XT rear derailleur. I am almost certain this will also force you to get an XT front derailleur. But the good news is Di2 lets you use that with your extant road shifters.
Only problem with an XT front derailleur is they are designed for mountain bikes so they don't usually work so well with road stuff due to mounting and such.

Again without knowing which derailleur it is, it is tough to really tell. Actual 1st gen Di2 is not compatible with any newer stuff at least not easily (I think someone might have made some e-tube wire converters at some point but I cannot remember for sure) The Wolftooth Road Link might be just the ticket or if you can find a longer cage road Di2 derailleur that is compatible with your system go for that. I dislike Dura-Ace partially for that reason it is pure race stuff (and it also usually doesn't quite look as good as Ultegra ATMO...except maybe in the 9 speed era when everything kinda was meh) It is excellent equipment and works really well at a decent weight but the lack of versatility is always a bummer.

FWIW I have a RoadLink on a 7400 RD running 6 speed and it seems to work fairly well. They don't recommend it but it seems to do the trick. Is better designed for the modern stuff.
veganbikes is offline
Old 02-19-22, 11:32 PM
  #4
Polaris OBark
ignominious poltroon

Polaris OBark's Avatar

Join Date: Jan 2022
Posts: 2,290
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1311 Post(s)
Liked 1,914 Times in 1,054 Posts
Just to clarify, I think even if an XT(R) Di2 conversion worked flawlessly, it would be cost-prohibitive.

The Wolf-Tooth solution is about $20, so I would recommend trying that first.

A GRX 46/30T crankset (which might also do the trick) is $150.
Polaris OBark is offline
Old 02-20-22, 03:09 AM
  #5
Team THREE 4est
Junior Member
Thread Starter

Join Date: Feb 2022
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Would a replacement cage have to be Di2? Are the cages for Di2 different than for the regular derailleur? I am not changing the whole derailleur, to XT or anything else. If I can't change for longer cages, I won't pursue the upgrade.

Also, would a 9 or 11-speed cage work? One would think that the mounting holes would be the same. Does Shimano make a completely different cage system for each derailleur? I had thought to buy a Deore long cage and see if the cage would transfer. No?

Last edited by Team THREE 4est; 02-20-22 at 03:11 AM. Reason: left something out
Team THREE 4est is offline
Old 02-20-22, 12:59 PM
  #6
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 11,169

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), R+M Supercharger2 Rohloff, Habanero Ti 26

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 3425 Post(s)
Liked 2,729 Times in 1,825 Posts
Originally Posted by Team THREE 4est View Post
Would a replacement cage have to be Di2? Are the cages for Di2 different than for the regular derailleur? I am not changing the whole derailleur, to XT or anything else. If I can't change for longer cages, I won't pursue the upgrade.

Also, would a 9 or 11-speed cage work? One would think that the mounting holes would be the same. Does Shimano make a completely different cage system for each derailleur? I had thought to buy a Deore long cage and see if the cage would transfer. No?
Again what derailleur do you have, what is the model number?

Shimano will generally do different cages for different derailleurs but knowing exactly which one you have could better help determine what era of derailleur cage you might look at.

You can try whatever you want to try but that could get expensive or you have extra derailleurs in the bin for future projects.
veganbikes is offline
Old 02-20-22, 01:11 PM
  #7
TerryDi2C
Di2 fanatic

TerryDi2C's Avatar

Join Date: Aug 2019
Location: The Netherlands
Posts: 132
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Liked 57 Times in 36 Posts
Perhaps the easier question is:

Is your wife's bike a 10-speed Di2 bike, or 11-speed?
Feel free to post a picture too, if that's easier
TerryDi2C is offline
Old 02-20-22, 01:42 PM
  #8
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,445

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1815 Post(s)
Liked 1,955 Times in 1,200 Posts
There is merit in identifying the exact RD by pn. While cage swaps between newer road and mtb cages RD are probably rare, and there is good chance no one here can help, but without it the basic answer is no.

With the pn you can at least Google it for a swap. There are all sorts of hacks out there that might help you.

The only other recourse is to pull it apart and try to visually match to a long cage, maybe ebay, order it and see if it works.

And if you get it to work you can ask the next person the pn because you have a one-off success story.

John
70sSanO is offline
Likes For 70sSanO:
Old 02-20-22, 02:11 PM
  #9
TerryDi2C
Di2 fanatic

TerryDi2C's Avatar

Join Date: Aug 2019
Location: The Netherlands
Posts: 132
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Liked 57 Times in 36 Posts
Indeed, which is why I asked whether it is 10-speed (FD-7970), or 11-speed (FD-9070) ;-)

When people say "first generation dura-ace" they sometimes forget that 7970 existed too
TerryDi2C is offline
Likes For TerryDi2C:
Old 02-20-22, 04:00 PM
  #10
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,767

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1954 Post(s)
Liked 2,925 Times in 1,488 Posts
Originally Posted by Polaris OBark View Post
Just to clarify, I think even if an XT(R) Di2 conversion worked flawlessly, it would be cost-prohibitive.

The Wolf-Tooth solution is about $20, so I would recommend trying that first.

A GRX 46/30T crankset (which might also do the trick) is $150.
The road link allows the upper pulley to clear a larger-than-spec'd big cog but doesn't magically make the pulley cage longer to wrap the extra chain needed. Not a good solution.
cxwrench is offline
Old 02-20-22, 06:49 PM
  #11
Polaris OBark
ignominious poltroon

Polaris OBark's Avatar

Join Date: Jan 2022
Posts: 2,290
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1311 Post(s)
Liked 1,914 Times in 1,054 Posts

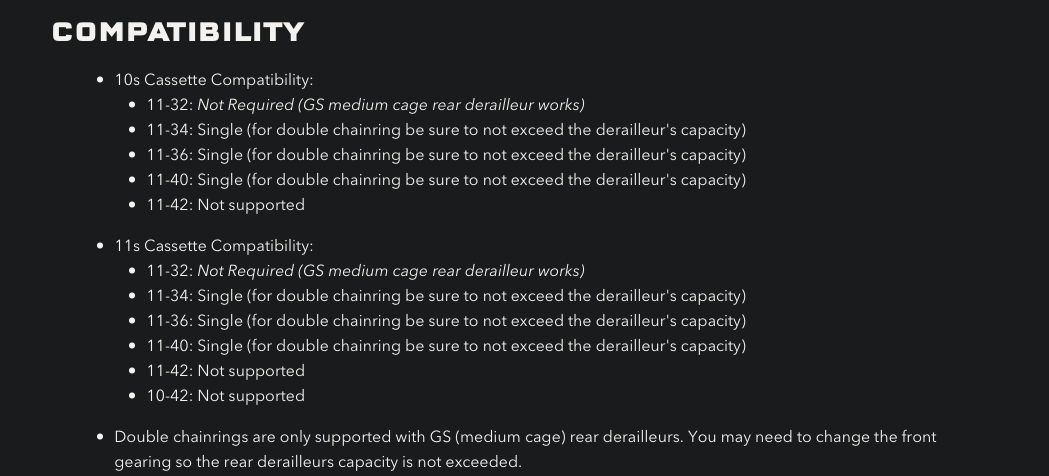

Yeah, it looks like they pre-suppose a GS cage.


Polaris OBark is offline
Old 02-21-22, 09:30 AM
  #12
kek
top

kek's Avatar

Join Date: Nov 2016
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 18 Times in 10 Posts
https://fitwerx.com/k-edge-long-cage...r-and-quicker/
K-Edge has developed a replacement rear derailleur pulley cage for 6870, 6770, 7970 and 9070 Di2 rear derailleurs that can accommodate cassettes up to 36 teeth.

One limitation of the K-Edge Long Cage Conversion Kit was that the derailleur had to be shipped to K-Edge and thus the turn-around for this conversion was 2 to 3 weeks. Given the delay, it was not something we could offer on a “while-you-wait” basis. Today, we can do the K-Edge Long Cage Conversion Kit in-house; send us your derailleur and we can install the kit and send it back to you. We usually install and send back derailleurs within 48 hours of receiving them.

If you have an older Shimano Di2 system and want to lower gearing, we can now take care of you in-house. Contact Us info@fitwerx.com and start spinning up those hills with (relative) ease using a K-Edge long cage rear derailleur conversion!

Last edited by kek; 02-21-22 at 09:35 AM.
kek is offline
Old 02-21-22, 10:01 AM
  #13
sch
Senior Member

Join Date: May 2003
Location: Mountain Brook. AL
Posts: 3,978
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 297 Post(s)
Likes: 0
Liked 123 Times in 95 Posts
K Edge was the only extended range solution back 10-11 yrs ago when the Di2 was mostly for racing
types who can average > 20mph with ease on a 60 mile 3000' elevation change ride and then mow
the yard, wash the cars after an oil change and tire rotation after the ride. Then Shimano started
making wider range Di2 derailleurs. The K edge was of most interest to tandem riders who need
a wide range. FWIW K edge was very proud of their conversion, I am a bit surprised it still exists
considering the range of Di2 now available for chainrings down to 30t (28t feasible) and cassettes of 42t.
sch is offline
Old 02-21-22, 11:06 AM
  #14
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 8,928

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1892 Post(s)
Liked 1,731 Times in 1,037 Posts
remember that the length of the derailler cage does not directly impact the max rear cogs a derailler can handle. derailler cage length impacts the amount of wrap a derailler can handle.
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light frame/fork or whole biked 57,58)


squirtdad is offline
Old 02-21-22, 03:24 PM
  #15
bamboobike4
Banned.

Join Date: Jan 2022
Posts: 1,070
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 359 Post(s)
Liked 570 Times in 330 Posts
Originally Posted by Polaris OBark View Post
Unfortunately, they aren't interchangeable. Maybe Di2 Ultegra medium cage might work, if you can find a dead one as a donor. Dura Ace never seems to go up past 28 or so. They never made the longer cage.

The most cost-effective work-around might be to get a Wolf Tooth derailleur hanger extender.

https://www.wolftoothcomponents.com/products/roadlink

The nuclear option is to get a Di2 XT rear derailleur. I am almost certain this will also force you to get an XT front derailleur. But the good news is Di2 lets you use that with your extant road shifters.
I once grafted a 600EX long cage onto a DA7400, but that's old stuff (and it worked smoothly on a 12-28 6-speed freewheel)

I paired.a DA7700 GS RD with a Wolftooth Roadllink and an 11-34 9-sp cassette and a 53/38 crankset, successfully, but the minute or so I was in the lowest 38/34 was not silent. I had the chain biased to not flop on small/small, therefore it was too tight on small/biggest. Were I do do it over, I'd add two links and stay off of the small/small.

I would not have tried them, at the time, on a carbon frame or even aluminum.

Snce then, I've used the Wolftooth and it works fine on numerous setups. I'd not guarantee results, but for $21.95, it was worth a shot or two.

I'm currently running DA9000 and DA9100 RD's with 34T cassettes (both compact 50/34 cranksets and full 53/39 cranksets).
That's 39T and 37T chain wrap.


I'm running Di2 Ultegra GS (med cage) RD with a Wolftooth and an 11-36T cassette, compact crankset. That's 41T chain wrap.
I'm running R8000 GS RD with a Roadlink (DM) and a 36T cassette, compact crankset. Same 41T chain wrap.

The older version works on the older Di2, and goes between the RD and the dropout.
The newer version replaces the part of the RD that bolts into the dropout.
There are many copies coming out of China, but I've not tried any.
It's a very simple concept: pivoting mounting points, 22mm extension between them.
I have no idea why they settled on 22mm, but my guess is that the longest they feel OK selling.

There are no guarantees, only anecdotal evidence, which I've provided above.
They don't increase chain wrap, so you need to be careful on your chain length.
It will be too tight on one end, and possible be too loose on the other, so you can choose to "bias" it.

The Wolftooth extends the RD distance from the axle, but It does not lengthen the cage.

If at all possible, you want to lengthen the cage, but in many cases, that's not possible. I'd take good looks at RD's to see if the cages match up. I know there are aftermarket cages.

I did this for Shimano only, and am confident that older Campy on steel bikes will work fine.
Due to the price of failure on Campy, I've avoided it.

For SRAM, I simply bought a clutched X.9 RD and swapped it in for my Red (10sp) RD and went big on the cassette (11-32).
It was fine. My other SRAM is 1x11 10-42 and simply not part of this conversation.

Good luck, PM me and I can be clearer, but there is never a guarantee. I'm in the same boat with older 2x10 Di2 on a newer bike, and I'm going to try it with an 11-32 and a Roadlink.
bamboobike4 is offline
Old 02-21-22, 04:00 PM
  #16
Team THREE 4est
Junior Member
Thread Starter

Join Date: Feb 2022
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Let me know how the 11-32/Roadlink works.

The crankset is an Ultegra, with a 53/39. It is not a compact. I can find the GS cage (rear/inner), but not the front/outer. Don't know why...

I can find a Deore with a long cage, but it is a 9-speed. How does a metal frame know how many times (or how far per) it is shifted?

Last edited by Team THREE 4est; 02-21-22 at 04:09 PM. Reason: left something out
Team THREE 4est is offline
Old 02-21-22, 04:13 PM
  #17
Polaris OBark
ignominious poltroon

Polaris OBark's Avatar

Join Date: Jan 2022
Posts: 2,290
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1311 Post(s)
Liked 1,914 Times in 1,054 Posts
Replacing the crank with a GRX 46/30T might be the most straightforward approach, and would immediately give a substantial advantage in terms of lower gearing for a $150 investment. I was able to make it work with my Ultegra Di2 front derailleur, it might work in your case, too. Then, if you need the Wolftooth, you will have the advantage of more forgiving chain wrap.
Polaris OBark is offline
Old 02-21-22, 04:16 PM
  #18
Polaris OBark
ignominious poltroon

Polaris OBark's Avatar

Join Date: Jan 2022
Posts: 2,290
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1311 Post(s)
Liked 1,914 Times in 1,054 Posts
Originally Posted by bamboobike4 View Post
I
I'm running Di2 Ultegra GS (med cage) RD with a Wolftooth and an 11-36T cassette, compact crankset.
I'm doing the same, but with no Wolftooth. I also have a 46/30T GRX crankset, which helps, and despite claims to the contrary, works quite well with my otherwise Di2 Ultegra drivertrain.
Polaris OBark is offline
Old 02-21-22, 04:24 PM
  #19
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 11,169

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), R+M Supercharger2 Rohloff, Habanero Ti 26

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 3425 Post(s)
Liked 2,729 Times in 1,825 Posts
Yeah if not compact go to a compact or sub-compact set up. That is probably the biggest reason she is struggling. Unless you are racing or a really strong rider you are probably better off sticking with a compact crank. Plus if you are trying to get a lower gearing in the back it will help more with your max chain wrap.
veganbikes is offline
Old 02-22-22, 12:36 AM
  #20
Team THREE 4est
Junior Member
Thread Starter

Join Date: Feb 2022
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
It's a 7970 RD.
Team THREE 4est is offline
Likes For Team THREE 4est:
Old 02-22-22, 02:39 AM
  #21
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,445

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1815 Post(s)
Liked 1,955 Times in 1,200 Posts
K-Edge used to make an aftermarket long cage for that derailleur. It is no longer available, but you might want to contact them and make sure.

They may also know if there are any options such as a 6770 GS.

John
70sSanO is offline
Old 02-22-22, 10:42 AM
  #22
Team THREE 4est
Junior Member
Thread Starter

Join Date: Feb 2022
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Shimano till makes a long cage 10-speed 105 (5701), Deore (M5120), or Tiagra (4700). Would any of these cages bolt on? How different are the cage mounts between models? Will XT/XTR in 10-speed work?

Last edited by Team THREE 4est; 02-22-22 at 10:53 AM. Reason: left something out
Team THREE 4est is offline
Old 02-22-22, 10:45 AM
  #23
Team THREE 4est
Junior Member
Thread Starter

Join Date: Feb 2022
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Shimano has a 10-speed medium cage in Ultegra (RX-800). Would that cage bolt on?

Last edited by Team THREE 4est; 02-22-22 at 10:46 AM. Reason: left something out
Team THREE 4est is offline
Old 02-22-22, 11:53 AM
  #24
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,767

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1954 Post(s)
Liked 2,925 Times in 1,488 Posts
Originally Posted by Team THREE 4est View Post
Let me know how the 11-32/Roadlink works.

The crankset is an Ultegra, with a 53/39. It is not a compact. I can find the GS cage (rear/inner), but not the front/outer. Don't know why...

I can find a Deore with a long cage, but it is a 9-speed. How does a metal frame know how many times (or how far per) it is shifted?
Nevermind.
cxwrench is offline
Old 02-22-22, 08:30 PM
  #25
KCT1986
Full Member

Join Date: Jan 2016
Posts: 447
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 168 Post(s)
Liked 135 Times in 101 Posts
Originally Posted by Team THREE 4est View Post
Shimano has a 10-speed medium cage in Ultegra (RX-800). Would that cage bolt on?
The RX-800 appears to have a different attachment design for the cage. Most of the 'Shadow' style looks to have a different method of cage attachment.

See the attached. RD-6800 seems similar also. Note the cage bolt attaches from the rear through a hollow axle. Many of the older models uses a solid axle and is held on with a thin screw through the side of the main body. Don't know for sure if this would work, but appears to be similar. Never tried this personally.

Good luck. Let us know what you find.
KCT1986 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
