Converting my wife’s drop bar road bike to a flat bar

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Converting my wife’s drop bar road bike to a flat bar

Old 03-01-22, 11:24 AM
  #1
BiggFred
Senior Member
Thread Starter

Join Date: Dec 2017
Posts: 55
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 1 Time in 1 Post
Converting my wife’s drop bar road bike to a flat bar

Hi,

I am trying to figure out if I can simply buy flat bar v brake levers and mtb style cables to work on my wife’s mechanical road disc brakes. She is having issues with the drop bars, and I want to convert it to a flat bar for her. The bike is a mix of Sora and Tiagra.

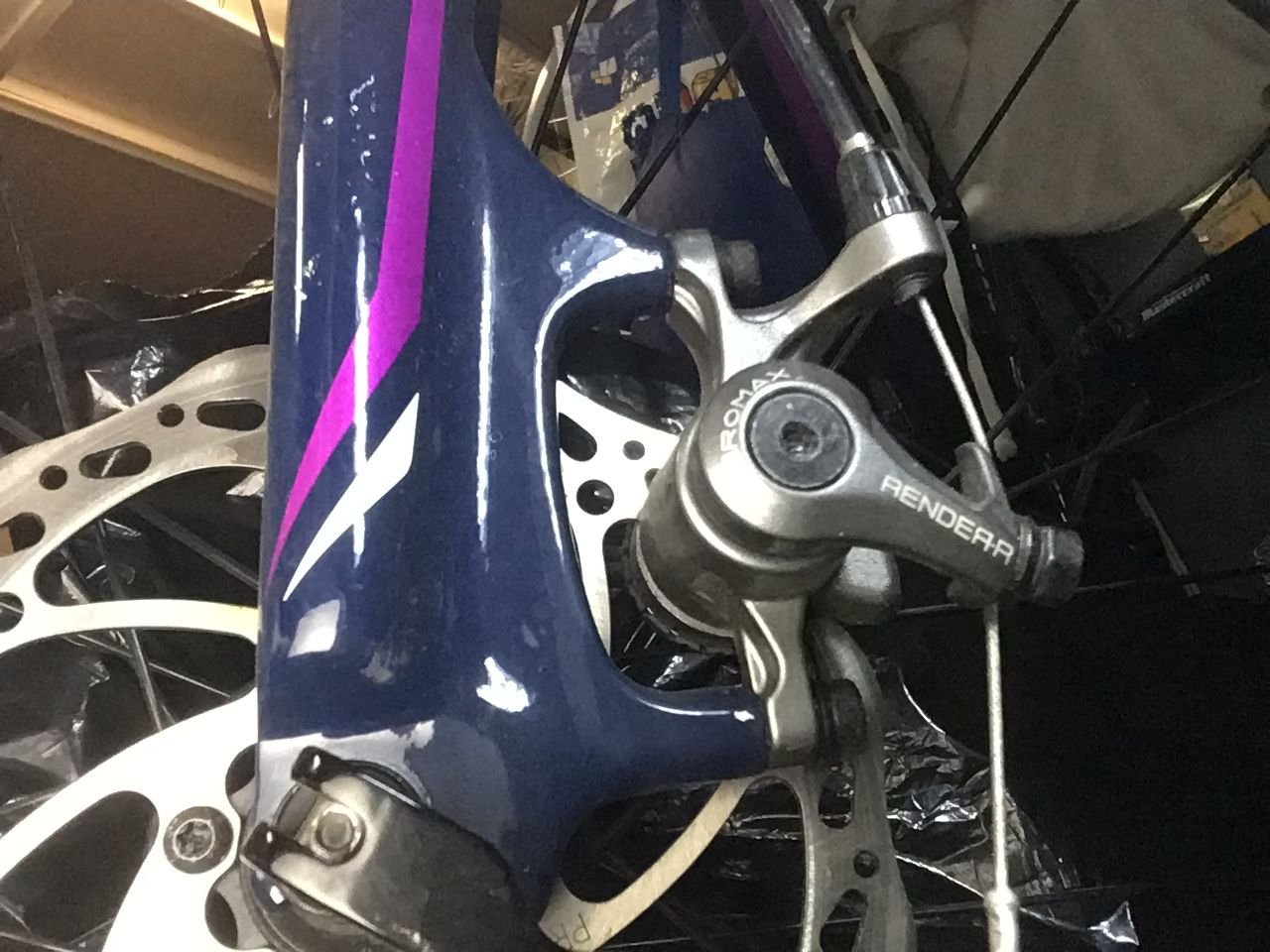

Im not sure what mechanical brakes they are. I took a bad picture of them as the bike is tucked away in my shed.

Regarding the shifting, it seems that I can use any Shimano compatible shifter that has a 2 x 9.

I have been reading conflicting info on the internet and was hoping someone familiar with these conversions could help me out.

Thanks
BiggFred is offline
Old 03-01-22, 12:31 PM
  #2
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,225

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 136 Post(s)
Tagged: 1 Thread(s)
Quoted: 4848 Post(s)
Liked 2,410 Times in 1,427 Posts
Originally Posted by BiggFred View Post
Hi,

I am trying to figure out if I can simply buy flat bar v brake levers and mtb style cables to work on my wife’s mechanical road disc brakes. She is having issues with the drop bars, and I want to convert it to a flat bar for her. The bike is a mix of Sora and Tiagra.

Im not sure what mechanical brakes they are. I took a bad picture of them as the bike is tucked away in my shed.

Regarding the shifting, it seems that I can use any Shimano compatible shifter that has a 2 x 9.

I have been reading conflicting info on the internet and was hoping someone familiar with these conversions could help me out.

Thanks

If the discs are being used with drop bar road levers, they are short pull. Going to a v-brake lever would be not work quite correctly. See this discussion over in the Touring forum. You need levers for cantilever brakes or road brakes.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 03-01-22, 12:54 PM
  #3
BiggFred
Senior Member
Thread Starter

Join Date: Dec 2017
Posts: 55
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 1 Time in 1 Post
Originally Posted by cyccommute View Post
If the discs are being used with drop bar road levers, they are short pull. Going to a v-brake lever would be not work quite correctly. See this discussion over in the Touring forum. You need levers for cantilever brakes or road brakes.

Thanks for the info!
BiggFred is offline
Old 03-01-22, 01:06 PM
  #4
BTinNYC
Enjoying the ride

Join Date: Oct 2021
Location: Whitestone and Rensselaerville, New York
Posts: 336

Bikes: 1980 Motobecane Nomade, 1989 Centurion Prestige, 2022 Canyon Endurace SL8

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 273 Times in 134 Posts
The brake mfgr says the Render R model works with road levers.

https://www.promaxcomponents.com/pro...-r-disc-brake/
BTinNYC is offline
Likes For BTinNYC:
Old 03-01-22, 01:17 PM
  #5
BiggFred
Senior Member
Thread Starter

Join Date: Dec 2017
Posts: 55
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 1 Time in 1 Post
Thanks for the responses. Got the info I was looking for fast! You guys are the best.

Great info in the linked thread from cyccomute.

Cheers
BiggFred is offline
Old 03-01-22, 01:18 PM
  #6
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,636

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4295 Post(s)
Liked 2,850 Times in 1,985 Posts
If you look for the exact part number that is printed somewhere on your Shimano products, then we all will be better able to tell you something. Shimano makes compatibility charts for their products. But that only is for intermixing Shimano stuff.

If the bike has Shimano STI's then pull up the rubber covers and the part number will be embossed on the body somewhere. For DRs it'll be on on the backside of them. On the outside of the inner cage plate for the front DR and the backside of the parallelogram or pivot assembly. Sometimes difficult to see when installed, but not impossible with good light, good eyes and maybe a good camera you can zoom in with.

For disc brakes look near the frame or fork mount on the inside of the caliper body.
Iride01 is offline
Old 03-04-22, 04:28 AM
  #7
tFUnK
Senior Member

Join Date: Jun 2002
Location: San Jose, CA
Posts: 2,866

Bikes: Too many bikes, too little time to ride

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 87 Times in 77 Posts
Regarding the shifting, it seems that I can use any Shimano compatible shifter that has a 2 x 9.
The brake lever question has been answered.
This is the part I'd be worried about, as Shimano road and mountain groups aren't exactly 100% interchangeable, so you'll be safer going with a dedicated flat bar road shifter setup. Otherwise, if you use MTB shifters, the front shifter/derailleur combination in particular could give problems.
tFUnK is offline
Old 03-04-22, 08:17 AM
  #8
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,437

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2401 Post(s)
Liked 2,029 Times in 1,133 Posts
Regarding brakes: like others have said, you calipers need short pull levers, AKA canti levers. Don’t use v-brake levers, as those are long pull. I am highly dubious of any lever that claims it does both unless they have an extremely large about of lever pull adjustment.

Regarding shifting:

Any Shimano 9 speed shifter will work with your 9 speed rear derailleur: Road MTB, or “flat bar road”. Any will work.

The front is a different story, as Road and MTB use different shifters. For this reason, you want to look for a shifter made for “Flat Bar Road”.
Kapusta is offline
