Shortening a skewer and rethreading ??

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Shortening a skewer and rethreading ??

Old 03-08-22, 02:20 PM
  #1
Tandem Tom
Senior Member
Thread Starter

Join Date: Dec 2011
Location: NE Ohio
Posts: 2,452

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 386 Post(s)
Likes: 0
Liked 92 Times in 69 Posts
Shortening a skewer and rethreading ??

I posted in General Discussion looking for a Bob Trailer Skewer.But I found a long one that we used on our tandem.
So I could use some advice about shortening and rethreading.
Thanks!!
Tandem Tom is offline
Old 03-08-22, 02:35 PM
  #2
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 21,024

Bikes: old ones

Mentioned: 293 Post(s)
Tagged: 0 Thread(s)
Quoted: 23871 Post(s)
Liked 7,546 Times in 5,333 Posts
...I have done this before a number of times, when I had an oversupply of skewers that fit an 8 speed hub, and wanted some for five and six speed hubs. The cautionary note here is that the threads on most of these are originally rolled (afaik), for added strength to the finished product, as opposed to cut with a threading die, which is what you and I can access. It was pretty straightforward. Just figure out the threading on your original (they came in variations of threading), and match it with a threading die.

You want to extend the existing threads, before you shorten the end of it. This turns out to be much easier than cutting the skewer, then restarting the threading with a die.

In theory, it will be less durable, in terms of some future stress failure. I've not had any issues with this so far.
__________________
3alarmer is offline
Old 03-08-22, 02:45 PM
  #3
icemilkcoffee
Senior Member

icemilkcoffee's Avatar

Join Date: Aug 2009
Posts: 1,399
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 822 Post(s)
Liked 675 Times in 410 Posts
It depends on whether the original threads were die-cut, or rolled:

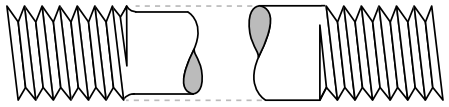

Rolled thread on the left, die-cut on the right. The die-cut one can be extended using a die. With the rolled thread it is not a good idea.
icemilkcoffee is online now
Old 03-08-22, 05:01 PM
  #4
Tandem Tom
Senior Member
Thread Starter

Join Date: Dec 2011
Location: NE Ohio
Posts: 2,452

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 386 Post(s)
Likes: 0
Liked 92 Times in 69 Posts
Maybe I need more coffee. I can't see a difference.
Tandem Tom is offline
Likes For Tandem Tom:
Old 03-08-22, 05:05 PM
  #5
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,110
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 656 Times in 498 Posts
Originally Posted by Tandem Tom View Post
Maybe I need more coffee. I can't see a difference.
Ha ha, I hear ya brother. The rolled threads increase the diameter of the area rolled whereas the die-cut retain the original diameter of the rod.
Crankycrank is offline
Likes For Crankycrank:
Old 03-08-22, 05:05 PM
  #6
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: City of Angels
Posts: 4,760

Bikes: A few too many

Mentioned: 39 Post(s)
Tagged: 1 Thread(s)
Quoted: 1189 Post(s)
Liked 1,659 Times in 918 Posts
Originally Posted by Tandem Tom View Post
Maybe I need more coffee. I can't see a difference.
answer above..follow the dotted lines to see the dia. change
Best, Ben
__________________
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"
Voice recognition may sometimes create odd spelling and grammatical errors

xiaoman1 is online now
Old 03-08-22, 06:07 PM
  #7
Tandem Tom
Senior Member
Thread Starter

Join Date: Dec 2011
Location: NE Ohio
Posts: 2,452

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 386 Post(s)
Likes: 0
Liked 92 Times in 69 Posts
Got it!!
Tandem Tom is offline
Old 03-08-22, 08:12 PM
  #8
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 2,164

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 827 Post(s)
Liked 370 Times in 273 Posts
Rolled threads are stronger because the metal is work hardened in the process, IIRC. Also, the valleys are less likely to be stress risers.
sweeks is offline
Old 03-09-22, 08:21 AM
  #9
spelger
Senior Member

spelger's Avatar

Join Date: Jul 2015
Location: reno, nv
Posts: 1,577

Bikes: yes, i have one

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 796 Times in 468 Posts
Originally Posted by icemilkcoffee View Post
It depends on whether the original threads were die-cut, or rolled:

Rolled thread on the left, die-cut on the right. The die-cut one can be extended using a die. With the rolled thread it is not a good idea.
so this is the opposite of a roll tap then? move metal rather than remove metal?
spelger is offline
Old 03-09-22, 02:10 PM
  #10
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,219

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2215 Post(s)
Liked 2,294 Times in 1,417 Posts
Originally Posted by spelger View Post
so this is the opposite of a roll tap then? move metal rather than remove metal?
Yes, the die deforms the bar stock metal to effectively "raise" threads on a pitch diameter blank. Changes grain structure of the blank in the threaded area, uses less material, is generally a faster process.
dedhed is offline
