Quickest floor pump?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Quickest floor pump?

Old 03-13-22, 05:43 PM
  #1
MyRedTrek
Senior Member
Thread Starter

Join Date: Aug 2020
Posts: 193
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 24 Times in 19 Posts
Quickest floor pump?

I have a Bontrager Turbocharger HP pump - it works okay, I've always felt it requires a lot of strokes to get the job done.

Is there something that's famous for being the quickest floor pump?

Thanks!

-Edit- ideally something that's in current production that can be bought new.

Last edited by MyRedTrek; 03-13-22 at 09:27 PM.
MyRedTrek is offline
Old 03-13-22, 05:45 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,239

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3417 Post(s)
Liked 2,097 Times in 1,372 Posts
Out of production- Zefal Double Shot, the blue one. Pumps on both the up and down strokes. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 03-13-22, 05:59 PM
  #3
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: North Carolina
Posts: 2,654

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 882 Post(s)
Liked 681 Times in 411 Posts
From the Trek site:
Turbo Charger HP gets you on the bike with the right pressure faster with a piston bore customized for easier high-pressure inflation
The diameter and stroke distance of the pump define its performance; everything is a tradeoff. Pumps that have an easier stroke require more of them, while pumps that push a lot of air each stoke require more effort per stroke. Pumps that support high pressures (e.g. your pump and most road bike specific pumps) tend to be in the former group because once you get above 80-90 psi, the force per stroke becomes considerable.

If you want to inflate faster, look for a pump designed for mountain bikes, but keep in mind that pressures over 80 psi will be a workout.
Moe Zhoost is offline
Likes For Moe Zhoost:
Old 03-13-22, 07:29 PM
  #4
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,031

Bikes: lots

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1499 Post(s)
Liked 2,143 Times in 1,117 Posts
You gotta have a serious lack of free time if you're looking for a fast pump.
cxwrench is offline
Likes For cxwrench:
Old 03-13-22, 07:36 PM
  #5
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,151

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1074 Post(s)
Liked 715 Times in 440 Posts
I'm always shocked at how much quicker my Zefal Alaskan dual-stage pump gets a tire to pressure vs. the single-stage floor pump I have - like >25% of the strokes. The catch is you have to work the pump handle both down and up. The Alaskan has been discontinued.

The Topeak Twin Turbo is another dual-stage pump.

Note 1: Topeak offers other floor pumps they advertise as dual-stage, but they are really two-mode pumps.
Note 2: If I'm at home, my air compressor inflates much faster than the Alaskan.
tcs is offline
Likes For tcs:
Old 03-13-22, 07:58 PM
  #6
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,237

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1411 Post(s)
Liked 986 Times in 672 Posts
The tradeoff for hand pumps is pressure vs volume; a high-volume pump may not be able to achieve sufficient pressure.
dsbrantjr is offline
Likes For dsbrantjr:
Old 03-13-22, 08:33 PM
  #7
soyabean
Senior Member

soyabean's Avatar

Join Date: Feb 2022
Posts: 291
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 110 Times in 79 Posts
Originally Posted by MyRedTrek View Post
Is there something that's famous for being the quickest floor pump?
If this is something you only plan to use only at home, you may want to think about a shop compressor with a Park Tool INF-2, believe me nothing will be faster.

On roadtrips, I'm happy with whatever I packed last minute and threw it in the van.

soyabean is offline
Likes For soyabean:
Old 03-14-22, 03:27 AM
  #8
MyRedTrek
Senior Member
Thread Starter

Join Date: Aug 2020
Posts: 193
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 24 Times in 19 Posts
Originally Posted by Moe Zhoost View Post
From the Trek site:

The diameter and stroke distance of the pump define its performance; everything is a tradeoff. Pumps that have an easier stroke require more of them, while pumps that push a lot of air each stoke require more effort per stroke. Pumps that support high pressures (e.g. your pump and most road bike specific pumps) tend to be in the former group because once you get above 80-90 psi, the force per stroke becomes considerable.

If you want to inflate faster, look for a pump designed for mountain bikes, but keep in mind that pressures over 80 psi will be a workout.
So you think what I have is about as good a balance between effort and speed as I'm going to find in a floor pump? The tires in both my bikes go to 80 psi.
MyRedTrek is offline
Old 03-14-22, 07:12 AM
  #9
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: North Carolina
Posts: 2,654

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 882 Post(s)
Liked 681 Times in 411 Posts
Originally Posted by MyRedTrek View Post
So you think what I have is about as good a balance between effort and speed as I'm going to find in a floor pump? The tires in both my bikes go to 80 psi.
Yep, probably. You'd likely spend more time searching for a marginally faster pump than you're spending using your current pump.
Moe Zhoost is offline
Likes For Moe Zhoost:
Old 03-14-22, 08:42 AM
  #10
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,151

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1074 Post(s)
Liked 715 Times in 440 Posts
Originally Posted by Moe Zhoost View Post
The diameter and stroke distance of the pump define its performance...

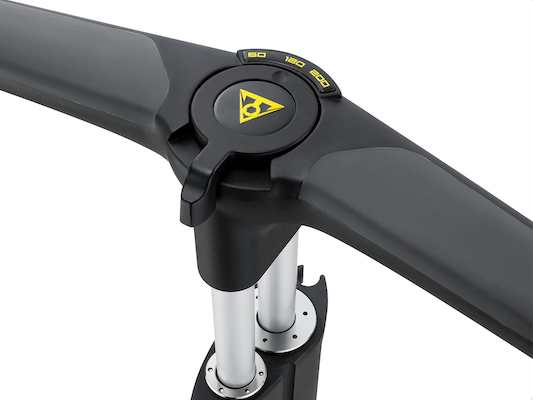

Topeak has a double-barrel pump. You use both barrels to quickly pump to relatively low pressures with low effort, then lock out the small diameter barrel to pump to moderate pressures, and finally open the small diameter barrel and lock out the large diameter barrel to pump to track pressures.



This is different from the dual stage pumps I mentioned in post 5, where the large diameter cylinder supercharges the small diameter cylinder which in turn pumps into the tire.
tcs is offline
Old 03-14-22, 09:28 AM
  #11
soyabean
Senior Member

soyabean's Avatar

Join Date: Feb 2022
Posts: 291
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 110 Times in 79 Posts
Originally Posted by Moe Zhoost View Post
You'd likely spend more time searching for a marginally faster pump than you're spending using your current pump.
Agreed.

The OP may not realize atmospheric physics is in play, and no magic manual pump will create free energy.

Human power watts going in makes air pressure and cfm volume coming out. There's little to cheat around that.

When it comes to a dedicated air compressor for just bikes, any tiny oiless one will do, like the pancake ones for nail guns. Your local Harbor Freight store can have them on sale below $50, watch those flyers. Or buy used.

You don't need something fancy as the INF-2, it's more of a showoff piece to impress walk-in customers. The simple tire chuck included with the compressor is fine and is how folks have been doing it for the past 100 years.

Don't confuse air compressors, which store readily air in a tank, vs air inflators, which create tiny pulses of air on the fly and are god awfully slower than a manual pump.

Once you get your first air compressor, you realize all the other neat things you can do with it, like blowing water away off cassettes and chain for quick dry.

soyabean is offline
Old 03-14-22, 12:00 PM
  #12
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,151

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1074 Post(s)
Liked 715 Times in 440 Posts
Originally Posted by soyabean View Post
The OP may not realize atmospheric physics is in play, and no magic manual pump will create free energy.

Human power watts going in makes air pressure and cfm volume coming out. There's little to cheat around that.
Recall the OP didn't ask about the lowest input energy pump. The OP asked

"Is there something that's famous for being the quickest floor pump?"

A true multi-stage pump is demonstrably faster.

Back, oh, a hundred years ago or so, if your Model T had a flat, you patched it much the way we patch tubed bike tires today. Then you pumped the tire back up to pressure. Model T tires don't have the volume of modern car tires, but they have significantly more volume than bike tires. Pumping them up by hand (on the road, in the 1920s) took a while, so pumps were introduced to speed the process. Here's a Victor 'Half-a-Minute' triple-stage pump of that era:

tcs is offline
Likes For tcs:
Old 03-14-22, 02:23 PM
  #13
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,151

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1074 Post(s)
Liked 715 Times in 440 Posts
Originally Posted by MyRedTrek View Post
I have a Bontrager Turbocharger HP pump - it works okay, I've always felt it requires a lot of strokes to get the job done.
How's your piston gasket?

In the old days, we'd put a few drops of Neatsfoot Oil down the barrel to keep the leather gasket soft, pliable and efficiently sealing on the downstroke. If the leather gasket dried out, the pump would become quite a bit less efficient due to 'blow by'. Dunno about Bontrager or synthetic seals.

Last edited by tcs; 03-14-22 at 02:30 PM.
tcs is offline
Old 03-14-22, 04:56 PM
  #14
soyabean
Senior Member

soyabean's Avatar

Join Date: Feb 2022
Posts: 291
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 110 Times in 79 Posts
Originally Posted by tcs View Post
Recall the OP didn't ask about the lowest input energy pump. The OP asked "Is there something that's famous for being the quickest floor pump?"
Just like majority of car owners who have no idea how they can inflate their tires at home and think the only way is the coin pump at the gas station, many think they must use a manual pump for their bikes.

My answer gives more options for the DIY that wants the absolute fastest and easiest that is also realistically possible for all wallets.

Nothing beats a shop compressor, the INF-2 is proof.
soyabean is offline
Old 03-14-22, 10:46 PM
  #15
MyRedTrek
Senior Member
Thread Starter

Join Date: Aug 2020
Posts: 193
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 24 Times in 19 Posts
Originally Posted by tcs View Post
Topeak has a double-barrel pump. You use both barrels to quickly pump to relatively low pressures with low effort, then lock out the small diameter barrel to pump to moderate pressures, and finally open the small diameter barrel and lock out the large diameter barrel to pump to track pressures.



This is different from the dual stage pumps I mentioned in post 5, where the large diameter cylinder supercharges the small diameter cylinder which in turn pumps into the tire.
Have you ever used one? It says to use both barrels to go to 60 psi, then the larger barrel to 120psi. Most of the pumping I do is to top off say from 70 - 75 psi to the tire rating of 80, so it doesn't sound like I'd be gaining much over what I have now. I wonder how hard it would be to go to 80 with both barrels? I would say I'm stronger than the average person.
MyRedTrek is offline
Old 03-15-22, 08:43 AM
  #16
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,151

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1074 Post(s)
Liked 715 Times in 440 Posts
Originally Posted by soyabean View Post
My answer...
Which was the same as my answer in post 5: at home, air compressor!
tcs is offline
Old 03-17-22, 06:09 AM
  #17
MyRedTrek
Senior Member
Thread Starter

Join Date: Aug 2020
Posts: 193
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 24 Times in 19 Posts
Originally Posted by soyabean View Post
Once you get your first air compressor, you realize all the other neat things you can do with it, like blowing water away off cassettes and chain for quick dry.
I have a small like 2 1/2 gal or so Harbor Freight compressor I use to inflate car tires but you have to fire it up, wait for it to pressurize to bike tire pressure - an overall slower process. Plus the neighbors aren't going to be happy if I fire it up for a wee hours ride

Last edited by MyRedTrek; 03-17-22 at 09:55 AM.
MyRedTrek is offline
Old 03-17-22, 06:50 AM
  #18
soyabean
Senior Member

soyabean's Avatar

Join Date: Feb 2022
Posts: 291
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 110 Times in 79 Posts
Originally Posted by MyRedTrek View Post
I have a small like 2 1/2 gal or so Harbor Freight compressor I used to inflate car tires but you have to fire it up, wait for it to pressurize to bike tire pressure - an overall slower process. Plus the neighbors aren't going to be happy if I fire it up for a wee hours ride
Oh I hear ya. That's why I have a 40 gal. shop compressor that always has air ready to use, and the neighbors don't really care since they come use it too and usually get free beers for it. But thanks for your concern.
soyabean is offline
Old 03-17-22, 10:37 AM
  #19
blinky
senior member

Join Date: Oct 2005
Location: Connecticut
Posts: 289

Bikes: 2003 Litespeed Tuscany with Ultegra R-8000 components

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 30 Times in 26 Posts
Originally Posted by Andrew R Stewart View Post
Out of production- Zefal Double Shot, the blue one. Pumps on both the up and down strokes. Andy
OP , check Ebay for it
blinky is offline
Old 03-17-22, 10:48 AM
  #20
blinky
senior member

Join Date: Oct 2005
Location: Connecticut
Posts: 289

Bikes: 2003 Litespeed Tuscany with Ultegra R-8000 components

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 30 Times in 26 Posts
Originally Posted by soyabean View Post
If this is something you only plan to use only at home, you may want to think about a shop compressor with a Park Tool INF-2, believe me nothing will be faster.

On roadtrips, I'm happy with whatever I packed last minute and threw it in the van.

Was having to strain to get to 100psi with my floor pump - just got the Park INF-2 and a Craftsman 1 1/2 gallon compressor and now achieve that pressure in seconds - couldn't be happier - fortunately I had an 8mm hex to open the presta side on the Park inflator to take the valve - I'll use CO2 on the road but that only gets me to about 80psi and will have to top up when I get home .
blinky is offline
Likes For blinky:
Old 03-17-22, 11:06 AM
  #21
soyabean
Senior Member

soyabean's Avatar

Join Date: Feb 2022
Posts: 291
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 110 Times in 79 Posts
Originally Posted by blinky View Post
Was having to strain to get to 100psi with my floor pump - just got the Park INF-2 and a Craftsman 1 1/2 gallon compressor and now achieve that pressure in seconds - couldn't be happier
Awesome.

I am happy that you are happier

Despite how happier you are, there are just some folks that are just never happy and complain.

Originally Posted by MyRedTrek View Post
I have a small like 2 1/2 gal or so Harbor Freight compressor I use to inflate car tires but you have to fire it up, wait for it to pressurize to bike tire pressure - an overall slower process. Plus the neighbors aren't going to be happy if I fire it up for a wee hours ride
soyabean is offline
Old 03-19-22, 03:43 AM
  #22
SoSmellyAir
Method to My Madness

Join Date: Nov 2020
Location: Orange County, California
Posts: 1,674

Bikes: Cannondale Synapse, Trek FX 2

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 805 Post(s)
Liked 504 Times in 385 Posts
I have a Bostitch 6 gallon pancake compressor at home, but using it would entail unwinding and winding a hose, so a floor pump is still faster (for bikes).

Maybe this will change when I install a hose reel.
SoSmellyAir is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
