Is My Chain too long?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Is My Chain too long?

Old 03-25-22, 05:38 PM
  #1
BikingViking793
Full Member
Thread Starter

Join Date: Aug 2017
Location: Wisconsin
Posts: 458

Bikes: 2015 Felt Z75 Disc, 2008 Fuji Cross Comp, 2010 Trek Navigator 1.0, 1974 Raleigh Sports, 1974 Schwinn Le Tour, 1981 Schwinn Super Le Tour, Surly Cross Check, 2021 Giant Talon 2

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 171 Post(s)
Liked 63 Times in 52 Posts
Is My Chain too long?

I'm working on a new build, and it seems like maybe my chain is too long? I used the largest cog/largest chainring method to get the length. The guide pulley is really not close to the largest cog at all when on the largest cog and chainring. The angles of the chain going through the pulleys seem a bit more than slight also. It also stalls sometimes moving to the smaller cogs when shifting. Let me know what you think. I'd hate to remove too much.

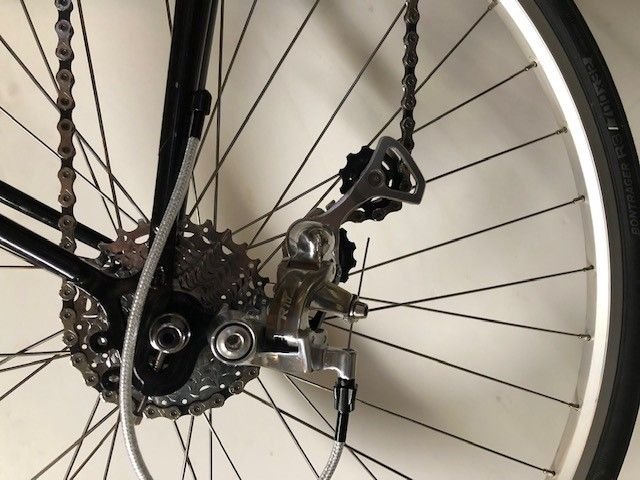

Largest cog and largest chainring

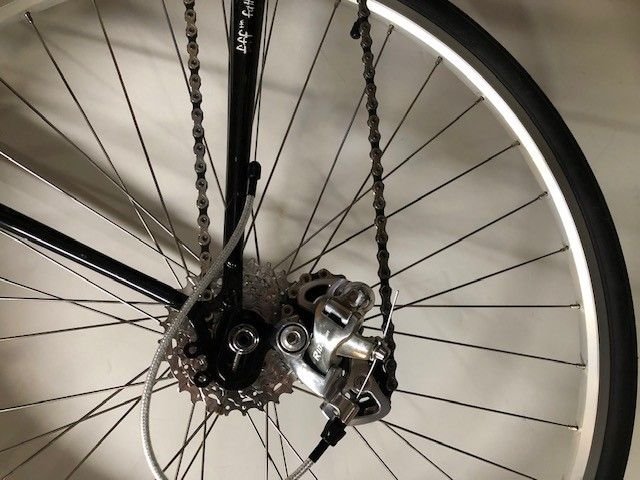

smallest cog and chainring
__________________
check out the Frugal Average Bicyclist
Frugal Average Bicyclist The goal here is to help you keep cycling on a budget.
BikingViking793 is offline
Old 03-25-22, 05:42 PM
  #2
downtube42
Senior Member

downtube42's Avatar

Join Date: Oct 2008
Location: Portland, OR
Posts: 3,300

Bikes: Soma Fog Cutter, Volae Team, Focus Mares AL, Nimbus MUni, Trek Roscoe 6.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 1,487 Times in 762 Posts
Any noise on small/small?

Is your range within the capability of your RD?
downtube42 is offline
Old 03-25-22, 05:51 PM
  #3
BikingViking793
Full Member
Thread Starter

Join Date: Aug 2017
Location: Wisconsin
Posts: 458

Bikes: 2015 Felt Z75 Disc, 2008 Fuji Cross Comp, 2010 Trek Navigator 1.0, 1974 Raleigh Sports, 1974 Schwinn Le Tour, 1981 Schwinn Super Le Tour, Surly Cross Check, 2021 Giant Talon 2

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 171 Post(s)
Liked 63 Times in 52 Posts
Originally Posted by downtube42 View Post
Any noise on small/small?

Is your range within the capability of your RD?
Small/small the chain will rub the large chainring. I guess that's just something that happens sometimes with a compact crankset? Other than that no odd noise.

Yes the cassette is a 11-28. Which is in the range of the derailleur.
__________________
check out the Frugal Average Bicyclist
Frugal Average Bicyclist The goal here is to help you keep cycling on a budget.
BikingViking793 is offline
Old 03-25-22, 06:21 PM
  #4
tFUnK
Senior Member

Join Date: Jun 2002
Location: San Jose, CA
Posts: 2,934

Bikes: Too many bikes, too little time to ride

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 107 Times in 94 Posts
Looks fine to me. How's the adjustment on the B screw?
tFUnK is offline
Old 03-25-22, 09:43 PM
  #5
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,530

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1782 Post(s)
Liked 2,617 Times in 1,355 Posts
You don't check/adjust for B gap in the large chainring, you do it in the small ring. Length looks fine to me.
cxwrench is offline
Old 03-26-22, 12:46 AM
  #6
downtube42
Senior Member

downtube42's Avatar

Join Date: Oct 2008
Location: Portland, OR
Posts: 3,300

Bikes: Soma Fog Cutter, Volae Team, Focus Mares AL, Nimbus MUni, Trek Roscoe 6.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 1,487 Times in 762 Posts
Originally Posted by BikingViking793 View Post
Small/small the chain will rub the large chainring. I guess that's just something that happens sometimes with a compact crankset? Other than that no odd noise.

Yes the cassette is a 11-28. Which is in the range of the derailleur.
Chain rub is a different matter, which you're right you may or may not be able to trim out. Just avoid cross chaining if you can't.

Your probably fine, but RD range has to cover cassette range plus chainring range.
downtube42 is offline
Old 03-26-22, 03:11 AM
  #7
Welshboy
PBP Ancien (2007)

Welshboy's Avatar

Join Date: Jan 2020
Location: South Wales, UK
Posts: 283

Bikes: Cannondale CAADX (for commuting), Cannondale CAAD12, Cannondale CAAD12 Team CNCPT, Giant Contend 2

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 127 Times in 84 Posts
I've always used the advice from the Park Tool video - essentially big ring and biggest sprocket (bypassing the RD) and add two rivets.
Welshboy is offline
Old 03-26-22, 09:54 AM
  #8
BikingViking793
Full Member
Thread Starter

Join Date: Aug 2017
Location: Wisconsin
Posts: 458

Bikes: 2015 Felt Z75 Disc, 2008 Fuji Cross Comp, 2010 Trek Navigator 1.0, 1974 Raleigh Sports, 1974 Schwinn Le Tour, 1981 Schwinn Super Le Tour, Surly Cross Check, 2021 Giant Talon 2

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 171 Post(s)
Liked 63 Times in 52 Posts
Originally Posted by Welshboy View Post
I've always used the advice from the Park Tool video - essentially big ring and biggest sprocket (bypassing the RD) and add two rivets.
That what I did for this one. I must have did it right based on the feedback. Thanks
__________________
check out the Frugal Average Bicyclist
Frugal Average Bicyclist The goal here is to help you keep cycling on a budget.
BikingViking793 is offline
Old 03-26-22, 10:12 AM
  #9
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,447

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4650 Post(s)
Liked 3,147 Times in 2,191 Posts
Are you having an issue shifting to the 12 or 11 cog on the rear? Does your chain fall off the front when you are in the small/smalls and trying to shift?

If not you are probably good. But check your b-screw adjustment in the small cog first. I usually run though all the gear combos just to see how the jockey wheel clearance is, but maybe that's overkill.
