Chainring/Chainstay Clearance

Hi Fellow Cyclists,

I have a question regarding chainring to chainstay clearance. Firstly I'll list my set-up (i.e. frameset and components)
  • Soma Grand Randonneur V2
  • SunXCD chainset with SunXCD 46/30 chainrings
  • Velo Orange 113mm JIS Bottom Bracket
  • Pacenti Brevet 650B wheelset, rear hub 130mm O.L.D

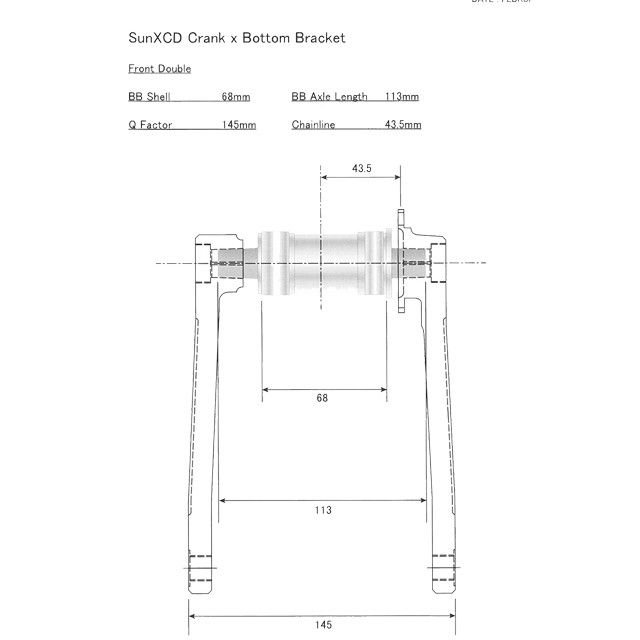

Now, here are the SunXCD drawings for the crankset




SunXCD Crankset Specs

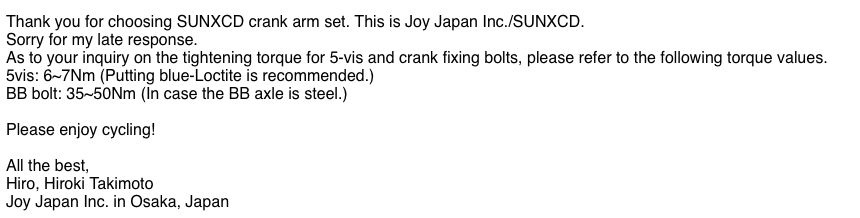

and here are their recommended torque values



Sun XCD Crankset Recommended Torque Specs


Now... on fitting the crankset to my frame I'm left with less than 4mm clearance between the big chainring and the chainstay. I have quite a few bikes (I'm losing count lol) but none of them have clearances that are this tight.

Bottom bracket was fitted (with a Park Tool torque wrench, less than a couple of years old) to 55 Nm (I'm European so Nm it is) and the crank bolts to 40 Nm.

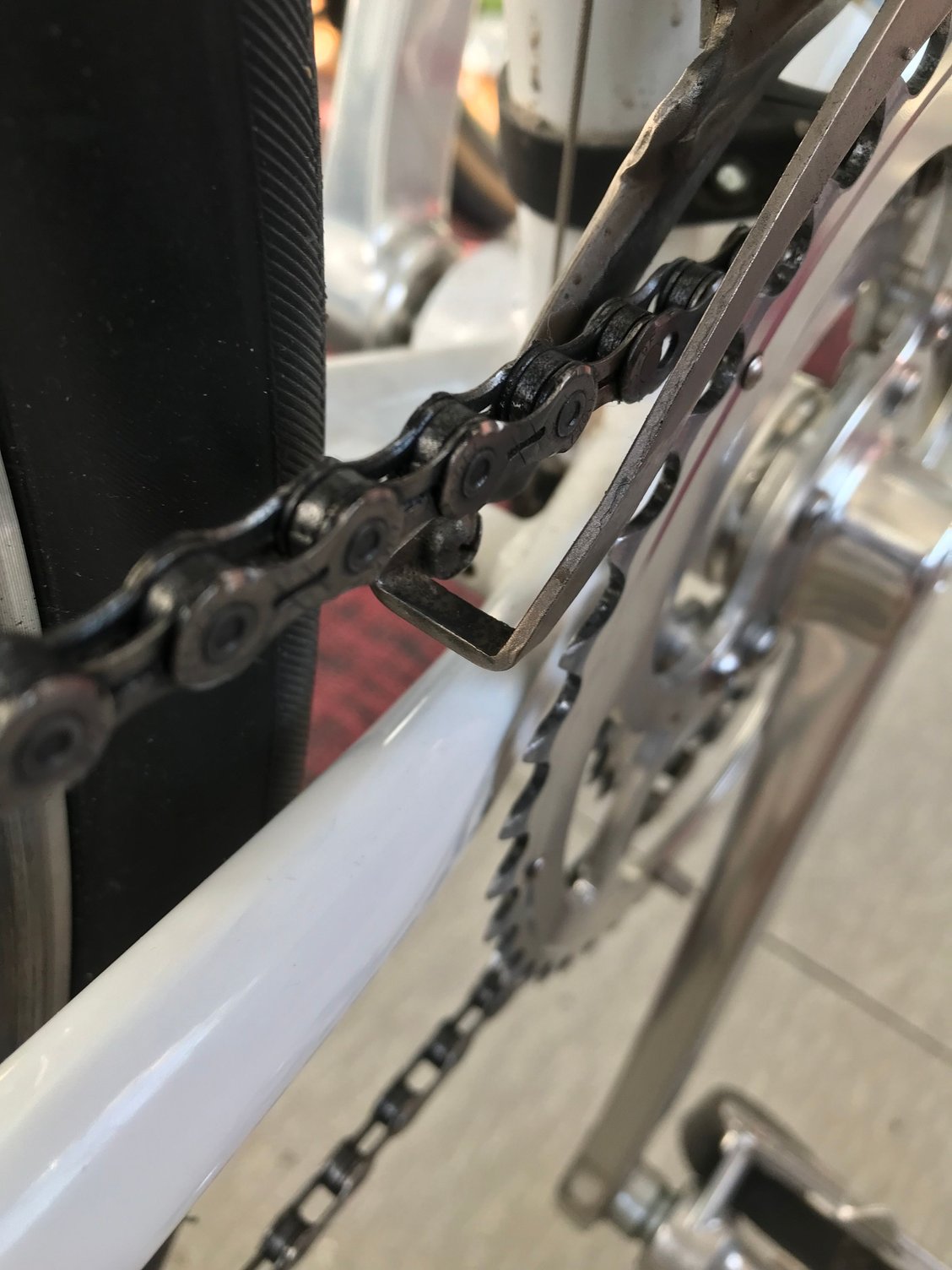

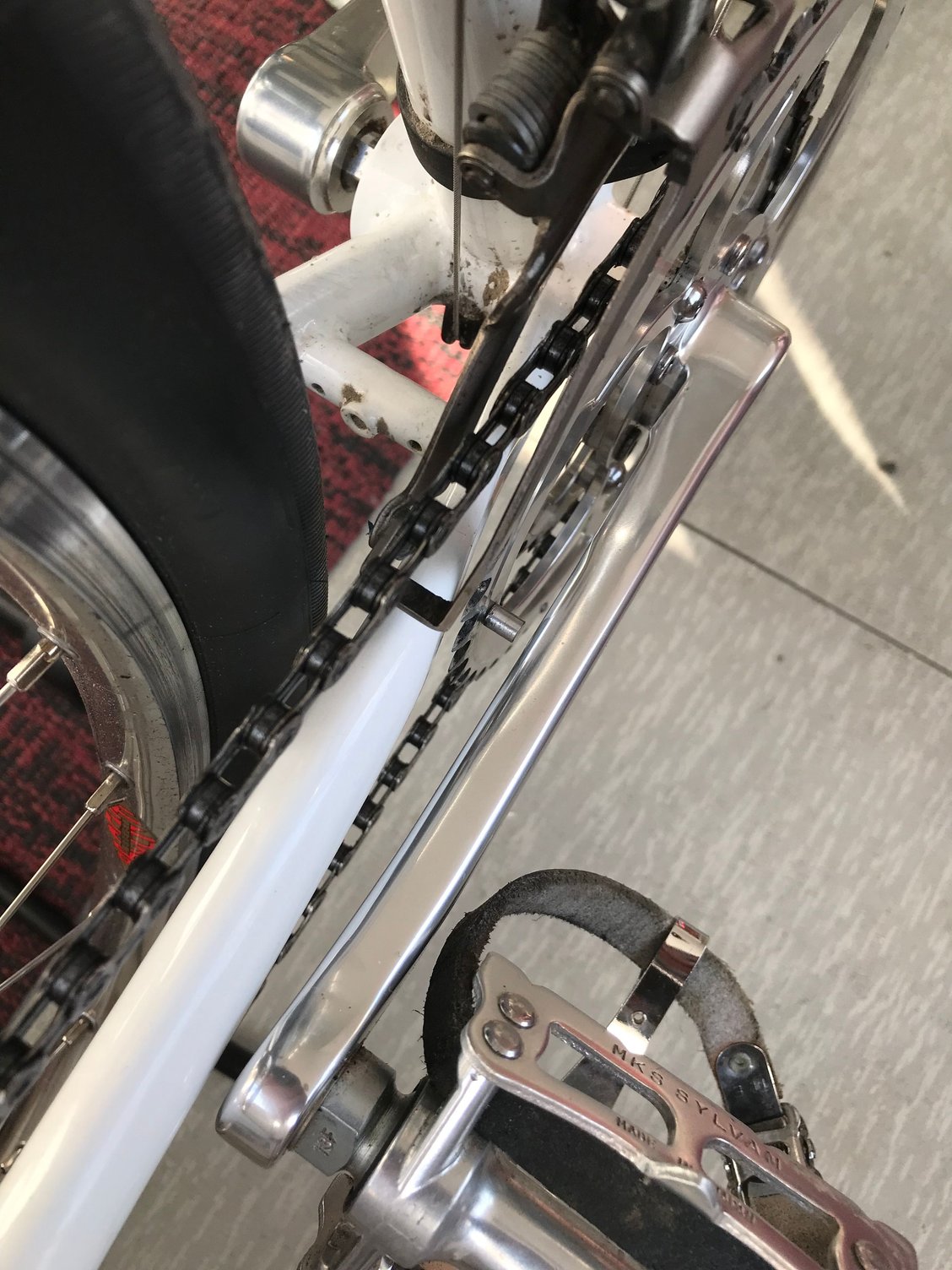

Here's a pic...(post test ride)



Chainring Clearance

Chainring Clearance

Mighty tight, right? ...just about get a 4mm allen key in there.

For good measure I've just refitted the driveside arm and rings tonight. Now, at exactly the same torque settings, I have <4mm clearance.

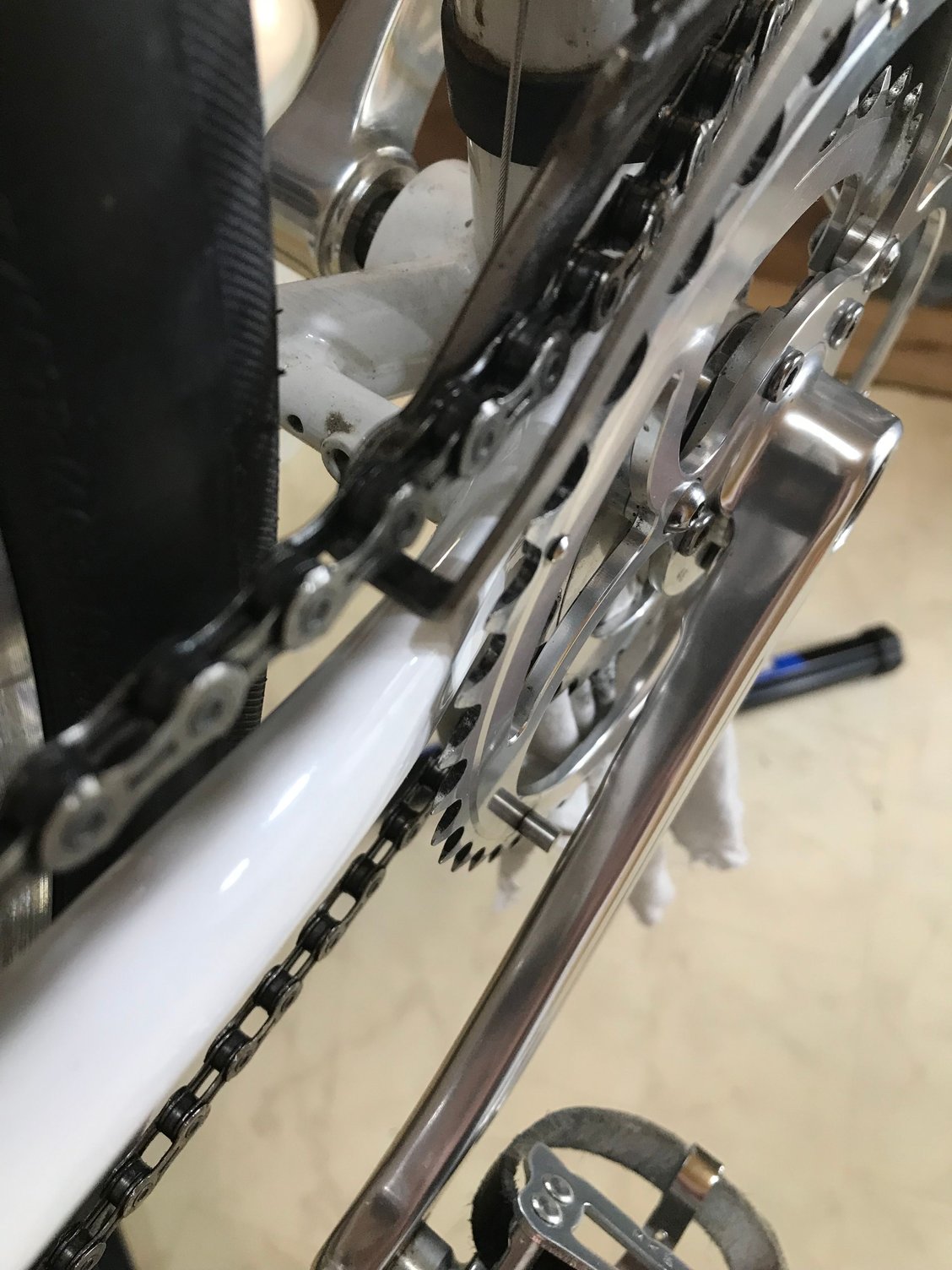

Here's a pic of the clearance with an un-torques crank bolt



Chainring clearance. Not torqued, 4mm allen key.

My Question: Should I be concerned about this? The bike rode fine on a 10 minute test ride. A bit of chattering in the middle of my Campagnolo 10 speed cassette. Chainline you say? Well...that's not so easy to measure but I'd say, just eyeballing it with a calliper, that it is less than 43.5mm (i.e optimal for a road double crankset according to SunXCD's spec sheet.)

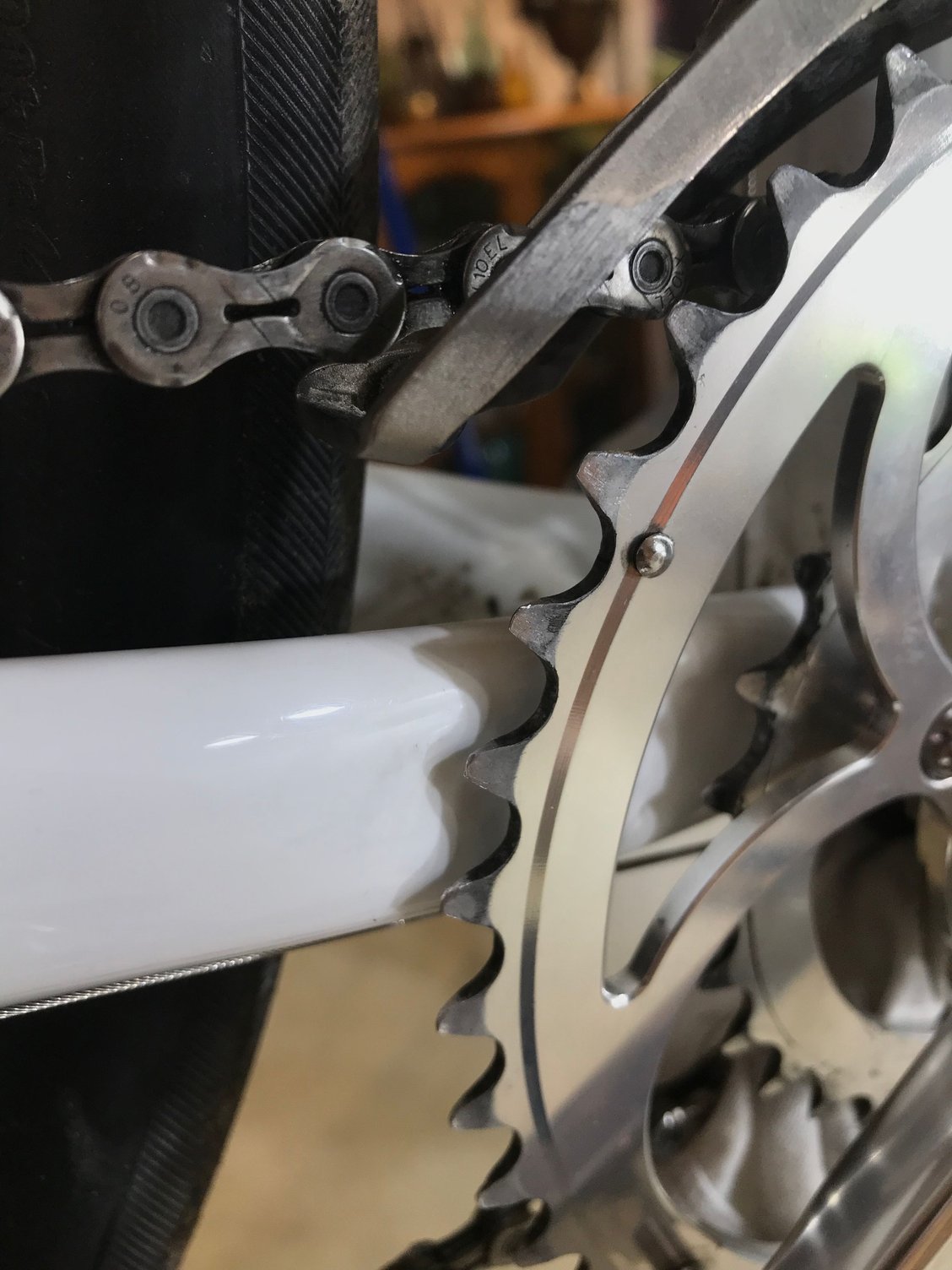

Two more pics



Close of play today: <4mm clearance

Close of play today: <4mm clearance


Look forward to hearing your views!
