Adding dust boots to budget bike hubs?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Adding dust boots to budget bike hubs?

Old 04-19-22, 06:32 PM
  #1
MyRedTrek
Senior Member
Thread Starter

Join Date: Aug 2020
Posts: 193
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 24 Times in 19 Posts
Adding dust boots to budget bike hubs?

This Walbike I've been working on doesn't have rubber dust boots on the hubs. Is there such a thing as an aftermarket dust boot for hubs like this?

Last edited by MyRedTrek; 04-19-22 at 06:53 PM.
MyRedTrek is offline
Old 04-19-22, 08:04 PM
  #2
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,299

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1841 Post(s)
Likes: 0
Liked 787 Times in 567 Posts
I doubt anyone makes aftermarket parts for bikes of that "quality". You can improvise with suitable size O-rings. In the past people used to wrap pipe cleaners around the hub seams as a seal.
HillRider is offline
Likes For HillRider:
Old 04-19-22, 08:32 PM
  #3
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,046

Bikes: lots

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1505 Post(s)
Liked 2,153 Times in 1,124 Posts
Between this and the grease thread you're wayyyyy overthinking this.
cxwrench is online now
Likes For cxwrench:
Old 04-19-22, 08:50 PM
  #4
Russ Roth
Senior Member

Join Date: Dec 2019
Location: South Shore of Long Island
Posts: 2,088

Bikes: 2010 Carrera Volans, 2015 C-Dale Trail 2sl, 2017 Raleigh Rush Hour, 2017 Blue Proseccio, 1992 Giant Perigee, 80s Gitane Rallye Tandem

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 789 Post(s)
Liked 632 Times in 478 Posts
Nope, hubs with rubber shields have grooves the rubber can run in while ones without don't have good ways of sealing them to the hub. Most with boots also use a larger washer and specific spacers to give the shield room to work with and stay in place, not easy to replicate. The metal dust shields work fairly well in general and unless you ride in a lot of mud and rain really do keep the dust out in general.
Russ Roth is offline
Likes For Russ Roth:
Old 04-19-22, 09:12 PM
  #5
MyRedTrek
Senior Member
Thread Starter

Join Date: Aug 2020
Posts: 193
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 24 Times in 19 Posts
Originally Posted by cxwrench View Post
Between this and the grease thread you're wayyyyy overthinking this.
Interesting that you felt a compulsion to express this and have no information to impart.
MyRedTrek is offline
Old 04-19-22, 09:36 PM
  #6
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,046

Bikes: lots

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1505 Post(s)
Liked 2,153 Times in 1,124 Posts
I don't need to 'impart' any information. None is needed.
cxwrench is online now
Likes For cxwrench:
Old 04-19-22, 10:28 PM
  #7
MyRedTrek
Senior Member
Thread Starter

Join Date: Aug 2020
Posts: 193
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 24 Times in 19 Posts
Originally Posted by cxwrench View Post
I don't need to 'impart' any information. None is needed.
Interesting.
MyRedTrek is offline
Old 04-20-22, 09:51 AM
  #8
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 4,859

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1573 Post(s)
Liked 1,564 Times in 988 Posts
I tend to try to figure out work arounds, but I think that there is really no way to keep any sort of seal in place.

The cone would need a groove, like Shimano freehub dust seals, and adding a grooved spacer would increase the OLD.

The only thing that comes to mind are the old Parallax hub seals, but I have no clue on getting them to stay in place.

John
70sSanO is offline
Old 04-20-22, 02:45 PM
  #9
MyRedTrek
Senior Member
Thread Starter

Join Date: Aug 2020
Posts: 193
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 24 Times in 19 Posts
Originally Posted by 70sSanO View Post
I tend to try to figure out work arounds, but I think that there is really no way to keep any sort of seal in place.

The cone would need a groove, like Shimano freehub dust seals, and adding a grooved spacer would increase the OLD.

The only thing that comes to mind are the old Parallax hub seals, but I have no clue on getting them to stay in place.

John
I'm experimenting with making something with Shoe Goo. If I end up with something I like I'll post pics.
MyRedTrek is offline
Old 04-20-22, 02:59 PM
  #10
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 4,859

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1573 Post(s)
Liked 1,564 Times in 988 Posts
I have no clue what will work. But any flexible/crushable material will need to be attached to a washer, maybe a fender washer, so it can be placed between the cone and the locknut and tightened without destroying it.

Now if you were so inclined, and had access to a lathe, you could put a seal groove on the outside of the cones.

None of this is worth the effort, but if you have the time there are worse things someone could do. I’ve seen some BF posts that have much less value than working on a Walmart bike.

John
70sSanO is offline
Old 04-20-22, 03:26 PM
  #11
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,046

Bikes: lots

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1505 Post(s)
Liked 2,153 Times in 1,124 Posts
Originally Posted by MyRedTrek View Post
Interesting.
Glad you think so.
cxwrench is online now
Likes For cxwrench:
Old 04-20-22, 09:21 PM
  #12
MyRedTrek
Senior Member
Thread Starter

Join Date: Aug 2020
Posts: 193
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 24 Times in 19 Posts
Originally Posted by 70sSanO View Post
Now if you were so inclined, and had access to a lathe, you could put a seal groove on the outside of the cones.
Not going to go quite that nuts with it - I anticipate adhering a flat donut/washer made of Shoe Goo or black automotive silicone material to the outer surface of the cone, wide enough to cover the gap between the cone and hub and have it spin over the edge of the hub riding on a coating of clear grease. I imagine it won't provide quite as good a seal against contamination as a proper boot but it should keep out a lot of potential contamination. There'll be a small amount of friction against the lip of the hub, I figure in about 50 - 75 years it might cause noticeable wear - lol.
MyRedTrek is offline
Old 04-21-22, 07:39 AM
  #13
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,631

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4295 Post(s)
Liked 2,847 Times in 1,983 Posts
Even the cheap Schwinn bikes I got back in the 60's and 70's didn't have dust covers on the hubs or on the one-piece Ashtabula crank. As a kid, I rode the snot out of them for many a mile in dirt, sand, and all kinds of filth. I never had to replace any bearings or races on them. All I did was regularly clean and grease the wheel hubs. And every great now and then clean and lube the crank.
Iride01 is offline
Old 04-22-22, 09:30 AM
  #14
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,281
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 720 Post(s)
Liked 788 Times in 476 Posts
Wasted time spent. Just use your grease in plenty it will do just fine as a protective without seals.
Mr. 66 is offline
Old 04-22-22, 01:08 PM
  #15
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: North Carolina
Posts: 2,656

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 882 Post(s)
Liked 681 Times in 411 Posts
Originally Posted by Mr. 66 View Post
Wasted time spent. Just use your grease in plenty it will do just fine as a protective without seals.
Yes, I agree. Most of my vintage bikes do not have rubber seals on the hubs and that has no affect on their performance over tens of thousands of miles. If you decide to go ahead with the DIY fabrication, consider doing only one side of the hub so in a year or so you can compare 'sealed' vs. unsealed wear.
Moe Zhoost is offline
Old 05-05-22, 03:09 PM
  #16
MyRedTrek
Senior Member
Thread Starter

Join Date: Aug 2020
Posts: 193
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 24 Times in 19 Posts
Originally Posted by 70sSanO View Post
I tend to try to figure out work arounds, but I think that there is really no way to keep any sort of seal in place.

The cone would need a groove, like Shimano freehub dust seals, and adding a grooved spacer would increase the OLD.

The only thing that comes to mind are the old Parallax hub seals, but I have no clue on getting them to stay in place.

John

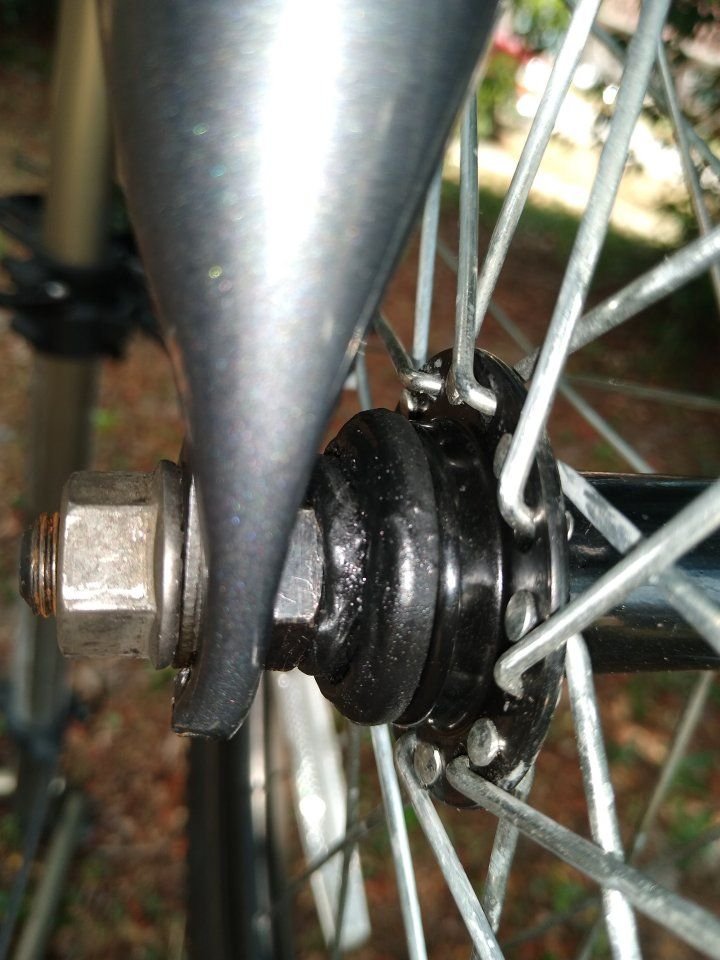

Here's what I came up with - made molds off the outer ends of the hubs with molding putty and used clear nail polish as a mold release. The curved part rides just a hair off the hub. The boots are silicone gasket maker material - it took me a couple of tries to work out how to load the molds with the silicone. I sprayed them with a cocoon of Plasti-Dip because nothing really sticks to the silicone except other silicone and then a couple of coats of vinyl paint on the exposed side to make them a bit cosmetically nicer.

I imagine with more obsessive attention to detail they could be made more "factory" in appearance.




MyRedTrek is offline
Likes For MyRedTrek:
Old 05-05-22, 03:18 PM
  #17
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 4,859

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1573 Post(s)
Liked 1,564 Times in 988 Posts
They actually look decent. How well they hold up or do their job, is not a concern since you are passing the bike along.

Regardless, it looks like a fun project. Good job.

John
70sSanO is offline
Likes For 70sSanO:
Old 05-05-22, 04:54 PM
  #18
MyRedTrek
Senior Member
Thread Starter

Join Date: Aug 2020
Posts: 193
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 24 Times in 19 Posts
Originally Posted by 70sSanO View Post
They actually look decent. How well they hold up or do their job, is not a concern since you are passing the bike along.

Regardless, it looks like a fun project. Good job.

John
Thanks - since they're made of silicone rubber and there's no friction unless they encounter some trauma I would expect them to outlive the bike's owner by several centuries - lol.
MyRedTrek is offline
Old 05-08-22, 06:54 PM
  #19
_ForceD_
Senior Member on Sr bikes

_ForceD_'s Avatar

Join Date: Jul 2015
Location: Rhode Island
Posts: 1,837

Bikes: Several...from old junk to new all-carbon.

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 793 Post(s)
Liked 467 Times in 250 Posts
I’ve made simple replacement dust covers out of sturdy, pliable plastic…like the plastic used for some ice cream tubs for example. You can cut them in one of two ways. Either precisely so that it fits snug in the cup and spins around the cone, or vise-versa so that it fits snug on the cone and spins in the cup. They worked fine, and lasted a long time.

Dan
_ForceD_ is offline
Likes For _ForceD_:
