Spoke Diameter Discrepancy - 14ga

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Spoke Diameter Discrepancy - 14ga

Old 04-23-22, 11:25 PM
  #1
zandoval
Senior Member
Thread Starter

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 3,120

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 448 Post(s)
Liked 660 Times in 441 Posts
Spoke Diameter Discrepancy - 14ga

Been popping spokes on an old wheel set. Its the rear freewheel side spokes that have been popping after a slow climbs. Supposedly they are straight stainless 14ga spokes on a 700c Wheel Set I purchased off the sorely missed Harris Cyclery site many years ago. I am replacing them with Swiss DT 14ga stainless spokes and have had no problems.

I got out the micrometer and the old spokes measure 1.96mm and the Swiss DT measure 2.0.

Is this normal?
__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Old 04-23-22, 11:59 PM
  #2
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,061

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1482 Post(s)
Liked 736 Times in 541 Posts
And .04mm is how many inches?
A brand new drawing die may produce even thinner than that?

What does your mic read when it's zeroed?

Last edited by Bill Kapaun; 04-24-22 at 12:04 AM.
Bill Kapaun is offline
Likes For Bill Kapaun:
Old 04-24-22, 06:59 AM
  #3
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: North Carolina
Posts: 2,656

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 882 Post(s)
Liked 681 Times in 411 Posts
Insignificant difference. We're talking less than the diameter of a human hair.
Moe Zhoost is offline
Old 04-24-22, 10:26 AM
  #4
Steelman54
Senior Member

Join Date: Jun 2014
Location: SW Ohio
Posts: 247

Bikes: Allegro Model 77, Gitane Team Pro SLX, Waterford R2200

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Likes: 0
Liked 37 Times in 29 Posts
In manufacturing there is a tolerance on drawn wire. 0.04 mm = 0.0015 inches. I would hazard a guess that +/- 0.002 inches is normal tolerance here, so no issue. Spoke breakage is due to several factors that come to mind such as improperly tensioned spokes or old and failing due to fatigue.
Steelman54 is offline
Old 04-24-22, 11:10 AM
  #5
zandoval
Senior Member
Thread Starter

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 3,120

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 448 Post(s)
Liked 660 Times in 441 Posts
Originally Posted by Bill Kapaun View Post
...What does your mic read when it's zeroed?
Understood... Yes it is zeroed and multiple spokes were measured over thier entire length with almost no variance.

Originally Posted by Moe Zhoost View Post
Insignificant difference...
Good... That's what I thought. I figure the old spokes are closer to 14ga rather than 15ga and they are generic.

Originally Posted by Steelman54 View Post
...old and failing due to fatigue.

Yes Sir... Just like me...


I think the next time I put a wheel set together I will go for Swiss DT 14ga and use Swiss DT 13ga on the rear dive drive side of the wheel. I hover around 235 to 250 pounds and have not had any problems with popping spokes except on my old wheel sets on the rear drive. Most of my rides are slow and up and down so that rear wheel really gets a workout!
__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Old 04-24-22, 05:42 PM
  #6
KerryIrons
Senior Member

Join Date: Mar 2012
Posts: 288
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Likes: 0
Liked 144 Times in 83 Posts
Originally Posted by zandoval View Post
Been popping spokes on an old wheel set. Its the rear freewheel side spokes that have been popping after a slow climbs. Supposedly they are straight stainless 14ga spokes on a 700c Wheel Set I purchased off the sorely missed Harris Cyclery site many years ago. I am replacing them with Swiss DT 14ga stainless spokes and have had no problems.

I got out the micrometer and the old spokes measure 1.96mm and the Swiss DT measure 2.0.

Is this normal?
Please explain "popping spokes." Are they breaking, and if so where. If they are pulling out of the spoke nipples then that suggests you have the wrong size nipples for the spokes you are using. If they are breaking somewhere else, then spoke gauge micro differences can't possibly be the reason. If they are breaking at the end of the threads, then you most likely have some defective spokes.
KerryIrons is offline
Old 04-24-22, 08:23 PM
  #7
zandoval
Senior Member
Thread Starter

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 3,120

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 448 Post(s)
Liked 660 Times in 441 Posts
Originally Posted by KerryIrons View Post
Please explain "popping spokes." ...
Sorry for not giving better description as I have never had a spoke fail anywhere but at the J bend. This particular wheel set has over 10 years use on some pretty rough roads with a heavy guy on top of them. I really am mot complaining but when I measured the spoke diameters I noted the difference. They are closer to 14ga than 15ga and it is really a minuscule in difference.

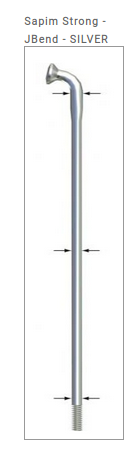

In the future I am considering the Sapim Strong spokes. 13ga at the neck and 14ga on the length and just a little cheaper than the Swiss DT Alpine III


__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Old 04-26-22, 08:43 AM
  #8
KerryIrons
Senior Member

Join Date: Mar 2012
Posts: 288
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Likes: 0
Liked 144 Times in 83 Posts
Originally Posted by zandoval View Post
Sorry for not giving better description as I have never had a spoke fail anywhere but at the J bend. This particular wheel set has over 10 years use on some pretty rough roads with a heavy guy on top of them. I really am mot complaining but when I measured the spoke diameters I noted the difference. They are closer to 14ga than 15ga and it is really a minuscule in difference.
Consistent failure at the bend most often suggests insufficient wheel tension. The extra flexing of the spokes due to the low tension causes the breakage at the bend. The general rule is that if one spoke breaks, it's a fluke. If two break it's a cause for concern. If three break then the wheel is most likely compromised and a rebuild is in order. It sounds like you're well past that point.
KerryIrons is offline
Likes For KerryIrons:
Old 04-26-22, 09:12 AM
  #9
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 21,905

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3554 Post(s)
Liked 1,947 Times in 1,243 Posts
Originally Posted by zandoval View Post
Sorry for not giving better description as I have never had a spoke fail anywhere but at the J bend. This particular wheel set has over 10 years use on some pretty rough roads with a heavy guy on top of them. I really am mot complaining but when I measured the spoke diameters I noted the difference. They are closer to 14ga than 15ga and it is really a minuscule in difference.

In the future I am considering the Sapim Strong spokes. 13ga at the neck and 14ga on the length and just a little cheaper than the Swiss DT Alpine III
Rather than thick tent-stake spokes, you probably just need more of them.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 04-27-22, 08:57 PM
  #10
zandoval
Senior Member
Thread Starter

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 3,120

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 448 Post(s)
Liked 660 Times in 441 Posts
Originally Posted by KerryIrons View Post
Consistent failure at the bend most often suggests insufficient wheel tension. The extra flexing of the spokes due to the low tension causes the breakage at the bend...
Thank You for the note. I did a close inspection of the wheel and found a few things. I am lucky enough to have a still in the box, new, unused wheel set of the same manufacture. I found that over all the spoke tension was a few points lower on both sides of the old rear wheel. The spoke nipples are the same on both sets but on the old set 0.05mm more of the nipple was showing above the rim. Also on removing the old spokes from the hub I found indentations from the hub in the crook of the J bend. I have over the years been careful about keeping my wheels true and have made minor adjustments to keep them so. But I have not paid attention to the over all spoke tension over the entire wheel. I will in the future make a point of measuring original spoke tension of new wheel sets before use then attempt to keep that over all tension during maintenance checks.

As a solution for my current problem, I replaced all the spokes on the drive side with new Sapim 14ga spokes. I then loosened to sloppy the entire wheel and then trued laterally, radially and set the dish. The current tension on the spokes closely matches the new wheel set. I am confident the rebuilt wheel has new life and expect my spoke popping to be solved.

As to the OP: It appears that a difference in spoke diameter of 0.04mm is insignificant. The diameter of the old spokes at 0.96mm make them closer to 14ga then 15ga.
