Inconsistent chain length calculations

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Inconsistent chain length calculations

Old 05-05-22, 08:02 AM
  #1
nPn
Member
Thread Starter

Join Date: Apr 2008
Posts: 48

Bikes: 2007 Kona Cinder Cone, 2012 Raleigh Revinio 3.0

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
Inconsistent chain length calculations

I updated my recently acquired size 54 2010 Roubaix Comp's rear drive train to be a little more climbing friendly. The original rear drive train consisted of a rd-5600 derailleur with a 12-27 cassette, 27 teeth being listed as the max for that derailleur. I switched to a rd-5701-gs derailleur along with a 11-32 cassette which is spec'd to work with the 50-34 front chainring set. I was planning on using the chain length equation L = 2 ◊ C + F/4 + R/4 + 1, which when I applied it to the original setup gave 105 for the number of links This matched the chain on the bike before I swapped the rear cassette from a 27T to 32T on the largest cog. Applying the equation to the new setup I get 107 links. Instead of just cutting 9 links off of my new KMC X10 that came with 116 links (including the "missing link") to get it down to 107, I tried to use the Park Tool Largest to Largest method. When I did this I ended up only cutting 6 links out so I end up with 110 links which is 3 links longer than the equation. I finished adjusting the H/L limits and the indexing and shifting is perfect both on the stand and on the road. So my question is should I leave it as is or trust the 107 number and remove 3 links? I did see other sizing advice that says a chain is too long if when on the derailleur and on the largest chain ring and cog, you can "fold" a link over. I can definitely fold a link when in this state, but probably not more than 1 link. Any other advice?
nPn is offline
Old 05-05-22, 08:11 AM
  #2
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,047

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1476 Post(s)
Liked 735 Times in 540 Posts

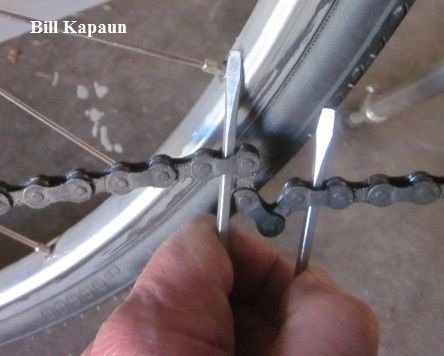

What can go wrong if you do nothing?
Sometimes it's better to let sleeping dogs lie.
Bill Kapaun is offline
Old 05-05-22, 08:13 AM
  #3
prj71
Senior Member

Join Date: Jun 2015
Location: North Central Wisconsin
Posts: 3,638
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 2163 Post(s)
Liked 676 Times in 451 Posts
I've never used an equation to put a chain on a bike. It's either too loose or too tight...just go by feel and add or remove links as necessary.

Sometimes people over complicate this stuff...

Last edited by prj71; 05-05-22 at 09:58 AM.
prj71 is offline
Likes For prj71:
Old 05-05-22, 08:24 AM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,239

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3417 Post(s)
Liked 2,097 Times in 1,372 Posts
This is why I don't follow the "repair by numbers" methods as the sole way to determine stuff. You test fitted the chain on the stand, confirmed that the length was not too short (the "dangerous" length) and then test rode on the road. Exactly what I was referring to in this recent thread Is My Chain The Right Length? - Bike Forums I will; say you did the right thing. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 05-05-22, 08:59 AM
  #5
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,594

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4286 Post(s)
Liked 2,829 Times in 1,971 Posts
Page 28 of this .pdf

https://si.shimano.com/api/publish/s...001-26-ENG.pdf

Note that when you have bigger than a 27 toot cog on the rear you do not run the chain through the DR while determining it's proper length.

Big thing is just that after putting the chain back through the DR cage, when in the big big combo that the DR cage not be stretched to the it's absolute limit for forward travel. And when in the small small combo that your chain not go slack and droop.

Other methods for sizing chains work too.
Iride01 is offline
Likes For Iride01:
Old 05-05-22, 09:39 AM
  #6
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 5,377
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1,696 Times in 1,164 Posts
Does the chain smack the chain stay when in the lowest cassette tooth & smallest front ring?
__________________
-Oh Hey!
Troul is offline
Old 05-05-22, 09:42 AM
  #7
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,031

Bikes: lots

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1499 Post(s)
Liked 2,143 Times in 1,117 Posts
Originally Posted by nPn View Post
Any other advice?
Forget mathematical formulas. Install the chain and size with the manufacturers guidelines OR if everything is within spec use small/small. Doing math and counting links is a waste of time.
cxwrench is offline
Likes For cxwrench:
Old 05-05-22, 11:38 AM
  #8
urbanknight
Over the hill

urbanknight's Avatar

Join Date: Mar 2006
Location: Los Angeles, CA
Posts: 23,210

Bikes: Giant Defy, Specialized Allez, Raleigh Pursuit tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 371 Post(s)
Liked 408 Times in 257 Posts
As long as the chain is not too tight in the big/big combo and not too loose in the small/small combo, you're fine. Some gear combinations allow you a range of acceptable chain lengths, and if anything I'd rather have the longer of those options just in case I want to get an even larger cog in the future.
__________________
It's like riding a bicycle
urbanknight is offline
Likes For urbanknight:
Old 05-05-22, 11:55 AM
  #9
nPn
Member
Thread Starter

Join Date: Apr 2008
Posts: 48

Bikes: 2007 Kona Cinder Cone, 2012 Raleigh Revinio 3.0

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
I feel there is a little droop, in small - small?
nPn is offline
Old 05-05-22, 12:26 PM
  #10
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: North Carolina
Posts: 2,654

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 882 Post(s)
Liked 681 Times in 411 Posts
Originally Posted by nPn View Post
I feel there is a little droop, in small - small?
Looks fine to me.
Moe Zhoost is offline
Old 05-05-22, 12:27 PM
  #11
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 815

Bikes: 1989 Cinelli Super Corsa

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 476 Post(s)
Liked 270 Times in 198 Posts
Looks OK to me. Is there still tension on the rear derailleur? How's it look in big-big?
smd4 is offline
Old 05-05-22, 01:09 PM
  #12
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 5,377
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1,696 Times in 1,164 Posts
without putting hands on it & going by the picture, I'd shorten it a link.
__________________
-Oh Hey!
Troul is offline
Old 05-05-22, 01:25 PM
  #13
Germany_chris
Iím a little Surly

Germany_chris's Avatar

Join Date: Jan 2010
Location: Southern Germany
Posts: 1,860

Bikes: Two Cross Checks and a Karate Monkey

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 450 Post(s)
Liked 787 Times in 407 Posts
Big/big and add a link
Germany_chris is offline
Old 05-05-22, 01:35 PM
  #14
nPn
Member
Thread Starter

Join Date: Apr 2008
Posts: 48

Bikes: 2007 Kona Cinder Cone, 2012 Raleigh Revinio 3.0

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
Thanks all! I think I am going to stick with what I have for now. I just realized I would need to remove 2 links one inner and one outer to shorten it with the missing link (unless I am missing something), and I think that would be too tight. If I hear any chain slap, start noticing any more droop, or start dropping the chain, I will re-consider.
nPn is offline
Likes For nPn:
Old 05-05-22, 01:38 PM
  #15
nPn
Member
Thread Starter

Join Date: Apr 2008
Posts: 48

Bikes: 2007 Kona Cinder Cone, 2012 Raleigh Revinio 3.0

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
yes there is still tension on the rear derailleur, big big looks good, tho I might be able to fold one link.
nPn is offline
Old 05-05-22, 01:40 PM
  #16
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 5,377
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1,696 Times in 1,164 Posts
what does it look like when the chain is on the Big & Big?
__________________
-Oh Hey!
Troul is offline
Old 05-05-22, 01:47 PM
  #17
nPn
Member
Thread Starter

Join Date: Apr 2008
Posts: 48

Bikes: 2007 Kona Cinder Cone, 2012 Raleigh Revinio 3.0

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
Here is a photo of the chain on the big-big set.
nPn is offline
Likes For nPn:
Old 05-05-22, 01:48 PM
  #18
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 815

Bikes: 1989 Cinelli Super Corsa

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 476 Post(s)
Liked 270 Times in 198 Posts
I wouldn't remove any links. But that's just me.
smd4 is offline
Likes For smd4:
Old 05-05-22, 02:05 PM
  #19
urbanknight
Over the hill

urbanknight's Avatar

Join Date: Mar 2006
Location: Los Angeles, CA
Posts: 23,210

Bikes: Giant Defy, Specialized Allez, Raleigh Pursuit tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 371 Post(s)
Liked 408 Times in 257 Posts
Yeah, unless it's not running smoothly in small/small (which you shouldn't be using anyway), leave it be.
__________________
It's like riding a bicycle
urbanknight is offline
Old 05-05-22, 02:16 PM
  #20
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 8,418

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 1708 Post(s)
Liked 1,274 Times in 796 Posts
fwiw I like small/small sizing works vintage and modern

no calculations

squirtdad is offline
Old 05-05-22, 03:10 PM
  #21
trucklet
good cheap fun

trucklet's Avatar

Join Date: Jan 2022
Location: Lansing, MI
Posts: 23

Bikes: 2017 Specialized Fuse, '75 Schwinn Voyageur II, '86 Schwinn LeTour, '86 Cannondale SR800 pre-Black Lightning, '90s Cannondale H200, '90 Trek 720, '76 Schwinn Super Le Tour

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 15 Times in 6 Posts
Yep, unless I'm working on SRAM Eagle or full suspension, small-small sizing has never given me issues. Chain length looks perfect nPn .
trucklet is offline
Old 05-15-22, 12:22 AM
  #22
Camilo
Senior Member

Join Date: Apr 2007
Posts: 5,465
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 581 Post(s)
Liked 407 Times in 271 Posts
Originally Posted by nPn View Post
Thanks all! I think I am going to stick with what I have for now. I just realized I would need to remove 2 links one inner and one outer to shorten it with the missing link (unless I am missing something), and I think that would be too tight. If I hear any chain slap, start noticing any more droop, or start dropping the chain, I will re-consider.
Post a picture of the derailleur when it's on the big ring in front and big sprocket in back. That will tell you if the chain can be safely shortened or not. Anything else, including the formula, is just speculation.
Camilo is offline
Old 05-15-22, 01:10 AM
  #23
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 761

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 155 Times in 108 Posts
Originally Posted by Camilo View Post
Post a picture of the derailleur when it's on the big ring in front and big sprocket in back. That will tell you if the chain can be safely shortened or not. Anything else, including the formula, is just speculation.

Her already did, look at post 17 of this thread
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Old 05-15-22, 07:54 PM
  #24
Camilo
Senior Member

Join Date: Apr 2007
Posts: 5,465
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 581 Post(s)
Liked 407 Times in 271 Posts
Originally Posted by JoeTBM View Post
Her already did, look at post 17 of this thread
mea culpa. I agree with the advice given!
Camilo is offline
Old 05-15-22, 08:03 PM
  #25
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,047

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1476 Post(s)
Liked 735 Times in 540 Posts
BIG:BIG
You want 1-2" of slack.
Bill Kapaun is offline
