Bottom bracket woes

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Bottom bracket woes

Old 05-19-22, 04:33 PM
  #26
spelger
Senior Member

spelger's Avatar

Join Date: Jul 2015
Location: reno, nv
Posts: 1,463

Bikes: yes, i have one

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 718 Post(s)
Liked 719 Times in 424 Posts
Originally Posted by Crankycrank View Post
You could always siphon a little ATF from your car since such a tiny amount is needed.
he doesn't drive, probably no car.
spelger is offline
Likes For spelger:
Old 05-19-22, 05:04 PM
  #27
ironhands
Senior Member
Thread Starter

Join Date: Mar 2013
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 2 Posts
Originally Posted by squirtdad View Post
seriously anyplace that has ATF is likely to have a penetrating oil.

I like stuff called freeze-off but that is probably hard to find

the other thing in these situations is hard whacks, steel steel to help break things loose, I have often found hard whacks help get things started better than long levers,

good luck
Hopefully, it seems there's a shortage in Canada. Will take a look for automotive shops nearbyOh, if the lockring wrench I ordered doesn't do the trick

Last edited by ironhands; 05-19-22 at 05:09 PM.
ironhands is offline
Old 05-19-22, 06:10 PM
  #28
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: North Carolina
Posts: 2,654

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 882 Post(s)
Liked 681 Times in 411 Posts
I usually use PB Blaster; however when that doesn't work, I use Oil of Wintergreen (Methyl salicylate). I reckon I should try it first, but I have a hard time remembering where that tiny bottle is. Shouldn't be hard to find locally. Smells much better than PB Blaster. Good luck on your project. Let us know how it's going.
Moe Zhoost is offline
Old 05-19-22, 06:19 PM
  #29
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 5,377
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1,689 Times in 1,162 Posts
When temps are above 60F, diesel fuel & clean engine oil. pour it on & let it sit for a hour.
__________________
-Oh Hey!
Troul is offline
Old 05-19-22, 07:48 PM
  #30
Kai Winters
Senior Member

Join Date: Oct 2008
Location: Northern NY...Brownville
Posts: 2,034

Bikes: Specialized Aethos

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Liked 72 Times in 43 Posts
Originally Posted by ironhands View Post
Unfortunately I've only seen liquid wrench products at my Lowe's, but lubricant not penetrating oil. We're having supply issues in the great white north. I did see some PB on Amazon, but it's not shipping anytime soon, so yeah, as I said above, rather than oil, gotta go elbow grease and hope that the new lockring wrench is sufficient in combination with the wd40. Appreciate the help!
Try a local auto repair shop...bring the frame/bike and ask if you can spray a bit of penetrating fluid...tip the mechanic a fiver and everybody wins.
Kai Winters is offline
Likes For Kai Winters:
Old 05-19-22, 08:42 PM
  #31
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 8,913

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2091 Post(s)
Liked 2,061 Times in 1,281 Posts
Originally Posted by ironhands View Post
I'll have to make my own, there's literally nothing at Lowe's, appreciate the tip!
You must have a pretty ****** Lowes
​​​​​​https://www.google.com/search?q=lowe...hrome&ie=UTF-8
dedhed is online now
Old 05-19-22, 10:40 PM
  #32
SalsaShark
Senior Member

SalsaShark's Avatar

Join Date: Nov 2014
Location: Eastern Iowa
Posts: 590

Bikes: 2014 Trek Allant drop bar conversion, modified Schwinn MTN commuter, 2015 Trek 520, Soma ES, Salsa Journeyman, 1980 Trek 414

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 159 Post(s)
Liked 308 Times in 149 Posts
I had a similar BB on an early 2000's Schwinn. Mine had the same cup and locking on the NDS, and the BB was indeed a standard type cup and cone, with caged bearings.
A 3-prong locking tool worked well when I initially disassembled mine for it's first service. Have you tried applying some heat? This always quickly helps to loosen up seized threads - don't need to go crazy, even a heat gun can do wonders. I would also try a vice grips on the locking, and a shocking blow with a hammer.
Best of luck with the repair.
SalsaShark is offline
Old 05-20-22, 05:42 AM
  #33
ironhands
Senior Member
Thread Starter

Join Date: Mar 2013
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 2 Posts
Originally Posted by dedhed View Post
You must have a pretty ****** Lowes
​​​​​​https://www.google.com/search?q=lowe...hrome&ie=UTF-8

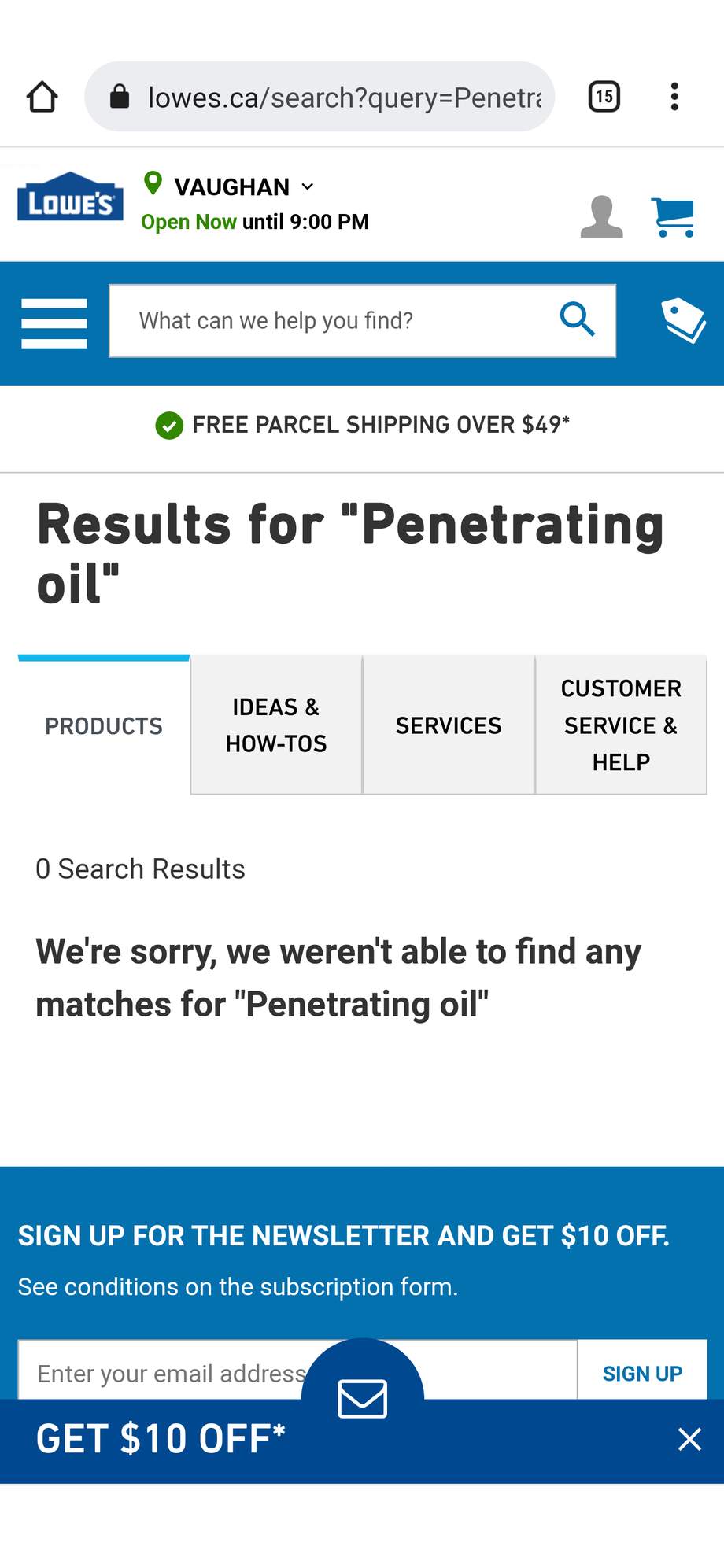

It's everywhere I've checked too, gotta see an auto shop:
ironhands is offline
Old 05-20-22, 05:48 AM
  #34
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 8,913

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2091 Post(s)
Liked 2,061 Times in 1,281 Posts
Originally Posted by ironhands View Post
It's everywhere I've checked too, gotta see an auto shop:

https://www.lowes.ca/dept/lubricants...158?display=24
dedhed is online now
Old 05-20-22, 06:03 AM
  #35
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 8,913

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2091 Post(s)
Liked 2,061 Times in 1,281 Posts
https://www.lowes.ca/product/lubrica...netrant-480791
dedhed is online now
Old 05-20-22, 07:25 AM
  #36
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,483

Bikes: Several, mostly not name brands.

Mentioned: 136 Post(s)
Tagged: 0 Thread(s)
Quoted: 2937 Post(s)
Liked 1,949 Times in 1,166 Posts
A hammer and punch will get he lockring off, if you're not concerned about damaging the ring. Otherwise, a hook spanner as suggested above, or even better, a lockring pliers is less likely to damage the ring.
Attached Images
File Type: jpg
File Type: jpg
JohnDThompson is offline
Old 05-20-22, 02:29 PM
  #37
ironhands
Senior Member
Thread Starter

Join Date: Mar 2013
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 2 Posts
Finally found some actual penetrant, hidden away in the bloody garden section, had to ask two slack-jawed kids. Anyway gave it two good treatments letting it soak for an hour. Got my wrench from Amazon, it's pure trash, the tooth is rounded! Went at it with a hammer and a screwdriver, only succeeded in breaking off 2 sides of the teeth.
any ideas before I cut the damn thing off with a dremel?
ironhands is offline
Old 05-20-22, 02:50 PM
  #38
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,961
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 620 Post(s)
Liked 562 Times in 430 Posts
Originally Posted by ironhands View Post
Anyway gave it two good treatments letting it soak for an hour.
Should give the penetrant at least 2 days for your situation. What penetrant did you get?
Crankycrank is offline
Likes For Crankycrank:
Old 05-21-22, 10:14 AM
  #39
ironhands
Senior Member
Thread Starter

Join Date: Mar 2013
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 2 Posts
Lock ring is off! I ended up just filing it down enough to crack it with a hammer/screwdriver. Leaving it a day or two to soak before I giver a solid go on the BB, not budging yet
ironhands is offline
Old 05-21-22, 11:33 PM
  #40
Camilo
Senior Member

Join Date: Apr 2007
Posts: 5,465
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 581 Post(s)
Liked 407 Times in 271 Posts
Originally Posted by Kai Winters View Post
Try a local auto repair shop...bring the frame/bike and ask if you can spray a bit of penetrating fluid...tip the mechanic a fiver and everybody wins.
I've done drop ins to auto repair shops for simple bike stuff when i'm traveling far away from home in the travel trailer and don't have something I need but didn't have the foresight (or room!) to pack along. 9.9999/10 times they just put down what they're working on and cut, pry, break, pound, use a vice on, or whatever I need done assuming it's simple and quick. Best to go to a service station/mom &pop type place where you can see the guys working from the door and talk directly.
Camilo is offline
Likes For Camilo:
Old 05-25-22, 07:13 AM
  #41
ironhands
Senior Member
Thread Starter

Join Date: Mar 2013
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 2 Posts
Thanks everyone! After soaking, breaker bar, cheater bar. Nothing worked. Brought it into work, a co-worker was a bike mechanic a while back, couldn't get it moving either, so he brought in the bug guns; and impact gun. Popped off in 10 seconds. Luckily my FLBS did in fact provide the correct replacement with a lucky guess. Just have to pop the cranks back on and I'm riding home tonight!
thanks again for all your help
ironhands is offline
Likes For ironhands:
Old 05-27-22, 09:29 AM
  #42
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,029

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1503 Post(s)
Liked 407 Times in 316 Posts
Originally Posted by Bill Kapaun View Post
Something called PENETRATING OIL.
There's various brands.
I use Liquid Wrench in the can with a spout so I can use tiny amounts in a hypodermic needle.
Spraying it all over hell & beyond just makes a mess and wastes product.

For your case, I'd just remove the lock ring with a cold chisel.
Also KROIL. You need to check out a good LHS (local hardware store).
Road Fan is offline
