Bottom bracket woes

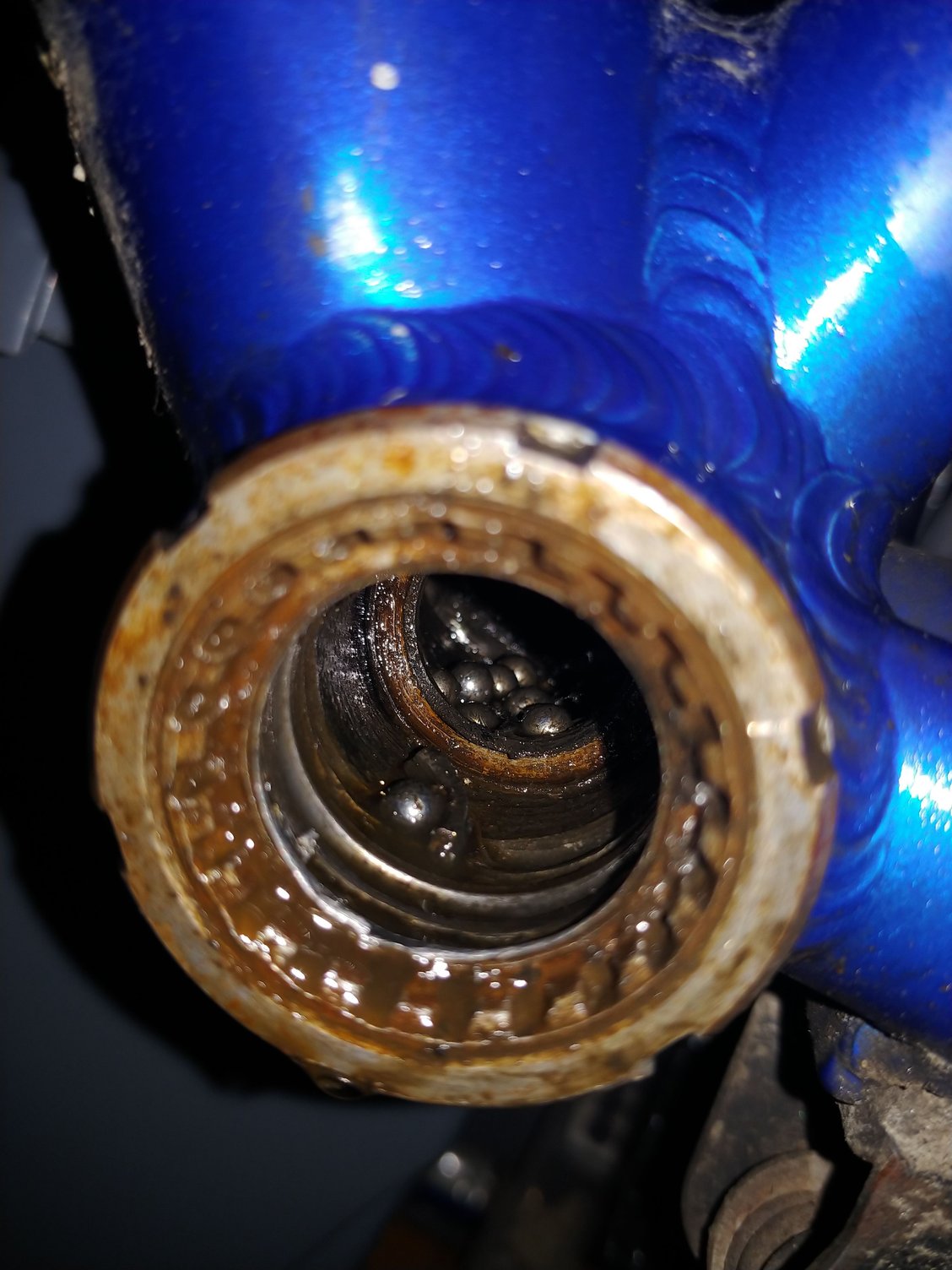

So FLBS is 3 weeks behind on repairs so I grabbed a new BB and set to work myself. Old one is toast. We're pretty sure it's a cartridge, but I can't get the old one out, ripped out the spindle to get a better look at what's going on. Using an 18" breaker bar, and the right tool, counter clockwise on the non-drive side. From what I can see, it's just seized and old, but showing a friend a photo, he believes there's a lock ring, but from what I can see, it seems to be just able to accept either the spindle tool or a wrench. Can anyone she's some light on this? If it is a lock ring and not just a cup, can you point me to a tool?

Thanks everyone, ride safe!
ironhands is offline
Old 05-19-22, 09:33 AM
  #2
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 8,936

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2098 Post(s)
Liked 2,083 Times in 1,289 Posts
If it's a lock ring, channel locks. Turning correct direction for your BB threading?
Shoulda left the spindle in because you're going to have to bolt the tool in on tight ones. You can run a long bolt & washer or all thread & washer instead, but you really want the tool bolted in to not slip.
Some are really tight...

https://www.sheldonbrown.com/cribshe...mbrackets.html

This one the bearings were gone so the spindle was out and toll bolted in with washers and a long bolt.


Some are more stubborn than others.
dedhed is offline
Likes For dedhed:
Old 05-19-22, 09:37 AM
  #3
Rolla
Victimless Criminal

Rolla's Avatar

Join Date: Sep 2020
Posts: 2,359
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1036 Post(s)
Liked 2,479 Times in 1,105 Posts
The cup reminds me of an old Suntour VX bottom bracket, but the teeth aren't the right size. It had a lockring and allowed for an adjustable chainline, IIRC.


Last edited by Rolla; 05-19-22 at 09:42 AM.
Rolla is offline
Likes For Rolla:
Old 05-19-22, 09:43 AM
  #4
ironhands
Senior Member
Thread Starter

Join Date: Mar 2013
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 2 Posts
Originally Posted by dedhed View Post
If it's a lock ring, channel locks. Turning correct direction for your BB threading?
Shoulda left the spindle in because you're going to have to bolt the tool in on tight ones. You can run a long bolt & washer or all thread & washer instead, but you really want the tool bolted in to not slip.
Some are really tight...

https://www.sheldonbrown.com/cribshe...mbrackets.html

This one the bearings were gone so the spindle was out and toll bolted in with washers and a long bolt.


Some are more stubborn than others.
I hope I am! I'm not sure what's in it, flbs told me standard on non-drive side, reverse on drive side. Didn't really have much choice in keeping the spindle in, it was basically falling apart.
Would a locking typically be standard threading? Ordered a lockring wrench, should arrive tomorrow, thanks!
ironhands is offline
Old 05-19-22, 10:09 AM
  #5
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,259

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3425 Post(s)
Liked 2,118 Times in 1,385 Posts
For some BBs we have used a pneumatic impact wrench and a BB tool with a 1/2 or 3/8 drive fitting on it. A very (thankfully) cups have had to be ground and broken out of the shell. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 05-19-22, 11:03 AM
  #6
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO and Tucson, AZ
Posts: 2,462

Bikes: 2016 Fuji Tread, 1983 Trek 520

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 561 Post(s)
Liked 381 Times in 261 Posts
You can also remove the lock ring with a hammer and cold chisel, with tangential impact.
andrewclaus is offline
Likes For andrewclaus:
Old 05-19-22, 11:39 AM
  #7
roadcrankr
Senior Member

roadcrankr's Avatar

Join Date: Mar 2004
Location: Glendora, CA
Posts: 73

Bikes: Merlin Extralight '94 & Cannondale Supersix '15

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 58 Times in 35 Posts
Some shops might let you borrow this old jobber

Mine came in handy for a bunch of pre-9speed BB's.
It's a big goofy tool that people give me grief over. Until they need it. lol
Otherwise, yeah, wail on it with a big chisel and hammer. Ya got like eight notches to destroy!

roadcrankr is online now
Likes For roadcrankr:
Old 05-19-22, 12:41 PM
  #8
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,061

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1482 Post(s)
Liked 737 Times in 542 Posts
A little penetrating oil may make things easier.
Apply and tap the ring with a small wrench to "ring it". The vibration helps the oil to wick in.
Bill Kapaun is offline
Likes For Bill Kapaun:
Old 05-19-22, 01:02 PM
  #9
ironhands
Senior Member
Thread Starter

Join Date: Mar 2013
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 2 Posts
Originally Posted by roadcrankr View Post
Mine came in handy for a bunch of pre-9speed BB's.
It's a big goofy tool that people give me grief over. Until they need it. lol
Otherwise, yeah, wail on it with a big chisel and hammer. Ya got like eight notches to destroy!

Just picked one up actually 🤣. If it doesn't work. I might just break out the dremel
ironhands is offline
Old 05-19-22, 01:04 PM
  #10
ironhands
Senior Member
Thread Starter

Join Date: Mar 2013
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 2 Posts
Originally Posted by Bill Kapaun View Post
A little penetrating oil may make things easier.
Apply and tap the ring with a small wrench to "ring it". The vibration helps the oil to wick in.
Been spraying it with wd40, used some floss to open up the areas. And pulled my seatpost and sprayed a good 30 seconds into the frame. Never heard of ringing it, but I do have a small wrench and I don't feel bad about smacking it around 😂
ironhands is offline
Old 05-19-22, 01:11 PM
  #11
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,061

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1482 Post(s)
Liked 737 Times in 542 Posts
Originally Posted by ironhands View Post
Been spraying it with wd40, used some floss to open up the areas. And pulled my seatpost and sprayed a good 30 seconds into the frame. Never heard of ringing it, but I do have a small wrench and I don't feel bad about smacking it around 😂
WD-40 is a poor penetrating oil. Only thing I use if for is degreasing gummed up shifters.
Bill Kapaun is offline
Likes For Bill Kapaun:
Old 05-19-22, 01:28 PM
  #12
ironhands
Senior Member
Thread Starter

Join Date: Mar 2013
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 2 Posts
Originally Posted by Bill Kapaun View Post
WD-40 is a poor penetrating oil. Only thing I use if for is degreasing gummed up shifters.
What do you recommend?
ironhands is offline
Old 05-19-22, 01:41 PM
  #13
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,061

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1482 Post(s)
Liked 737 Times in 542 Posts
Originally Posted by ironhands View Post
What do you recommend?
Something called PENETRATING OIL.
There's various brands.
I use Liquid Wrench in the can with a spout so I can use tiny amounts in a hypodermic needle.
Spraying it all over hell & beyond just makes a mess and wastes product.

For your case, I'd just remove the lock ring with a cold chisel.
Bill Kapaun is offline
Likes For Bill Kapaun:
Old 05-19-22, 02:14 PM
  #14
ironhands
Senior Member
Thread Starter

Join Date: Mar 2013
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 2 Posts
Originally Posted by Bill Kapaun View Post
Something called PENETRATING OIL.
There's various brands.
I use Liquid Wrench in the can with a spout so I can use tiny amounts in a hypodermic needle.
Spraying it all over hell & beyond just makes a mess and wastes product.

For your case, I'd just remove the lock ring with a cold chisel.
Haven't been able to find anything but wd40 locally, the only penetrating oil that would ship before July for me is $26 a bottle, so looks like I gotta use elbow grease instead
ironhands is offline
Old 05-19-22, 02:19 PM
  #15
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,061

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1482 Post(s)
Liked 737 Times in 542 Posts
Originally Posted by ironhands View Post
Haven't been able to find anything but wd40 locally, the only penetrating oil that would ship before July for me is $26 a bottle, so looks like I gotta use elbow grease instead
Ignore list since you are obviously unable to help yourself.
Ever hear of a store?
Bill Kapaun is offline
Old 05-19-22, 02:24 PM
  #16
ironhands
Senior Member
Thread Starter

Join Date: Mar 2013
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 2 Posts
Originally Posted by Bill Kapaun View Post
Ignore list since you are obviously unable to help yourself.
Ever hear of a store?
🤣 I did just say I haven't been able to find any locally, which would include stores, or did you assume I was just ransacking random garages? As my bikes not rideable, I'm pretty limited in the number of stores I could potentially visit as I don't drive. Not sure what the hostility is about, cheers, and thanks for the help 😁

Last edited by ironhands; 05-19-22 at 02:30 PM.
ironhands is offline
Likes For ironhands:
Old 05-19-22, 02:55 PM
  #17
bboy314
Senior Member

bboy314's Avatar

Join Date: Dec 2008
Location: Pioneer Valley
Posts: 325
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked 120 Times in 69 Posts
Liquid Wrench and PB Blaster are 2 penetrants that should be available at any hardware store. But I agree that you might as well try a hammer and punch on that lockring.
bboy314 is offline
Old 05-19-22, 03:00 PM
  #18
ironhands
Senior Member
Thread Starter

Join Date: Mar 2013
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 2 Posts
Originally Posted by bboy314 View Post
Liquid Wrench and PB Blaster are 2 penetrants that should be available at any hardware store. But I agree that you might as well try a hammer and punch on that lockring.
Unfortunately I've only seen liquid wrench products at my Lowe's, but lubricant not penetrating oil. We're having supply issues in the great white north. I did see some PB on Amazon, but it's not shipping anytime soon, so yeah, as I said above, rather than oil, gotta go elbow grease and hope that the new lockring wrench is sufficient in combination with the wd40. Appreciate the help!
ironhands is offline
Old 05-19-22, 03:48 PM
  #19
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,968
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 621 Post(s)
Liked 569 Times in 435 Posts
If you have any acetone and Automatic Transmission fluid on hand you can make about the best penetrating oil available by mixing them 50:50.
Crankycrank is offline
Likes For Crankycrank:
Old 05-19-22, 03:58 PM
  #20
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 8,936

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2098 Post(s)
Liked 2,083 Times in 1,289 Posts
Originally Posted by ironhands View Post
🤣 I did just say I haven't been able to find any locally, which would include stores, or did you assume I was just ransacking random garages? As my bikes not rideable, I'm pretty limited in the number of stores I could potentially visit as I don't drive. Not sure what the hostility is about, cheers, and thanks for the help 😁
Kroil is the best, PB blaster runner up. Acetone/ATF 50:50 mix if you want to make your own, but I just serviced 2 automatic transmissions this week and ATF is now $11/qt and used 10 quarts. Any auto parts or hardware store should have some sort of penetrating oil like liquid wrench or a CRC brand equal.

That's just Bill, ignore list a mile long. It's the internet, don't worry about it too much.
dedhed is offline
Likes For dedhed:
Old 05-19-22, 04:08 PM
  #21
ironhands
Senior Member
Thread Starter

Join Date: Mar 2013
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 2 Posts
Originally Posted by Crankycrank View Post
If you have any acetone and Automatic Transmission fluid on hand you can make about the best penetrating oil available by mixing them 50:50.
I do have acetone, I do a lot of 3d printing and miniature painting. Acetone and brake fluid make great paint remover. I'll pickup some ATF, thanks so much!!!
ironhands is offline
Old 05-19-22, 04:09 PM
  #22
ironhands
Senior Member
Thread Starter

Join Date: Mar 2013
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 2 Posts
Originally Posted by dedhed View Post
Kroil is the best, PB blaster runner up. Acetone/ATF 50:50 mix if you want to make your own, but I just serviced 2 automatic transmissions this week and ATF is now $11/qt and used 10 quarts. Any auto parts or hardware store should have some sort of penetrating oil like liquid wrench or a CRC brand equal.

That's just Bill, ignore list a mile long. It's the internet, don't worry about it too much.
I'll have to make my own, there's literally nothing at Lowe's, appreciate the tip!
Ya, I've been on the internet since the 90s, there's always someone 🤣 have a great night!
ironhands is offline
Old 05-19-22, 04:16 PM
  #23
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 8,431

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 1712 Post(s)
Liked 1,285 Times in 803 Posts
Originally Posted by ironhands View Post
I do have acetone, I do a lot of 3d printing and miniature painting. Acetone and brake fluid make great paint remover. I'll pickup some ATF, thanks so much!!!
seriously anyplace that has ATF is likely to have a penetrating oil.

I like stuff called freeze-off but that is probably hard to find

the other thing in these situations is hard whacks, steel steel to help break things loose, I have often found hard whacks help get things started better than long levers,

good luck
squirtdad is offline
Likes For squirtdad:
Old 05-19-22, 04:25 PM
  #24
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,968
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 621 Post(s)
Liked 569 Times in 435 Posts
Originally Posted by ironhands View Post
I do have acetone, I do a lot of 3d printing and miniature painting. Acetone and brake fluid make great paint remover. I'll pickup some ATF, thanks so much!!!
You could always siphon a little ATF from your car since such a tiny amount is needed.
Crankycrank is offline
Old 05-19-22, 04:32 PM
  #25
spelger
Senior Member

spelger's Avatar

Join Date: Jul 2015
Location: reno, nv
Posts: 1,471

Bikes: yes, i have one

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 722 Post(s)
Liked 721 Times in 425 Posts
Really, I don't know what your problem is...you have iron hands, just grab that thing and crank away.
spelger is offline
Likes For spelger:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
