How to remove this cassette?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

How to remove this cassette?

Old 06-05-22, 05:07 AM
  #1
wolfpack95
Senior Member
Thread Starter

Join Date: Jul 2007
Location: Beaufort NC
Posts: 113

Bikes: Felt ZA

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 1 Time in 1 Post
How to remove this cassette?

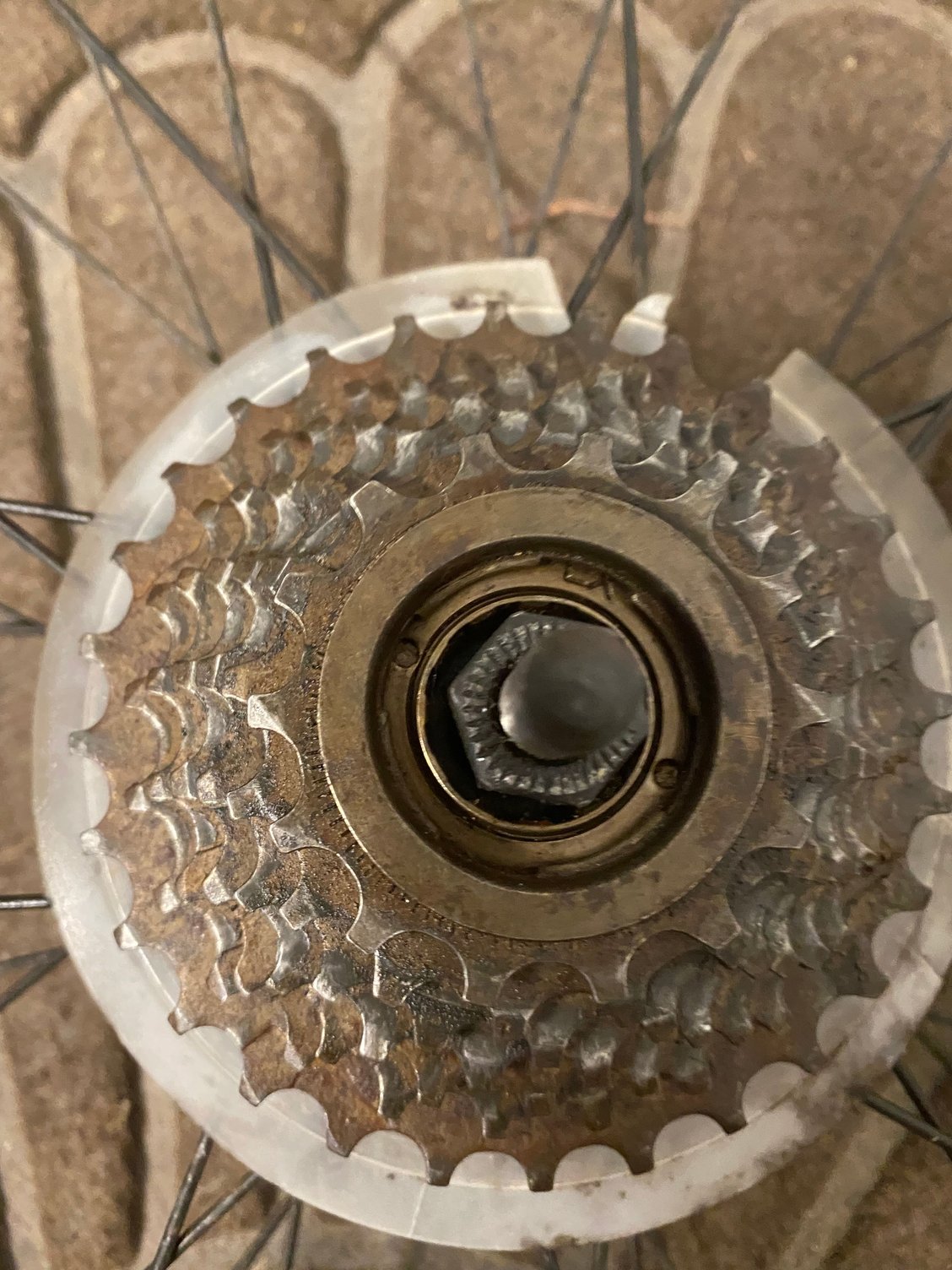

How do I remove this cassette? Do I need a special tool?
wolfpack95 is offline
Old 06-05-22, 06:17 AM
  #2
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,217

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2215 Post(s)
Liked 2,294 Times in 1,417 Posts
It's a freewheel not a cassette, and you need the correct tool to catch the splines around the axle
dedhed is offline
Likes For dedhed:
Old 06-05-22, 06:33 AM
  #3
Kai Winters
Senior Member

Join Date: Oct 2008
Location: Northern NY...Brownville
Posts: 2,122

Bikes: Specialized Aethos

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked 129 Times in 79 Posts
What dedhed said...
Kai Winters is offline
Old 06-05-22, 07:21 AM
  #4
mr_bill
Senior Member

Join Date: Sep 2013
Location: Massachusetts
Posts: 4,491
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2082 Post(s)
Liked 630 Times in 424 Posts
This Park Tool video gives you a good walkthru.

Pay particular attention to the tool selection.

Your pic isn’t clear enough to definitively answer which tool you need, it’s too hard to count the splines and while it looks like there is a brand, we can’t read it.

But you’ll be able to do it with your bare eyes. (A rag may help with the brand.)

If you are still unsure, bring the wheel to the local bike shop, they’ll help you purchase the right freewheel tool.


-mr. bill
mr_bill is offline
Likes For mr_bill:
Old 06-05-22, 07:47 AM
  #5
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,188

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1521 Post(s)
Liked 808 Times in 591 Posts
See the difference between the 2 here-
https://www.sheldonbrown.com/free-k7.html
Bill Kapaun is offline
Old 06-05-22, 08:18 AM
  #6
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,217

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2215 Post(s)
Liked 2,294 Times in 1,417 Posts
Originally Posted by mr_bill View Post
If you are still unsure, bring the wheel to the local bike shop, theyíll help you purchase the right freewheel tool.
If you take the wheel to a shop they'll remove it for you for probably less than the cost of a tool.
dedhed is offline
Likes For dedhed:
Old 06-05-22, 11:39 AM
  #7
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 2,159

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 824 Post(s)
Liked 367 Times in 270 Posts
It's been a while since I took off a freewheel... but you might have to remove the axle to get access to the splines for your (or the shop's) tool.
This would best be done by removing the locknut and cone from the non-drive side. Don't lose the bearings!
sweeks is offline
Old 06-05-22, 01:58 PM
  #8
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,542

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1792 Post(s)
Liked 2,632 Times in 1,363 Posts
Originally Posted by sweeks View Post
It's been a while since I took off a freewheel... but you might have to remove the axle to get access to the splines for your (or the shop's) tool.
This would best be done by removing the locknut and cone from the non-drive side. Don't lose the bearings!
No no no. It is not required to remove an axle to get a freewheel off.
cxwrench is offline
Old 06-05-22, 04:35 PM
  #9
mr_bill
Senior Member

Join Date: Sep 2013
Location: Massachusetts
Posts: 4,491
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2082 Post(s)
Liked 630 Times in 424 Posts
Originally Posted by dedhed View Post
If you take the wheel to a shop they'll remove it for you for probably less than the cost of a tool.
The OP wants to remove it themselves, and wants to know if there is a special tool.

The tool is, what, less than 10.00?

Itíll all but pay for itself the first time, and will be free the next time, assuming it isnít lost in the meantime.

-mr. bill
mr_bill is offline
Old 06-05-22, 04:48 PM
  #10
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,748

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3049 Post(s)
Liked 2,173 Times in 1,297 Posts
Originally Posted by sweeks View Post
It's been a while since I took off a freewheel... but you might have to remove the axle to get access to the splines for your (or the shop's) tool.
This would best be done by removing the locknut and cone from the non-drive side. Don't lose the bearings!
No, that shouldn't be necessary. It looks to follow the Shimano UG pattern, which uses a thin-wall tool to fit between the axle locknut and the freewheel body (Park FR-1.3, for example). In the event that it doesn't fit, it's only necessary to remove the axle locknut to seat the tool. The axle itself can remain in place.
JohnDThompson is offline
Likes For JohnDThompson:
Old 06-05-22, 04:52 PM
  #11
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 2,159

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 824 Post(s)
Liked 367 Times in 270 Posts
Originally Posted by cxwrench View Post
No no no. It is not required to remove an axle to get a freewheel off.
Originally Posted by JohnDThompson View Post
No, that shouldn't be necessary. It looks to follow the Shimano UG pattern, which uses a thin-wall tool to fit between the axle locknut and the freewheel body (Park FR-1.3, for example). In the event that it doesn't fit, it's only necessary to remove the axle locknut to seat the tool. The axle itself can remain in place.
I stand corrected! As I said, it's been a while.
sweeks is offline
Old 06-05-22, 06:57 PM
  #12
wolfpack95
Senior Member
Thread Starter

Join Date: Jul 2007
Location: Beaufort NC
Posts: 113

Bikes: Felt ZA

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 1 Time in 1 Post
Thanks for the Park Tools video. After some cleaning, looks like it says “LX.” Just moved and think my nearest bike shop is 45 minutes away so want to fix this myself. Very tough to see even after cleaning (old eyes) but counted 12 splines so ordered the FR1.3 removal tool for $10.


Last edited by wolfpack95; 06-05-22 at 07:45 PM.
wolfpack95 is offline
Old 06-05-22, 07:51 PM
  #13
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 5,761

Bikes: RSO E-tire dropper fixie brifter

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1,971 Times in 1,314 Posts
it looks like the common splined socket that I would receive in all the basic/standard edition tool assemblies. the one you ordered seems like the more expensive made version.
__________________
-Oh Hey!
