Seized Thru Axle

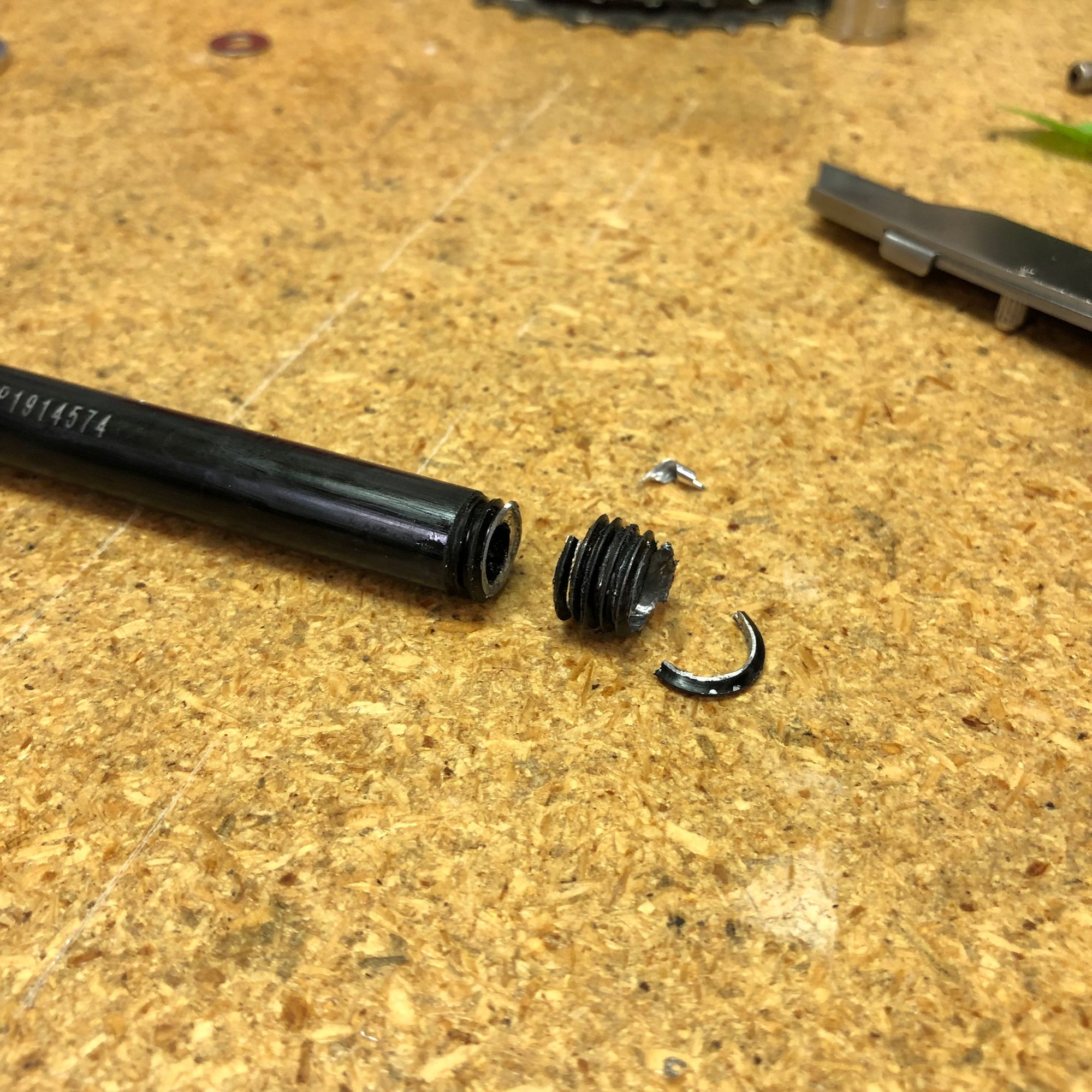

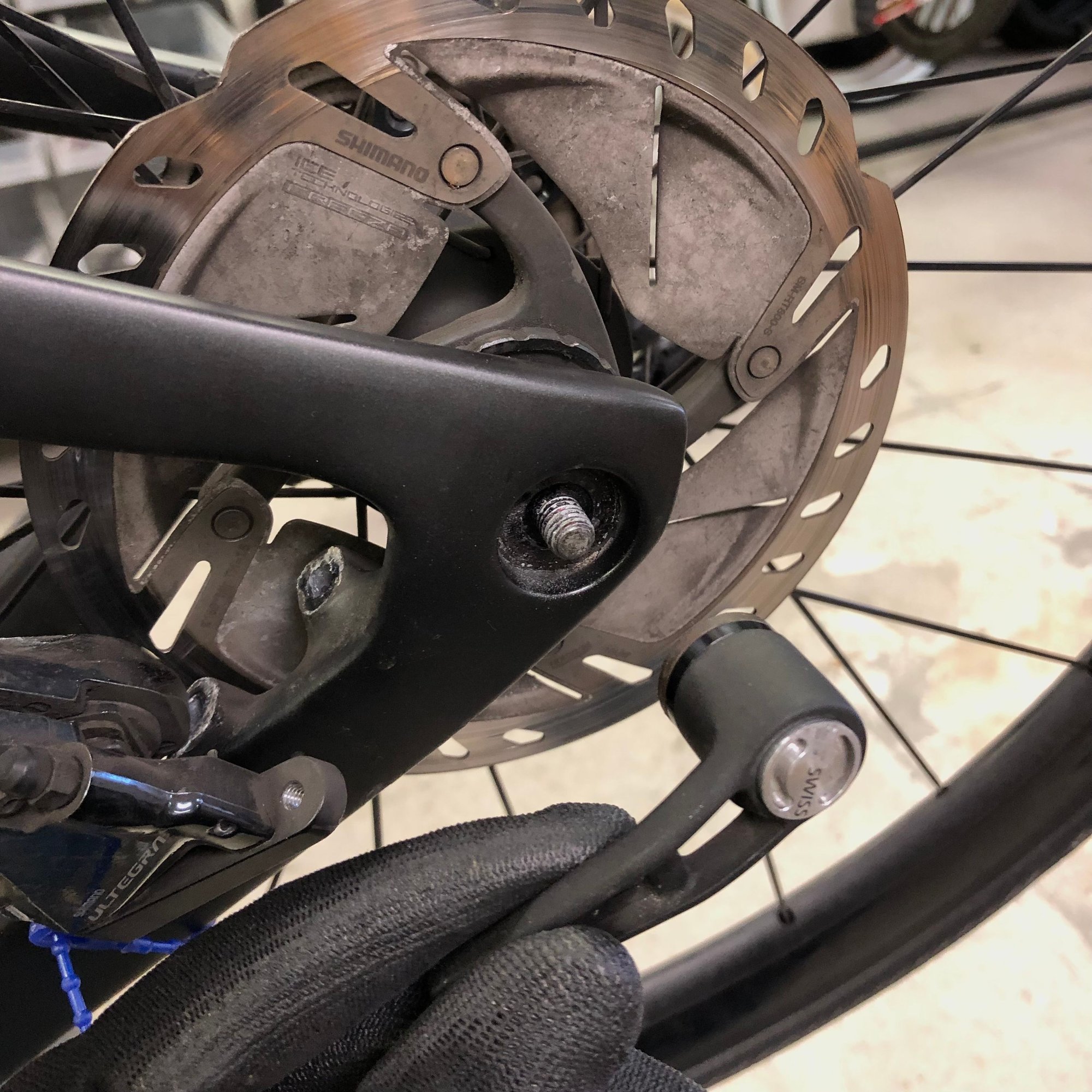

Asking for any advice with this problem. I've got a DT Swiss RWS thru axle seized in a carbon frame, possibly overtightened, definitely corroded. The handle of the thru axle simply broke free from the steel male threaded rod which is still stuck in the axle, M8-1.25.

I've tried to soak the seized sections with penetrant, I've cleaned the threads and tried reattaching the handle with Loctite 262, after 24h the handle broke free from the Loctite again. I've tried placing a 12mm od spacer and nut on the threaded rod and tightening the axle in hopes of simply breaking the corrosion, but the class 8 nut simply starts to round and nothing else moved.

The drive side is a snug fit for a 6mm hex but not enough to apply any force. I can try to dremel flats into the threaded rod but the recess in the frame makes that difficult. I'm trying to avoid drilling the axle out.

Any advice?



Last edited by smallpox champ; 06-07-22 at 12:58 PM.
smallpox champ is offline
Old 06-07-22, 01:15 PM
  #2
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,107
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 652 Times in 495 Posts
I can't tell if you might have enough room on the NDS threads but if you can fit a nut on it and then the handle and try to tighten the nut against the handle it may hold to undo the axle. A large torx bit lightly hammered into the DS end may grab enough to turn the axle. Remove the derailleur hanger, with the two screws, and see if that gives you any room for vice grip pliers, probably not but worth a look. You may have to drill out the DS end and with any luck the bit will grab onto the axle and twist it loose before you have to drill too far but if not this may make it easier to turn the axle. That's all I got for now.
Crankycrank is offline
Old 06-07-22, 01:24 PM
  #3
smallpox champ
Senior Member
Thread Starter

smallpox champ's Avatar

Join Date: Apr 2009
Posts: 157

Bikes: '84 specialized expedition, '87 specialized sirrus, '84 specialized stumpjumper sport

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 56 Times in 13 Posts
Originally Posted by Crankycrank View Post
I can't tell if you might have enough room on the NDS threads but if you can fit a nut on it and then the handle and try to tighten the nut against the handle it may hold to undo the axle. A large torx bit lightly hammered into the DS end may grab enough to turn the axle. Remove the derailleur hanger, with the two screws, and see if that gives you any room for vice grip pliers, probably not but worth a look. You may have to drill out the DS end and with any luck the bit will grab onto the axle and twist it loose before you have to drill too far but if not this may make it easier to turn the axle. That's all I got for now.
Unfortunately there's only about 8mm of threads, not a lot to work with. I've thought of hammering something into the drive side but I fear that might act to apply outward pressure, tightening the threads, and that the soft aluminum will just shear, rounding out.
smallpox champ is offline
Old 06-07-22, 01:43 PM
  #4
Tawraste666
Newbie

Join Date: Dec 2014
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 15 Times in 11 Posts
I recently had a barrel adjuster do this in a brake caliper. I drilled it out, but it was a very near thing not to damage the threads because the threads had galled together.
It basically meant that after drilIing I had to re cut the thread very gently and carefully to remove the metal from the barrel adjuster.
It was a nightmare, and I'm glad it was on my bike not someone else's.
On the same caliper were two more galled bolts. One I removed by freezing it, the other was seriously stuck so I followed the advice of another forum member and boiled it in soapy water for an hour which did the trick.
I don't know how you can treat that part of the bike in this way, but you may find a way.
I think locking two nuts together is the way forward, if you don't have a lot of room perhaps you could use thin bolts like cone bolts, or cut a normal bolt in half?
Tawraste666 is offline
Old 06-07-22, 02:09 PM
  #5
phughes
Senior Member

phughes's Avatar

Join Date: Mar 2011
Posts: 2,534
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 775 Post(s)
Liked 836 Times in 487 Posts
Originally Posted by smallpox champ View Post
Asking for any advice with this problem. I've got a DT Swiss RWS thru axle seized in a carbon frame, possibly overtightened, definitely corroded. The handle of the thru axle simply broke free from the steel male threaded rod which is still stuck in the axle, M8-1.25.

I've tried to soak the seized sections with penetrant, I've cleaned the threads and tried reattaching the handle with Loctite 262, after 24h the handle broke free from the Loctite again. I've tried placing a 12mm od spacer and nut on the threaded rod and tightening the axle in hopes of simply breaking the corrosion, but the class 8 nut simply starts to round and nothing else moved.

The drive side is a snug fit for a 6mm hex but not enough to apply any force. I can try to dremel flats into the threaded rod but the recess in the frame makes that difficult. I'm trying to avoid drilling the axle out.

Any advice?


Get a Grabit extractor and use it with an impact driver, the type to tap with a hammer. It turns the bit as you tap it with a hammer. You should be able to find a Grabit that will fit, and grab in the drive end. The Grabit style extractor works well in this type of situation since you do not have to drill in order for it to work. There should be enough of an opening for the bit to grab and dig in.

I would use the impact to get it started but don't hit it too hard, just enough for the bit to turn and dig in, and begin to turn the axle. You can put a wrench on the Grabit shank once the bit has dug in. I am a little leery of applying too much force to the impact driver on a carbon frame, so take it easy.

This is the type of driver I am referring to. Lowes carries them. Here it is on Amazon. https://www.amazon.com/CRAFTSMAN-Imp...4632497&sr=8-7

phughes is offline
Old 06-07-22, 02:29 PM
  #6
GamblerGORD53
Senior Member

Join Date: Apr 2010
Location: Elevation 666m Edmonton Canada
Posts: 2,029

Bikes: 2013 Custom SA5w / Rohloff Tourster

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 947 Post(s)
Liked 169 Times in 138 Posts
I've been wondering what the hell happens when those threads wear out from just repeated removal, especially if it's just alu.
They made no sense to me whatsoever in any case. I have stripped lots steel nuts on SS or IGH hubs over the years.
GamblerGORD53 is offline
Old 06-07-22, 02:49 PM
  #7
DowneasTTer
Senior Member

Join Date: Dec 2012
Location: North Central Florida
Posts: 799

Bikes: 2022 LiteSpeed CHEROHALA CITY, 2019 Canyon Roadlite 9.0 CF LTD, 2015 Giant FastRoad CoMax 1, 2001 Mongoose Pro Triomphe,

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 122 Post(s)
Likes: 0
Liked 52 Times in 33 Posts
Personally if it were mine I would place the bike on it's side with the threads facing up. Spray some liquid wrench in the threads and let it set overnight. Then try to loosen the axle. Good luck.
DowneasTTer is offline
Old 06-07-22, 03:50 PM
  #8
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 5,739

Bikes: RSO E-tire dropper fixie brifter

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1,963 Times in 1,307 Posts
Sawzall the axle on each side in between the frame & wheel. Once the wheel is pulled out, that should reduce the dual binding ends & make extracting the TA easier as well as safer to prevent damaging the frame.
__________________
-Oh Hey!
Troul is offline
Likes For Troul:
Old 06-07-22, 03:52 PM
  #9
phughes
Senior Member

phughes's Avatar

Join Date: Mar 2011
Posts: 2,534
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 775 Post(s)
Liked 836 Times in 487 Posts
Originally Posted by GamblerGORD53 View Post
I've been wondering what the hell happens when those threads wear out from just repeated removal, especially if it's just alu.
They made no sense to me whatsoever in any case. I have stripped lots steel nuts on SS or IGH hubs over the years.
I doubt that will be am issue, unless someone cross threads it, or overtightens it. If that happens, it can be repaired.
phughes is offline
Likes For phughes:
Old 06-07-22, 06:18 PM
  #10
jccaclimber
Senior Member

Join Date: May 2005
Location: SFBay
Posts: 2,293

Bikes: n, I would like n+1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Likes: 0
Liked 117 Times in 94 Posts
1. You mentioned loctite and the handle didn't work well. If a bonded joint fails and you can't change the shape then you need better surface prep, better glue, or more surface area. Find a longer rod to glue into the axle. Vise grips on that. Of course if it does stick and breaks off you'll have a really good time drilling both out.
2. Just drill it out. If you're feeling patient and skilled you could drill out the threaded end, use a needle file to get close to the threads, then peel it out like a stuck seat post. Hour if you know what you're doing, afternoon if you don't. Care needed not to damage the frame side threads.
3. I'm assuming the frame side is aluminum as well, so the usual dissimilar metal tricks won't work.
4. If any portion of the axle is accessible between the wheel and the frame, cut that and back things out. You might end up sacrificing a hub spacer or something along the way, just make sure you know what you're cutting through.
5. I'm assuming you can't unscrew any portion of the mounting assembly from the frame, but if you can that might be worth considering.
6. Not nearly the width, but it might be easier to cut a slot and drive out from the threaded end than from the non-threaded end. +1 to doing this with an impact tool, assuming reasonable judgement is exercised.
jccaclimber is offline
Old 06-07-22, 07:38 PM
  #11
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO and Tucson, AZ
Posts: 2,549

Bikes: 2016 Fuji Tread, 1983 Trek 520

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 577 Post(s)
Liked 435 Times in 297 Posts
I hear an excellent penetrant is a 50-50 mix of acetone and ATF. Try that for a day or so.

Then try an electric heat gun on the dropout before applying torque and impact.

I like the idea of an impact driver on the DS with a Torx bit driven into the axle. I'd try an electric impact driver since I have one. I also have an old hammer impact driver and it's worked on larger stuff like car suspension parts.

Do you think the axle is seized on the NDS too? You might be able to break or check that by slightly spreading the dropouts, just half a millimeter.

Drilling the DS might not be too bad. You have a centered pilot hole and you should weaken the axle enough before you touch the threads to break the thing out of there, then you'll have access to file and pick out from both sides and run a tap through.
andrewclaus is offline
Likes For andrewclaus:
Old 06-07-22, 09:43 PM
  #12
SalsaShark
Senior Member

SalsaShark's Avatar

Join Date: Nov 2014
Location: Eastern Iowa
Posts: 628

Bikes: 2014 Trek Allant drop bar conversion, modified Schwinn MTN commuter, 2015 Trek 520, Soma ES, Salsa Journeyman, 1980 Trek 414

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 172 Post(s)
Liked 336 Times in 164 Posts
I think you are on the right track with Loctite. If it were me I would clean and re-prep the exposed threads, find a hex nut that threads on properly, and fix it on with Loctite 271 or 272. After curing, you should be able to remove with a breaker bar and the correctly sized socket.

Last edited by SalsaShark; 06-07-22 at 09:48 PM.
SalsaShark is offline
Old 06-08-22, 07:25 PM
  #13
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 1,541

Bikes: Holdsworth 1979 Special, C-dale 1993 MT3000 Tandem & 1996 F700CAD3, Cervelo 2022 R5 & 2018 R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 595 Post(s)
Liked 744 Times in 432 Posts
File large flats on the exposed threads and use a good quality wrench.

Barry
Barry2 is offline
Old 06-08-22, 08:41 PM
  #14
masonv45
Junior Member

Join Date: Nov 2014
Location: Arlington, TN
Posts: 122

Bikes: 2005 Giant OCR Composite 1, 2016 GT Aggressor Expert

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 54 Times in 29 Posts
Use a heat gun on the frame and use a can of compressed air (turned upside down) to freeze the axle. Repeated heat/cold cycles can break the corrosion binding the axle to the frame.
masonv45 is offline
Old 06-08-22, 10:03 PM
  #15
Gresp15C
Senior Member

Gresp15C's Avatar

Join Date: Sep 2014
Posts: 3,776
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1021 Post(s)
Liked 589 Times in 382 Posts
I don't sign in very often any more, but... heat gun is how I break epoxy glue joints, by heating the glue to a temperature where it softens. If a carbon frame is carbon fiber in an epoxy binder, then applying heat will be the end of the frame.
Gresp15C is offline
Likes For Gresp15C:
Old 06-09-22, 08:39 AM
  #16
redcon1
Senior Member

redcon1's Avatar

Join Date: Aug 2008
Location: South Central PA
Posts: 539

Bikes: Focus Arriba, Specialized Roubaix Expert, Bianchi Impulso Allroad

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked 82 Times in 53 Posts
Originally Posted by Troul View Post
Sawzall the axle on each side in between the frame & wheel. Once the wheel is pulled out, that should reduce the dual binding ends & make extracting the TA easier as well as safer to prevent damaging the frame.
Sheesh.. I hope you were joking. If not, try that on your frame, and post the video.
redcon1 is offline
Old 06-09-22, 10:56 AM
  #17
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 5,739

Bikes: RSO E-tire dropper fixie brifter

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1,963 Times in 1,307 Posts
Originally Posted by redcon1 View Post
Sheesh.. I hope you were joking. If not, try that on your frame, and post the video.
if I needed to, i would. Sheeeeeshies
__________________
-Oh Hey!
Troul is offline
Old 06-09-22, 01:14 PM
  #18
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,062

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3636 Post(s)
Liked 2,070 Times in 1,314 Posts
Originally Posted by Gresp15C View Post
I don't sign in very often any more, but... heat gun is how I break epoxy glue joints, by heating the glue to a temperature where it softens. If a carbon frame is carbon fiber in an epoxy binder, then applying heat will be the end of the frame.
My first thought was to try using a MIG welder to quickly stick another piece of metal to the bolt head -- would that ruin the frame, too?
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 06-09-22, 01:44 PM
  #19
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,107
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 652 Times in 495 Posts
Originally Posted by ThermionicScott View Post
My first thought was to try using a MIG welder to quickly stick another piece of metal to the bolt head -- would that ruin the frame, too?
Bert Hull, former Product Development Manager of True Temper’s Alpha Q Composites division and now of www.warp9bikes.com, www.uberhunddesigns.com and www.zen-composites.com says..........

"It may vary a little from brand to brand, but with our resin system you can safely get up to 275-300 degrees F before you start to see any damage. The paint on the fork may not like temperatures that high, but structurally there is no problem with the carbon composite."

Last edited by Crankycrank; 06-09-22 at 01:50 PM.
Crankycrank is offline
Old 06-10-22, 07:57 PM
  #20
biker128pedal
Senior Member

biker128pedal's Avatar

Join Date: Jan 2007
Location: Eastern VA
Posts: 1,441

Bikes: 2021 Domane SL6, Black Beta (Nashbar frame), 2004 Trek 1000C being made an all arounder.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 201 Post(s)
Liked 286 Times in 179 Posts
As recommended above make a 50:50 mix of acetone and Dextron or equal transmission fluid. Use a dropper to soak the threads. Twice a day for a few days.
biker128pedal is offline
Old 06-11-22, 08:31 AM
  #21
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,107
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 652 Times in 495 Posts
Just have to throw in my anal opinion on seat tube clamp bolts. I always grind off the little notch that holds the female end in place and use that end to do the turning. Campy are a little more time consuming having to file off the serrations. Reason being that if you have any type of bending in the bolt when fully tightened, each time you turn the male end it's flexing in all 360 degrees of rotation and weakens the bolt. Of course, you're not supposed to have a clamp that bends the bolt but it's fairly common in real life. Using the female end to tighten allows you to bend the male end once and leave it in place. If your clamp doesn't have this issue, then no need to file the bolt.
Crankycrank is offline
Old 06-11-22, 10:51 AM
  #22
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,452

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4652 Post(s)
Liked 3,150 Times in 2,193 Posts
Have you got this solved yet? I'd grab the non drive side with a good pair of vice grips and twist it out.

I'm really surprised that they threaded the handle side.
​​​​​​

​​​​​​You will expand the other side if you try to jam something in there tight enough to turn it. Unless they made a hex or torx socket way up inside it just for this eventuality.

Last edited by Iride01; 06-11-22 at 10:55 AM.
Iride01 is offline
Old 06-11-22, 01:12 PM
  #23
smallpox champ
Senior Member
Thread Starter

smallpox champ's Avatar

Join Date: Apr 2009
Posts: 157

Bikes: '84 specialized expedition, '87 specialized sirrus, '84 specialized stumpjumper sport

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 56 Times in 13 Posts
Thanks all for the suggestions.

For those interested: I used Loctite 271 to fix a nut onto the threaded rod, the result was the thread rod came out of the axle. Interesting there was a 4mm hex on the inside of the thread rod.





Than I inserted a socket cap screw with a nut to jam against the axle. I used more Loctite 271 to give it the best chance. This had no effect at all.

I had heard from a mechanic who had this exact problem, their successful solution was drilling.

So I simply proceeded to drill out the drive side. the axle broke at the threads before coming close to the thread's minimum diameter.

The non drive side was surprisingly seized still. I used the cap screw and jam nut with a breaker bar to spin the non drive side and fed in penetrant. Eventually it came loose and the wheel was free.

The threads in the frame need a tap to be cleaned up, but appear intact.


smallpox champ is offline
Likes For smallpox champ:
Old 06-11-22, 03:52 PM
  #24
Hondo6
Full Member

Join Date: Sep 2021
Location: SW Florida
Posts: 364

Bikes: Yes

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 134 Post(s)
Liked 116 Times in 80 Posts
This thread makes me glad that all of my bikes have QR wheels and enclosed cam skewers.
Hondo6 is offline
Likes For Hondo6:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
