Freehub body replacement question.

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Freehub body replacement question.

Old 06-08-22, 10:36 PM
  #1
Ev0lutionz
Junior Member
Thread Starter

Join Date: Aug 2020
Posts: 106
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 11 Times in 7 Posts
Freehub body replacement question.

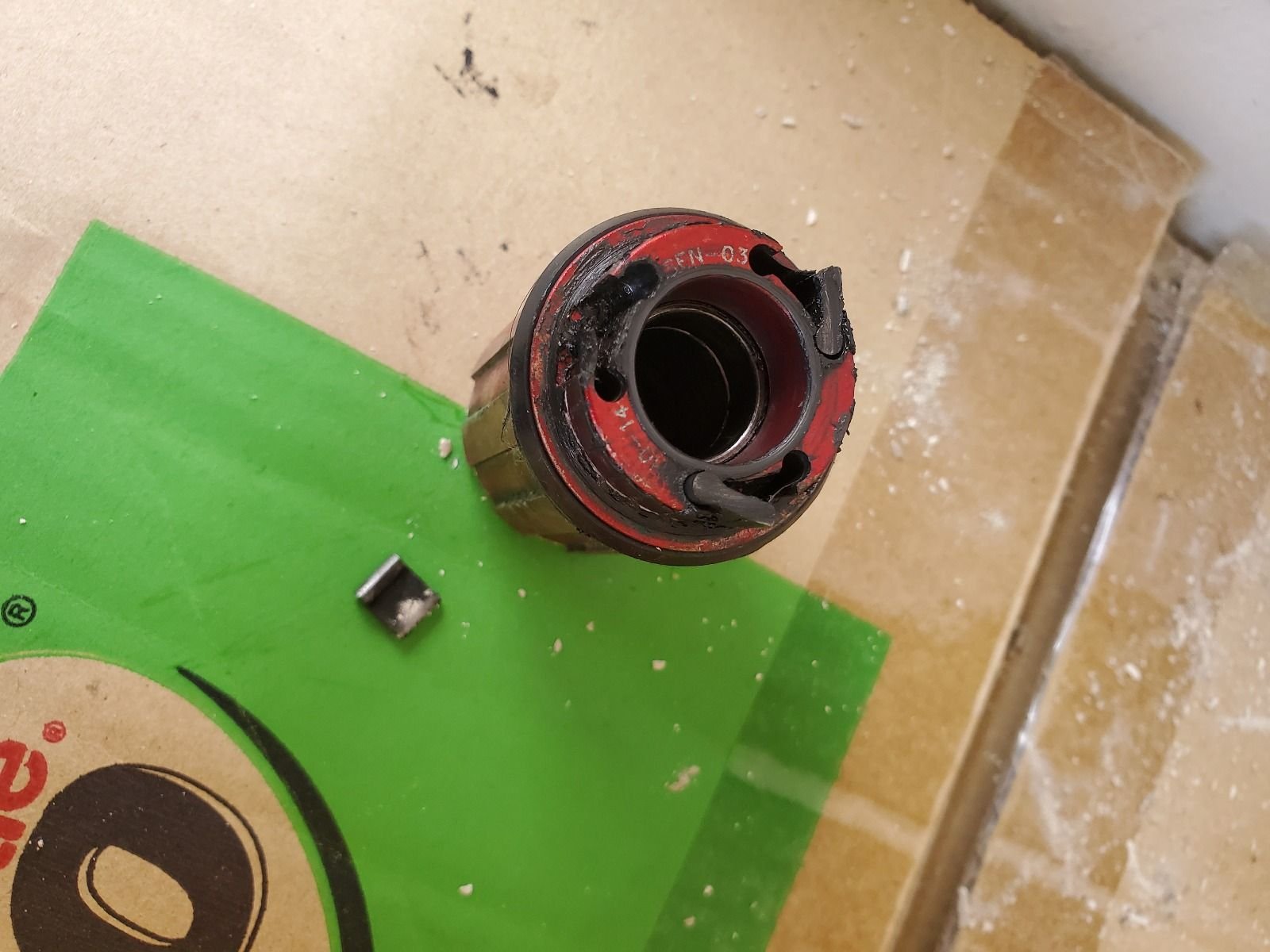

I知 looking for a similar FH body as in the photo, if I知 unable to find one, does it mean I have to replace my whole rear wheel?


Ev0lutionz is offline
Old 06-09-22, 12:42 AM
  #2
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,197

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1524 Post(s)
Liked 811 Times in 592 Posts
Just the hub & possibly spokes.
Bill Kapaun is offline
Old 06-09-22, 07:54 AM
  #3
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 1,547

Bikes: Holdsworth 1979 Special, C-dale 1993 MT3000 Tandem & 1996 F700CAD3, Cervelo 2022 R5 & 2018 R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 596 Post(s)
Liked 752 Times in 437 Posts
I wish YOU the best of luck in YOUR FH search.

If you’d like us to help, we will need detail regarding the wheel and hub is question.
FH are just not that generic. And we love to help if we can.

Barry
Barry2 is offline
Old 06-09-22, 07:55 AM
  #4
Ev0lutionz
Junior Member
Thread Starter

Join Date: Aug 2020
Posts: 106
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by Barry2 View Post
I wish YOU the best of luck in YOUR FH search.

If you壇 like us to help, we will need detail regarding the wheel and hub is question.
FH are just not that generic. And we love to help if we can.

Barry
Its a Kashima wheel hub, Chosen CHO-14, SEN-03 on the FH body.
Ev0lutionz is offline
Old 06-09-22, 08:45 AM
  #5
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 1,547

Bikes: Holdsworth 1979 Special, C-dale 1993 MT3000 Tandem & 1996 F700CAD3, Cervelo 2022 R5 & 2018 R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 596 Post(s)
Liked 752 Times in 437 Posts
I quote the following found using google
I can’t comment on its accuracy…

source

Just in case someone googles this: Contacted Velocity who said the hub containing the CHO-13 SEN-03 freehub body had been discontinued and my options where a new hub or new wheel. Determined to be cheap, I did my research on every available freehub I could find which resulted in me getting very lucky and finding a picture of the rear of Stan's No Tubes 3.30 freehub body being measured at 36.2mm. I quickly measured mine to find they were the same. Ordered it and once arrived it fit! Only issue that arouse was the supplied spacer was 10mm just like the Velocity hub but the Stan's 3.30 bearings were recessed further in needing a 12mm spacer. With this new spacer in it fit perfect!So, TL;DR: CHO-13 SEN-03 freehub body can be replaced with a Stan's No tubes 3.30 freehub with the use of a 12mm spacer. JensonUSA part number HU235E06

If you choose to try, please do report back on result.

All the best

Barry

oops you have “CHO-14” I found “13”

I WILL NOT DELETE THIS ERRORED POST in the hope it does provide a pointer in the right direction.
Barry2 is offline
Old 06-09-22, 11:47 AM
  #6
Dave Mayer
Senior Member

Join Date: Dec 2006
Posts: 2,201
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 904 Post(s)
Liked 245 Times in 161 Posts
Just by pure coincidence, I am attempting to revive a Stan's Notubes ZTR Alpha 340 wheelset, which includes a Stan's 3.30R freehub. My freehub is labelled: CHO-13 and SEN-07. A little research indicates that the hubs were made by Chosen, which has an active website. Perhaps contact Chosen?
