Go Back  Bike Forums > Bike Forums > Bicycle Mechanics
Reload this Page >

Bearing Size

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Bearing Size

Old 06-20-22, 04:10 AM
  #1
rodscot
Senior Member
Thread Starter

Join Date: Jun 2015
Location: Scotland
Posts: 157

Bikes: Diamondback Topanga, Scott CX Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 3 Times in 2 Posts
Bearing Size

The bottom bracket bearings on my 3 year old grandaughter's kiddie bike have disintegrated. Can anyone tell me what size the replacements would be. Or tell me how to measure them. There is nothing left of the original bearings to actually measure though.

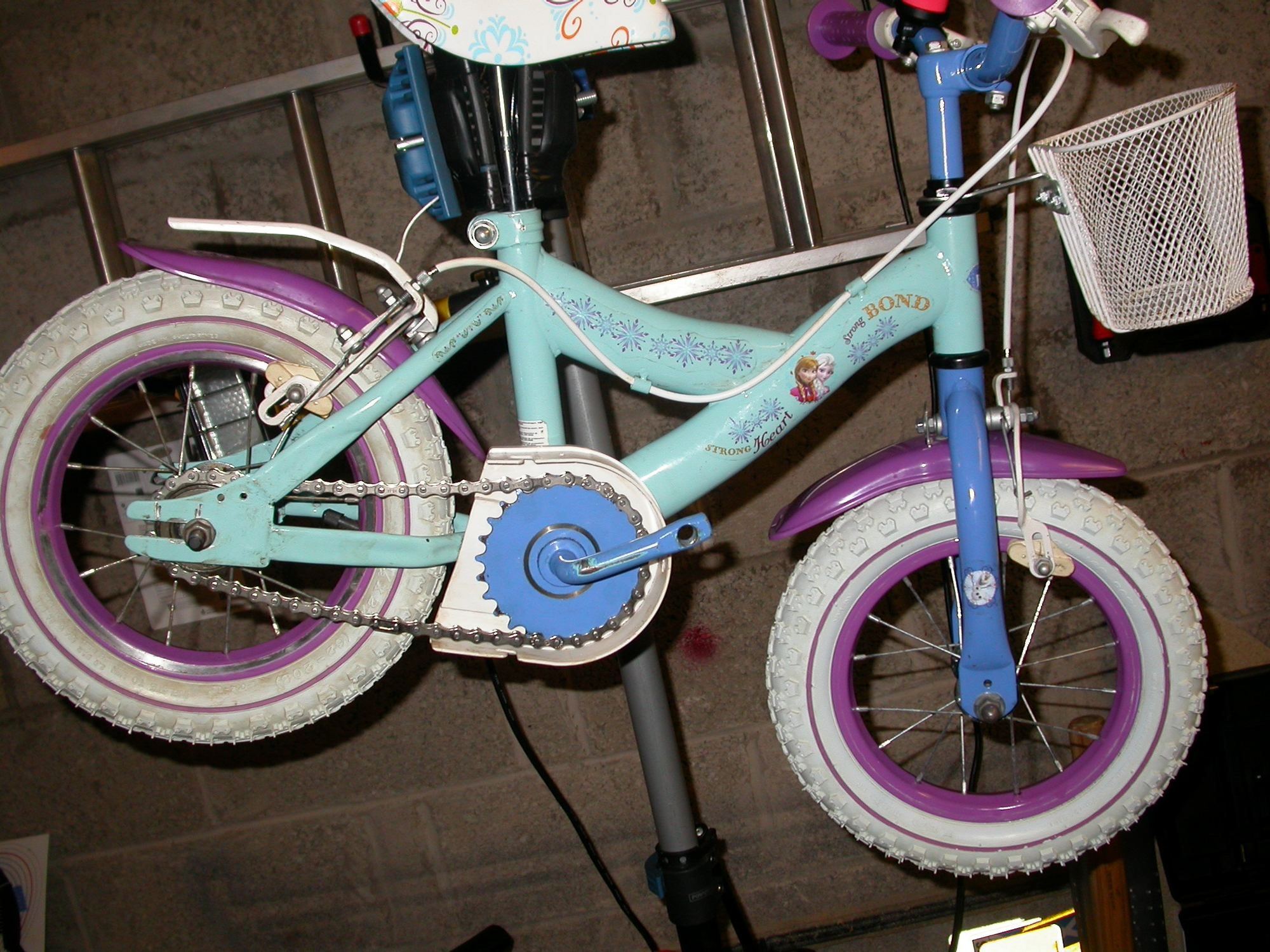

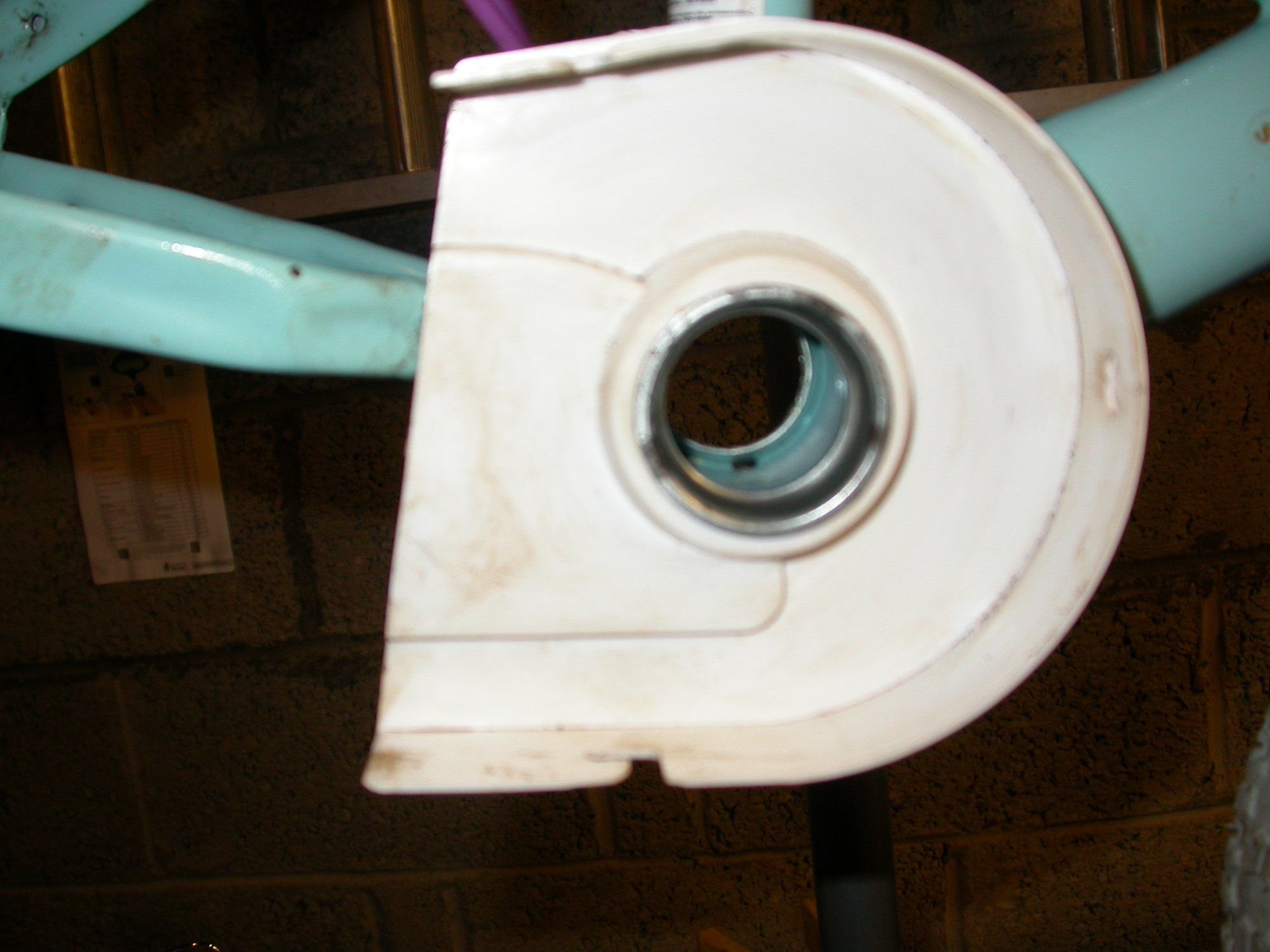

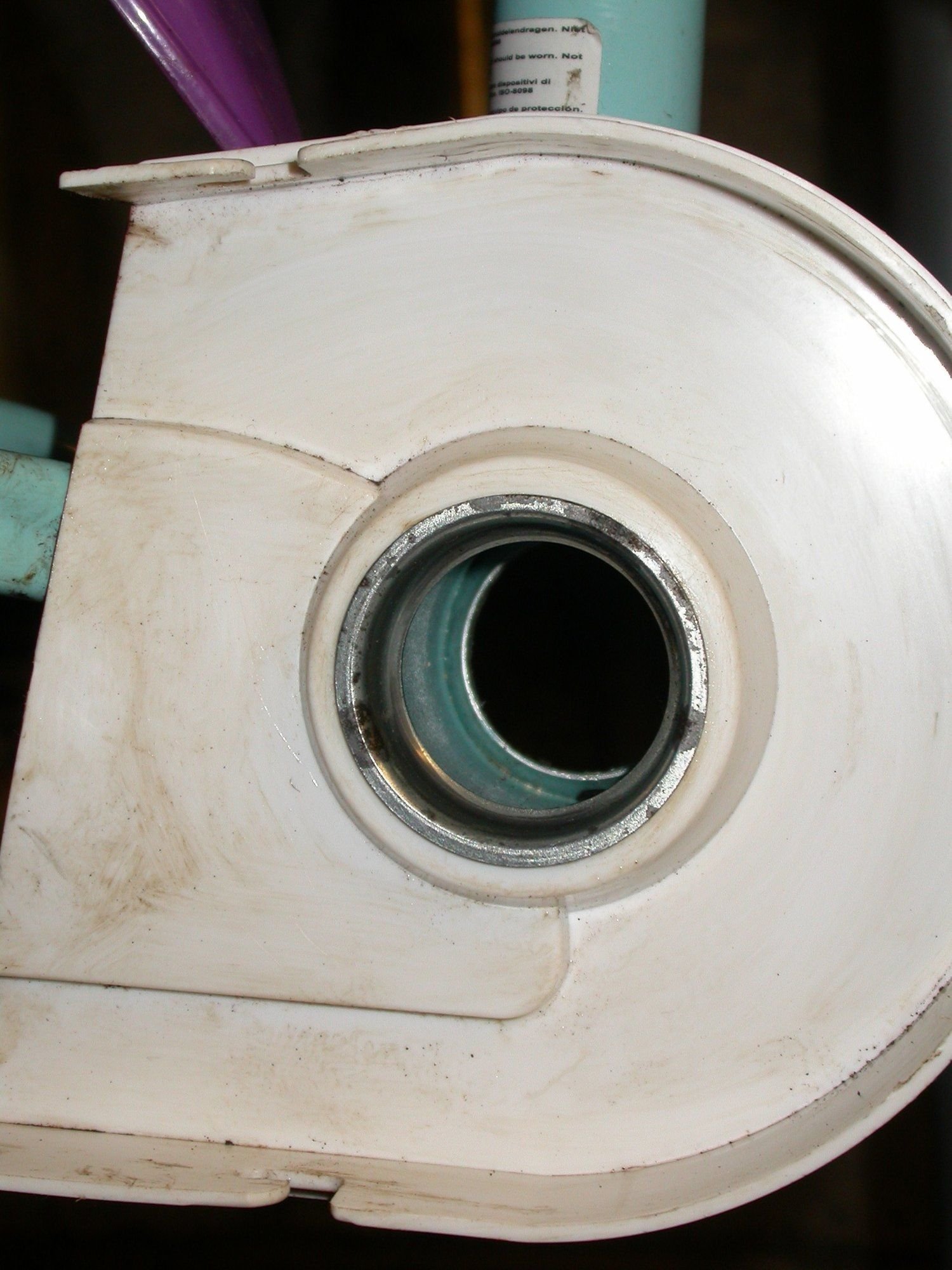

I have a thread on here of when I had to sort out her rusted chain. And here are some pics:





rodscot is offline
Old 06-20-22, 04:26 AM
  #2
bboy314
Full Member

bboy314's Avatar

Join Date: Dec 2008
Location: Pioneer Valley
Posts: 359
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
Liked 144 Times in 84 Posts
Without seeing it in person I’d guess this is the “juvenile” size 1 piece bottom bracket:

https://www.modernbike.com/sunlite-m...racket-cup-set
bboy314 is online now
Likes For bboy314:
Old 06-20-22, 04:03 PM
  #3
MudPie
Senior Member

MudPie's Avatar

Join Date: May 2004
Location: Southern California
Posts: 2,125
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
Liked 84 Times in 64 Posts
Originally Posted by rodscot View Post
... There is nothing left of the original bearings to actually measure though.
When you opened up the bottom bracket, were there any balls remaining? I can see the cages getting chewed up and unrecognizable, but ball bearings would be hard to destroy or even deform.
MudPie is offline
Old 06-20-22, 05:42 PM
  #4
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,036
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 642 Post(s)
Liked 610 Times in 464 Posts
Not sure if this is relevant for your granddaughters bike but check this article. One-piece ("Ashtabula") Cranks (sheldonbrown.com) If you have any bike shops nearby they could probably tell you and bearing balls are cheap, even at bike shop retail prices. Just bring in the crank and races.
Crankycrank is offline
Old 06-20-22, 09:33 PM
  #5
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,062

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2149 Post(s)
Liked 2,182 Times in 1,347 Posts
99% chance they are 1/4" balls
dedhed is online now
Old 06-20-22, 10:03 PM
  #6
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,301

Bikes: lots

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 1646 Post(s)
Liked 2,433 Times in 1,258 Posts
^This^
cxwrench is offline
Old 06-21-22, 01:48 AM
  #7
rodscot
Senior Member
Thread Starter

Join Date: Jun 2015
Location: Scotland
Posts: 157

Bikes: Diamondback Topanga, Scott CX Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 3 Times in 2 Posts
Thanks, Crankycrank. I saw that Sheldon Brown article.

Mudpie - there were balls remaining. The cages were destroyed but there were 14 balls. Which seems an odd number. So there may be some missing. The balls were 8mm which seems to cnvert to 5/16".

I have ordered a couple of 5/16" bearings with an outer cage diameter of 38mm. The diameter would seem to fit the shell. So I will see how I get on with that.
rodscot is offline
Old 06-21-22, 06:23 AM
  #8
bboy314
Full Member

bboy314's Avatar

Join Date: Dec 2008
Location: Pioneer Valley
Posts: 359
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
Liked 144 Times in 84 Posts
Originally Posted by dedhed View Post
99% chance they are 1/4" balls
Being an American 1 piece bottom bracket, they should be 5/16” balls.
bboy314 is online now
Likes For bboy314:
Old 06-21-22, 07:47 AM
  #9
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 1,453

Bikes: 1989 Cinelli Super Corsa

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 829 Post(s)
Liked 610 Times in 394 Posts
Isn't that bike getting pretty small for her at this point?
smd4 is offline
Old 06-21-22, 08:34 AM
  #10
rodscot
Senior Member
Thread Starter

Join Date: Jun 2015
Location: Scotland
Posts: 157

Bikes: Diamondback Topanga, Scott CX Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 3 Times in 2 Posts
Originally Posted by smd4 View Post
Isn't that bike getting pretty small for her at this point?
Errrm, not sure what you mean? But no. It was her sister's and was in one hell of a mess when it had been left in the rain. I worked on it last year to make it ready for the wee one when she was big enough. So she started to use it not that long ago. She is coming up for 3.
rodscot is offline
Old 06-21-22, 09:36 AM
  #11
MudPie
Senior Member

MudPie's Avatar

Join Date: May 2004
Location: Southern California
Posts: 2,125
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
Liked 84 Times in 64 Posts
Originally Posted by rodscot View Post
...

I have ordered a couple of 5/16" bearings with an outer cage diameter of 38mm. The diameter would seem to fit the shell. So I will see how I get on with that.
Good that you had existing bearing to measure.

I assume you could install the bearings without cages, too. Cages make it easier, but the grease will retain the balls during assembly and installation.
MudPie is offline
Likes For MudPie:
Old 06-21-22, 12:18 PM
  #12
rodscot
Senior Member
Thread Starter

Join Date: Jun 2015
Location: Scotland
Posts: 157

Bikes: Diamondback Topanga, Scott CX Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 3 Times in 2 Posts
Originally Posted by MudPie View Post
Good that you had existing bearing to measure.

I assume you could install the bearings without cages, too. Cages make it easier, but the grease will retain the balls during assembly and installation.
It would be really tricky, I think, Mudpie because of the one piece crank. But I didn't think of trying that.
rodscot is offline
Old 06-21-22, 05:51 PM
  #13
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,427

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3503 Post(s)
Liked 2,273 Times in 1,459 Posts
Originally Posted by MudPie View Post
Good that you had existing bearing to measure.

I assume you could install the bearings without cages, too. Cages make it easier, but the grease will retain the balls during assembly and installation.
It's been my experience that fully loose balls in an "Ashtabula" type BB don't hold their place WRT the other balls and the ball tracks on the cone and cup. I suspect it has to do with the bearing load/contact angle, the size of the balls for the above and the amount the cup and cone "cradle" the loose balls. 1 piece BB's have fairly shallow cups and cones that are often conical and not 3D curved. Still trying fully loose balls will be a good exercise in learning and working with stuff. If it works with the parts you have that's great. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 06-22-22, 05:02 AM
  #14
rodscot
Senior Member
Thread Starter

Join Date: Jun 2015
Location: Scotland
Posts: 157

Bikes: Diamondback Topanga, Scott CX Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 3 Times in 2 Posts
Originally Posted by Andrew R Stewart View Post
It's been my experience that fully loose balls in an "Ashtabula" type BB don't hold their place WRT the other balls and the ball tracks on the cone and cup. I suspect it has to do with the bearing load/contact angle, the size of the balls for the above and the amount the cup and cone "cradle" the loose balls. 1 piece BB's have fairly shallow cups and cones that are often conical and not 3D curved. Still trying fully loose balls will be a good exercise in learning and working with stuff. If it works with the parts you have that's great. Andy
There is another issue with the one piece crank. There does not appear to be a 'proper cup'. The nut and washer screws onto the crank and not into the frame. So, I am not sure how the crank and bearings would be held in place?
rodscot is offline
Old 06-22-22, 06:45 AM
  #15
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,062

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2149 Post(s)
Liked 2,182 Times in 1,347 Posts
dedhed is online now
Likes For dedhed:
Old 06-22-22, 07:53 AM
  #16
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,427

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3503 Post(s)
Liked 2,273 Times in 1,459 Posts
Originally Posted by rodscot View Post
There is another issue with the one piece crank. There does not appear to be a 'proper cup'. The nut and washer screws onto the crank and not into the frame. So, I am not sure how the crank and bearings would be held in place?
The pressed in cup (the silver thing in the BB shell that also is securing the white chain case inner piece) is as proper as it needs to be. What can be confusing is that the relative parts are in an different order when compared to a threaded shell running a loose ball BB. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
