Play In Rear Hub

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Play In Rear Hub

Old 06-23-22, 03:08 PM
  #1
daniell
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 178
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Likes: 0
Liked 25 Times in 16 Posts
Play In Rear Hub

This is an eight speed Deore hub.
I removed the cassette to adjust the cones.
This is the problem.
I can discern no play in the non drive side.
Yet the drive side has significant play.
The freehub also has some play.
daniell is offline
Old 06-24-22, 06:13 AM
  #2
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,830

Bikes: Old school lightweights

Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 2430 Post(s)
Liked 3,249 Times in 1,753 Posts
Originally Posted by daniell View Post
I can discern no play in the non-drive side. Yet, the drive side has significant play.
Very strange that you can even discern this.
SurferRosa is offline
Old 06-24-22, 06:32 AM
  #3
daniell
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 178
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Likes: 0
Liked 25 Times in 16 Posts
I think that I need a new freehub. It may be better to buy a new hub.
daniell is offline
Old 06-24-22, 07:07 AM
  #4
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 1,002

Bikes: Peugeot teamline

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 247 Post(s)
Liked 103 Times in 87 Posts
Originally Posted by daniell View Post
This is an eight speed Deore hub.
I removed the cassette to adjust the cones.
This is the problem.
I can discern no play in the non drive side.
Yet the drive side has significant play.
The freehub also has some play.
Open it up and see what's going on first.
blamester is offline
Likes For blamester:
Old 06-24-22, 07:25 AM
  #5
daniell
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 178
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Likes: 0
Liked 25 Times in 16 Posts
Originally Posted by blamester View Post
Open it up and see what's going on first.
The cassette is off. There is considerable amount of play in the freehub. When I try to wiggle the non drive side axle, I have no play.
daniell is offline
Old 06-24-22, 07:42 AM
  #6
bboy314
Full Member

bboy314's Avatar

Join Date: Dec 2008
Location: Pioneer Valley
Posts: 359
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
Liked 141 Times in 84 Posts
Have you tried tightening or removing the freehub?
bboy314 is offline
Old 06-24-22, 07:46 AM
  #7
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,034
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 641 Post(s)
Liked 610 Times in 464 Posts
Originally Posted by daniell View Post
The cassette is off. There is considerable amount of play in the freehub. When I try to wiggle the non drive side axle, I have no play.
As blamester mentioned, you have to take it apart in order to know what's going on. Wiggling things around won't give you, or us, any insight as to why it's loose. You may have a damaged bearing ball, pitted hub races and cones, needs a cleaning and lube, etc., etc.
Crankycrank is offline
Old 06-24-22, 08:26 AM
  #8
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,035

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1648 Post(s)
Liked 1,679 Times in 1,051 Posts
I guess the first question is did you try to put pressure on the end of the DS axle, or pull toward the NDS, to see if the play does move from DS to NDS. I've adjusted cones and find that sometimes I can feel play on one side, but if I try to put pressure the other way I can feel the play on the other side. The only word in your post that is concerning is the word significant.

I'm no freehub body assemble expert, but basically you have a inner core, with pawls, and an outer shell. A simplistic view the inner core gets attached to the hub, and the hub bearing cup is threaded tightly onto the inner core. The outer shell just rotates and any freehub body shell play doesn't impact the play in the hub bearings.

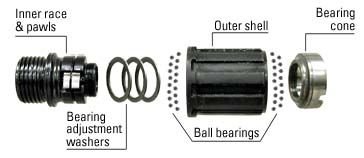

You can see in the image from Park Tool, the bearing cone threads onto the inner race/pawls core and is tightened against the adjustment washers:


If the freehub body is not firmly attached to the rear hub, there can be play. Or if the bearing race is not tight and it moves there can be play.

John
70sSanO is offline
Old 06-24-22, 08:32 AM
  #9
daniell
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 178
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Likes: 0
Liked 25 Times in 16 Posts
I took the hub apart and tightened the freehub with a 10mm Alan wrench. I made it as tight as I could get it. It did help somewhat.
daniell is offline
Old 06-25-22, 03:02 AM
  #10
daniell
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 178
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Likes: 0
Liked 25 Times in 16 Posts
I just assembled the hub. The tightening of the freehub bolt solved the problem. Now I must assemble the cassette.
daniell is offline
Old 06-25-22, 06:08 AM
  #11
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO and Tucson, AZ
Posts: 2,505

Bikes: 2016 Fuji Tread, 1983 Trek 520

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 570 Post(s)
Liked 411 Times in 281 Posts
If that freehub bolt was loose, you may still have problems. That shouldn't have happened, and it may be damaged. Keep a close eye on it. If it reoccurs and a new freehub and bolt doesn't fix it, the threads in the hub are damaged and you'll need a new hub or wheel.

The last time I needed to replace that style freehub, I bought a NOS hub pretty cheap on eBay and stripped it. If there's a bike co-op near you, you'll probably find salvaged parts there.
andrewclaus is offline
Old 06-25-22, 10:13 AM
  #12
daniell
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 178
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Likes: 0
Liked 25 Times in 16 Posts
Originally Posted by andrewclaus View Post
If that freehub bolt was loose, you may still have problems. That shouldn't have happened, and it may be damaged. Keep a close eye on it. If it reoccurs and a new freehub and bolt doesn't fix it, the threads in the hub are damaged and you'll need a new hub or wheel.

The last time I needed to replace that style freehub, I bought a NOS hub pretty cheap on eBay and stripped it. If there's a bike co-op near you, you'll probably find salvaged parts there.
Thanks for the input. I think that any problem that develops will be gradual.
daniell is offline
Old 06-26-22, 05:23 AM
  #13
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 5,005
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1399 Post(s)
Liked 981 Times in 595 Posts
Originally Posted by daniell View Post
Thanks for the input. I think that any problem that develops will be gradual.
I have had that same problem with a Shimano freehub in the past and my solution was the same as yours. Problem never came back
