Need help with caliper/frame clearance issue please

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Need help with caliper/frame clearance issue please

Old 06-25-22, 12:59 PM
  #26
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,600

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2504 Post(s)
Liked 2,136 Times in 1,194 Posts
Originally Posted by kim791 View Post
There is no way for it to clear the frame without the washers, we tried sliding it all around.
OK, and I assume you have also slid it around WITH the washers, and you could not get the pads to not overhang?
Kapusta is offline
Old 07-01-22, 01:20 PM
  #27
kim791
Junior Member
Thread Starter

Join Date: Jun 2022
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by sjanzeir View Post
Go ahead and order a QM12 adapter and any 160mm/2mm six-bolt rotor. You'll find quite a few 2mm thick rotors on eBay and elsewhere. The rotor neither needs to be Magura nor does it need to be pricy. Just take care of the issue once and for all.

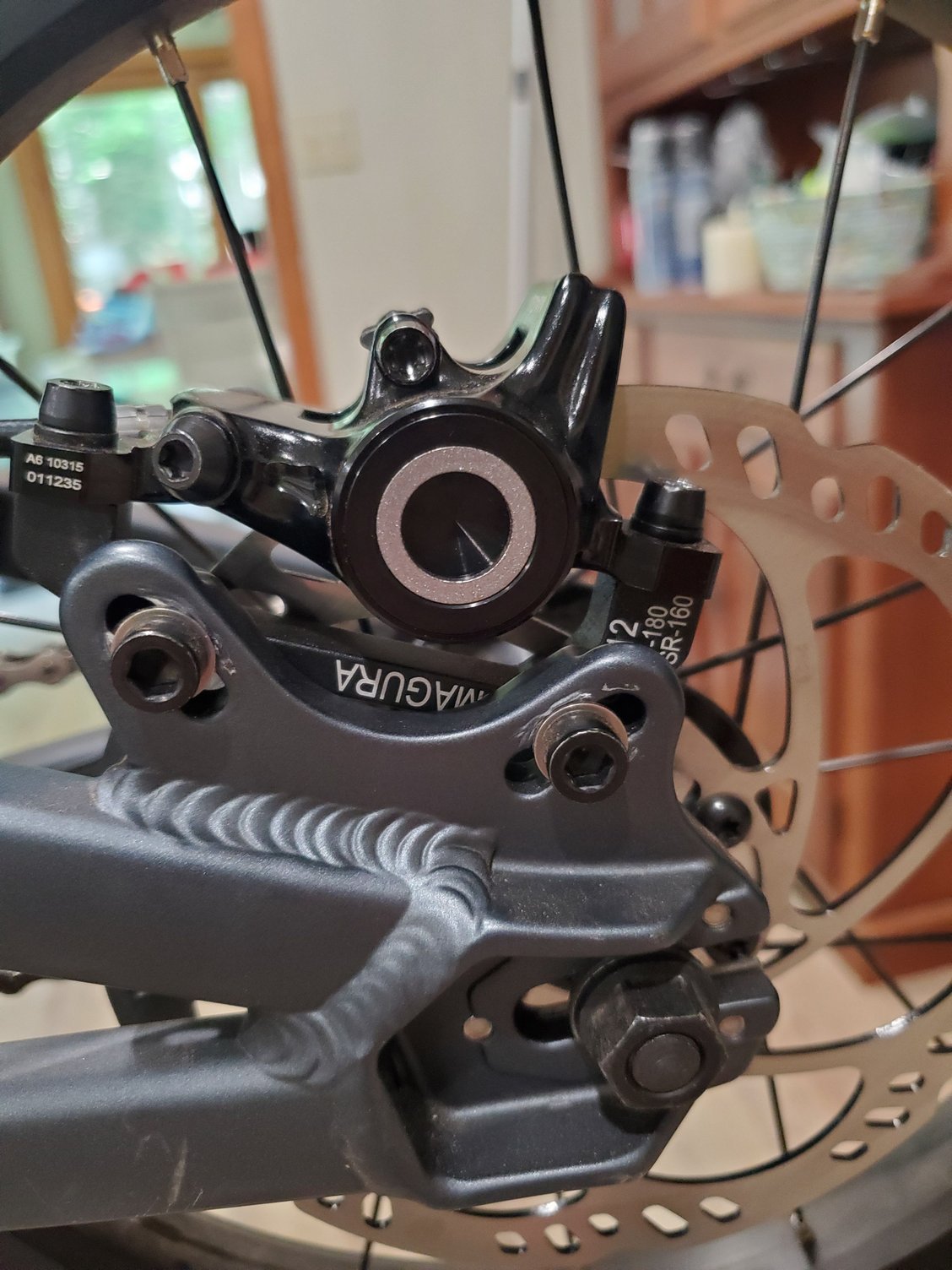

So I went to a 160mm with the qm12 adapter. Can you tell me of it all looks right? Brakes work great but there a honking sound now
kim791 is offline
Old 07-01-22, 01:40 PM
  #28
sjanzeir
Keeling over.

Join Date: Apr 2016
Location: Jeddah, Saudi Arabia
Posts: 1,111

Bikes: 1990 Raleigh Flyer (size 21"); 2014 Trek 7.6 FX (size 15"); 2014 Trek 7.6 FX (size 17.5"); 2019 Dahon Mu D9; 2020 Dahon Hemingway D9

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 525 Post(s)
Liked 1,097 Times in 338 Posts
Not sure what you mean by honking sound. What you need to do is shine a flashlight from the top and off the sides, have a peer at the pads and see how they hit the rotor. If you don't see any overhang, you're in the right place.

Next, make sure that the edge of the rotor isn't rubbing onto the underside of the caliper. If so, you got the adapter bolts (the ones facing us in the last picture) to play with.

Last edited by sjanzeir; 07-01-22 at 01:45 PM.
sjanzeir is offline
Old 07-01-22, 01:44 PM
  #29
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,600

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2504 Post(s)
Liked 2,136 Times in 1,194 Posts
They may need to bed in.
Kapusta is offline
Old 07-01-22, 02:05 PM
  #30
kim791
Junior Member
Thread Starter

Join Date: Jun 2022
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by sjanzeir View Post
Not sure what you mean by honking sound. What you need to do is shine a flashlight from the top and off the sides, have a peer at the pads and see how they hit the rotor. If you don't see any overhang, you're in the right place.

Next, make sure that the edge of the rotor isn't rubbing onto the underside of the caliper. If so, you got the adapter bolts (the ones facing us in the last picture) to play with.

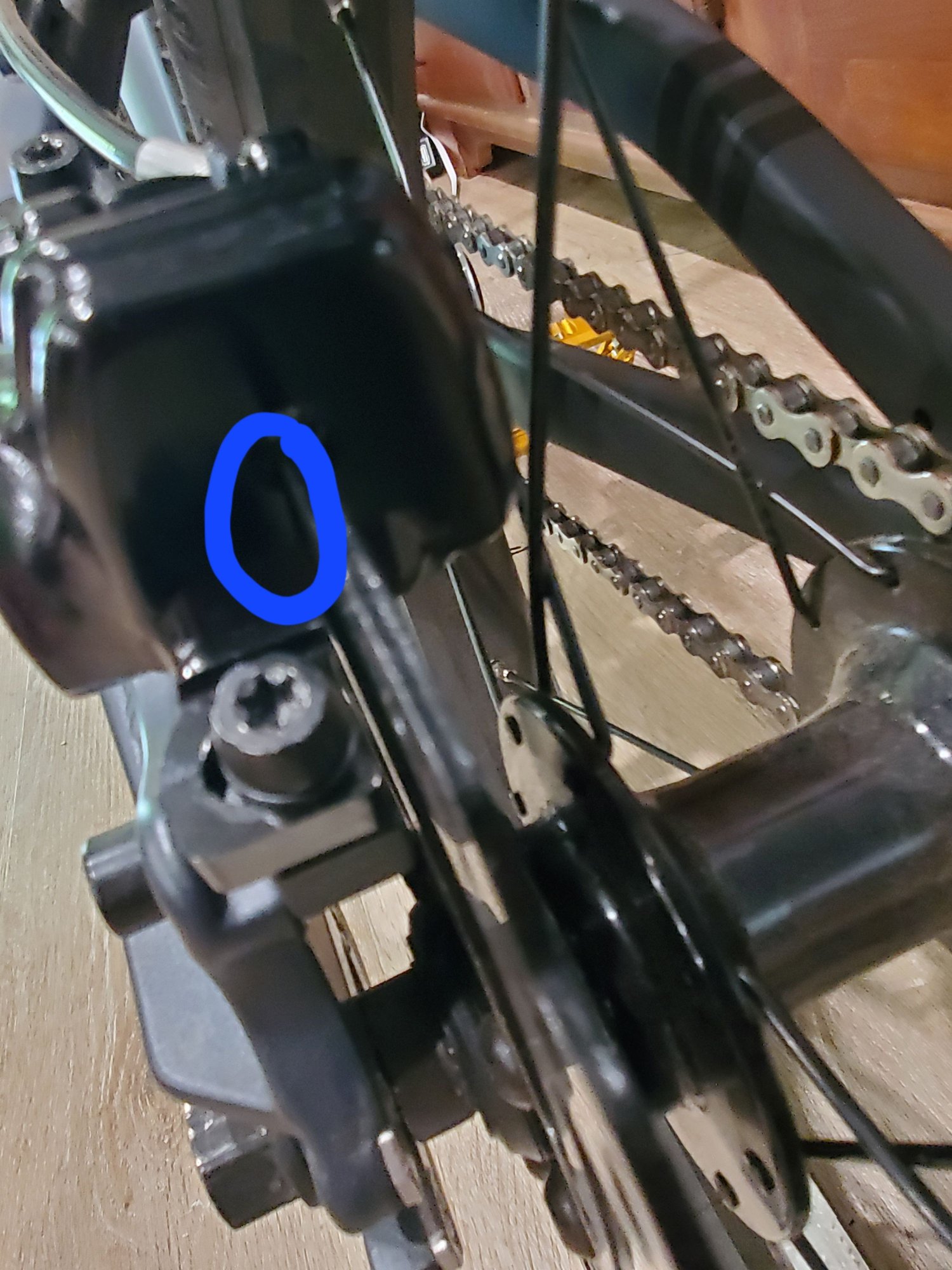

I think I found the issue...it was just BARELY touching right here...
kim791 is offline
