Is this Judy safe? Rusted steerer.

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Is this Judy safe? Rusted steerer.

Old 07-04-22, 11:30 PM
  #1
flipchip
Chipper
Thread Starter

Join Date: May 2022
Posts: 20

Bikes: 1984 Miyata RidgeRunner, 1993 GT Bravado LE, 1996 Stumpjumper M2 FS

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 9 Times in 6 Posts
Is this Judy safe? Rusted steerer.

So I've never seen anything like this before, but the fork still rebounds really well, so I'd like to use it. Is it safe?

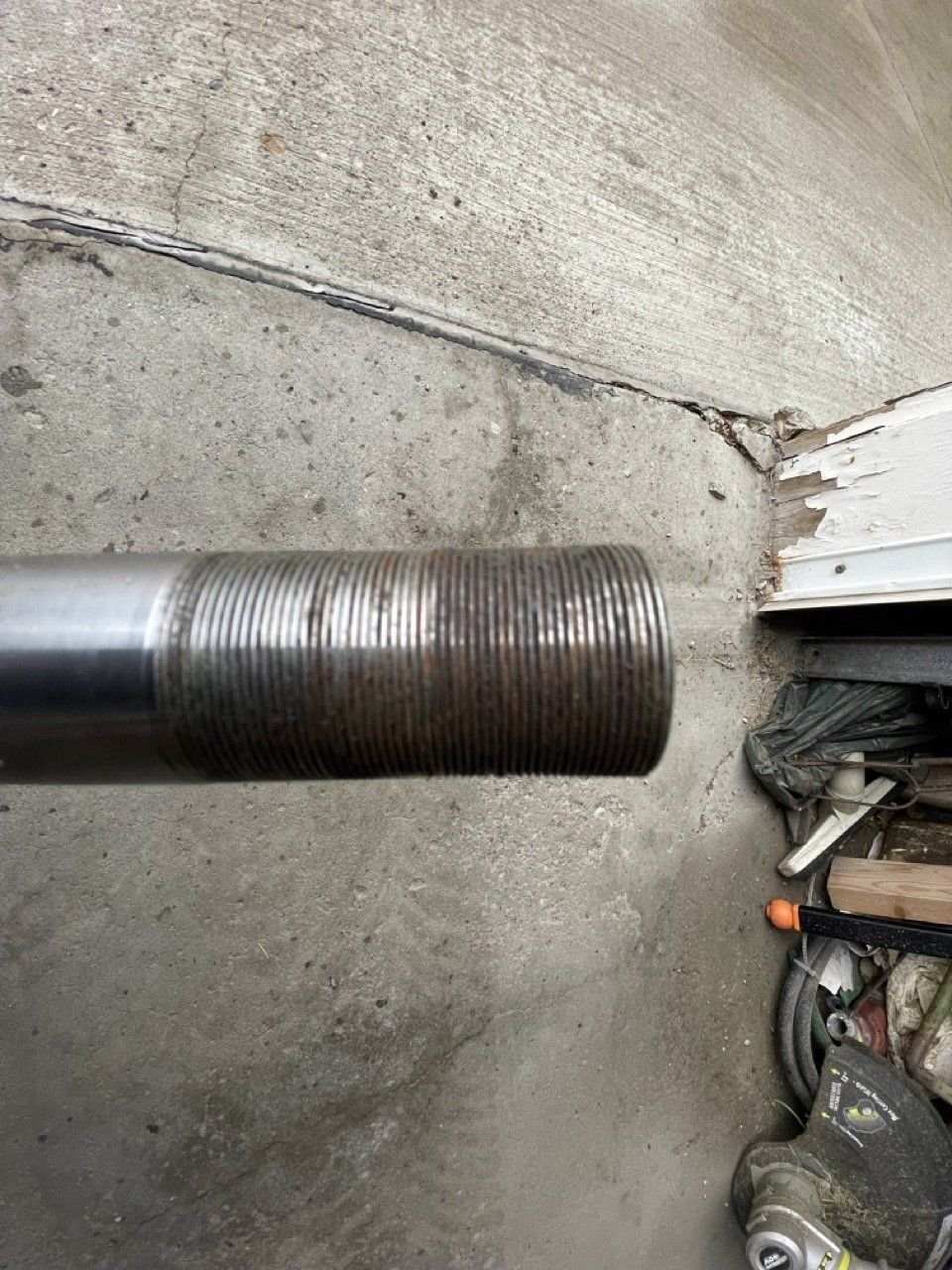

Big rust spot where stem was mounted.

Side view of spot.

Rear.
flipchip is offline
Old 07-05-22, 05:29 AM
  #2
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,929

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1102 Post(s)
Liked 287 Times in 216 Posts
The top of a threaded fork is not where the most stress is. Is there any corrosion where the steerer tube meets the fork body? That would concern me more? Is there a lot of rust on the inside of the tube?

Whether this is still safe for use depends upon... use. Are you a 250lb former D-I defensive lineman who likes to do really rough rides at high speeds downhill? Replace. Do you race bikes at high speeds over rough courses? Replace. A person of normal weight and strength who likes to ride off-road trails? You're probably ok.

The rust doesn't look too bad in pictures. I would soak the threads overnight in evaporust (pour 3" of Evaporust into a plastic cup and balance the fork upside down). Rinse, dry, and brush off any residue with a steel brush. Apply a light coat of grease to the entire thread length for protect from further rusting. You'll need a new nut and washer and probably a new race, as you've lost a little bit of thread crest. A new nut and race will have the full thread form, lessening likelihood of failure.

Assuming the inside was no worse than the outside, I don't see a likely catastrophic failure mode here. In extreme use? Maybe you hit a big rock, and the top of the steerer tube ruptures leaving the fork in the headtube. Then you get big air and the whole fork and wheel falls out. And then you land. Far-fetched. That said, there's always a higher risk if a part has some rust and corrosion. You have to make that decision for yourself - and you must assume the risk.

Anyone experience a top tube rupture?
WizardOfBoz is offline
Likes For WizardOfBoz:
Old 07-05-22, 05:39 AM
  #3
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO and Tucson, AZ
Posts: 2,500

Bikes: 2016 Fuji Tread, 1983 Trek 520

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 566 Post(s)
Liked 407 Times in 278 Posts
If that's the extent of the corrosion, the main problem you'll have is adjusting the headset. Take it to a shop and they'll have a die to chase those threads. If too much material has been lost, you'll know it when you torque the locknut. Or the mechanic will tell you.
andrewclaus is offline
Likes For andrewclaus:
Old 07-05-22, 07:55 AM
  #4
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,957

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 4417 Post(s)
Liked 2,962 Times in 2,062 Posts
Not a problem. I wouldn't even chase the threads. All that does is remove material faster than the rust. Sure it makes them pretty and smooth, but you don't need pretty and smooth for this.

Put it back together.
Iride01 is online now
Likes For Iride01:
Old 07-05-22, 09:03 AM
  #5
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,050

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3628 Post(s)
Liked 2,058 Times in 1,306 Posts
What word auto-corrected to "judy"?
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 07-05-22, 09:18 AM
  #6
dsaul
Senior Member

Join Date: Jan 2013
Location: South Jersey
Posts: 2,105
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 651 Post(s)
Liked 608 Times in 380 Posts
Originally Posted by ThermionicScott View Post
What word auto-corrected to "judy"?
Nothing. Rockshox makes a fork named "Judy".
dsaul is offline
Likes For dsaul:
Old 07-05-22, 09:21 AM
  #7
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,003

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1635 Post(s)
Liked 1,669 Times in 1,041 Posts
Originally Posted by ThermionicScott View Post
What word auto-corrected to "judy"?
Rockshox Judy suspension fork. Threaded steerer so probably from the 90ís.

John
70sSanO is online now
Likes For 70sSanO:
Old 07-05-22, 09:23 AM
  #8
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,050

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3628 Post(s)
Liked 2,058 Times in 1,306 Posts
Originally Posted by dsaul View Post
Nothing. Rockshox makes a fork named "Judy".
Originally Posted by 70sSanO View Post
Rockshox Judy suspension fork. Threaded steerer so probably from the 90ís.

John
Ah, thanks. Just seemed like a really odd word to end up on.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 07-05-22, 01:21 PM
  #9
bboy314
Full Member

bboy314's Avatar

Join Date: Dec 2008
Location: Pioneer Valley
Posts: 353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked 139 Times in 82 Posts
Though itís a threaded fork, the rust spot looks to me like a threadless stem was mounted to itÖ

But I would probably clean it up and chase the threads and use it (with a threaded headset and stem).
bboy314 is offline
Likes For bboy314:
Old 07-05-22, 01:36 PM
  #10
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 1,406
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 485 Post(s)
Liked 729 Times in 428 Posts
As bboy314 said, looks like a threaded steerer that had a stem for threadless steerer mounted on it. I recall in the mid '90s there was a manufacturer (Barracuda) who was selling their new bikes with this configuration... I don't recall seeing any failures but it sure seemed sketchy. I worry more about this mismatched config than I do about that seemingly minor rust.
ClydeClydeson is offline
Old 07-05-22, 02:51 PM
  #11
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,929

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1102 Post(s)
Liked 287 Times in 216 Posts
Is there a star-fangled nut inside the tube?
WizardOfBoz is offline
Old 07-06-22, 09:14 AM
  #12
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,957

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 4417 Post(s)
Liked 2,962 Times in 2,062 Posts
Good catch for bboy314 .

If this is being used with a threadless stem, then I'd be more worried about safety from just the threads alone being cut into the steerer tube.

A threadless stem I will think puts all of the stress of the riders pulling and bumping right there on those threads, where as a quill stem moves a lot of that force below the threads and below the top headset bearing. IMO, a quill stem is the proper stem for a threaded steerer tube.

Maybe if this is one of those steerer tubes that is made of much thicker material than others, then maybe not so much an issue.

Last edited by Iride01; 07-06-22 at 09:18 AM.
Iride01 is online now
Old 07-06-22, 09:46 AM
  #13
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 12,770
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 3292 Post(s)
Liked 2,045 Times in 1,201 Posts
Originally Posted by ThermionicScott View Post
Ah, thanks. Just seemed like a really odd word to end up on.
Thanks for asking, I was curious as well.
himespau is offline
Old 07-06-22, 07:50 PM
  #14
rosefarts
With a mighty wind

Join Date: May 2015
Posts: 2,026
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 798 Post(s)
Liked 520 Times in 308 Posts
Originally Posted by ThermionicScott View Post
What word auto-corrected to "judy"?
Itís like we can tell when you started riding by this.

2007.

Am I close?

Anyway, I have a formerly threaded fork whose threads were filled in with braze to make a smooth tube for a threadless setup. The diameter for a threaded steerer is ever so slightly narrower so a stem that can handle so extra pinch is needed. Itís sub-optimal.

I did eventually get the steerer cut off and a new proper one brazed on, it was a whole friggin thing. But thatís another story altogether.

Last edited by rosefarts; 07-06-22 at 07:55 PM.
rosefarts is offline
Old 07-07-22, 09:47 AM
  #15
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,050

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3628 Post(s)
Liked 2,058 Times in 1,306 Posts
Originally Posted by rosefarts View Post
Itís like we can tell when you started riding by this.

2007.

Am I close?
Actually, yeah. I got back into cycling as an adult in 2007-2008. But I probably would have been just as ignorant about MTB hardware regardless.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 07-07-22, 10:22 AM
  #16
jimc101
Senior Member

Join Date: Oct 2007
Location: West Yorkshire, United Kingdom
Posts: 5,714
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 421 Post(s)
Liked 71 Times in 61 Posts
Originally Posted by WizardOfBoz View Post
Is there a star-fangled nut inside the tube?
As it's threaded, hopefully not.

For the flipchip , although you haven't shown a picture of the complete crown/steerer, as it's threaded, this would indicate that it's a very early Judy (1995/1996), and is probably a bolted crown, so if you don't consider it safe (looking at the images, it really just looks like surface corrosion and maybe needs the threads chasing as andrewclaus suggests.)

However, if it does have a SFN and has been used for threadless, would really be looking for a new/NOS/replacement crown/steerer to do the job right. Too little info in in the original post to know what is really going on.

One for ThermionicScott quite a few MTB products from the 90's had female names, forks and brakes being the major ones, some just as codes names by manufactures not being using when the product was released, some getting mainstream releases as the Judy (which is a name still in use today)
jimc101 is offline
Old 07-13-22, 07:07 AM
  #17
Keefusb
Keefusb

Join Date: Jan 2021
Location: Ashland, VA
Posts: 59

Bikes: 62cm 1992 Paramount, 60cm 1995 Cannondale R900 (son's bike), 1994 Cannondale H300 (mine), 1994 Cannondale H300 Killer V (wife's bike), 61cm 1985 Raleigh Competition (recently sold), 60 cm 1989 Eddy Merckx Corsa Extra SLX

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 17 Times in 10 Posts
I would hit that spot with Liquid Wrench, PBlaster, or similar and a wire brush and brush out the threads thoroughly. Then you can try to thread the headset nut on the steerer. If it threads on OK, then you should be in the clear. If the nut doesn't thread or it binds, take it to a shop and have them chase the threads with a die or similar. It doesn't look like that rust is deep, and as others have pointed out the stress tends to hit lower on the steerer tube anyway. I would either use a quill stem, or use one of the quill adapters like the Deda model, which grips the inside of the steerer like an actual quill stem.
Keefusb is offline
Old 07-13-22, 02:54 PM
  #18
Keefusb
Keefusb

Join Date: Jan 2021
Location: Ashland, VA
Posts: 59

Bikes: 62cm 1992 Paramount, 60cm 1995 Cannondale R900 (son's bike), 1994 Cannondale H300 (mine), 1994 Cannondale H300 Killer V (wife's bike), 61cm 1985 Raleigh Competition (recently sold), 60 cm 1989 Eddy Merckx Corsa Extra SLX

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 17 Times in 10 Posts
In the 90's and 2000's Profile made a carbon road fork called the "Julie"...
