DIY shifter chain for the Sachs/SRAM Spectro 3x7 hub

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

DIY shifter chain for the Sachs/SRAM Spectro 3x7 hub

Old 07-07-22, 06:01 PM
Senior Member
Thread Starter
Harhir's Avatar
Join Date: Oct 2003
Location: Plano, TX
Posts: 601

Bikes: Fahrradmanufaktur Trekking Bike, 2 x Lightning Phantom, bikeE and bikeE2, Cycle Genius Raven

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Liked 98 Times in 54 Posts
DIY shifter chain for the Sachs/SRAM Spectro 3x7 hub

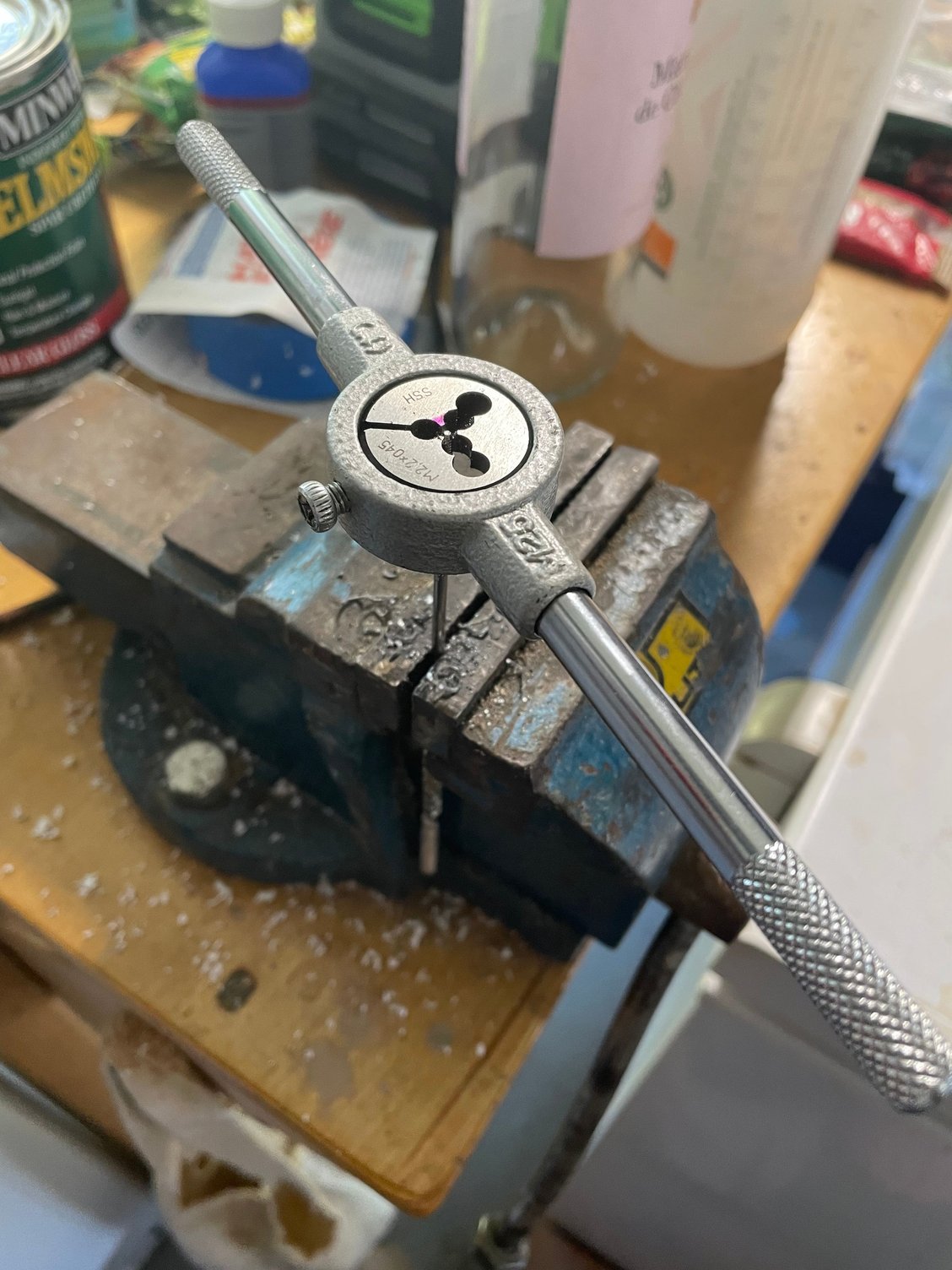

Found a way to build my own shifter chain for the old Sachs 3x7 speed hub. Since these shifter chains are no longer made and the chain for standard 3 speed hub is slightly too short I used a chain from the left side 5 speed hub. Cut the thread down with a thread cutter. Cut off the now too long thread no longer needed. Re-thread again and done.
On the photo below is a standard 3 speed chain on the left. The original 3x7 chain second from the left. The newly made chain second from the right and an original 5 speed chain to the right which I used to make it. The thread by the way is 2.2mm 0.45.​​​​​​​

Harhir is offline
Likes For Harhir:
Old 07-08-22, 12:24 PM
Senior Member
Join Date: May 2005
Location: SFBay
Posts: 2,293

Bikes: n, I would like n+1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Likes: 0
Liked 117 Times in 94 Posts
Nicely done.
