Rebuild of rear hub on Giant road bike help

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Rebuild of rear hub on Giant road bike help

Old 07-16-22, 05:40 PM
  #1
Microfiche
Newbie
Thread Starter

Microfiche's Avatar

Join Date: Apr 2017
Location: Kelowna, BC, Canada
Posts: 19

Bikes: Giant Defy Advanced 3, Specialized Crosstrail

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 2 Times in 2 Posts
Rebuild of rear hub on Giant road bike help

Mechanically inclined newbie DIY bike mechanic thinking of trying to rebuild the rear hub on my 2015 Giant Defy Advanced 3 road bike.
From what I can see, it has "Giant Sport Tracker Road" hubs - I think I saw 28H mentioned somewhere?
Where would I find out if it has sealed bearings or ball bearings, and what size they are?
Also - where would I find out what size cone wrench I will need, or do I just pull off the wheel and use calipers?
Microfiche is offline
Old 07-16-22, 05:58 PM
  #2
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,717

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5157 Post(s)
Liked 2,698 Times in 1,596 Posts
Post a picture of the hub. If it has flats for cone wrenches, it is probably loose bearing. From what I can find on the Intertubz, they look like standard cup and cone bearings. The rear bearings are probably 1/4” while the front may be 1/4” but they may also be 5/32”
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 07-16-22, 06:09 PM
  #3
Microfiche
Newbie
Thread Starter

Microfiche's Avatar

Join Date: Apr 2017
Location: Kelowna, BC, Canada
Posts: 19

Bikes: Giant Defy Advanced 3, Specialized Crosstrail

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 2 Times in 2 Posts

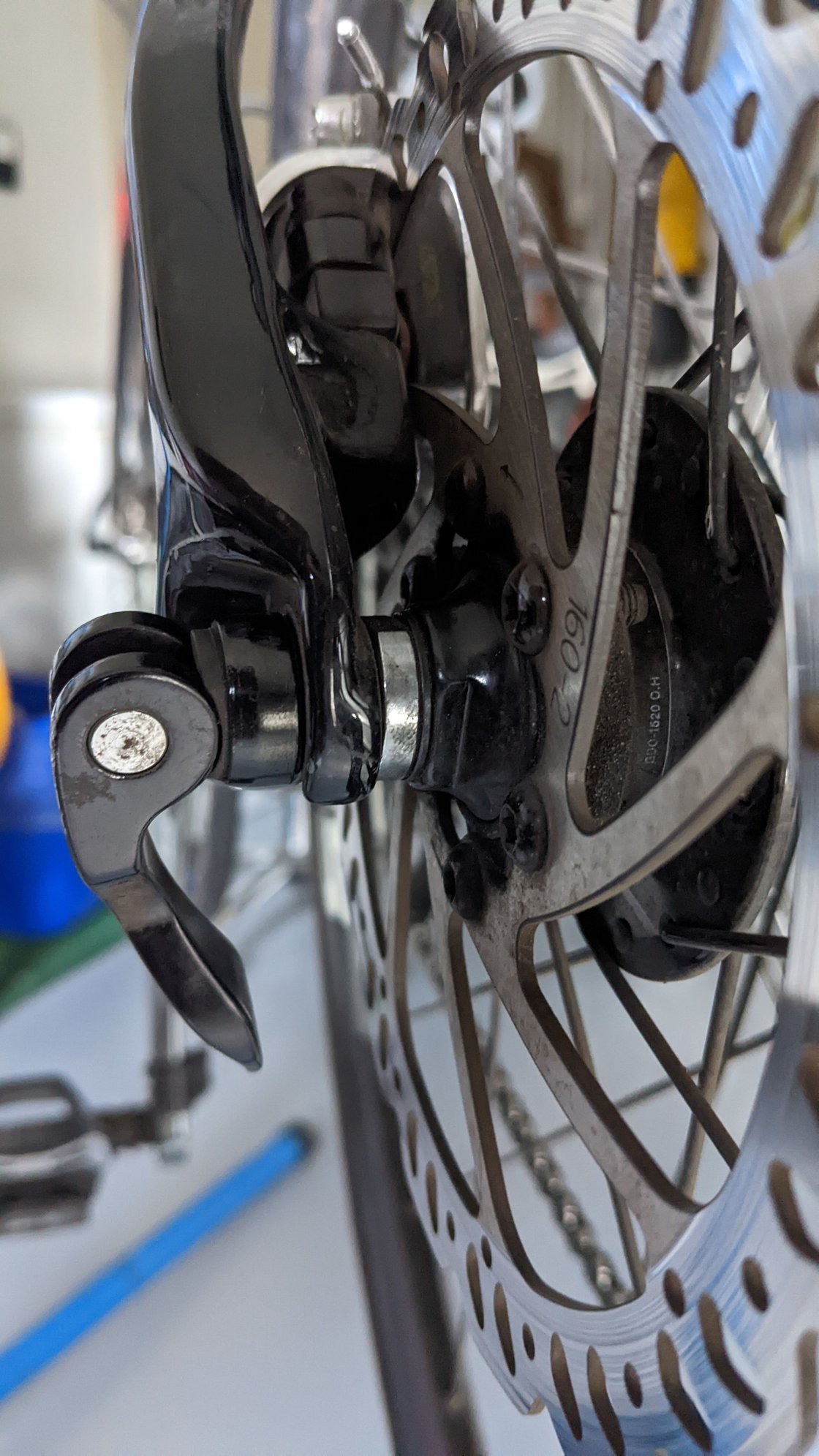

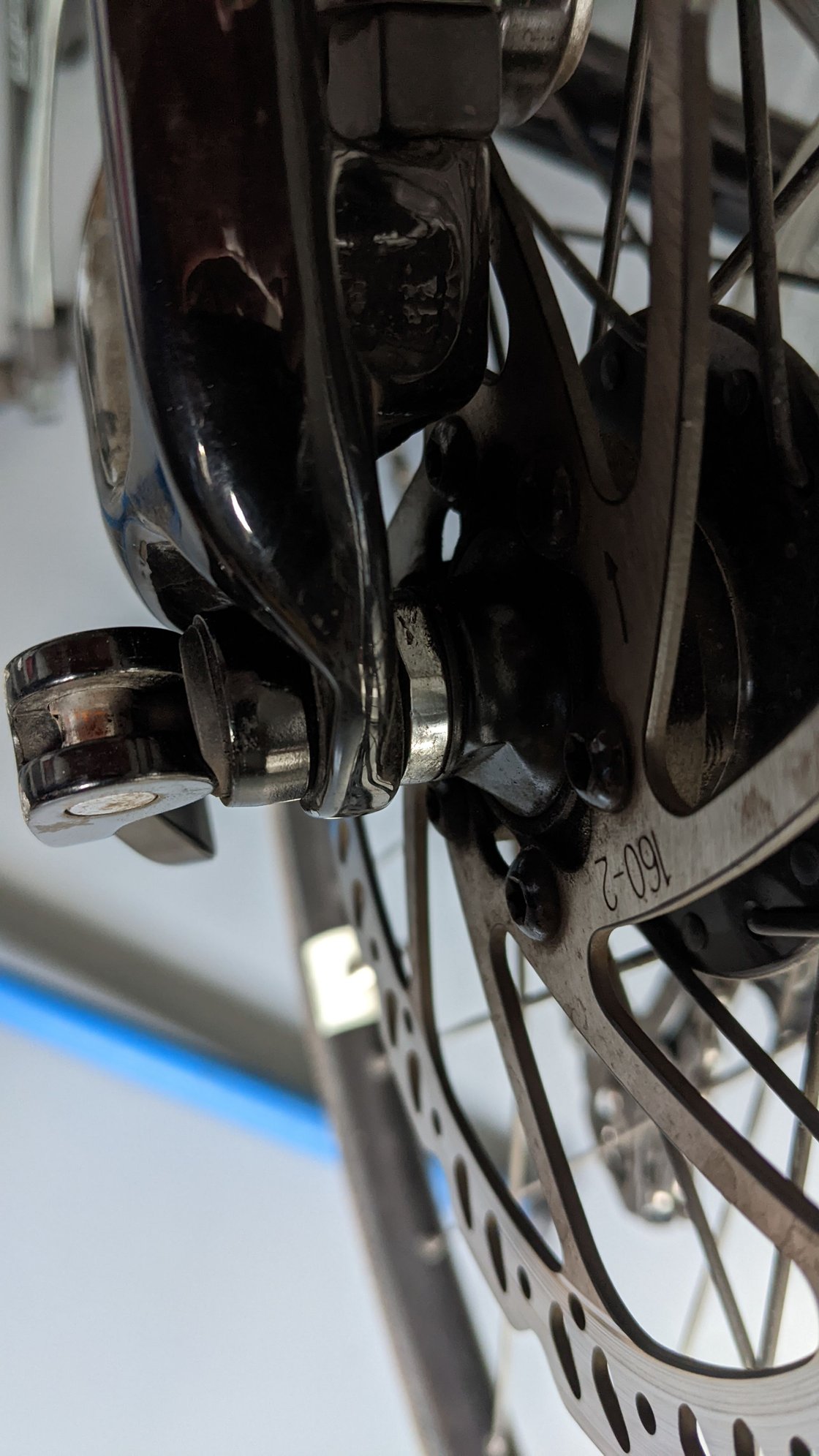

Hub pics

Originally Posted by cyccommute View Post
Post a picture of the hub. If it has flats for cone wrenches, it is probably loose bearing. From what I can find on the Intertubz, they look like standard cup and cone bearings. The rear bearings are probably 1/4 while the front may be 1/4 but they may also be 5/32
I will pull the wheel off later - tied up at the moment. Does this help?


Microfiche is offline
Old 07-16-22, 06:46 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,787

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3653 Post(s)
Liked 2,607 Times in 1,633 Posts
As Stuart said, most hubs with a cone wrench set of flats will also be a loose ball and cone design. So with not actually having the hub in hand I'll give an educated guess at a few aspects. 15 and 17mm wrenches fort the cones and lock nuts. 1/4" balls, 9 per side. While you are at it consider flushing the freehub body and relubing that too. Andy (who has various measuring calipers about the house, as with reader glasses)
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 07-17-22, 08:06 AM
  #5
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,462

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1927 Post(s)
Likes: 0
Liked 904 Times in 634 Posts
Originally Posted by cyccommute View Post
The rear bearings are probably 1/4 while the front may be 1/4 but they may also be 5/32
Most front hubs I've worked on, Shimano, Sun Tour, Sansin, etc., use 3/16" balls, either 10 or 11 per side. Some Campy hubs do use 5/32" balls both front and rear.
HillRider is offline
Old 07-17-22, 09:02 AM
  #6
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,717

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5157 Post(s)
Liked 2,698 Times in 1,596 Posts
Originally Posted by HillRider View Post
Most front hubs I've worked on, Shimano, Sun Tour, Sansin, etc., use 3/16" balls, either 10 or 11 per side. Some Campy hubs do use 5/32" balls both front and rear.
You are correct. My mistake.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 07-17-22, 09:05 AM
  #7
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,717

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5157 Post(s)
Liked 2,698 Times in 1,596 Posts
Originally Posted by Microfiche View Post
I will pull the wheel off later - tied up at the moment. Does this help?

It a little hard to tell from the picture but it looks like the hub has 2 wrench flats in two different places. That suggests cone and lock nut to me.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 07-17-22, 09:35 AM
  #8
Microfiche
Newbie
Thread Starter

Microfiche's Avatar

Join Date: Apr 2017
Location: Kelowna, BC, Canada
Posts: 19

Bikes: Giant Defy Advanced 3, Specialized Crosstrail

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 2 Times in 2 Posts
Thanks all, sounds like I will have to pull the wheel off and do some measuring to see what cone wrench I will need, and THEN determine the ball size once I have it apart.
I was hoping there would be definite specs for this hub out there somewhere.
Sounds like there is some degree of "by gosh and by golly" in bike maintenance.

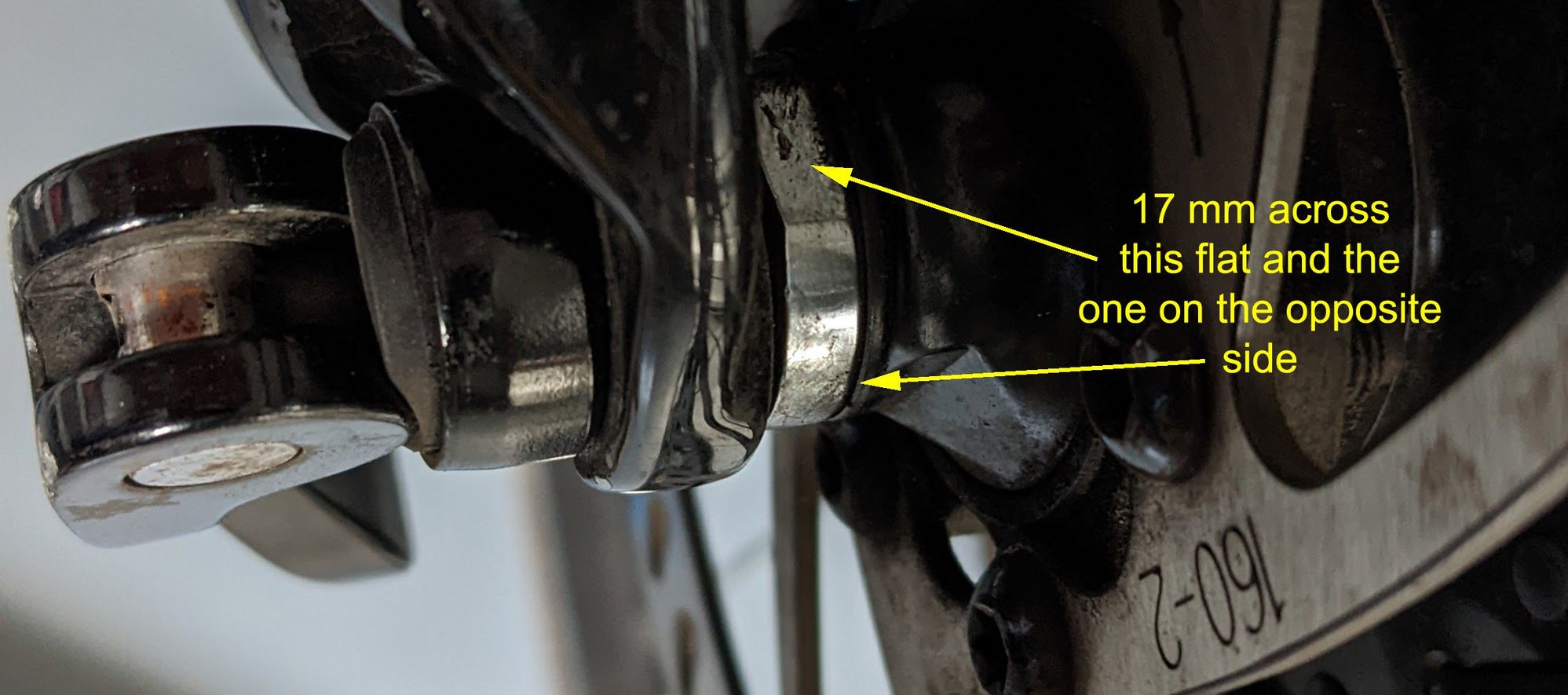

From what I can determine without pulling the wheel off yet, the measurement across the flats on what I assume is the cone nut is 17 mm, so I will likely grab a 17 mm and maybe a 15 mm cone wrench and try to get this pulled apart.
Thanks everyone!


Microfiche is offline
Old 07-17-22, 10:21 AM
  #9
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 2,211

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 851 Post(s)
Liked 378 Times in 279 Posts
Originally Posted by Microfiche View Post
...thinking of trying to rebuild the rear hub...
Sounds more like you're planning to *service* the hub... something that should be done at appropriate intervals.
Some may disagree with me, but if there's not much wear on the races I'd probably re-use the balls.
sweeks is offline
Likes For sweeks:
Old 07-17-22, 10:49 AM
  #10
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,462

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1927 Post(s)
Likes: 0
Liked 904 Times in 634 Posts
The flats on that 17mm "cone" should be accessible to a regular 17mm open end wrench so a specific cone wrench shouldn't be needed. The inner, probably 15mm flats, should need a cone wrench to get to.
HillRider is offline
Likes For HillRider:
Old 07-17-22, 04:40 PM
  #11
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,255

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1546 Post(s)
Liked 848 Times in 610 Posts
Originally Posted by Microfiche View Post
Thanks all, sounds like I will have to pull the wheel off and do some measuring to see what cone wrench I will need, and THEN determine the ball size once I have it apart.
I was hoping there would be definite specs for this hub out there somewhere.
Sounds like there is some degree of "by gosh and by golly" in bike maintenance.
From what I can determine without pulling the wheel off yet, the measurement across the flats on what I assume is the cone nut is 17 mm, so I will likely grab a 17 mm and maybe a 15 mm cone wrench and try to get this pulled apart.
Thanks everyone!
The only rear hubs I've seen with other than nine 1/4" balls/side were Mailliard Helicomatic. (sp)
I think some of the more recent higher end Shimano hubs may differ on size & quantity.
MOST likely, your fronts are 10 (or maybe 11) 3/16" balls/side. I have seen 1/4" on cheap (Huffy) bikes.

I don't have the best vision, so I just replace the old bearings w/ new when I service hubs.
I don't worry about missing any pitting and I only deal with clean grease. I do lose my dirtiest (of 3 dirties) shop rag and move 2 down in the pecking order and use 4-6 Q Tips. I have enough rags in progress to keep me supplied.
Bill Kapaun is offline
Likes For Bill Kapaun:
