rear brake adjustment help.

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

rear brake adjustment help.

Old 08-04-22, 04:01 PM
  #1
jadmt
Full Member
Thread Starter

Join Date: Mar 2022
Location: Missoula MT
Posts: 345
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked 187 Times in 87 Posts
rear brake adjustment help.

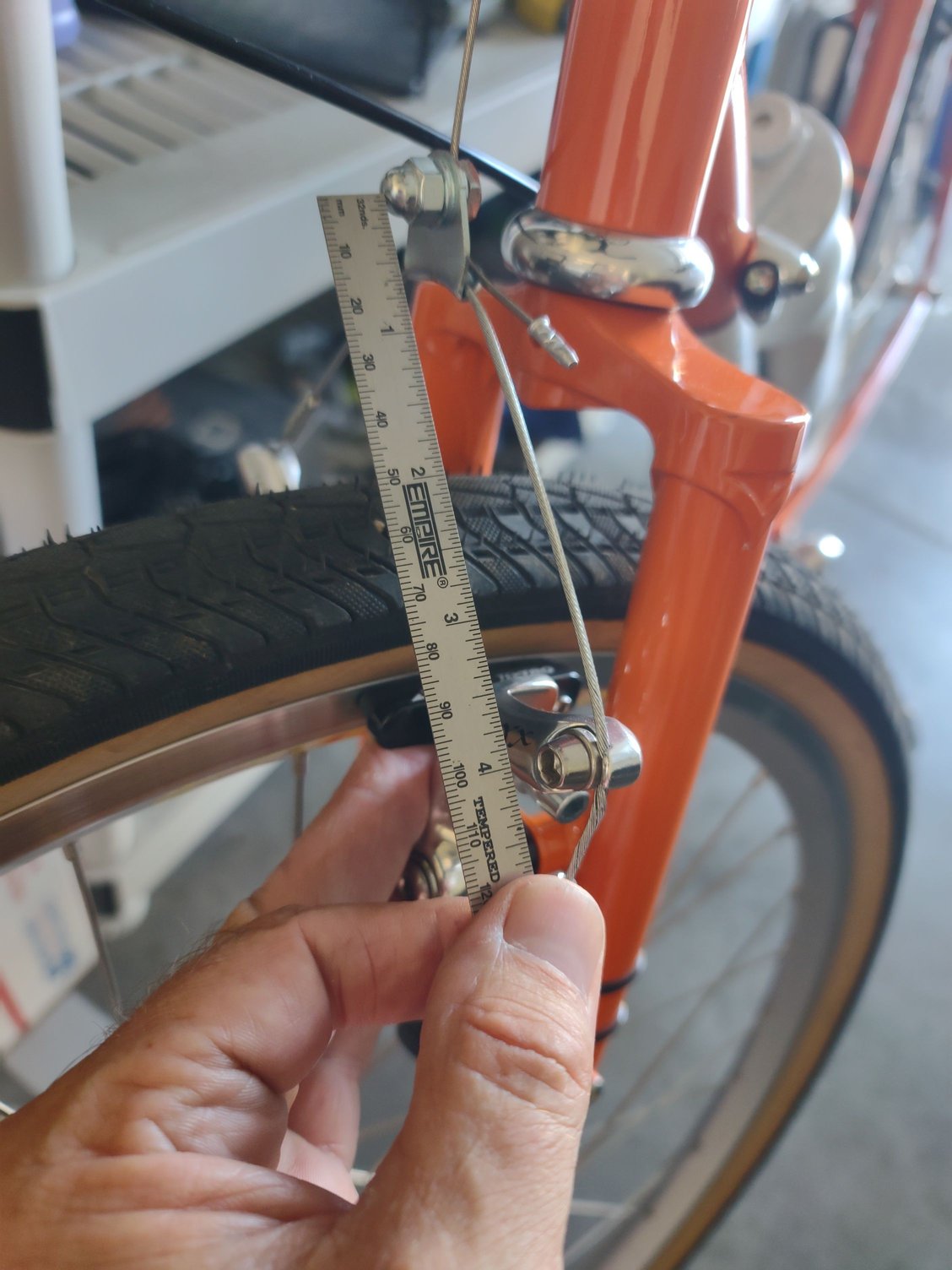

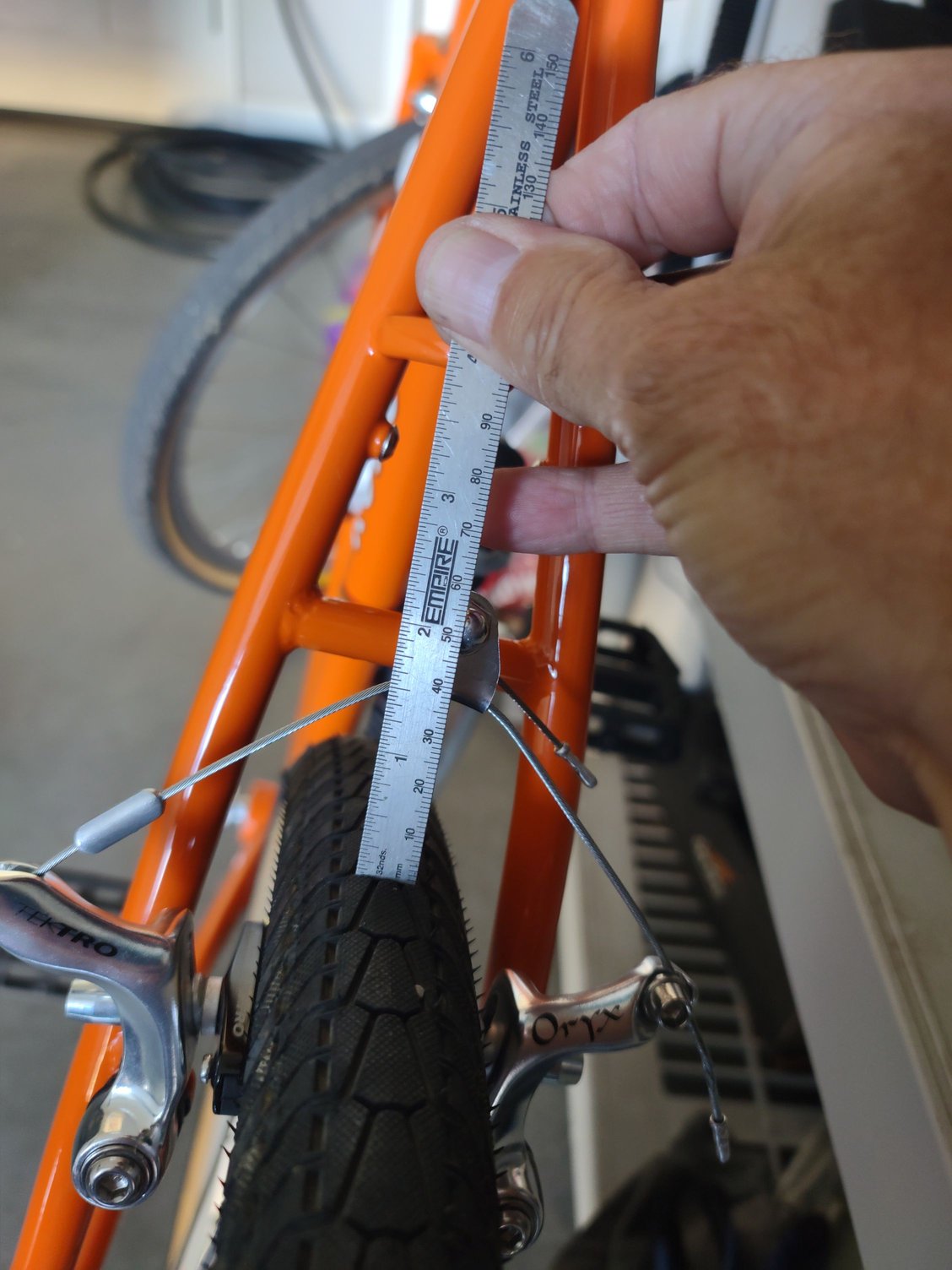

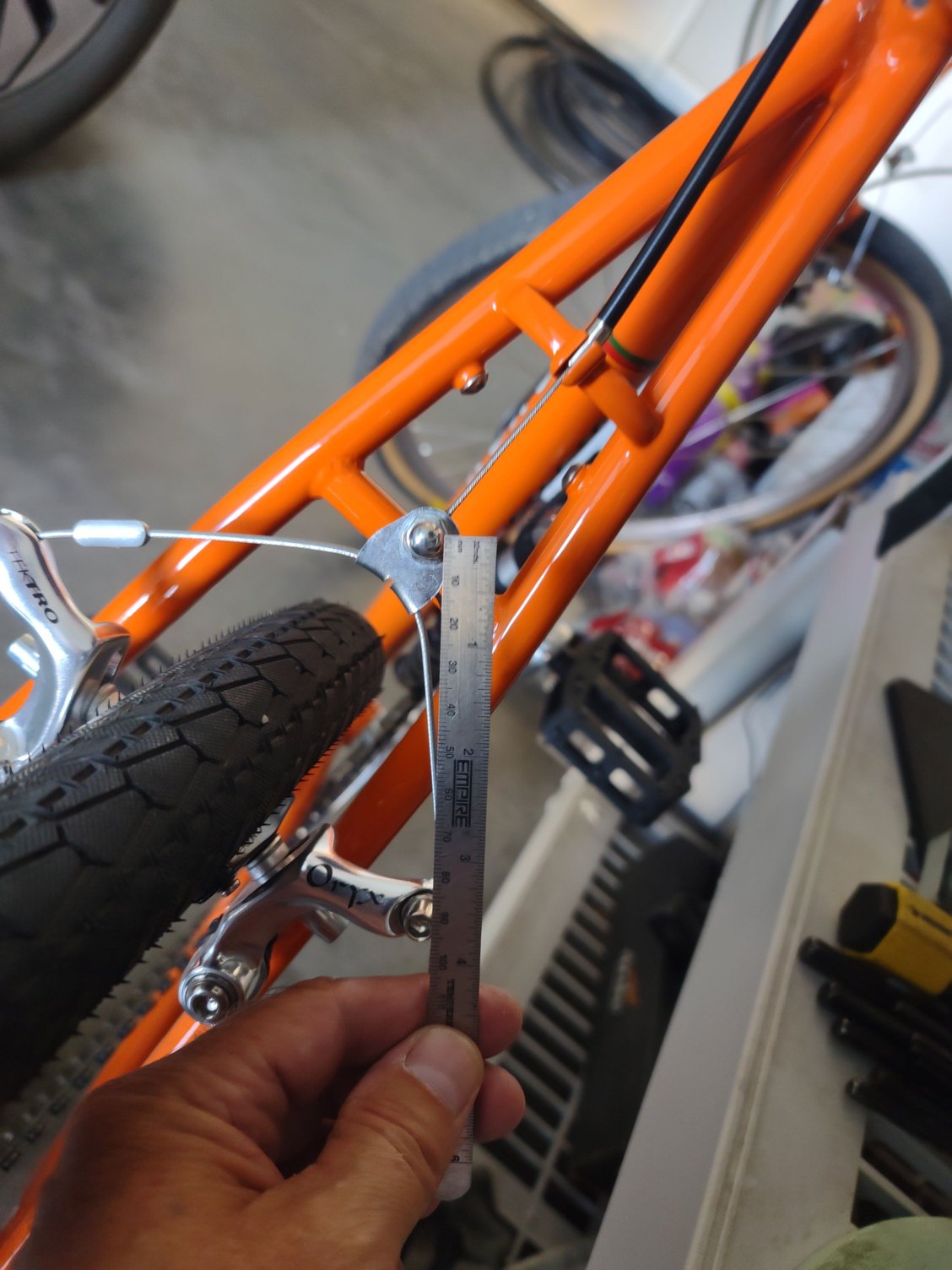

I can not get my rear Tektro brake to firm up. front will put you on your head but the rear is just mush...any help or tips would be appreciated. the pad is on the left side is adjusted as far down on the rim as possible and still seems like it needs to drop a mm. I have tried raising the straddle cable but that does not do it. the front lever is nice and begins to lock the brakes right away the rear lever is soft and goes almost to the bars. I have raised the hanger and also shortened the straddle cable and all that has done is made it so the tire does not spin freely..


jadmt is offline
Old 08-05-22, 02:00 AM
  #2
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 819

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 252 Post(s)
Liked 184 Times in 131 Posts
How is the angle and contact surface of the pads? Possible pad surface contamination. Just throwing that out there as a possibility

Edited to add:
Just noticed the width of concave/convex washers are not the same between the front and rear brake photos, the rear is using a wider spacer, maybe that is throwing off the angle of the pads meeting the rim.
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com





Last edited by JoeTBM; 08-05-22 at 02:06 AM.
JoeTBM is offline
Likes For JoeTBM:
Old 08-05-22, 06:34 AM
  #3
jadmt
Full Member
Thread Starter

Join Date: Mar 2022
Location: Missoula MT
Posts: 345
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked 187 Times in 87 Posts
Originally Posted by JoeTBM View Post
How is the angle and contact surface of the pads? Possible pad surface contamination. Just throwing that out there as a possibility

Edited to add:
Just noticed the width of concave/convex washers are not the same between the front and rear brake photos, the rear is using a wider spacer, maybe that is throwing off the angle of the pads meeting the rim.
the angle and contact is good and the pads are new. I hit them them with brake cleaner as well as the rim. they do have the spacer flipped so you may be on to something. the front as the thinner spacer on the pad side of the arm and the rear has the thinner spacer on the outside of the arm. I will try and see if flipping those help. thanks
jadmt is offline
Old 08-05-22, 07:10 AM
  #4
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 1,798

Bikes: 1989 Cinelli Super Corsa

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1050 Post(s)
Liked 775 Times in 509 Posts
Why do you have those giant spacers on the rear pads??
smd4 is offline
Old 08-05-22, 08:12 AM
  #5
jadmt
Full Member
Thread Starter

Join Date: Mar 2022
Location: Missoula MT
Posts: 345
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked 187 Times in 87 Posts
Originally Posted by smd4 View Post
Why do you have those giant spacers on the rear pads??
that is the way Handsome bicycles set them up. I just swapped them per JoeTBM pointing it out and it makes no difference.
jadmt is offline
Old 08-05-22, 08:12 AM
  #6
jadmt
Full Member
Thread Starter

Join Date: Mar 2022
Location: Missoula MT
Posts: 345
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked 187 Times in 87 Posts
Originally Posted by JoeTBM View Post
How is the angle and contact surface of the pads? Possible pad surface contamination. Just throwing that out there as a possibility

Edited to add:
Just noticed the width of concave/convex washers are not the same between the front and rear brake photos, the rear is using a wider spacer, maybe that is throwing off the angle of the pads meeting the rim.
just swapped them and exactly the same.
jadmt is offline
Old 08-05-22, 08:18 AM
  #7
Rolla
Former Member

Join Date: Sep 2020
Posts: 2,580
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1157 Post(s)
Liked 2,845 Times in 1,257 Posts
https://www.sheldonbrown.com/canti-trad.html

Last edited by Rolla; 08-05-22 at 08:21 AM.
Rolla is offline
Old 08-05-22, 08:28 AM
  #8
jadmt
Full Member
Thread Starter

Join Date: Mar 2022
Location: Missoula MT
Posts: 345
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked 187 Times in 87 Posts
everything I read it says the straddle should be as close to the tire as possible which of course is the case on mine. later today I will mess around with it as hitting the river for a float in a minute.




jadmt is offline
Old 08-05-22, 08:45 AM
  #9
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,495

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5010 Post(s)
Liked 2,595 Times in 1,532 Posts
Originally Posted by jadmt View Post
I can not get my rear Tektro brake to firm up. front will put you on your head but the rear is just mush...any help or tips would be appreciated. the pad is on the left side is adjusted as far down on the rim as possible and still seems like it needs to drop a mm. I have tried raising the straddle cable but that does not do it. the front lever is nice and begins to lock the brakes right away the rear lever is soft and goes almost to the bars. I have raised the hanger and also shortened the straddle cable and all that has done is made it so the tire does not spin freely..

You have a very narrow straddle cable hanger. You might try one that is wider. The Problem Solvers cable hanger may be over kill but could work. You might try Tektro’s version to begin with. If you want to make a statement, there are always these.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is online now
Old 08-05-22, 08:48 AM
  #10
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 1,798

Bikes: 1989 Cinelli Super Corsa

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1050 Post(s)
Liked 775 Times in 509 Posts
Originally Posted by jadmt View Post
I can not get my rear Tektro brake to firm up. front will put you on your head but the rear is just mush...
Because of the cable length, the rear brake may always feel a bit spongier than the front. Compressionless housing may help.
smd4 is offline
Likes For smd4:
Old 08-05-22, 08:55 AM
  #11
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,109
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 655 Times in 497 Posts
Originally Posted by smd4 View Post
Because of the cable length, the rear brake may always feel a bit spongier than the front. Compressionless housing may help.
+1 and Jagwire's best brake housing is the firmest I have found other than the solid link type. Makes a noticeable difference.
Crankycrank is offline
Old 08-05-22, 09:08 AM
  #12
jadmt
Full Member
Thread Starter

Join Date: Mar 2022
Location: Missoula MT
Posts: 345
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked 187 Times in 87 Posts
Originally Posted by Crankycrank View Post
+1 and Jagwire's best brake housing is the firmest I have found other than the solid link type. Makes a noticeable difference.
According to Handsome's specs they say this is jagwire.
jadmt is offline
Old 08-05-22, 09:29 AM
  #13
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,109
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 655 Times in 497 Posts
Originally Posted by jadmt View Post
According to Handsome's specs they say this is jagwire.
It could be one of their lower grade housings but unfortunately, I don't think there are any markings on the outside to determine what you have. Very different feel from their cheapest to their best. Here's a guide from JW that shows the construction that you may be able to see from the housing end. The "KEB-SL" version is the best. Jagwire Housing Guide | Jagwire
Crankycrank is offline
Old 08-05-22, 03:03 PM
  #14
Camilo
Senior Member

Join Date: Apr 2007
Posts: 5,682
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 657 Post(s)
Liked 540 Times in 351 Posts
I agree with several of the things said - the rear won't be as firm as the front, compressionless housing and a wider hanger would probably help. And, you said you kmow that the hanger should be a close to the tire as possible. Is yours really? It looks like it could come down significantly too. But the other points I listed are probably the most important.
Camilo is offline
Old 08-06-22, 02:52 PM
  #15
jadmt
Full Member
Thread Starter

Join Date: Mar 2022
Location: Missoula MT
Posts: 345
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked 187 Times in 87 Posts
ok got them so they are better. dropped the hanger down ~12mm and put on a brake booster that I had laying around for 30 years. thanks for the information.

jadmt is offline
