What bottom bracket tool do I need?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

What bottom bracket tool do I need?

Old 09-15-22, 05:43 AM
  #1
boneshaker78
Junior Member
Thread Starter

boneshaker78's Avatar

Join Date: Sep 2012
Location: Buffalo, NY
Posts: 130

Bikes: 1988 Miele Azsora singlespeed, 2022 State All-Road 4130, 2003 Jamis Coda Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 9 Times in 9 Posts
What bottom bracket tool do I need?

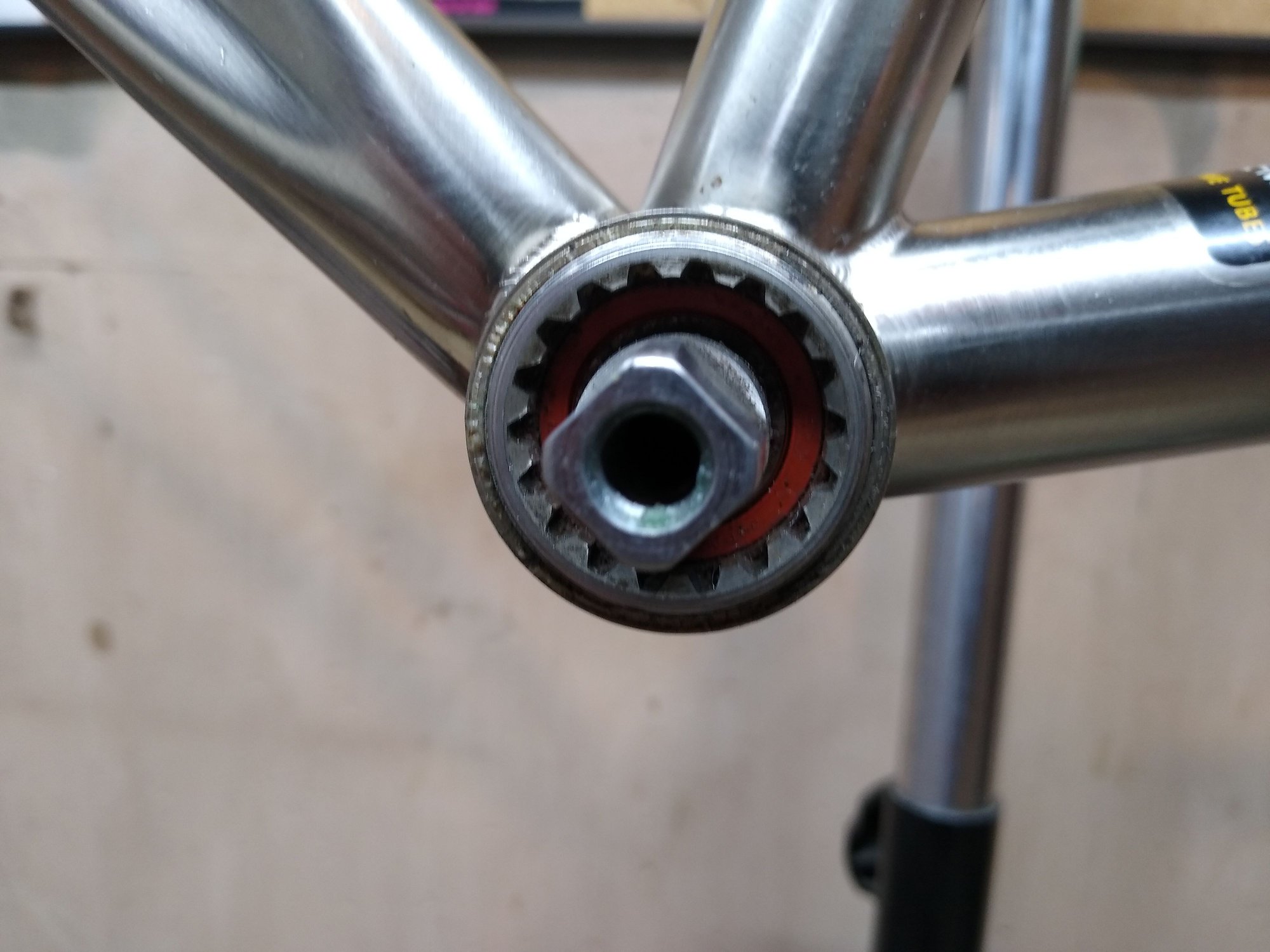

I havenít encountered this tool for a bottom bracket cup before. I tried Parks BBT-22 removal tool and itís too big. The notches in the bottom bracket cup are more rounded compared to the Park tool as well. The only thing Iíve seen that looks remotely similar would be a Phil Wood removal toolÖ is this a Phil Wood bottom bracket? Itís a mystery bike from my local bike co-op that came with some very nice parts including a Campy Record pista crank.

boneshaker78 is offline
Old 09-15-22, 06:37 AM
  #2
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,926

Bikes: Several, mostly not name brands.

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 3119 Post(s)
Liked 2,344 Times in 1,389 Posts
Could be a Phil bottom bracket, but Phil mounting rings do fit other cartridges, e.g. SunTour, Edco, etc., which is handy when you want to install a cartridge in a frame with odd BB threads (e.g. French, Swiss, Raleigh, Chater-Lea).

Phil Wood:
Attached Images
File Type: jpg
File Type: jpg

Last edited by JohnDThompson; 09-15-22 at 06:41 AM.
JohnDThompson is offline
Likes For JohnDThompson:
Old 09-15-22, 07:50 AM
  #3
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,455

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1920 Post(s)
Likes: 0
Liked 899 Times in 631 Posts
I believe it does take a Phil Wood tool. The cups you show, and the PW tool, have 18 splines. The Shimano tool has 20 so that is certainly the wrong one. Several on-line shops list the PW tool at less than $20 so it's probably worth trying it.
HillRider is offline
Likes For HillRider:
Old 09-15-22, 07:55 AM
  #4
boneshaker78
Junior Member
Thread Starter

boneshaker78's Avatar

Join Date: Sep 2012
Location: Buffalo, NY
Posts: 130

Bikes: 1988 Miele Azsora singlespeed, 2022 State All-Road 4130, 2003 Jamis Coda Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 9 Times in 9 Posts
Very useful information… thank you
boneshaker78 is offline
Old 09-29-22, 05:31 AM
  #5
boneshaker78
Junior Member
Thread Starter

boneshaker78's Avatar

Join Date: Sep 2012
Location: Buffalo, NY
Posts: 130

Bikes: 1988 Miele Azsora singlespeed, 2022 State All-Road 4130, 2003 Jamis Coda Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 9 Times in 9 Posts
I removed it a couple of days ago and it was indeed Phil Wood. The bearings are trashed, but otherwise couldn’t be happier with the pleasant surprise. Thank you to the community for the help , just wanted to make sure the cups were what I thought they were before I spent 40 bucks for two tools.
boneshaker78 is offline
Likes For boneshaker78:
Old 09-29-22, 07:29 AM
  #6
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,926

Bikes: Several, mostly not name brands.

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 3119 Post(s)
Liked 2,344 Times in 1,389 Posts
Originally Posted by boneshaker78 View Post
I removed it a couple of days ago and it was indeed Phil Wood. The bearings are trashed, but otherwise couldnít be happier with the pleasant surprise. Thank you to the community for the help , just wanted to make sure the cups were what I thought they were before I spent 40 bucks for two tools.
The bearings can be replaced. You can either do it yourself by pushing them out of the cartridge shell and replacing them with fresh bearings from an industrial bearing supplier, or have Phil do it for you: service@philwood.com
JohnDThompson is offline
Old 09-29-22, 08:42 PM
  #7
boneshaker78
Junior Member
Thread Starter

boneshaker78's Avatar

Join Date: Sep 2012
Location: Buffalo, NY
Posts: 130

Bikes: 1988 Miele Azsora singlespeed, 2022 State All-Road 4130, 2003 Jamis Coda Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 9 Times in 9 Posts
Originally Posted by JohnDThompson View Post
The bearings can be replaced. You can either do it yourself by pushing them out of the cartridge shell and replacing them with fresh bearings from an industrial bearing supplier, or have Phil do it for you: service@philwood.com
Sent them to Phil Wood, 47.00 total to replace them, with the bearings plus shippingÖ works for me.
boneshaker78 is offline
