M6 x 1.0 v brake bosses?

Old 10-01-22, 09:55 AM
  #1
boneshaker78
Junior Member
Thread Starter

boneshaker78's Avatar

Join Date: Sep 2012
Location: Buffalo, NY
Posts: 130

Bikes: 1988 Miele Azsora singlespeed, 2022 State All-Road 4130, 2003 Jamis Coda Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 9 Times in 9 Posts
M6 x 1.0 v brake bosses?

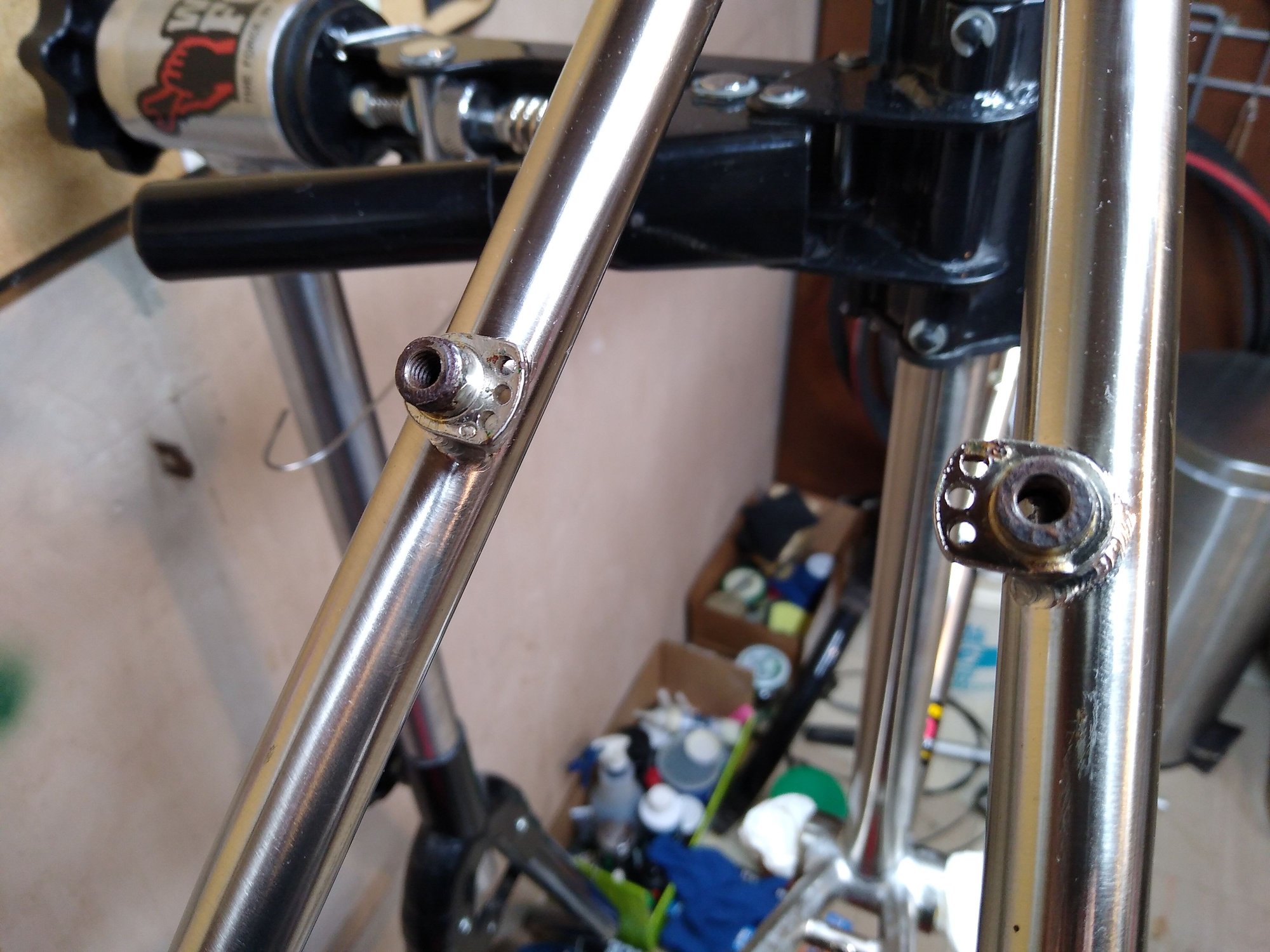

I found a bolt that fit into an old 2003 Jamis Coda Comp frame for the brake bosses and it was a perfect fit. I checked it with a die and it appears to be M6 x 1.0. I looked for brake bosses this size and Iím having a hard time. Anyone know of a place to order these?
boneshaker78 is offline
Old 10-01-22, 10:10 AM
  #2
grumpus
Junior Member

Join Date: Apr 2016
Posts: 128
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked 45 Times in 37 Posts
Bosses
grumpus is offline
Old 10-01-22, 10:18 AM
  #3
boneshaker78
Junior Member
Thread Starter

boneshaker78's Avatar

Join Date: Sep 2012
Location: Buffalo, NY
Posts: 130

Bikes: 1988 Miele Azsora singlespeed, 2022 State All-Road 4130, 2003 Jamis Coda Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 9 Times in 9 Posts
Originally Posted by grumpus View Post
These are screw in type boss studs, not welded/brazed on.
boneshaker78 is offline
Old 10-01-22, 10:43 AM
  #4
grumpus
Junior Member

Join Date: Apr 2016
Posts: 128
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked 45 Times in 37 Posts
Ah, you mean the inserts that are always M8 or M10 - has someone cut this off so only the thread for the pivot bolt remains? Can you drill and tap it for M8? At a pinch cut the pivot from a scrap frame (or order some from Ceeway) and use a high tensile M6 bolt and Loctite to hold it together.
grumpus is offline
Old 10-01-22, 10:48 AM
  #5
boneshaker78
Junior Member
Thread Starter

boneshaker78's Avatar

Join Date: Sep 2012
Location: Buffalo, NY
Posts: 130

Bikes: 1988 Miele Azsora singlespeed, 2022 State All-Road 4130, 2003 Jamis Coda Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 9 Times in 9 Posts
Originally Posted by grumpus View Post
Ah, you mean the inserts that are always M8 or M10 - has someone cut this off so only the thread for the pivot bolt remains? Can you drill and tap it for M8? At a pinch cut the pivot from a scrap frame (or order some from Ceeway) and use a high tensile M6 bolt and Loctite to hold it together.
No, I really don’t feel that these have been tampered with in anyway. I think they are stock from Jamis. I’ve seen threads in other forums discussing this rare size. Thanks for your help!
boneshaker78 is offline
Old 10-01-22, 10:58 AM
  #6
boneshaker78
Junior Member
Thread Starter

boneshaker78's Avatar

Join Date: Sep 2012
Location: Buffalo, NY
Posts: 130

Bikes: 1988 Miele Azsora singlespeed, 2022 State All-Road 4130, 2003 Jamis Coda Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 9 Times in 9 Posts
Hereís a link I found regarding the sizeÖ https://www.retrobike.co.uk/threads/...bosses.239958/
boneshaker78 is offline
Old 10-01-22, 11:05 AM
  #7
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,908
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 844 Post(s)
Liked 461 Times in 262 Posts
Originally Posted by grumpus View Post
Ah, you mean the inserts that are always M8 or M10 - has someone cut this off so only the thread for the pivot bolt remains? Can you drill and tap it for M8? At a pinch cut the pivot from a scrap frame (or order some from Ceeway) and use a high tensile M6 bolt and Loctite to hold it together.
They are not always m8 or m10 . In rare cases they are indeed m6 and sometimes even 5/16 x 18.
Dan Burkhart is offline
Likes For Dan Burkhart:
Old 10-01-22, 11:14 AM
  #8
grumpus
Junior Member

Join Date: Apr 2016
Posts: 128
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked 45 Times in 37 Posts
Originally Posted by Dan Burkhart View Post
They are not always m8 or m10.
Well I never ... but now I do. :-)
grumpus is offline
Likes For grumpus:
Old 10-01-22, 01:42 PM
  #9
mtbikerjohn
Full Member

mtbikerjohn's Avatar

Join Date: Aug 2007
Location: near Detroit
Posts: 233

Bikes: a few..

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 71 Times in 45 Posts
Originally Posted by Dan Burkhart View Post
They are not always m8 or m10 . In rare cases they are indeed m6 and sometimes even 5/16 x 18.
Probably not with a 2003 Jamis though....
mtbikerjohn is offline
Old 10-01-22, 01:45 PM
  #10
mtbikerjohn
Full Member

mtbikerjohn's Avatar

Join Date: Aug 2007
Location: near Detroit
Posts: 233

Bikes: a few..

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 71 Times in 45 Posts
Originally Posted by boneshaker78 View Post
No, I really donít feel that these have been tampered with in anyway. I think they are stock from Jamis. Iíve seen threads in other forums discussing this rare size. Thanks for your help!
Try contacting Jamis..That is new enough to the more modern standard.. M8, and sometimes,M10 threads
mtbikerjohn is offline
Old 10-01-22, 01:48 PM
  #11
mtbikerjohn
Full Member

mtbikerjohn's Avatar

Join Date: Aug 2007
Location: near Detroit
Posts: 233

Bikes: a few..

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 71 Times in 45 Posts
The internal threads for canti bosses are usually M6 threads. the threads that screw into frame or fork bosses could be m8 0r m10 on that Jamis
mtbikerjohn is offline
Old 10-01-22, 02:21 PM
  #12
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,252

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1546 Post(s)
Liked 844 Times in 609 Posts
Originally Posted by boneshaker78 View Post
I found a bolt that fit into an old 2003 Jamis Coda Comp frame for the brake bosses and it was a perfect fit. I checked it with a die and it appears to be M6 x 1.0. I looked for brake bosses this size and Iím having a hard time. Anyone know of a place to order these?
If you found an old rim on the side of the road, would you look for a car to fit it?
I think your approach is backwards.
Get readily available bosses and bolts to fit them.
Bill Kapaun is offline
Old 10-01-22, 02:40 PM
  #13
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 2,206

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 847 Post(s)
Liked 377 Times in 278 Posts
Originally Posted by Bill Kapaun View Post
Get readily available bosses and bolts to fit them.
A number of years ago, I replaced the brake pivots/bosses on a commuter bike with titanium ones. There were at least two thread pitches available for the same diameter. I removed one of them and measured the pitch so I knew which ones to order. Now it seems there are different diameters as well... what a nightmare!
sweeks is offline
Old 10-01-22, 03:00 PM
  #14
boneshaker78
Junior Member
Thread Starter

boneshaker78's Avatar

Join Date: Sep 2012
Location: Buffalo, NY
Posts: 130

Bikes: 1988 Miele Azsora singlespeed, 2022 State All-Road 4130, 2003 Jamis Coda Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 9 Times in 9 Posts
I'm starting to think these bosses, or whatever they are called, attached to the frame are replacements for the originals. I really have no idea, but it looks a little funny because the frame is more of a raw steel look and the bosses are a true chrome.


boneshaker78 is offline
Old 10-01-22, 03:38 PM
  #15
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,749

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3632 Post(s)
Liked 2,578 Times in 1,617 Posts
The imaged bosses sure look like common ones but have has the smooth post section removed, cut off. As in these were a one piece type. machined on a lathe and the spring tab plate brazed on. The smooth post section can break off from some impact, but both on the same frame makes me wonder if this frame had them cut off on purpose.

IIRC Problem Solvers (a brand of Quality Bicycle Products) use to offer a repair kit that had a section of tube to replace the broken off and missing portion. The bosses base would be filed square so the replacement would stand perpendicular. A really long M6 bolt sandwiched the replacement tube, the canti arm and the base together. I have installed about a half dozen of these kits, might still have one in my stash. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 10-01-22, 05:45 PM
  #16
boneshaker78
Junior Member
Thread Starter

boneshaker78's Avatar

Join Date: Sep 2012
Location: Buffalo, NY
Posts: 130

Bikes: 1988 Miele Azsora singlespeed, 2022 State All-Road 4130, 2003 Jamis Coda Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 9 Times in 9 Posts
Originally Posted by Andrew R Stewart View Post
The imaged bosses sure look like common ones but have has the smooth post section removed, cut off. As in these were a one piece type. machined on a lathe and the spring tab plate brazed on. The smooth post section can break off from some impact, but both on the same frame makes me wonder if this frame had them cut off on purpose.

IIRC Problem Solvers (a brand of Quality Bicycle Products) use to offer a repair kit that had a section of tube to replace the broken off and missing portion. The bosses base would be filed square so the replacement would stand perpendicular. A really long M6 bolt sandwiched the replacement tube, the canti arm and the base together. I have installed about a half dozen of these kits, might still have one in my stash. Andy
Youíre so helpful Andrew! Thanks for the reply. That would make sense and maybe thatís exactly what happened here. Rather sad to find this out. ☹️
boneshaker78 is offline
Old 10-01-22, 07:00 PM
  #17
boneshaker78
Junior Member
Thread Starter

boneshaker78's Avatar

Join Date: Sep 2012
Location: Buffalo, NY
Posts: 130

Bikes: 1988 Miele Azsora singlespeed, 2022 State All-Road 4130, 2003 Jamis Coda Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 9 Times in 9 Posts
Is this it? https://problemsolversbike.com/files...epair_inst.pdf
boneshaker78 is offline
Old 10-01-22, 07:42 PM
  #18
boneshaker78
Junior Member
Thread Starter

boneshaker78's Avatar

Join Date: Sep 2012
Location: Buffalo, NY
Posts: 130

Bikes: 1988 Miele Azsora singlespeed, 2022 State All-Road 4130, 2003 Jamis Coda Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 9 Times in 9 Posts
The right side is shorter than the left and I believe they were cut off given this evidence. Thanks for the help everyone! I guess I’ll try this Problem Solver solution. Hopefully this will help someone else someday too.
boneshaker78 is offline
Old 10-01-22, 10:23 PM
  #19
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,749

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3632 Post(s)
Liked 2,578 Times in 1,617 Posts
Brian- I don't have the kit I thought I had. Work might have one but not two. I will still look on Monday.

I did the next best thing and took some measurements. The OD of a canti post runs between .3110" to .3130", or about what a 5/16" tube would have. The ID needs to clear a M6 bolt. That's about .236". A wall of .035" gives an ID about .243". So, a 5/16" x .035 tube, cut to a specific length with a properly long M6 bolt and nice washer gets one this kit. Cut and square off the tube's ends a slight bit longer than the canti post was (about .646") and file to fit the actual canti arm. Speedy Metals 5/16" OD x 0.243" ID x .035" Wall Other Steel Round Tube Is a source for this tube. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 10-02-22, 10:50 AM
  #20
boneshaker78
Junior Member
Thread Starter

boneshaker78's Avatar

Join Date: Sep 2012
Location: Buffalo, NY
Posts: 130

Bikes: 1988 Miele Azsora singlespeed, 2022 State All-Road 4130, 2003 Jamis Coda Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 9 Times in 9 Posts
Originally Posted by Andrew R Stewart View Post
Brian- I don't have the kit I thought I had. Work might have one but not two. I will still look on Monday.

I did the next best thing and took some measurements. The OD of a canti post runs between .3110" to .3130", or about what a 5/16" tube would have. The ID needs to clear a M6 bolt. That's about .236". A wall of .035" gives an ID about .243". So, a 5/16" x .035 tube, cut to a specific length with a properly long M6 bolt and nice washer gets one this kit. Cut and square off the tube's ends a slight bit longer than the canti post was (about .646") and file to fit the actual canti arm. Speedy Metals 5/16" OD x 0.243" ID x .035" Wall Other Steel Round Tube Is a source for this tube. Andy
Wow! Thanks Andy! You saved me from so much headache trying to figure all of that out. Much appreciated 😊
boneshaker78 is offline
Old 10-03-22, 02:04 PM
  #21
grumpus
Junior Member

Join Date: Apr 2016
Posts: 128
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked 45 Times in 37 Posts
The bearing surface is 8mm, the thread is M6x1.0 - if you don't want to hack the relevant bits off a scrap frame I'm sure you can find someone to turn a bit of round bar, drill/thread it, and cut it to length, which is about 16.5mm; a little longer won't hurt, but shorter and the brake will bind. You should use a good grade of screw, as long as will thread in without bottoming, to hold it together - a brake booster is probably a good idea too, and Loctite wouldn't hurt.
grumpus is offline
Likes For grumpus:
Old 10-03-22, 07:52 PM
  #22
boneshaker78
Junior Member
Thread Starter

boneshaker78's Avatar

Join Date: Sep 2012
Location: Buffalo, NY
Posts: 130

Bikes: 1988 Miele Azsora singlespeed, 2022 State All-Road 4130, 2003 Jamis Coda Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 9 Times in 9 Posts
Does anyone know if other issues could arise from repairing the brake studs in this manner? Would it create the potential for the brakes to squeal excessively? Would the braking power be the same as if the studs weren’t cut off? I might consider a brake booster… thanks grumpus.
boneshaker78 is offline
Old 10-03-22, 08:18 PM
  #23
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,749

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3632 Post(s)
Liked 2,578 Times in 1,617 Posts
The best repair is of course a boss/base replacement. This would require some chrome removal and the skills/tools to do such. The repair kit I suggested is the make do method. Doing this make do would want periodic checking for the new canti arm sleeve/tube coming loose, the bolt's not staying tight. A brake booster plate would certainly help stabilize the repair.

As to "power" I would say that this goal is pretty far down the list of needs at this point. That's what the front brake is for. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 10-11-22, 12:47 PM
  #24
grumpus
Junior Member

Join Date: Apr 2016
Posts: 128
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked 45 Times in 37 Posts
Originally Posted by boneshaker78 View Post
Does anyone know if other issues could arise from repairing the brake studs in this manner? Would it create the potential for the brakes to squeal excessively? Would the braking power be the same as if the studs weren’t cut off? I might consider a brake booster… thanks grumpus.
If you don;t use a brake booster there will probably be more flex than the original setup, which will be more likely to cause squeal, but you compensate for that by toeing in a little further. Excessive flex if the touching faces aren't flat and clamped firmly together could eventually cause fatigue failure - filing the faces, using a good grade of screw and making sure it's properly tightened should prevent this. As Andrew R Stewart wrote, you're not looking for ultimate power from a back brake anyway.
An alternative repair that occurred to me is to use a M6 threaded stud in place of a screw - that could be silver soldered in place along with the 8 mm section, then just use nyloc nuts to secure the brake arms. The silver soldering would require very good joint cleanliness, which might be hard to achieve inside the existing threaded part.

Last edited by grumpus; 10-12-22 at 10:37 AM.
grumpus is offline
Likes For grumpus:
Old 10-13-22, 01:50 PM
  #25
Krov9
Junior Member

Krov9's Avatar

Join Date: Mar 2021
Location: Helsinki, Finland
Posts: 117
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 29 Times in 19 Posts
I do in fact have a frame with M6 threaded bosses/mounts for canti brake studs/posts (not sure about the terminology). The bike is French, 70's and from an unidentified manufacturer so I guess I shouldn't be surprised to encounter obscure standards

From what I've gathered while trying to hunt down said posts/studs is that M6 were used in a number of not so recent suspension forks from.RockShox & Magura, as well as by Cannondale at some point.

This is a valuable source, especially for those in the old continent https://brake-stuff.de/en/canti-stud...pring-retainer

As for my bosses, they are actually just bent pieces of steel plate with M6 nuts welded inside, so the threading will be so short I doubt the above mentioned parts would thread in tightly enough. I'm considering getting some M8 nuts welded there in place of the old M6 ones, since they would be hidden from sight
Krov9 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2022 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
