Modern brake attachment problem on 1982 Fuji team

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Modern brake attachment problem on 1982 Fuji team

Old 10-08-22, 04:53 PM
  #1
arewolfe
Newbie
Thread Starter

Join Date: Sep 2022
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Modern brake attachment problem on 1982 Fuji team

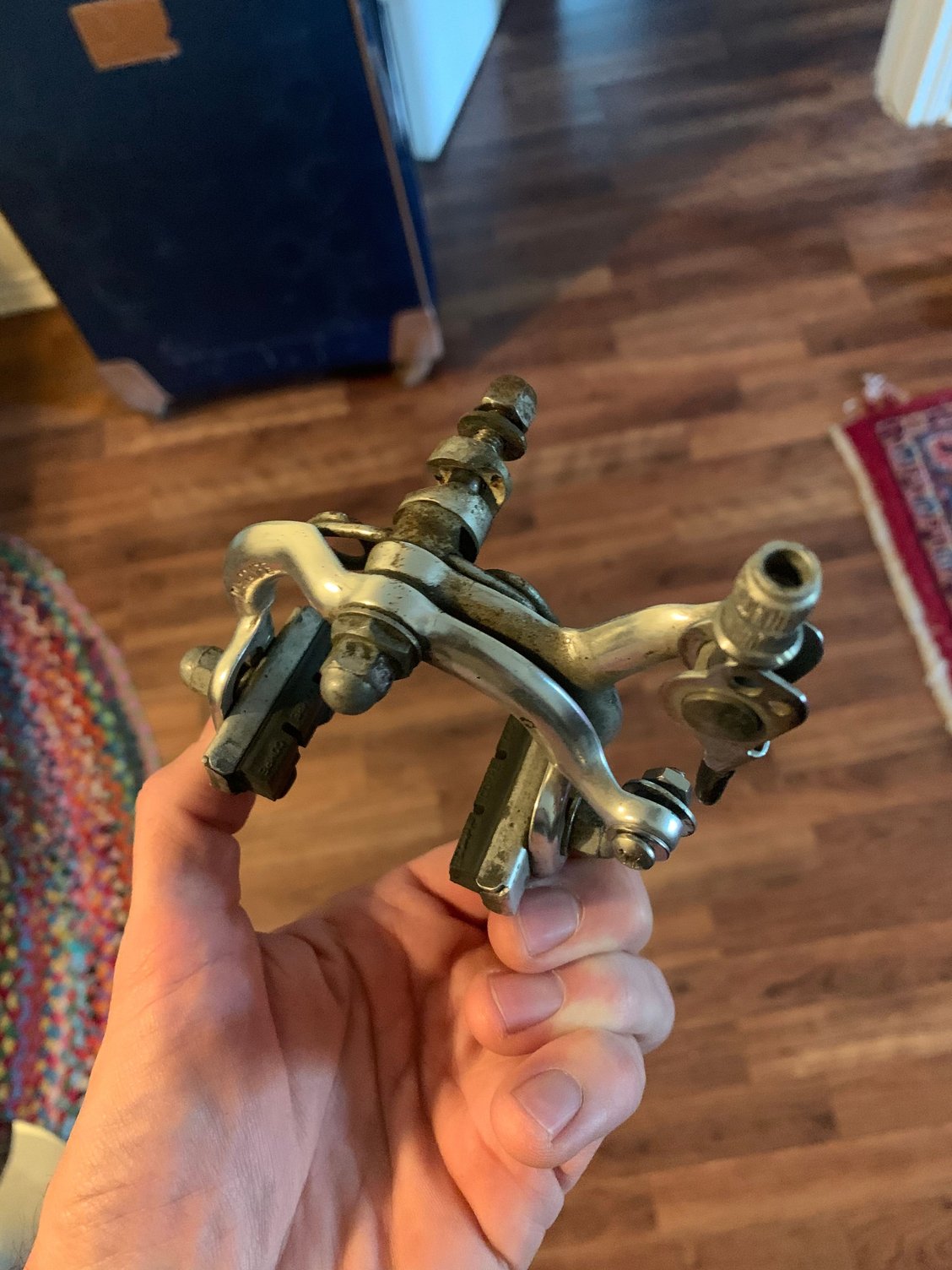

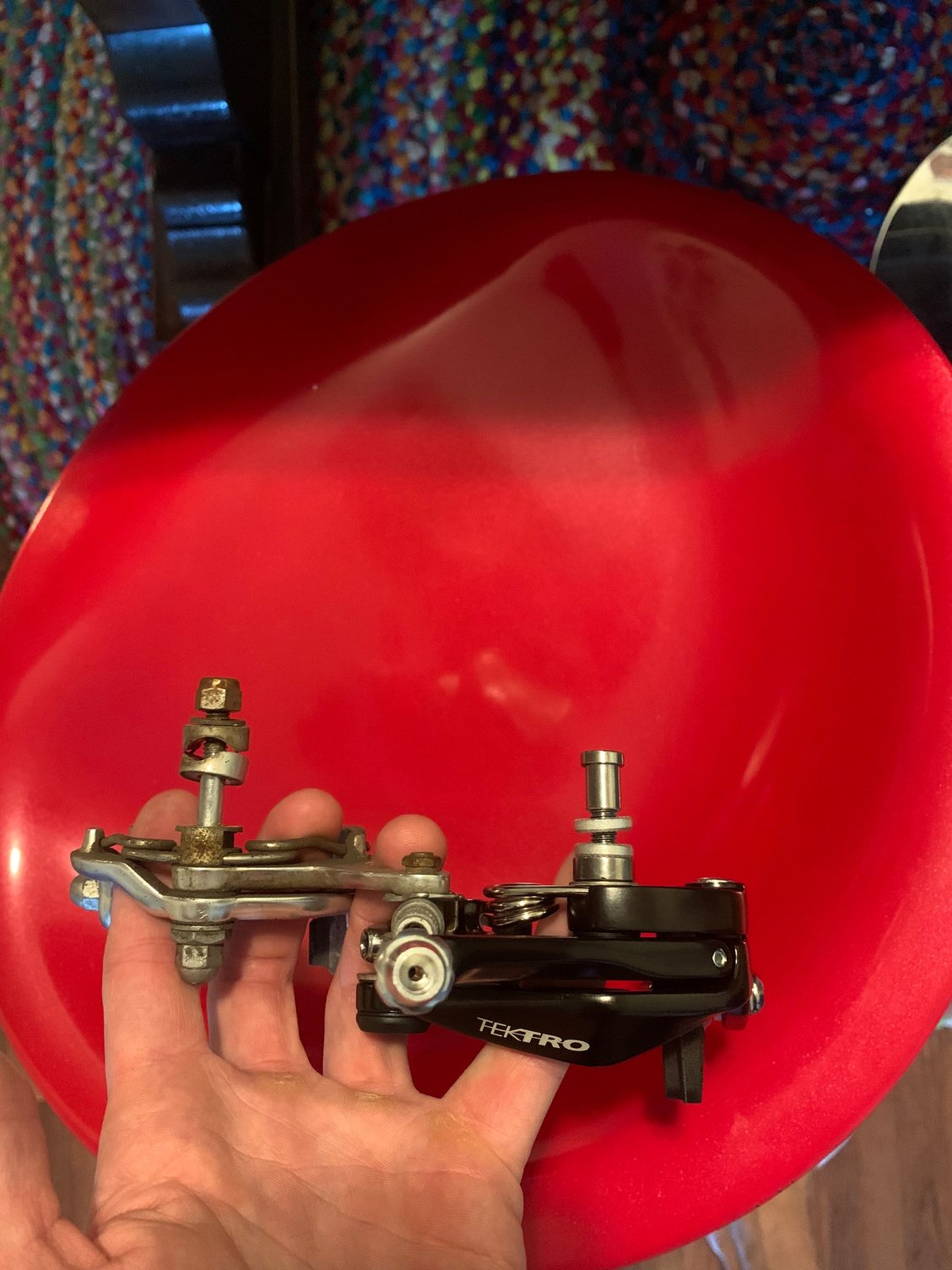

In my attempt to upgrade my 1982 Fuji team I bought a Tektro r315 rear brake and quickly realized the cylindrical piece that receives the screw (to attach the brake to the frame on the crossbar between the seat stays) is too large for the frame. The diameter of the cylinder is larger than the brake mount hole drilled into the frame. Is the cylinder size a modern component that fits most frames built after a certain year? It seems my choices are:

A) replace the bolt that attaches the brake to the frame with something a lot longer, and get a makeshift hex bolt to secure it.

B) find some type of adapter so the cylindrical peice can serve its function in attaching the brake to the frame... though the stock Tektro screw is very short (barely reaches through the brake mount hole on the Fuji).

C) get a new frame 😂

Am I missing something? Any advice welcome. The old Diacomp brakes (I believe they were original) are terrible.





Last edited by arewolfe; 10-08-22 at 04:57 PM.
arewolfe is offline
Old 10-08-22, 05:19 PM
  #2
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,508

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1945 Post(s)
Likes: 0
Liked 938 Times in 657 Posts
What you now have are "recessed nut" brakes and that elongated nut needs an 8mm hole to fit in but only at the front of the brake bridge. It's a bit tricky to drill out only the front side of the bridge because the seat tube blocks it. It can be done using a very short 8mm or 5/16" drill bit, clamping the bit in a pair of vise-grips and rotating the bit by hand a fraction of a turn at a time. It's laborious but it works.
HillRider is offline
Old 10-08-22, 05:39 PM
  #3
arewolfe
Newbie
Thread Starter

Join Date: Sep 2022
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Thanks. Are "non-recessed nut" brakes easy to find? That'd be my first choice before drilling the frame.

EDIT: Found 'em Thanks again!

Last edited by arewolfe; 10-08-22 at 05:44 PM.
arewolfe is offline
Old 10-08-22, 05:59 PM
  #4
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,620

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 2369 Post(s)
Liked 2,635 Times in 1,610 Posts
Originally Posted by arewolfe View Post
Thanks. Are "non-recessed nut" brakes easy to find? That'd be my first choice before drilling the frame.

EDIT: Found 'em Thanks again!

"Nutted" vs "Recessed" mounts.

You're probably going to want something like these as well, unless the brakes come with them, and/or the back of the fork is flat.

​​​​​​https://www.porkchopbmx.com/dia-comp...spacer-fo.html

​​​​​​https://www.porkchopbmx.com/dia-comp...-46156262.html
dedhed is offline
Old 10-08-22, 11:54 PM
  #5
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Posts: 36,708

Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter

Mentioned: 131 Post(s)
Tagged: 1 Thread(s)
Quoted: 4743 Post(s)
Likes: 0
Liked 735 Times in 459 Posts
Originally Posted by arewolfe View Post
Thanks. Are "non-recessed nut" brakes easy to find?

EDIT: Found 'em Thanks again!
ANY 6mm (6x1) nut will do. It's just a plain nut.

However, that style brake bridge needs 2 hemispheral washers to properly support the tube so it doesn't get squashed flat.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline
Old 10-09-22, 01:04 AM
  #6
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,864

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 329 Post(s)
Liked 265 Times in 200 Posts
Originally Posted by FBinNY View Post
ANY 6mm (6x1) nut will do. It's just a plain nut.
It also needs a longer mounting bolt because the ones that use recessed nuts don't reach all the way through the bridge/fork crown.
oldbobcat is offline
Old 10-09-22, 08:24 AM
  #7
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,666
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 853 Post(s)
Liked 1,087 Times in 635 Posts
I would use the front brake on the rear nut mounted, and replace the short bolt with a longer for nut mount on front.

I did just that on a brake swap for a '77 Nishiki
Mr. 66 is offline
Old 10-10-22, 07:26 AM
  #8
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,508

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1945 Post(s)
Likes: 0
Liked 938 Times in 657 Posts
Originally Posted by Mr. 66 View Post
I would use the front brake on the rear nut mounted, and replace the short bolt with a longer for nut mount on front.
A variation on this is to use the front brake on the rear with. a nut as mentioned above. For the front, drill out the rear of the fork to 8mm/5/16" and use the rear brake with a long recessed nut (they are available up to 30 mm) or just use the rear brake and a regular nut inserted under the fork crown into the open bottom of the steerer.

Here is a Youtube video:

I realize this is moot as you already found real nutted calipers but it may help someone else.

Last edited by HillRider; 10-10-22 at 07:32 AM.
HillRider is offline
Old 10-10-22, 08:36 AM
  #9
arewolfe
Newbie
Thread Starter

Join Date: Sep 2022
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Wow, great responses. Thanks.

I ordered a Tektro 539 rear brake that supposedly has a 1-3/8" bolt which will reach through the frame.

As for the front brake swap idea, I don't have one. I'm a brakelss BMX guy who just wants an around-town cruiser (bought the Fuji for $100 and have been upgrading it slowly) so one rear brake is plenty.
arewolfe is offline
Old 10-12-22, 12:39 PM
  #10
SurferRosa
señor miembro

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,651

Bikes: Old school lightweights

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 2797 Post(s)
Liked 3,994 Times in 2,121 Posts
Originally Posted by arewolfe View Post
I'm a brakelss BMX guy who just wants an around-town cruiser.

So why "upgrade" to a new brake when all you needed to do was overhaul the old ones and maybe buy new pads?

one rear brake is plenty.
SurferRosa is offline
Old 10-21-22, 09:17 PM
  #11
ShannonM
Senior Member

Join Date: Jul 2020
Location: Humboldt County, CA
Posts: 716
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 327 Post(s)
Likes: 0
Liked 319 Times in 222 Posts
70% of your braking power comes from the front wheel. So, if you insist on having only one brake on a road-ridden bike, (and if you do, you are always and eternally wrong,) that brake must be on the front.

Unless you have a large life insurance policy, the beneficiary of which you want to make wealthy very soon. In which case, have at.

Bicycles have two brakes for very, very, very good reasons.

--Shannon
ShannonM is offline
Likes For ShannonM:
Old 10-22-22, 04:42 AM
  #12
Jeff Neese
Senior Member

Join Date: Jul 2014
Posts: 803
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 444 Post(s)
Liked 307 Times in 208 Posts
You found the answer - you need brakes with a nutted mount. I had the same problem replacing brakes on an '85 Fuji, and ended up buying those Tektro R539s that you linked to. Those are fantastic dual-pivot brakes, much better than the stock calipers.
Jeff Neese is offline
Old 10-22-22, 02:36 PM
  #13
ShannonM
Senior Member

Join Date: Jul 2020
Location: Humboldt County, CA
Posts: 716
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 327 Post(s)
Likes: 0
Liked 319 Times in 222 Posts
Originally Posted by Jeff Neese View Post
. I had the same problem replacing brakes on an '85 Fuji, and ended up buying those Tektro R539s that you linked to.
Which model Fuji? My' 85 League is recessed. 1985 seems a couple of years late to me for nutted brakes on a bike shop bike.

--Shannon
ShannonM is offline
Old 10-22-22, 05:37 PM
  #14
Jeff Neese
Senior Member

Join Date: Jul 2014
Posts: 803
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 444 Post(s)
Liked 307 Times in 208 Posts
Originally Posted by ShannonM View Post
Which model Fuji? My' 85 League is recessed. 1985 seems a couple of years late to me for nutted brakes on a bike shop bike.

--Shannon
It was an '85 Sagres. I no longer have that bike but interestingly, I just acquired an '86 Sagres almost by accident and I got it for free. I'm restoring it because it has the same quad-butted Valite frame that other bikes higher in the food chain had, and I like the way Fuji's "sport touring" bikes ride and handle. It has the same brake setup, nutted. Also 27" wheels which is also kind of late in the game.
Jeff Neese is offline
Old 10-22-22, 09:04 PM
  #15
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,945

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3718 Post(s)
Liked 2,749 Times in 1,716 Posts
Originally Posted by arewolfe View Post
Wow, great responses. Thanks.

I ordered a Tektro 539 rear brake that supposedly has a 1-3/8" bolt which will reach through the frame.

As for the front brake swap idea, I don't have one. I'm a brakelss BMX guy who just wants an around-town cruiser (bought the Fuji for $100 and have been upgrading it slowly) so one rear brake is plenty.
Since I like to be able to stop quickly I don't ride bikes without front brakes. If I were to only be restricted to only one brake it would be the front, again because of stopping ability. Andy (who is right handed and operates the front brake with this dominate hand)
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
