Mounting Simplex RD

Hi,




Hi,

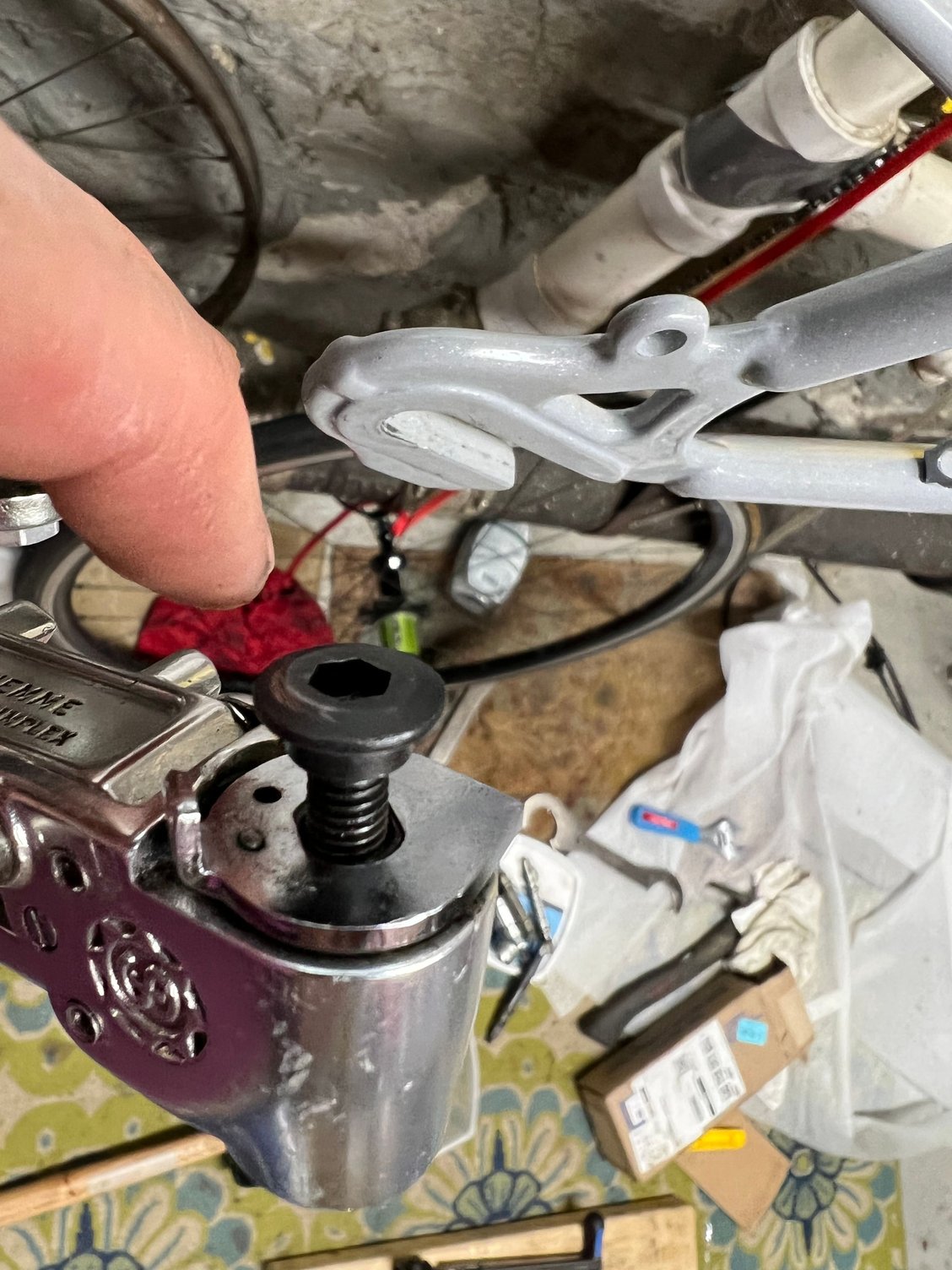

i really want to use this Simplex LJ RD on this vintage Peugeot frame (I think itís a PN-10 (531 main tubes). The dropouts donít have an integrated mount.

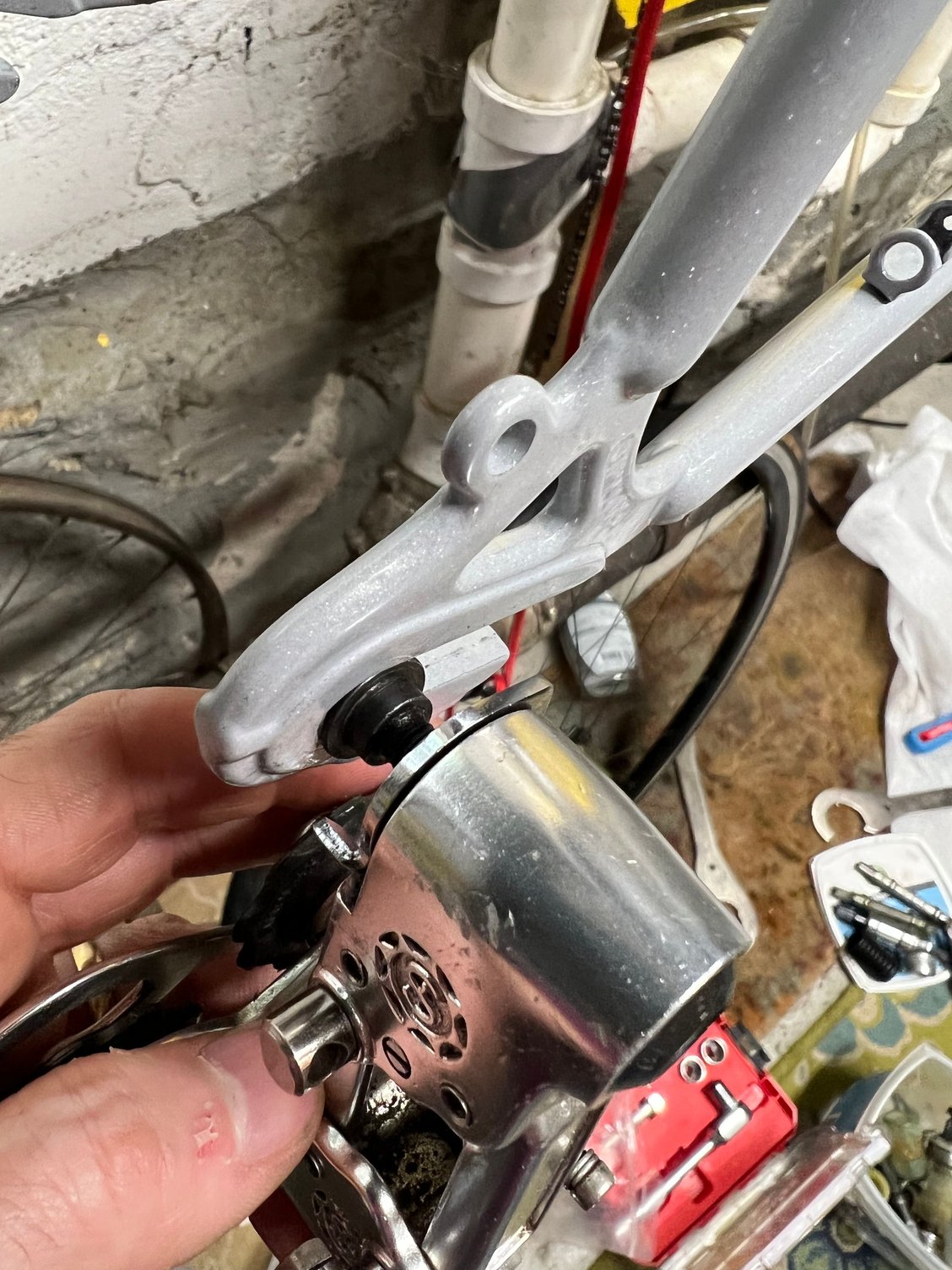

Seems like you could just mount it at the back of the dropout with internal screw, but the little tab doesnít seem to clear the dropout.

am I missing something? Any suggestions?

thank you!!
sortieavelo is offline
Old 10-10-22, 01:57 PM
  #2
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,646

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 2374 Post(s)
Liked 2,663 Times in 1,625 Posts
Originally Posted by sortieavelo View Post
Hi,

i really want to use this Simplex LJ RD on this vintage Peugeot frame (I think it’s a PN-10 (531 main tubes). The dropouts don’t have an integrated mount.

Seems like you could just mount it at the back of the dropout with internal screw, but the little tab doesn’t seem to clear the dropout.

am I missing something? Any suggestions?

thank you!!
Yeah, an unthreaded Simplex dropout.

simplex dropouts

​​​​​​https://www.redclovercomponents.com/blog/1
dedhed is online now
Old 10-10-22, 02:11 PM
  #3
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,646

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 2374 Post(s)
Liked 2,663 Times in 1,625 Posts
Or you need to find a correct upper bolt and claw for it.
Looks like someone hacked the hanger off your dropout.
Best advice - find a suntour with a claw mount and run that

Welcome to the world of French bicycles
​​​​​​Simplex SLJ 6600 real life capacity

​​​​​​Humbled by Simplex

Last edited by dedhed; 10-10-22 at 02:14 PM.
dedhed is online now
Old 10-10-22, 04:57 PM
  #4
Hondo6
Senior Member

Join Date: Sep 2021
Location: SW Florida, USA
Posts: 799

Bikes: Yes

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 306 Post(s)
Liked 321 Times in 228 Posts
OP: You might want to read the Red Clover Components article linked above. (You may have to cut and paste the text of the URL into your browser's URL window - for some reason, when I try the link in the comment above I keep getting a Bike Forums discussion instead of the article. Direct link to article here.)

That article has a section on Simplex hangers. BLUF: according to the article, there's no "standard" Simplex hanger (they vary) - and there's no easy way to tell which Simplex hanger goes with which Simplex RD.

The silver lining? Also according to the article, direct-mount Simplex RDs work fine when mounted on a Campagnolo hanger. The Simplex mounting bolt is 9mm and will fit through the 10mm threaded hole on the Campagnolo RD hanger.

Disclaimer: haven't tried this myself, and I have little knowledge or expertise regarding French bikes or components. But Red Clover is a good source of info.

Last edited by Hondo6; 10-11-22 at 04:20 AM. Reason: Add direct link to Red Clover Components article.
Hondo6 is offline
Old 10-10-22, 11:42 PM
  #5
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,880

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 334 Post(s)
Liked 273 Times in 205 Posts
What dedhed said. Somebody filed off your hanger to make their single-speed look more elegant. You need a claw. And because of the thickness of the dropout, you will probably need a longer bolt to attach the claw. And you might need some washers because the claw will be thinner than the hanger that used to be on there.

But don't try to attach it as shown. It will never work.
oldbobcat is offline
Old 10-11-22, 05:56 AM
  #6
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,646

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 2374 Post(s)
Liked 2,663 Times in 1,625 Posts
Alternately you could get a simplex hanger brazed back on to the dropout. That would probably require finding a donor dropout on an old frame.



​​​​​​Should I trust this welded on derailleur hanger?
dedhed is online now
Old 10-11-22, 07:49 AM
  #7
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 24,098

Bikes: Several, mostly not name brands.

Mentioned: 147 Post(s)
Tagged: 0 Thread(s)
Quoted: 3200 Post(s)
Liked 2,516 Times in 1,480 Posts
Originally Posted by dedhed View Post
Alternately you could get a simplex hanger brazed back on to the dropout. That would probably require finding a donor dropout on an old frame.

N.B. the donor dropout need not be unthreaded or without a pivot stop; those features are superfluous to mounting a Simplex derailleur, but their presence does not affect how the Simplex derailleur mounts or operates. Indeed, later production Simplex dropouts were both threaded and provide pivot stops, so that non-Simplex derailleurs can also be mounted:
Attached Images
File Type: jpg
JohnDThompson is offline
Old 10-21-22, 09:20 PM
  #8
ShannonM
Senior Member

Join Date: Jul 2020
Location: Humboldt County, CA
Posts: 719
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 328 Post(s)
Likes: 0
Liked 328 Times in 225 Posts
You appear to have been Drewed.

That sucks.

Because Drew sucks.

--Shannon
ShannonM is offline
Likes For ShannonM:
Old 10-21-22, 09:34 PM
  #9
zandoval
Senior Member

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 3,571

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 611 Post(s)
Liked 963 Times in 625 Posts
Here is a couple of old Threads that offer a few solutions...

Derailuer Hangar Welded - "Puch"

Old Frame, no Derailleur Hanger
__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is online now
Old 10-23-22, 04:40 AM
  #10
Hondo6
Senior Member

Join Date: Sep 2021
Location: SW Florida, USA
Posts: 799

Bikes: Yes

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 306 Post(s)
Liked 321 Times in 228 Posts
Originally Posted by ShannonM View Post
You appear to have been Drewed.

That sucks.

Because Drew sucks.

--Shannon
For those who don't know the "Drew tale of woe":

Tommasini: I hate Drew more than words can tell
Hondo6 is offline
Old 10-23-22, 12:54 PM
  #11
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 869

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 268 Post(s)
Liked 204 Times in 145 Posts
You may need something like this



https://www.ebay.co.uk/itm/201638067...Bk9SR4DgguOAYQ
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Old 10-23-22, 02:13 PM
  #12
Hondo6
Senior Member

Join Date: Sep 2021
Location: SW Florida, USA
Posts: 799

Bikes: Yes

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 306 Post(s)
Liked 321 Times in 228 Posts
Originally Posted by JoeTBM View Post
Also available on eBay from a US source w/free shipping:

https://www.ebay.com/itm/223928469675

and from Amazon at a somewhat higher price.
