Repair aluminium dropout on carbon fibre frame

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Repair aluminium dropout on carbon fibre frame

Old 10-17-22, 11:41 AM
  #1
Silvek
Newbie
Thread Starter

Join Date: Sep 2015
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Repair aluminium dropout on carbon fibre frame

Hi everyone! I would like your advice on something, well... probably not that common.

A friend of mine had a little accident and managed to bend the aluminium rear dropout (together with the hanger, of course) on his carbon fibre Colnago AC-R 2014 frame.
We re-aligned the dropout (lateral alignment), found the hanger model in stock somewehere but we think that the dropout might be compromised for the following reason: the U shape the dropout had is now 'wider'. The distance between the the bolts is now 29 mm instead of 25.31 mm and a new hanger will not fit (please check the images).
What would be your aproach in re-bending the dropout to his original form? Is this doable and wise in this situation? Should he try finding a NOS aluminium dropout for this particular model and find someone good at welding it to the carbon chainstay? Is this something you would recommend?

Any kind of advice or idea will be very much appreciated! Thanks a lot!

(Unfortunately I can't attach photos)
Silvek is offline
Old 10-17-22, 01:48 PM
  #2
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Posts: 36,708

Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter

Mentioned: 131 Post(s)
Tagged: 1 Thread(s)
Quoted: 4743 Post(s)
Likes: 0
Liked 735 Times in 459 Posts
Without photos, all I can offer are general guidlines.

1- you cannot WELD a dropout to a CF chainstay, so replacing the dropout has to be done by someone familiar with CF condtruction.
2- Depending on the exact damage, a decent "hammer" mechanic might be able to correct it, but aluminum isn't super malleable, and there's then risk of cracks (or total breakage)
3- It might be possible and more practical to modify the new hanger to fit the frame than the other way around. At the very least, the consequences of failure would be less, since you can try again for small $$$,

I often approach issues like this with a "what's the worst that can happen" so I'd start by getting an estimate for the cost of replacing the dropout (if possible). Then, if it is possible I'd give working on the existing dropout a shot, knowing I'm OK if that fails. OTOH- if the dropout cannot be replaced, I'd stay clear and only consider options relating to modifying or making a hanger to fit what's there now.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline
Likes For FBinNY:
Old 10-17-22, 02:27 PM
  #3
tFUnK
Senior Member

Join Date: Jun 2002
Location: San Jose, CA
Posts: 3,041

Bikes: Too many bikes, too little time to ride

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 138 Times in 118 Posts
Conventional wisdom suggests you cannot/should not bend the aluminum dropout back into shape, but it's only 3mm... Maybe another way to go is to create a new mounting hole on the dropout for the hanger to bolt into?
tFUnK is offline
Old 10-17-22, 03:15 PM
  #4
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,767

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1953 Post(s)
Liked 2,923 Times in 1,487 Posts
Welding aluminum to carbon? Not sure how you can even dream that would be possible.
cxwrench is offline
Old 10-18-22, 02:44 AM
  #5
tFUnK
Senior Member

Join Date: Jun 2002
Location: San Jose, CA
Posts: 3,041

Bikes: Too many bikes, too little time to ride

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 138 Times in 118 Posts
Originally Posted by cxwrench View Post
Welding aluminum to carbon? Not sure how you can even dream that would be possible.
Maybe they meant JB weld?
tFUnK is offline
Old 10-18-22, 10:56 AM
  #6
Iride01
more daylight today!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 12,171

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4990 Post(s)
Liked 3,500 Times in 2,427 Posts

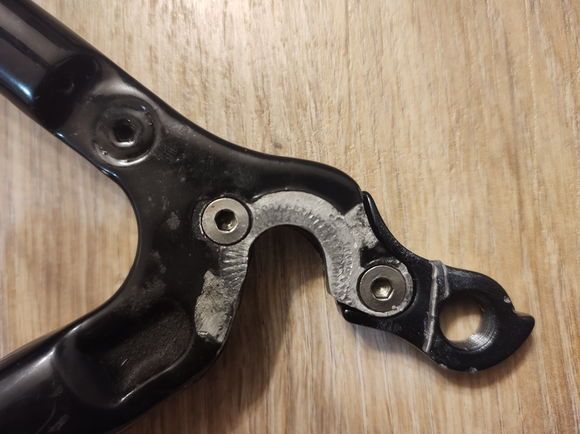

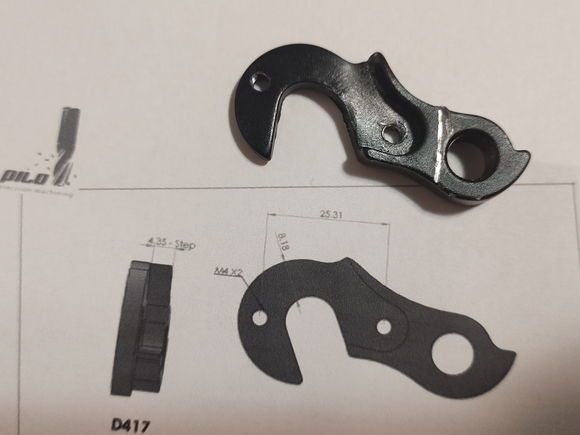

Are these your pic's? If you just tell us that you uploaded some to the Gallery here on BF, then we'll know where to look. Sometimes they don't show up in your album on your profile, but looking in "recent" photos we can find them....









I didn't grab all of them. Let us know if there is another you think is needed.
Iride01 is offline
Likes For Iride01:
Old 10-18-22, 11:18 AM
  #7
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 13,139
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 3653 Post(s)
Liked 2,455 Times in 1,462 Posts
That might be time to talk with a carbon bike repair company.
himespau is offline
Likes For himespau:
Old 10-18-22, 11:29 AM
  #8
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,273
Mentioned: 216 Post(s)
Tagged: 0 Thread(s)
Quoted: 16978 Post(s)
Liked 3,845 Times in 2,849 Posts
Your aluminum dropout is generally epoxied to the frame. Perhaps bolted to the seat stay, and epoxied to the chainstay.

Unfortunately, it can be difficult to source the dropouts. You can try contacting Colnago, but I wouldn't expect a lot.

Also try contacting some Carbon Fiber repair shops. Calfee and Ruckus Composites. Perhaps there are other companies that would do it.

What I'd seriously consider would be rebuilding the damaged derailleur hanger that you have.

Leave the general shape to the hanger, but straighten it the best you can (and make sure the hanger is still parallel to the axis)

Now weld a shim to the back side of the dropout slot on the hanger so that the shim is 90% of the full dropout thickness. And machine to take the axle in the right spot.

Unfortunately, my TIG welding Aluminum, it just never quite does what I want. But there are some people who are really good at it.
CliffordK is online now
Old 10-19-22, 11:19 AM
  #9
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 8,910

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1882 Post(s)
Liked 1,716 Times in 1,027 Posts
Originally Posted by tFUnK View Post
Conventional wisdom suggests you cannot/should not bend the aluminum dropout back into shape, but it's only 3mm... Maybe another way to go is to create a new mounting hole on the dropout for the hanger to bolt into?
that would not resolve the issue as it is not the hanger that is the problem it is the aluminum dropout plate bonded to the frame, which got bent out by the accident so the axle doe not fit well

this suggests more that a "little" incident.

I concur the bending the plate could be problematic as aluminum react poorly, to bending. Problem is it could work, it could work and fail in future or it could just fail

I would check with a carbon repair or even talk to colnago

you can't weld to carbon, needs to be bonded

also heat from welding could impact the current bond (yes tig is more localized than say brazing steel, but still a risk factor)
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light frame/fork or whole biked 57,58)


squirtdad is offline
Old 10-19-22, 09:21 PM
  #10
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,864

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 329 Post(s)
Liked 265 Times in 200 Posts
This falls under the category of, "If you have to ask, you probably shouldn't."
oldbobcat is offline
Likes For oldbobcat:
Old 10-19-22, 11:43 PM
  #11
ShannonM
Senior Member

Join Date: Jul 2020
Location: Humboldt County, CA
Posts: 716
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 327 Post(s)
Likes: 0
Liked 319 Times in 222 Posts
If the dropout itself is bent, which it looks like it is, the frame is likely toast.

Aluminum doesn't like to be bent. It really, really doesn't like to be bent more than once. If you straighten the dropout, it's almost certainly gonna break.

The adhesives that are used to bond aluminum to carbon fiber are a one-way trip. There is no way to separate the dropout from the stays without destroying all three parts.

Call Craig Calfee. If he says "Yeah, I can fix that. It'll cost you $X," pay him $X and get it fixed. If he says "sorry, but your frame is borked," then your frame is borked, and you're bummed, and that's that.

--Shannon
ShannonM is offline
Likes For ShannonM:
Old 10-20-22, 12:24 AM
  #12
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Posts: 36,708

Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter

Mentioned: 131 Post(s)
Tagged: 1 Thread(s)
Quoted: 4743 Post(s)
Likes: 0
Liked 735 Times in 459 Posts
I agree that working with the CF joints isn't likely to be successful.

However, the most critical element, namely the top of the dropout slot which locates the axle and bears the load is still OK.

That means that a hanger can be fabricated to work with what's there, including a provision to fill in below the slot and take the compression from the QR.

The needed part can be made by hand, or the free end cleaned up and digitized, so the part can be drawn and made using CAD/CAM.

Last edited by FBinNY; 10-20-22 at 12:46 AM.
FBinNY is offline
Likes For FBinNY:
Old 10-20-22, 12:36 AM
  #13
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,445

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1815 Post(s)
Liked 1,955 Times in 1,200 Posts
Originally Posted by ShannonM View Post
Call Craig Calfee. If he says "Yeah, I can fix that. It'll cost you $X," pay him $X and get it fixed. If he says "sorry, but your frame is borked," then your frame is borked, and you're bummed, and that's that.

--Shannon
This is really your answer. Unless someone shows up and had the same/similar issue and was able to do a permanent fix, they are all guesses.

Your only concern is having a catastrophic failure of the dropout, either the aluminum or the bond.

John
70sSanO is offline
Old 10-20-22, 05:48 AM
  #14
Hondo6
Senior Member

Join Date: Sep 2021
Location: SW Florida, USA
Posts: 791

Bikes: Yes

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 306 Post(s)
Liked 314 Times in 224 Posts
Originally Posted by 70sSanO View Post
This is really your answer. Unless someone shows up and had the same/similar issue and was able to do a permanent fix, they are all guesses.

Your only concern is having a catastrophic failure of the dropout, either the aluminum or the bond.

John
Bingo. Given the deformation of the existing dropout, I'd worry about both the bond and internal damage in the stay(s).

While it wouldn't be as bad as a front dropout failure, I certainly wouldn't want to have the rear wheel come loose during a descent or in traffic (or at any other time, for that matter). Any of those could conceivably lead to a "life-altering event".

As suggested above, if it were mine I'd send the frame to a carbon frame repair specialist for eval and/or repair before I'd ride it (or maybe to Colnago, if they do such). And if they said it was toast, I'd start looking for a new frame.

Last edited by Hondo6; 10-20-22 at 05:53 AM.
Hondo6 is offline
Old 10-23-22, 11:26 PM
  #15
Silvek
Newbie
Thread Starter

Join Date: Sep 2015
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'd really like to thank you all for your help! Super useful pieces of advice and really really appreciated!!
Silvek is offline
Old 10-24-22, 01:32 AM
  #16
maddog34
Senior Member

maddog34's Avatar

Join Date: Jul 2015
Location: NW Oregon
Posts: 1,512

Bikes: !982 Trek 930R Custom, Diamondback ascent with SERIOUS updates, Fuji Team Pro CF and a '09 Comencal Meta 5.5

Mentioned: 12 Post(s)
Tagged: 1 Thread(s)
Quoted: 612 Post(s)
Liked 53 Times in 42 Posts
That's Cast aluminum... once it bends, it's already cracked..... Bend it the other way and the Cracks open. Cast Aluminum is used because it is much stiffer than billet.. right up to yield point... then the grains separate and that separation is represented by the increase in distance between the dropout affixing holes.(edited)

Last edited by maddog34; 10-24-22 at 01:37 AM.
maddog34 is offline
Old 10-24-22, 09:05 AM
  #17
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,273
Mentioned: 216 Post(s)
Tagged: 0 Thread(s)
Quoted: 16978 Post(s)
Liked 3,845 Times in 2,849 Posts
The bend doesn't appear to have gone through the chainstay/seatstay. So while they would have been put under stress during the incident, they wouldn't remain under continuous stress. Thus, if the joints are solid, then they're probably OK.
CliffordK is online now
Old 10-24-22, 09:13 AM
  #18
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,273
Mentioned: 216 Post(s)
Tagged: 0 Thread(s)
Quoted: 16978 Post(s)
Liked 3,845 Times in 2,849 Posts
Ultimately I think you have a few choices.
  1. Put it back together with the bent derailleur hanger and see how it rides. Your chain will naturally pull the wheel forward, and if put in the right spot, it may well stay put.
    .
  2. Modify the bent derailleur hanger to narrow the slot.
    .
  3. Modify the new derailleur hanger to move the hole. This may also mean some adjustment of the shelf on the back side that helps orient it.
    .
  4. Get a new "custom" hanger machined.
    .
  5. Contact Ruckus Composites or Calfee about getting it professionally repaired.
CliffordK is online now
