Replacement for FH-7700 Freehub-Body - any ideas?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Replacement for FH-7700 Freehub-Body - any ideas?

Old 11-09-22, 07:12 AM
  #1
Jayborg
Newbie
Thread Starter

Join Date: Apr 2020
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
Replacement for FH-7700 Freehub-Body - any ideas?

Hello everyone,

a long time bikeforums-reader has his first (but even more desperate) question (serached the forum exensivly for an concrete answer but didnt found one - if i missed it, just tell me an ill del the unnecessary post)

I need to replace the broken FH-7700 freewheel body (Shimano Code 3a0 9801) . I already tried to use a Shimano 105er FW-5500 Freehub Body it didnt work. From my understanding (by reading an older post by 70sSanO) the depth of the hub to the freehub flange is the crucial determining factor. I read in some posts that people used old Ultegra Bodys but nobody got specific. According to my knowledge the Ultegra 6400, 6500 and the 6800er-series - used a shallower freehub body than my 7700 freehub. I found nothing about the Fw-6700 yet.

Wrote emails to several bike shops and went to a few - nobody had a clue about this nerdy matter.

Has anybody ANY idea?

I am also ready for MTB - Solutions(XTR?!) or sth completly out of the box.


Thank you!

PS - Apologies for bad grammar, but english not my native language - working on it.
Jayborg is offline
Old 11-09-22, 07:34 AM
  #2
embankmentlb
Senior Member

embankmentlb's Avatar

Join Date: May 2008
Location: North, Ga.
Posts: 2,309

Bikes: 3Rensho-Aerodynamics, Bernard Hinault Look - 1986 tour winner, Guerciotti, Various Klein's & Panasonic's

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 255 Times in 115 Posts
My 7700 freehub developed a drag causing the cassette to rotate with the wheel when coasting. Not good! That was many years ago. I also went on a quest to find a replacement other than the titanium freehub. I received lots of questionable advice about things that could possibly work. Eventually I ended up buying the cheapest 7700 hub I could find on e bay and swapped out the old freehub. Probably not the answer you are looking for. I hope someone chimes in with an alternate solution.
embankmentlb is online now
Likes For embankmentlb:
Old 11-09-22, 07:40 AM
  #3
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 2,472

Bikes: 1989 Cinelli Supercorsa

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 1488 Post(s)
Liked 1,114 Times in 710 Posts
I'd do what embankmentlb did.
smd4 is offline
Likes For smd4:
Old 11-09-22, 07:55 AM
  #4
Jayborg
Newbie
Thread Starter

Join Date: Apr 2020
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by embankmentlb View Post
My 7700 freehub developed a drag causing the cassette to rotate with the wheel when coasting. Not good! That was many years ago. I also went on a quest to find a replacement other than the titanium freehub. I received lots of questionable advice about things that could possibly work. Eventually I ended up buying the cheapest 7700 hub I could find on e bay and swapped out the old freehub. Probably not the answer you are looking for. I hope someone chimes in with an alternate solution.

Thanks for the reply.!

Yeah, I alredy thought about this as way out ...but thats at least 120 Euro - i guess then i would switch to a 2nd wheelset. but it would be so great to reuse with the old parts enstead of buy new stuff ( - i m renovating my merckx super corsa 7-11 w complete DA 740X/ 7700) an d I LOVE the 7700 Hubs.
Jayborg is offline
Old 11-09-22, 07:57 AM
  #5
Jayborg
Newbie
Thread Starter

Join Date: Apr 2020
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by smd4 View Post
I'd do what embankmentlb did.
yeah....argx - but hope springs eternal....
Jayborg is offline
Old 11-09-22, 07:58 AM
  #6
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 2,472

Bikes: 1989 Cinelli Supercorsa

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 1488 Post(s)
Liked 1,114 Times in 710 Posts
Originally Posted by Jayborg View Post
Thanks for the reply.!

Yeah, I alredy thought about this as way out ...but thats at least 120 Euro
Um...it's Dura Ace. What were you expecting? It costs money to run with the big dogs.
smd4 is offline
Likes For smd4:
Old 11-09-22, 08:10 AM
  #7
Jayborg
Newbie
Thread Starter

Join Date: Apr 2020
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by smd4 View Post
Um...it's Dura Ace. What were you expecting? It costs money to run with the big dogs.

Yeah you are right - but a replacment freewheel would be a more elegant (and cheaper) solution.But yes - when this is the only solution i ll have to do it (or buy sth like a 2nd hand mavic cosmic wheelset for the same money...) Dunno. I would love to reuse and repair old parts without spending too much money.
Jayborg is offline
Old 11-09-22, 09:07 AM
  #8
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,187
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 690 Post(s)
Liked 702 Times in 526 Posts
Have you tried disassembling the DA freehub? Could just need some new bearings and/or lube. Sometimes a good flush and lube can solve some problems. Good generic Shimano FH videos here.
----------
Crankycrank is offline
Likes For Crankycrank:
Old 11-09-22, 09:26 AM
  #9
embankmentlb
Senior Member

embankmentlb's Avatar

Join Date: May 2008
Location: North, Ga.
Posts: 2,309

Bikes: 3Rensho-Aerodynamics, Bernard Hinault Look - 1986 tour winner, Guerciotti, Various Klein's & Panasonic's

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 255 Times in 115 Posts
Originally Posted by Jayborg View Post
Thanks for the reply.!

Yeah, I alredy thought about this as way out ...but thats at least 120 Euro - i guess then i would switch to a 2nd wheelset. but it would be so great to reuse with the old parts enstead of buy new stuff ( - i m renovating my merckx super corsa 7-11 w complete DA 740X/ 7700) an d I LOVE the 7700 Hubs.
You can always practice your rebuilding skills on the hub you do not use and ride the other one. Old stuff breaks, even Dura Ace.
I attempted to rebuild the freehub as shown in the posted video. I however could not get it apart. It required skills or tools I do not have.
The positive is I also have plenty of other 7700 hub parts if needed in the future.
embankmentlb is online now
Likes For embankmentlb:
Old 11-09-22, 09:32 AM
  #10
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,624

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 2369 Post(s)
Liked 2,644 Times in 1,611 Posts
Can I replace a Dura-Ace Freehub Body with Ultegra Body?

​​​​​https://www.google.com/search?q=shim...hrome&ie=UTF-8
dedhed is offline
Likes For dedhed:
Old 11-10-22, 01:58 PM
  #11
Jayborg
Newbie
Thread Starter

Join Date: Apr 2020
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
thank you! yes tried that already - did not worked out :-( . its really dusted...
Jayborg is offline
Old 11-10-22, 02:30 PM
  #12
Iride01
more daylight today!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 12,197

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4996 Post(s)
Liked 3,504 Times in 2,431 Posts
Why not just get a entirely new rear hub with freewheel and have a local shop rebuild the wheel with it? Or do it yourself if you are familiar with building wheels.

Entire hubs aren't that expensive.
Iride01 is offline
Old 11-11-22, 07:04 AM
  #13
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,445

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1815 Post(s)
Liked 1,955 Times in 1,200 Posts
The one hub I haven't got in my backup arsenal is the FH-7700. One of these days I'll just pay what I need and get one, that I most likely will never use. I think I'll first go into an LBS and check out what a new Dura Ace equipped bike goes for and the the $200+ or more for a hub to sit on the shelf won't hurt so much. Used hubs are a real crap shoot. But if it looks nice enough and the seller feedback is good enough.

I wish I had more extensive knowledge of exactly what works, but 25 years years ago I was still using 7400 and a freewheel. And these days I have a tough time remembering what I did 5 years ago.

I've never been a big fan of titanium freehub bodies; and you only gain about 15-20 grams. I swapped out my M950 freehub body with a Sora FH-3300 and packed the original one away. I'm pretty certain that you can use an M950 body on a 7700. The one caveat is to ALWAYS buy a complete hub since cones and dust seals might be different. Therefore since a FH-3300 fits an M950 which should fit a 7700, you could probably use a FH-3300 until you decide what to do. Grease and care in adjusting cones are your friend.

It may not be pretty, but here you go...
https://www.ebay.com/itm/38507440763...Bk9SR5zE5-qMYQ

John

Edit Added: And use some Phil's Tenacious oil in the freehub body before you install it.

Last edited by 70sSanO; 11-11-22 at 08:39 AM.
70sSanO is offline
Old 11-11-22, 08:59 AM
  #14
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,445

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1815 Post(s)
Liked 1,955 Times in 1,200 Posts
I looked up the FH-3300 freehub body and the number is Y32X98040. It is also used on the WH-R540, FH-4400.

Interestingly that it is the same freehub body that is used on the FH-5500 which you said did not fit. What didn't fit?

https://si.shimano.com/en/pdfs/ev/FH...-5500-1734.pdf

That is a concern to me.

John
70sSanO is offline
Likes For 70sSanO:
Old 11-11-22, 09:56 AM
  #15
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,445

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1815 Post(s)
Liked 1,955 Times in 1,200 Posts
One last thing, “generally” you can transfer the dust seal, washer/spacer, and locknut over.

It is best to measure the from the outer locknut surface of the original hub to the edge of the freehub body. It is around 5mm, give or take some.

For the 7700, you might have to swap the washer/spacer if you want to use the nicer locknut to get the same OLD. This is just the stuff that sometimes needs to be done with a mix-n-match.

John
70sSanO is offline
Likes For 70sSanO:
Old 11-11-22, 10:24 AM
  #16
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 2,472

Bikes: 1989 Cinelli Supercorsa

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 1488 Post(s)
Liked 1,114 Times in 710 Posts
Originally Posted by 70sSanO View Post
The one hub I haven't got in my backup arsenal is the FH-7700. One of these days I'll just pay what I need and get one, that I most likely will never use. I think I'll first go into an LBS and check out what a new Dura Ace equipped bike goes for and the the $200+ or more for a hub to sit on the shelf won't hurt so much.
You probably need to find a different place to shop. I bought a NOS 7700 freehub for $100 on eBay.
smd4 is offline
Likes For smd4:
Old 11-11-22, 11:31 AM
  #17
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,445

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1815 Post(s)
Liked 1,955 Times in 1,200 Posts
Originally Posted by smd4 View Post
You probably need to find a different place to shop. I bought a NOS 7700 freehub for $100 on eBay.
Thatís where I get my stuff. But I donít have a saved search. A lot depends on when you bought it. In the last year or so, you did really good. Five or six years ago, and that was probably normal.

Things have changed a lot since 2015. The place had all sorts of good old stuff at decent prices.

But $100 for an NOS in todayís market is outstanding. Congrats!

John.
70sSanO is offline
Likes For 70sSanO:
Old 11-15-22, 04:41 AM
  #18
Jayborg
Newbie
Thread Starter

Join Date: Apr 2020
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by 70sSanO View Post
I looked up the FH-3300 freehub body and the number is Y32X98040. It is also used on the WH-R540, FH-4400.

Interestingly it is the same freehub body that is used on the FH-5500 which you said did not fit. What didn't fit?


That is a concern to me.

John

Thanks for the thoughts and for the reply! I treid exactly this 105er FH body and the problem is that the depth of the hub to the freehub flange ist too small :-(
Jayborg is offline
Old 11-15-22, 07:29 AM
  #19
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,445

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1815 Post(s)
Liked 1,955 Times in 1,200 Posts
I’ll pull out my 7700 and M950 freehub bodies and compare them. I thought they have the same thick flange style. IIRC there were no issues putting the 3300 body on the M950 hub. I have another 3300, so worst case, I can pull that one apart.

It might be a day or so.

John
70sSanO is offline
Old 11-15-22, 03:20 PM
  #20
KCT1986
Full Member

Join Date: Jan 2016
Posts: 447
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 168 Post(s)
Liked 135 Times in 101 Posts
Originally Posted by Jayborg View Post
Thanks for the thoughts and for the reply! I treid exactly this 105er FH body and the problem is that the depth of the hub to the freehub flange ist too small :-(
Interesting that the body for the FH-5500 did not work. My impression is that the 9 speed Ultegra & 105 would work, not a perfect match but close enough.

Have you confirmed that the new freehub body that you are trying to use is the same part number that others have mentioned?

When you have enough post, please post a picture of what you have. Think that the 5500 should look similar to the attached 6500.



The Tiagra FH-4500 has a shallower depth and uses a more common Shimano body.
KCT1986 is offline
Likes For KCT1986:
Old 11-17-22, 10:40 AM
  #21
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,445

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1815 Post(s)
Liked 1,955 Times in 1,200 Posts
Well I don't know what to say.

Since I put a Sora 3300 (same as 105-5500) freehub body on an M950 hub I measured the M950 body and the 7700 body and they were the same (within .2mm/.008").

Rather than remove the freehub body from the Sora 3300 (which is more of a pain when unlaced), I decided to put a 7700 freehub body on a Sora 3300 hub. The distance from the flange edge to the end of the freehub body was identical (37.7mm).

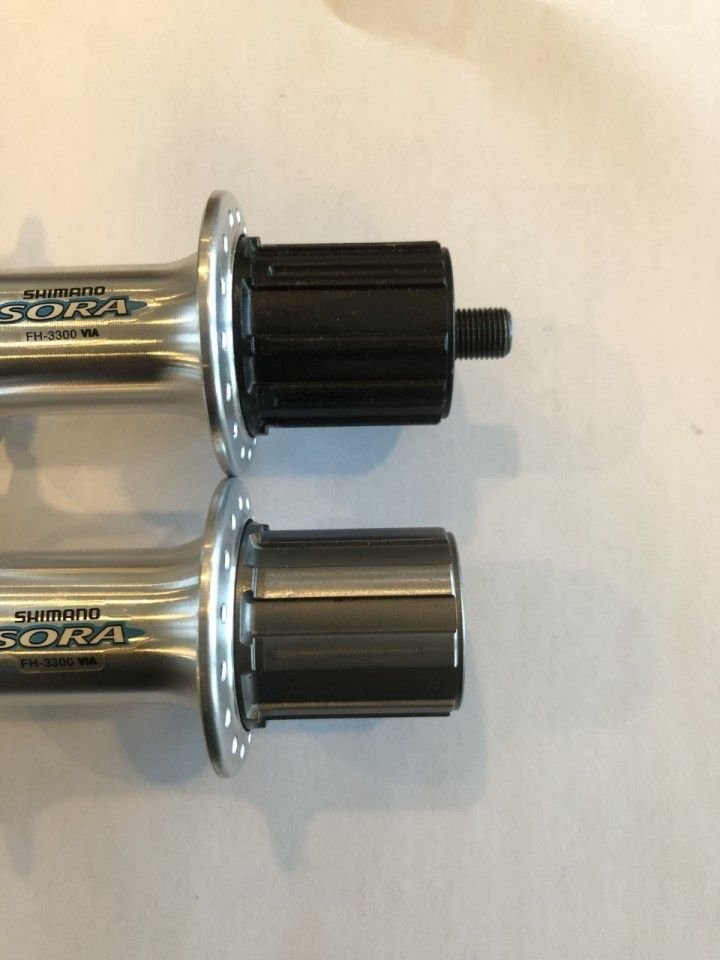

Here is a pic of an original Sora 3300 hub and a Sora 3300 hub with a titanium 7700 freehub body. While I can't verify this, I think this may be the only picture in existence of a Sora 3300 hub with a 7700 body.

John
70sSanO is offline
Likes For 70sSanO:
Old 11-17-22, 01:24 PM
  #22
embankmentlb
Senior Member

embankmentlb's Avatar

Join Date: May 2008
Location: North, Ga.
Posts: 2,309

Bikes: 3Rensho-Aerodynamics, Bernard Hinault Look - 1986 tour winner, Guerciotti, Various Klein's & Panasonic's

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 255 Times in 115 Posts
Originally Posted by 70sSanO View Post
Well I don't know what to say.

Since I put a Sora 3300 (same as 105-5500) freehub body on an M950 hub I measured the M950 body and the 7700 body and they were the same (within .2mm/.008").

Rather than remove the freehub body from the Sora 3300 (which is more of a pain when unlaced), I decided to put a 7700 freehub body on a Sora 3300 hub. The distance from the flange edge to the end of the freehub body was identical (37.7mm).

Here is a pic of an original Sora 3300 hub and a Sora 3300 hub with a titanium 7700 freehub body. While I can't verify this, I think this may be the only picture in existence of a Sora 3300 hub with a 7700 body.

John
That certainly makes the reverse look promising! Like I expressed earlier in this thread, I was looking for advice on doing this many years ago. Many folks said it could be done but know one could show me they had actually done it. I ended up replacing my 7700 freehub with another 7700.
How about the bearings and seals? Do they match up?
embankmentlb is online now
Old 11-17-22, 04:08 PM
  #23
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,445

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1815 Post(s)
Liked 1,955 Times in 1,200 Posts
Originally Posted by embankmentlb View Post
That certainly makes the reverse look promising! Like I expressed earlier in this thread, I was looking for advice on doing this many years ago. Many folks said it could be done but know one could show me they had actually done it. I ended up replacing my 7700 freehub with another 7700.
How about the bearings and seals? Do they match up?
I wouldn't attempt to use a 7700 cone and potentially destroy a really hard part to find. The seal diameter on both is 19.1mm OD. I'm not sure if the seal can be used with a different cone. I buy a complete freehub and move everything across, or if a seal will work, see if I can get a cone from Wheels Mfg.

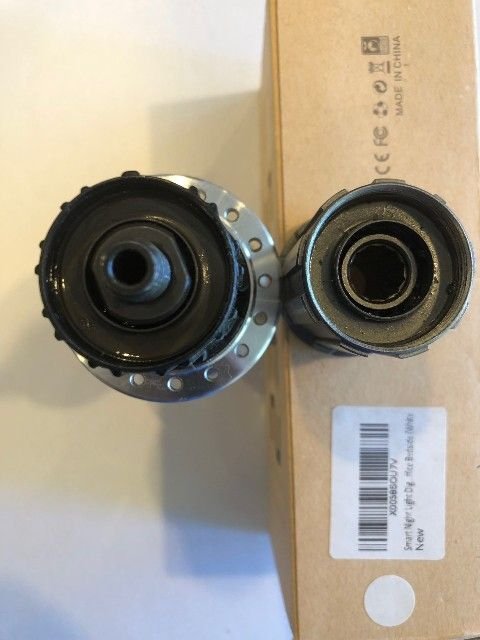

Here is an end view of the freehub bodies...


John
70sSanO is offline
Likes For 70sSanO:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
