Shortening Sturmey Archer cable.

Old 12-06-22, 08:35 PM
  #1
SkinGriz
Live not by lies.
Thread Starter

Join Date: Nov 2020
Posts: 924

Bikes: BigBox bikes.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 538 Post(s)
Liked 455 Times in 350 Posts
Shortening Sturmey Archer cable.

I finally have an IGH bike. Itís just a cheap 3 speed cruiser.

I donít understand how to shorten the cable. It looks like it just terminates into a barrel adjust at one end and is inside the twist grip shifter on the other end.

Iíd like to mount a different shifter on either the seat post or quill stem, but donít know how.

Thank you.
SkinGriz is offline
Old 12-06-22, 09:50 PM
  #2
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 21,590

Bikes: old ones

Mentioned: 300 Post(s)
Tagged: 0 Thread(s)
Quoted: 24558 Post(s)
Liked 8,291 Times in 5,800 Posts
...the cable you have there has a little crimp on thingy on the barrel adjust end, that is inside the barrel. The end that is fed inside the trigger shifter is also terminated in a crimped on sleeve. They are like the fishing crimps you use for fishing with wire leaders, which come in various small sizes. To work with these yourself, the best tool is an old Bell Telephone repairman's crimper. You can make your own cables, any length you want, using new derailleur cable housing and cable. You just cut the stop end off the cable, and use the crimps to set it up.



Or you can just buy a replacement cable, with a bolt on barrel adjustor, that you can tighten anywhere along the cable, to adjust length.

https://www.walmart.com/ip/Three-Spe...lack/890432719


Completely in the dark on what you mean by a different shifter. The different SA 3 speed hubs need a certain pull amount to correctly shift, along with the proper internal rod length. It's not hard to screw this up if you don't really understand what's going on internally. There are (or at least there were) some alternative bar end SA shifters that work well.
__________________
3alarmer is offline
Likes For 3alarmer:
Old 12-06-22, 10:56 PM
  #3
SkinGriz
Live not by lies.
Thread Starter

Join Date: Nov 2020
Posts: 924

Bikes: BigBox bikes.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 538 Post(s)
Liked 455 Times in 350 Posts
Thank you.

It says AWC and has a grip shifter.
Iíve never liked grip shifters.
SkinGriz is offline
Old 12-07-22, 01:25 AM
  #4
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 21,590

Bikes: old ones

Mentioned: 300 Post(s)
Tagged: 0 Thread(s)
Quoted: 24558 Post(s)
Liked 8,291 Times in 5,800 Posts
...they have made a couple of AW C (for coaster brake) versions. they still make and sell a modern one, from Asia.

I know nothing about the new ones from Asia, but have heard from others they use similar parts and shifters to the AW, which is the perennial favorite, British three speed hub in the C+V world.

The grip shifters I've seen on these are nothing to write home about. Besides the standard trigger shifters, which are usually bar mounted, there are also more expensive bar end shifters and thumbies. I have used all of these in the past with good results. The main idea is that most, if not all of the AW hubs will shift OK with a properly installed and adjusted SA three speed shifter. Never had the urge to mount the shifter to the stem or seatpost.
__________________
3alarmer is offline
Old 12-07-22, 03:36 AM
  #5
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 885

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Liked 224 Times in 152 Posts
Originally Posted by 3alarmer View Post
...the cable you have there has a little crimp on thingy on the barrel adjust end, that is inside the barrel. The end that is fed inside the trigger shifter is also terminated in a crimped on sleeve. They are like the fishing crimps you use for fishing with wire leaders, which come in various small sizes. To work with these yourself, the best tool is an old Bell Telephone repairman's crimper. You can make your own cables, any length you want, using new derailleur cable housing and cable. You just cut the stop end off the cable, and use the crimps to set it up.

snip......

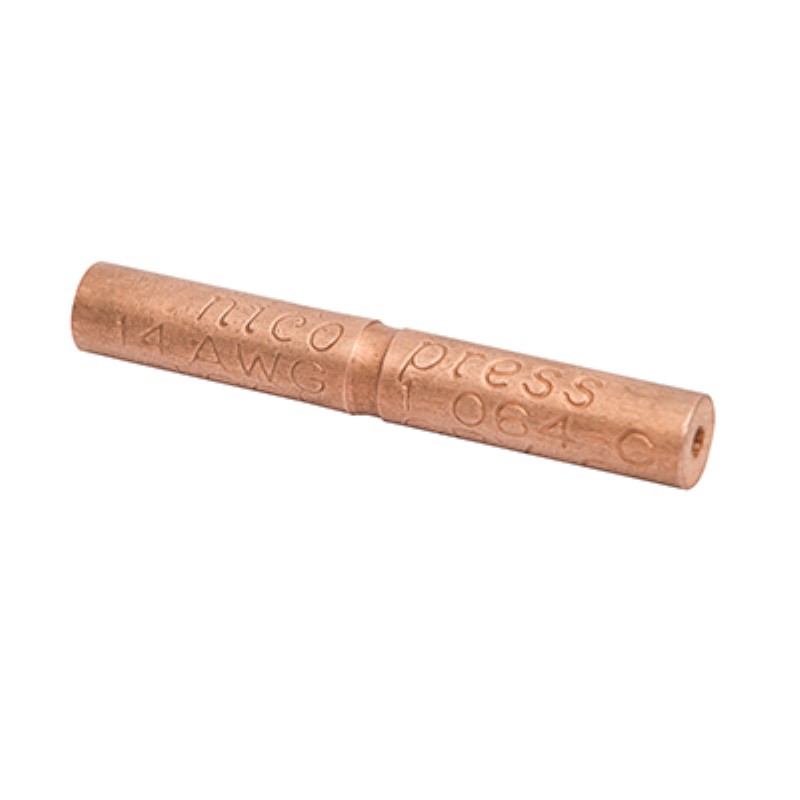

Never thought of that one, I even have one around here somewhere, I worked for NY Tel at one time. The splicing sleeve that worked with it were copper, there were two sizes, one for drop with and the other for bridle wire (outdoor twisted stuff). I'll be they best for this would be the bridle type, something like this
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Old 12-07-22, 08:57 AM
  #6
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,805

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1314 Post(s)
Liked 1,181 Times in 714 Posts
Originally Posted by 3alarmer View Post
I know nothing about the new ones from Asia, but have heard from others they use similar parts and shifters to the AW...
Production was moved to Taiwan 21 years ago. Still the same design manufactured in the UK; all parts are interchangeable.

BTW, every after-market Sturmey shifter I've purchased came with a new shift cable.
tcs is offline
Likes For tcs:
Old 12-07-22, 10:13 AM
  #7
SkinGriz
Live not by lies.
Thread Starter

Join Date: Nov 2020
Posts: 924

Bikes: BigBox bikes.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 538 Post(s)
Liked 455 Times in 350 Posts
So for clarification. An SA 3 speed shifter will work with an SA 3 speed hub? And usually comes with a cable?

Do they come with some sort of indexing or detent?

Thank you.
SkinGriz is offline
Old 12-07-22, 10:54 AM
  #8
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,805

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1314 Post(s)
Liked 1,181 Times in 714 Posts
Originally Posted by SkinGriz View Post
An SA 3 speed shifter will work with an SA 3 speed hub? And usually comes with a cable? Do they come with some sort of indexing or detent?
Yes (a 'Quadrant' shifter from the 1920s will even work), yes, and yes.

Sturmey-Archer: index shifting since 1903.

https://www.sturmey-archer.com/en/products/3-sp

PS - You DO NOT want the "3-speed rotary" shifters. They have a different cable pull.
tcs is offline
Likes For tcs:
Old 12-07-22, 12:46 PM
  #9
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 21,590

Bikes: old ones

Mentioned: 300 Post(s)
Tagged: 0 Thread(s)
Quoted: 24558 Post(s)
Liked 8,291 Times in 5,800 Posts


...IIRC, the #3 size fits the diameter for current stainless derailleur inner cable wire. If you are using brake cable and housing (which also works), you will need to size up the #4.
__________________
3alarmer is offline
Likes For 3alarmer:
Old 12-07-22, 12:55 PM
  #10
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 5,457
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1596 Post(s)
Liked 1,332 Times in 780 Posts
You can also buy shift cable ends that have a pinch bolt so that you can easily shorten the cable at the hub end of the cable:

https://www.amazon.ca/Sturmey-Archer...0439256&sr=8-2
alcjphil is offline
Likes For alcjphil:
Old 12-07-22, 04:07 PM
  #11
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,965
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 883 Post(s)
Liked 504 Times in 293 Posts
Originally Posted by SkinGriz View Post
So for clarification. An SA 3 speed shifter will work with an SA 3 speed hub? And usually comes with a cable?

Do they come with some sort of indexing or detent?

Thank you.
Generally true. The exception would be the RX series rotary shift.
Also worth noting that modern production shifters with the exception of the classic trigger shifter all take standard shift cable inners.
Dan Burkhart is offline
Likes For Dan Burkhart:
Old 01-09-23, 02:55 AM
  #12
SkinGriz
Live not by lies.
Thread Starter

Join Date: Nov 2020
Posts: 924

Bikes: BigBox bikes.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 538 Post(s)
Liked 455 Times in 350 Posts
Thank you all.

I ended up using a bar end shifter. It came with the appropriate cable and cable housing.

For the hub end I ended up using the adapter that clamps the wire but has the barrel adjuster on the other side.

Followed RJs videos on how to adjust.

Poured synthetic ATF into the hole where the shift chain comes out of.

Mostly this whole thing was to determine if I like IGHs. So far I do. I can see why theyíd be good for an errand bike or commuting bike. I did not notice any noticeable drag over my cheap freewheel rear ends. I think the gear spacing makes sense for a bike not intended to be high performance.
