Stuck Stem Bolt Question

Old 10-30-07, 05:23 PM
  #1
jnvw
Senior Member
Thread Starter

jnvw's Avatar

Join Date: Apr 2006
Posts: 74
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Stuck Stem Bolt Question

Title is just what it is, Stem Bolt will not even budge.
However, the entire stem will rotate back and forth when holding onto the front tire/fork.

Currently I am using some penetrating liquid to soak, but am looking at other ideas.

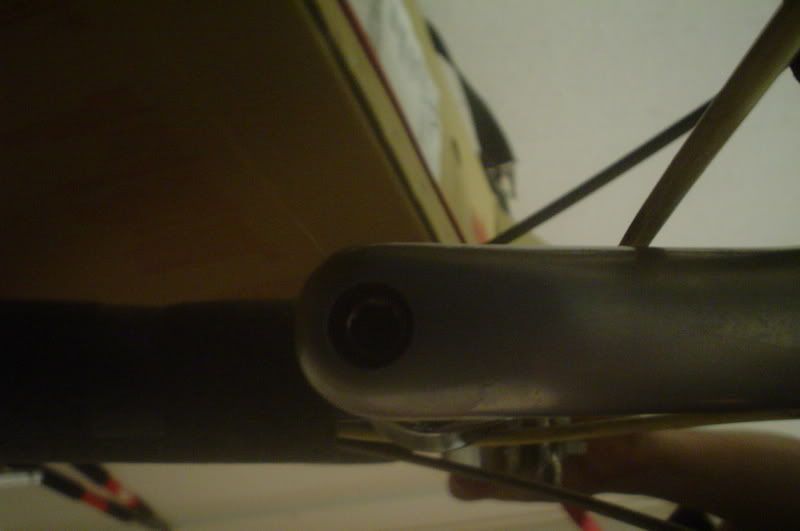

The stem bolt is a 6mm Hex which sits about 6-8mm into stem its self (does that make sense)
Here is a pic, thanks in advance for any help


jnvw is offline
Old 10-30-07, 05:27 PM
  #2
roadfix
hello

roadfix's Avatar

Join Date: May 2003
Location: Los Angeles
Posts: 18,601
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Likes: 0
Liked 2 Times in 1 Post
Did you try turning the bike upside down and applying penetrating oil directly to the stem wedge through the fork crown?
roadfix is offline
Old 10-30-07, 05:31 PM
  #3
Air
Destroyer of Wheels

Air's Avatar

Join Date: May 2006
Location: Creating some FA-Qs
Posts: 3,520

Bikes: Nishiki Sport, Downtube IXNS, 1950's MMB3 Russian Folding Bike, MTB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Here's that so someone can see it.

So, you can't unscrew it but it's not tight enough? Or you just can't get the stem out?

If you can't get it out (and say the screw is loose but not completely out) then try tapping the end of the allen key with a hammer to push the wedge down and release it.
Attached Images
File Type: jpg
__________________
The Almighty Clyde FAQ || Northeast Index
eTrex Vista References || Road Reference


It's the year of the enema!
Air is offline
Old 10-30-07, 05:47 PM
  #4
jnvw
Senior Member
Thread Starter

jnvw's Avatar

Join Date: Apr 2006
Posts: 74
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Air View Post
Here's that so someone can see it.

So, you can't unscrew it but it's not tight enough? Or you just can't get the stem out?

If you can't get it out (and say the screw is loose but not completely out) then try tapping the end of the allen key with a hammer to push the wedge down and release it.

The stem moves back and forth (with a bit of effort) but the stem bolt its self will not budge.

Currently the bike is upsie down with some penetrating oil sparyed into the fork, (that's the blame for the crappy pic)
jnvw is offline
Old 10-30-07, 08:07 PM
  #5
Tinkeric
Senior Member

Join Date: Jul 2007
Location: Maryland
Posts: 136

Bikes: Bridgestone '90 RB-1, Giant TCR Alloy, 90's mountain bikes galore.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Did you try using a pipe "cheater" on the stem bolt? A pipe "cheater" is just a steel pipe that you stick over the allen wrench to increase the torque.

Last edited by Tinkeric; 10-30-07 at 08:45 PM.
Tinkeric is offline
Old 10-30-07, 08:18 PM
  #6
vasracer
vasracer

Join Date: Oct 2007
Location: NYC!!!!
Posts: 247

Bikes: Leader LD-735TR, Mercier Kilo tt, 3Rensho pursuit(not complete)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
take Roadfix's advise and turn the bike over and spray with penetrating oil. Usually what occurs with a steel steerer tube an and an aluminum stem wedge is that they basically weld to each other if not greased initially. This could be a quick fix or a matter of cutting your stem and replacing your stem and fork.
vasracer is offline
Old 10-30-07, 08:32 PM
  #7
roadbuzz
Just ride.

roadbuzz's Avatar

Join Date: Oct 2000
Location: C-ville, Va
Posts: 3,252
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
After the bike has set upside down overnight with the penetrating oil, and it's right-side-up again, try to run some penetrating oil down around the stem bolt, so some gets to the wedge from the top side. Then, like Air suggested, loosen the stem bolt some, but with plenty of threads still engaged so you don't screw those up, and tap an allen wrench in the bolt with a hammer to try to jar it loose.
roadbuzz is offline
Old 10-30-07, 08:47 PM
  #8
Tinkeric
Senior Member

Join Date: Jul 2007
Location: Maryland
Posts: 136

Bikes: Bridgestone '90 RB-1, Giant TCR Alloy, 90's mountain bikes galore.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Oops, I had to edit that post. I got my terms mixed up; I meant pipe "cheater" not pipe wrench.
Tinkeric is offline
Old 10-30-07, 08:54 PM
  #9
jnvw
Senior Member
Thread Starter

jnvw's Avatar

Join Date: Apr 2006
Posts: 74
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
What's the rule after 3 beers?
jnvw is offline
Old 10-31-07, 12:27 AM
  #10
Spokes man
Senior Member

Spokes man's Avatar

Join Date: Jul 2007
Location: Memphis
Posts: 246

Bikes: 2008 Specialized Roubaix Elite Compact, 2004 Giant Cypress, 1981 Specialized Sequoia

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
After the upside-down pentrating oil treatment is allowed to soak, whack the stem bolt from the top. Try using a rubber mallet first. If that fails try using a hammer with a block of wood between the bolt and the hammer. Failing that, hammer directly.
Spokes man is offline
Old 10-31-07, 09:47 AM
  #11
San Rensho
Senior Member

Join Date: Oct 2005
Posts: 5,655
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Use a hammer impact wrench with a very clean hex bit.
__________________
Il faut de l'audace, encore de l'audace, toujours de l'audace

1980 3Rensho-- 1975 Raleigh Sprite 3spd
1990s Raleigh M20 MTB--2007 Windsor Hour (track)
1988 Ducati 750 F1
San Rensho is offline
Old 10-31-07, 02:59 PM
  #12
jnvw
Senior Member
Thread Starter

jnvw's Avatar

Join Date: Apr 2006
Posts: 74
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I let it soak for about 15 to 17 hours. Nothing really changed. It appears that the Hex bolt is it the problem. It really just does not want to budge at all.

So I am doen messing around with it and now decided to just cut off the stem. If anyone has experience with doing this let me know. I am thinking about it and if I simply cut off the stem the wedge and the rest of the stem will still be lodged in the fork, right.
jnvw is offline
Old 10-31-07, 03:02 PM
  #13
roadfix
hello

roadfix's Avatar

Join Date: May 2003
Location: Los Angeles
Posts: 18,601
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Likes: 0
Liked 2 Times in 1 Post
Instead of cutting off the stem why not torque the heck out the stem bolt and snap the bolt instead?
roadfix is offline
Old 10-31-07, 03:14 PM
  #14
vasracer
vasracer

Join Date: Oct 2007
Location: NYC!!!!
Posts: 247

Bikes: Leader LD-735TR, Mercier Kilo tt, 3Rensho pursuit(not complete)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Can the bolt and the stem be completely removed? If so remove the stem and the bolt, then thread the bolt back into the wedge. Using a hammer, hammer the bolt using it as a driver. You might ruin the bolt but replacements are relatively inexpensive. If you can't force it out try driving it farther down the steerer tube. This will enable you to use a new stem and have enough room to run it safely.
vasracer is offline
