What bottom bracket tool??

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

What bottom bracket tool??

Old 06-28-08, 05:49 PM
  #1
solecal123
Member
Thread Starter

Join Date: Jun 2008
Posts: 45
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
What bottom bracket tool??

can someone point me in the direction of the right bottom bracket removal tool, because i heard there are different types. thanks

solecal123 is offline
Old 06-28-08, 06:12 PM
  #2
LtSPD2000
Senior Member

LtSPD2000's Avatar

Join Date: Mar 2007
Location: Monroe, La.
Posts: 216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
park ccp-2 will do it.
http://www.parktool.com/products/det...6&item=CCP%2D2
LtSPD2000 is offline
Old 06-28-08, 09:53 PM
  #3
InTheTrenches
Senior Member

Join Date: Aug 2006
Posts: 154
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
That would remove the crank arm. It will not do squat for the BB.
InTheTrenches is offline
Old 06-28-08, 10:07 PM
  #4
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 8,957
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 425 Post(s)
Liked 17 Times in 13 Posts
Originally Posted by solecal123 View Post
can someone point me in the direction of the right bottom bracket removal tool, because i heard there are different types. thanks
It's hard to tell. Like Trenches said, the Park CCP-2 will remove the cranks, but removing the bottom bracket is another kettle of fish entirely. This Park page should tell you what you need to know:
http://www.parktool.com/repair/readhowto.asp?id=93
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Old 06-29-08, 06:59 AM
  #5
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,489

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1141 Post(s)
Likes: 0
Liked 20 Times in 19 Posts

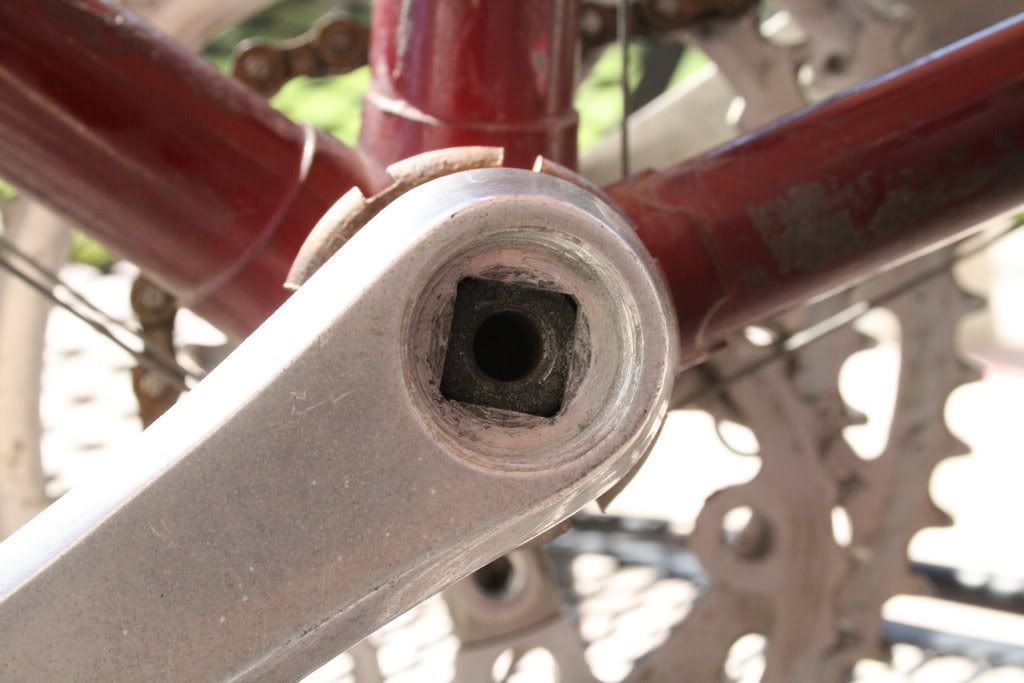

It appears to be a cup-and-cone bottom bracket. You will need a lockring tool (Park HCW-5) and a pin spanner (HCW-4 or SPA-6) to remove the non-drive side lock ring and cup (standard right hand threads) and a "fixed cup tool" (also HCW-4) to remove the drive side cup (most likely left-hand threaded).

If this is a one-time removal and you are going to replace the bb with a modern cartridge type, have a bike shop do the job. It will be cheaper than buying all of the tools for a single use.
HillRider is offline
