Lugs as strong as welds?

Old 07-20-21, 01:44 PM
  #51
tungsten
Junior Member

tungsten's Avatar

Join Date: Apr 2018
Posts: 180

Bikes: 1962 Cinelli Mod. "B" / 1988 Bailey 531c /2 - '92 Rocky Vertexs' / Obed Baseline / CroMag Wideangle/

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 23 Times in 17 Posts
Originally Posted by Scooby Snax View Post
the tig process weakens the material around the joint.
That's why tubes are butted and aluminium heat treated.

Originally Posted by rydabent View Post
Then came computers and robot welders.
I spent 25 yrs in the fabrication plant at RMB and never were any of the offshore produced frames we brought in welded by "robots". Unless they were the human kind.

Last edited by tungsten; 07-20-21 at 02:00 PM.
tungsten is offline
Old 07-20-21, 01:55 PM
  #52
tungsten
Junior Member

tungsten's Avatar

Join Date: Apr 2018
Posts: 180

Bikes: 1962 Cinelli Mod. "B" / 1988 Bailey 531c /2 - '92 Rocky Vertexs' / Obed Baseline / CroMag Wideangle/

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 23 Times in 17 Posts
Originally Posted by Andrew R Stewart View Post
There are millions of lugged bikes that were machine brazed. The machine provided heat and filler came before the current popularity of welded joints. Additionally some high volume production frames used tack welds between the lugs and the tubes to hold the structure while the machine brazings were done, much like pins can hold a main triangle before brazing.
I know some British builders used to "pin" the tubes in place in the lugs and then fire them in a kiln.
What is this "machine brazing" you speak of?
tungsten is offline
Old 07-20-21, 08:50 PM
  #53
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,739

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3626 Post(s)
Liked 2,571 Times in 1,611 Posts
Originally Posted by tungsten View Post
I know some British builders used to "pin" the tubes in place in the lugs and then fire them in a kiln.
What is this "machine brazing" you speak of?
It's not complicated to get brass filler rings that fit within the joint during prep. Alignment can be handled by a few methods including pins or jigging. Torch application stations with timed cycles to melt/flow out the insert. If the process is done well there's very little clean up and less skilled people load tubes and filler inserts instead of handling the torches. IIRC Peugeot's lugless early 1980s frames were done this way as many others too. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 07-21-21, 12:54 AM
  #54
SkinGriz
Live not by lies.

Join Date: Nov 2020
Posts: 793

Bikes: BigBox bikes.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 447 Post(s)
Liked 377 Times in 289 Posts
I would think nobody will ever know which is stronger.

My guess is to prove it a test would have to be done with maybe 10 welded frames and 10 lugged frames- all other variables held constant. And the frames would be put in a machine that simulates a very strong rider grinding it out. And run the machine until the frames break.

I bet thatís never going to happen. And I bet both ways are strong enough.

I think lugs are cool looking.
SkinGriz is offline
Old 07-21-21, 06:53 AM
  #55
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,455

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1920 Post(s)
Likes: 0
Liked 899 Times in 631 Posts
This entire discussion is interesting but moot. The overwhelming majority of new bikes are carbon fiber, welded aluminum, welded steel or, more rarely, welded Ti. The lugged steel frame has been relegated to the speciality boutique custom frame builder and made in very limited numbers at prohibitively high cost for most buyers.
HillRider is offline
Old 07-21-21, 07:34 AM
  #56
hydrocarbon
Senior Member

hydrocarbon's Avatar

Join Date: Jul 2008
Location: Norway
Posts: 84
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 23 Times in 18 Posts
So it isn't moot for someone who's looking at getting a nice specialty frame, then.

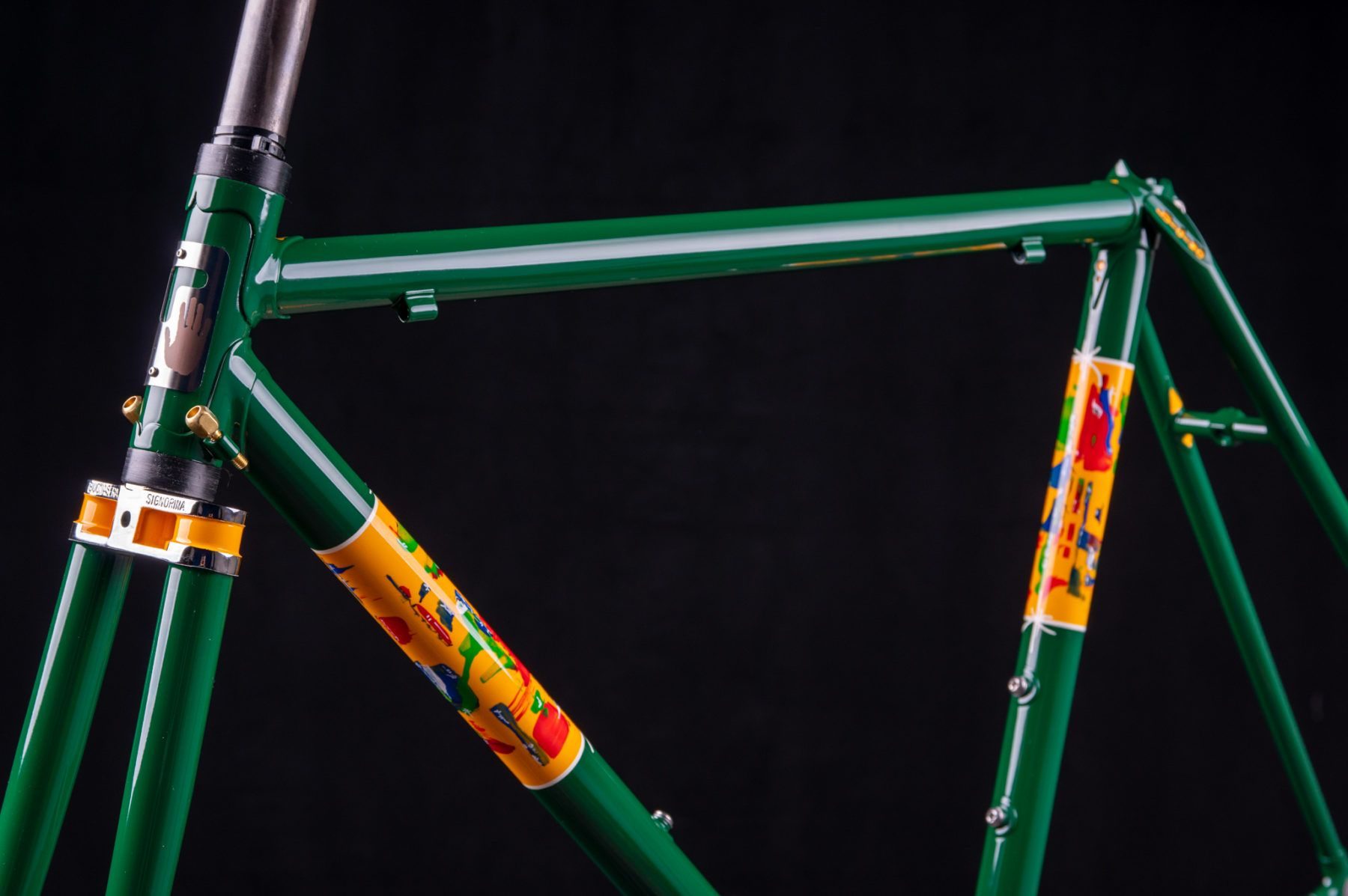

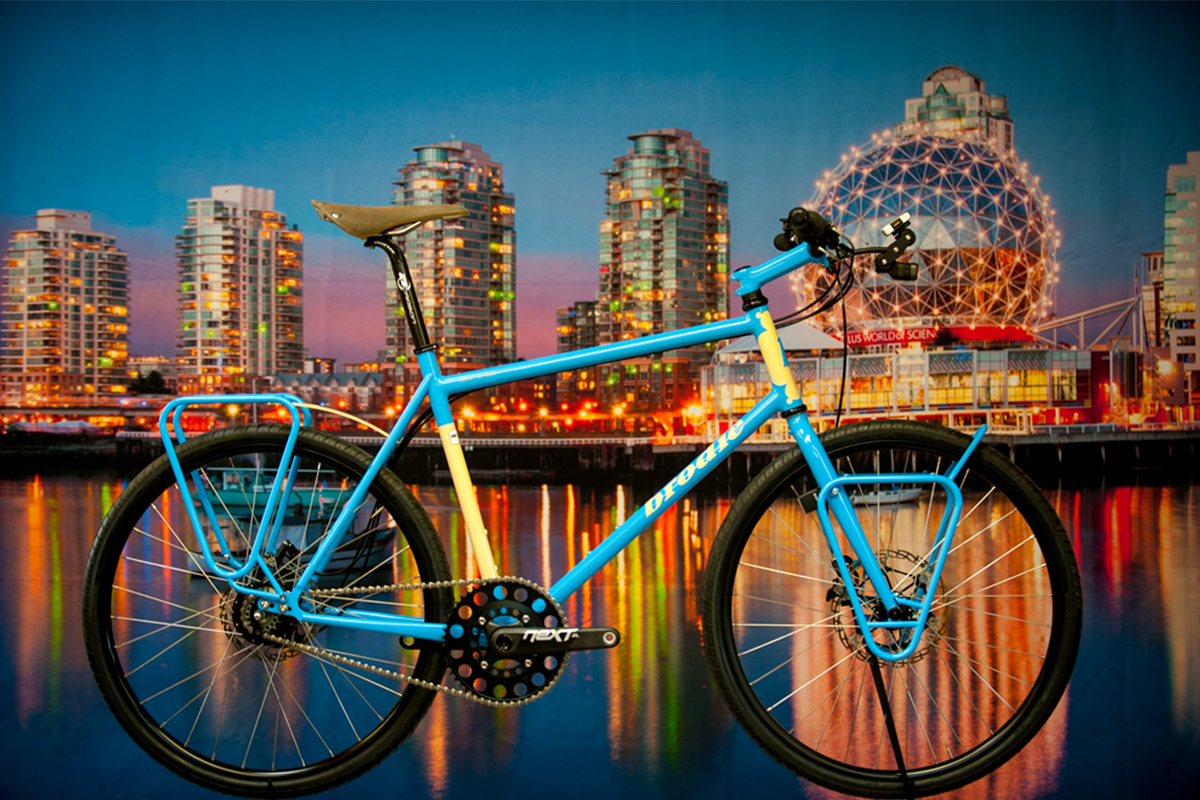

Personally, I wouldn't mind any one of these:







hydrocarbon is offline
Old 07-21-21, 05:26 PM
  #57
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,455

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1920 Post(s)
Likes: 0
Liked 899 Times in 631 Posts
Originally Posted by hydrocarbon View Post
So it isn't moot for someone who's looking at getting a nice specialty frame, then.

Personally, I wouldn't mind any one of these:
That is exactly my point. Those lugged frames you show are all expensive, boutique, hand made, one-of-a-kind frames and that's the only way to get a new lugged frame these days.
HillRider is offline
Old 07-21-21, 07:49 PM
  #58
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,916

Bikes: Several, mostly not name brands.

Mentioned: 145 Post(s)
Tagged: 0 Thread(s)
Quoted: 3118 Post(s)
Liked 2,328 Times in 1,381 Posts
Originally Posted by tungsten View Post
I know some British builders used to "pin" the tubes in place in the lugs and then fire them in a kiln. What is this "machine brazing" you speak of?
At Trek in the mid 80s, we used torch-free electromagnetic induction to heat the joints, and automated wire feeds to feed brass into the hot joints in combination with pre-placed brass "bombs" inside the tubes.

A lot of money was invested in this project, which became superfluous within a couple years as non-ferrous aluminum and carbon fiber frames came to dominate the market.
JohnDThompson is offline
Likes For JohnDThompson:
Old 07-21-21, 08:16 PM
  #59
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 2,203

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 847 Post(s)
Liked 377 Times in 278 Posts
Originally Posted by shahidbashir92 View Post
In the case of bike frame lugs, the brazing is under sheer forces only - as the tubes are inserted into the lug. The joint will be as strong as the metal of which the lug is made. If you used the same brazing material in place of a weld, it would fail - because its now subject to variety of forces (pulling apart and sheer).
<pedant mode>
*shear*
</pedant mode>
sweeks is offline
Old 07-22-21, 01:40 PM
  #60
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 2,287

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 449 Post(s)
Liked 383 Times in 285 Posts
Originally Posted by shahidbashir92 View Post
...because its now subject to variety of forces (pulling apart and sheer).
Welcome to the forum and please forgive us for being pedantic, it is sometimes difficult for myself and others to not to care too much about minor details in very narrow cycling subject matter, Your points on shear are spot on. That said, frame tubing loading is mostly in compression, bending or torsion with a couple notable exceptions.
easyupbug is offline
Old 07-22-21, 03:04 PM
  #61
rydabent
Senior Member

rydabent's Avatar

Join Date: Apr 2010
Location: Lincoln Ne
Posts: 9,619

Bikes: RANS Stratus TerraTrike Tour II

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 2991 Post(s)
Liked 934 Times in 554 Posts
But you must admit that todays welded frames look like the cheap welded frames of the pre 80s when good bikes had lugs.
rydabent is offline
