Cracked dura ace crank?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Cracked dura ace crank?

Old 01-12-10, 09:12 PM
  #1
mzeffex
Senior Member
Thread Starter

mzeffex's Avatar

Join Date: Mar 2009
Location: Colorado
Posts: 9,458

Bikes: Something Canadian, something Italian, something American, and something German

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Likes: 0
Liked 14 Times in 8 Posts
Cracked dura ace crank?

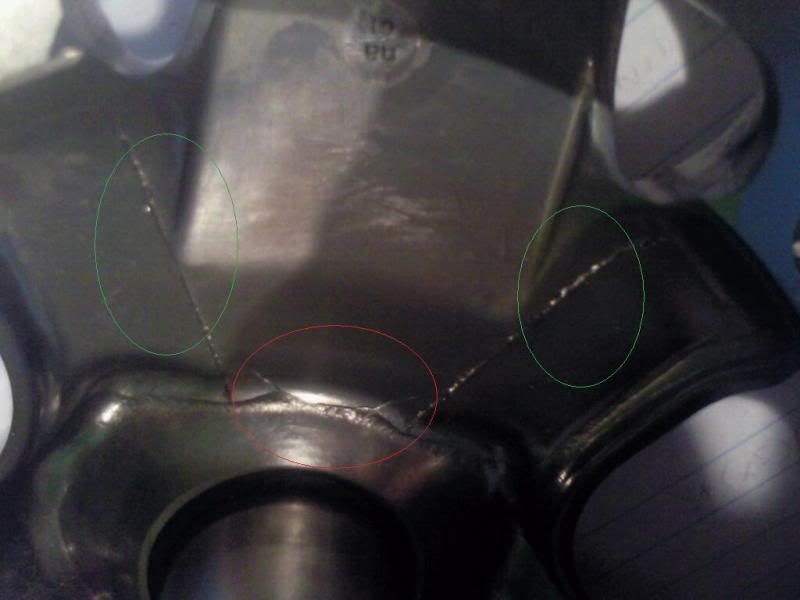

I just picked this up used then realized this:

The green I think is supposed to be there, the red not so sure. Pictured is where the crank arm enters the spider. It is kind of raised, so is it just forging?

__________________
Originally Posted by rjones28 View Post
Are they talking about spectators feeding the cyclists? You know, like don't feed the bears?

Last edited by mzeffex; 01-12-10 at 09:57 PM.
mzeffex is offline
Old 01-12-10, 10:01 PM
  #2
MikeWinVA
Senior Member

Join Date: Oct 2009
Location: Northern/Central VA
Posts: 212

Bikes: Specialized Sirrus, Univega Activa ST Hybrid, 70's Schwinn Traveler, Giant Innova, Nishiki Mixte

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Get your money back if you can.

Assuming you have some $$$ tied up in this, if you can't get your money back and want to be sure, run it by a machine shop and have them do a penetrating dye test.
MikeWinVA is offline
Old 01-12-10, 10:21 PM
  #3
Schnayke
Senior Member

Join Date: Feb 2006
Location: Medford, OR
Posts: 325
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I had a stronglight that came apart right there, it was on my fixed and I almost hit a car. Good thing I still had a break, it just took me a second to remember it was there, and to stop wondering why I was coasting. Mine didn't fall apart though, it just spins like a free wheel now. lol
Schnayke is offline
Old 01-13-10, 06:26 AM
  #4
mzeffex
Senior Member
Thread Starter

mzeffex's Avatar

Join Date: Mar 2009
Location: Colorado
Posts: 9,458

Bikes: Something Canadian, something Italian, something American, and something German

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Likes: 0
Liked 14 Times in 8 Posts
It's not cracked. It's part of the manufacturing process.
__________________
Originally Posted by rjones28 View Post
Are they talking about spectators feeding the cyclists? You know, like don't feed the bears?
mzeffex is offline
Old 01-13-10, 07:49 AM
  #5
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Posts: 35,964

Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter

Mentioned: 125 Post(s)
Tagged: 1 Thread(s)
Quoted: 4372 Post(s)
Likes: 0
Liked 50 Times in 44 Posts
It looks more like flash then a crack. Flash is raised metal whereas a crack would not be. It's a normal result of the manufacturing process, resulting from a gap in the edge of the production tooling which allows excess metal to flow out a bit. Usually it's broken, polished or machined off later, but not always, especially in non-critical places or where they don't expect it to be visible in the finished assembly, like the back of a crank arm. Don't sweat it, enjoy your new cranks.
FBinNY is offline
Old 01-13-10, 08:09 AM
  #6
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,294

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1839 Post(s)
Likes: 0
Liked 777 Times in 565 Posts
Originally Posted by mzeffex View Post
It's not cracked. It's part of the manufacturing process.
I don't agree, I think it's broken. I don't have a Dura Ace crank but I just inspected two 9-speed Ultegra cranks, two 8-speed 105's and a couple of old SR and Suguino cranks and NONE of these have any molding flash, forging marks or similar parting lines on either side of the spider/hub junction. The hub to spider transitions on all of these are completely smooth.

I can't believe a Dura Ace crank would be less finely finished than these are so I have to believe yours is cracked.

Don't use it.
HillRider is offline
Old 01-13-10, 11:22 AM
  #7
calamarichris
Horse Categorie

calamarichris's Avatar

Join Date: Sep 2007
Location: Carlsbad, CA
Posts: 6,205

Bikes: '09 Felt F55, '84 Masi Cran Criterium, (2)'86 Schwinn Pelotons, '86 Look Equippe Hinault, '09 Globe Live 3 (dogtaxi), '94 Greg Lemond, '99 GT Pulse Kinesis

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 235 Post(s)
Liked 66 Times in 40 Posts
Originally Posted by HillRider View Post
I don't agree, I think it's broken. I don't have a Dura Ace crank but I just inspected two 9-speed Ultegra cranks, two 8-speed 105's and a couple of old SR and Suguino cranks and NONE of these have any molding flash, forging marks or similar parting lines on either side of the spider/hub junction. The hub to spider transitions on all of these are completely smooth.

I can't believe a Dura Ace crank would be less finely finished than these are so I have to believe yours is cracked.

Don't use it.
I disagree completely. The new Dura Ace (Hollowtech) is made with a different process than those earlier, solid cranks you're comparing it to. The crank is fine. Mine had it when brand-new. Shimano puts it on the nearly-invisible underside of the crank. True, the underside is not as pretty as those earlier cranks, but overall it's much, much (& much-much) lighter and stiffer.
calamarichris is offline
Old 01-13-10, 11:40 AM
  #8
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,294

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1839 Post(s)
Likes: 0
Liked 777 Times in 565 Posts
Originally Posted by calamarichris View Post
I disagree completely. The new Dura Ace (Hollowtech) is made with a different process than those earlier, solid cranks you're comparing it to. The crank is fine. Mine had it when brand-new. Shimano puts it on the nearly-invisible underside of the crank. True, the underside is not as pretty as those earlier cranks, but overall it's much, much (& much-much) lighter and stiffer.
OK, I missed that it was a Hollowtech II crank. I was, as you noted, comparing it to square taper and Octalink cranks and they look nothing like the one in the picture.
HillRider is offline
Old 01-13-10, 04:35 PM
  #9
kycycler
Senior Member

Join Date: Mar 2007
Location: Louisville, KY
Posts: 469

Bikes: Trek Madone 5.5, Klein Q Pro Elite, Surley LHT

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The green areas look like casting marks. The red area looks like a crack. Get a 10x magnifying glass and look at the area. If it is a crack you will not be able to see the bottom of the area. Flashing or casting marks will be very obvious.
kycycler is offline
