Help converting from Shimano Dura-Ace crank and BB to compact FSA crank and BB
10-02-10, 07:16 PM
#1
Member
Thread Starter
Join Date: Jul 2005
Posts: 41
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
Help converting from Shimano Dura-Ace crank and BB to compact FSA crank and BB
Recently-purchased used Argon 18 Platinum
I want to remove the crank/bottom-bracket I have (Shimano 7700 53-39Teeth) and replace it with an FSA compact crank I have.
I don't know much about different bottom brackets. There are so amny types/widths. I don't even know what type of BB my FSA crank uses (bought it at bike-club swap-meet).
My questions:
- Can I even use the FSA crank in this frame?
- If so, what BB should I buy?
- What BB hardware will I need (or does it come with the BB)?
- What tool(s) should I buy (or should I have this done at a LBS?)
I have nothing against going to a LBS, I just like to work on my own stuff.
What I have:
It look like the overall length of the BB I have is 110mm, and about 17.5 mm protrudes out of the drive-side.
I have NO idea how you can get a crank to look this bad.
If you look closely in the pics, you can see that the previous owner of this bike must have used pliers on this bottom-bracket
What I want to install:
I want to remove the crank/bottom-bracket I have (Shimano 7700 53-39Teeth) and replace it with an FSA compact crank I have.
I don't know much about different bottom brackets. There are so amny types/widths. I don't even know what type of BB my FSA crank uses (bought it at bike-club swap-meet).
My questions:
- Can I even use the FSA crank in this frame?
- If so, what BB should I buy?
- What BB hardware will I need (or does it come with the BB)?
- What tool(s) should I buy (or should I have this done at a LBS?)
I have nothing against going to a LBS, I just like to work on my own stuff.
What I have:
It look like the overall length of the BB I have is 110mm, and about 17.5 mm protrudes out of the drive-side.
I have NO idea how you can get a crank to look this bad.
If you look closely in the pics, you can see that the previous owner of this bike must have used pliers on this bottom-bracket
What I want to install:
10-02-10, 07:36 PM
#2
cab horn
Join Date: Jun 2004
Location: Toronto
Posts: 28,353
Bikes: 1987 Bianchi Campione
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Likes: 0
Liked 25 Times
in
18 Posts
1) Those FSA cranks will work.
2) They take they're ISIS comatible BB. A model which is certain to be compatible with your frame.
3) The length is determined by the model of that crank, which you then look up.
4) ISIS cranks/bb's are beginning to be orphaned since the introduction of external BB's.
5) The shimano BB is removed by any shimano 20 tooth spline compatible tool, e.g Park BBT-22.
I'm going to caution you with replacing outdated 9 speed systems with more outdated FSA crank/bb systems.
2) They take they're ISIS comatible BB. A model which is certain to be compatible with your frame.
3) The length is determined by the model of that crank, which you then look up.
4) ISIS cranks/bb's are beginning to be orphaned since the introduction of external BB's.
5) The shimano BB is removed by any shimano 20 tooth spline compatible tool, e.g Park BBT-22.
I'm going to caution you with replacing outdated 9 speed systems with more outdated FSA crank/bb systems.
10-02-10, 07:44 PM
#3
Senior Member
Join Date: Jun 2007
Location: A Coffin Called Earth. or Toronto, ON
Posts: 12,258
Bikes: Bianchi, Miyata, Dahon, Rossin
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 5 Times
in
5 Posts
the ISIS BB and shimano octalink use the same 20 spline tool to be installed and removed.
I would second operator's opinion of replacing outdated octalink system with an obsolete and out of production ISIS system..
I would second operator's opinion of replacing outdated octalink system with an obsolete and out of production ISIS system..
__________________
Food for thought: if you aren't dead by 2050, you and your entire family will be within a few years from starvation. Now that is a cruel gift to leave for your offspring. ;)
https://sanfrancisco.ibtimes.com/arti...ger-photos.htm
Food for thought: if you aren't dead by 2050, you and your entire family will be within a few years from starvation. Now that is a cruel gift to leave for your offspring. ;)
https://sanfrancisco.ibtimes.com/arti...ger-photos.htm
10-02-10, 11:28 PM
#5
Banned
Octalink is apples, Isis is oranges,
pull the BB out of the frame and pack it up with the crankset.in a box.
look for an ISIS BB to suit your other crankset. Good Luck.
pull the BB out of the frame and pack it up with the crankset.in a box.
look for an ISIS BB to suit your other crankset. Good Luck.
10-03-10, 07:44 AM
#6
Member
Thread Starter
Join Date: Jul 2005
Posts: 41
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
That's what this thread is all about.
While I appreciate the advice of the people warning me away from ISIS, it is what I already own.
So... getting back to Question #2 (what BB should I buy?). I looked on FSA's website, and found no specs on this crankset. I see websites selling 68 X 108mm English ISIS BBs. Is that what I need?
While I appreciate the advice of the people warning me away from ISIS, it is what I already own.
So... getting back to Question #2 (what BB should I buy?). I looked on FSA's website, and found no specs on this crankset. I see websites selling 68 X 108mm English ISIS BBs. Is that what I need?
10-04-10, 04:23 PM
#7
Member
Thread Starter
Join Date: Jul 2005
Posts: 41
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts

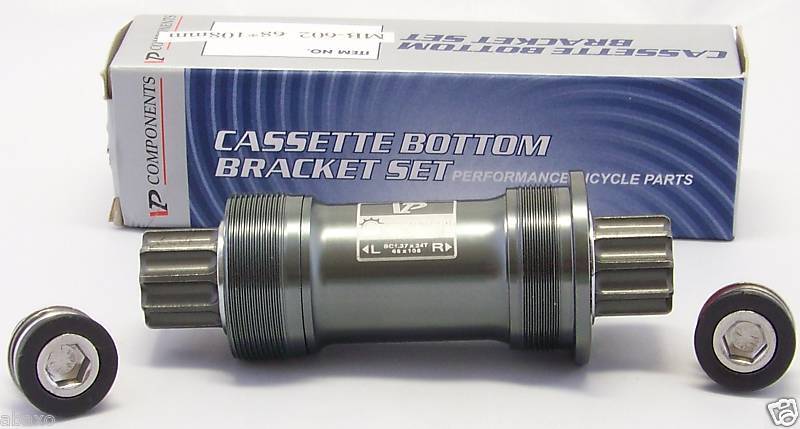

Here's the BB I bought:
VP 68x108 BOTTOM BRACKET ISIS ,198g
When it shows up, I'll find out what I need next (maybe different front derailleur).
VP 68x108 BOTTOM BRACKET ISIS ,198g
When it shows up, I'll find out what I need next (maybe different front derailleur).
