How to Flush and Fill an old Sturmey Archer 3-Speed hub?

I recently purchased this '51 Armstrong - My 1st ever 3-speed:

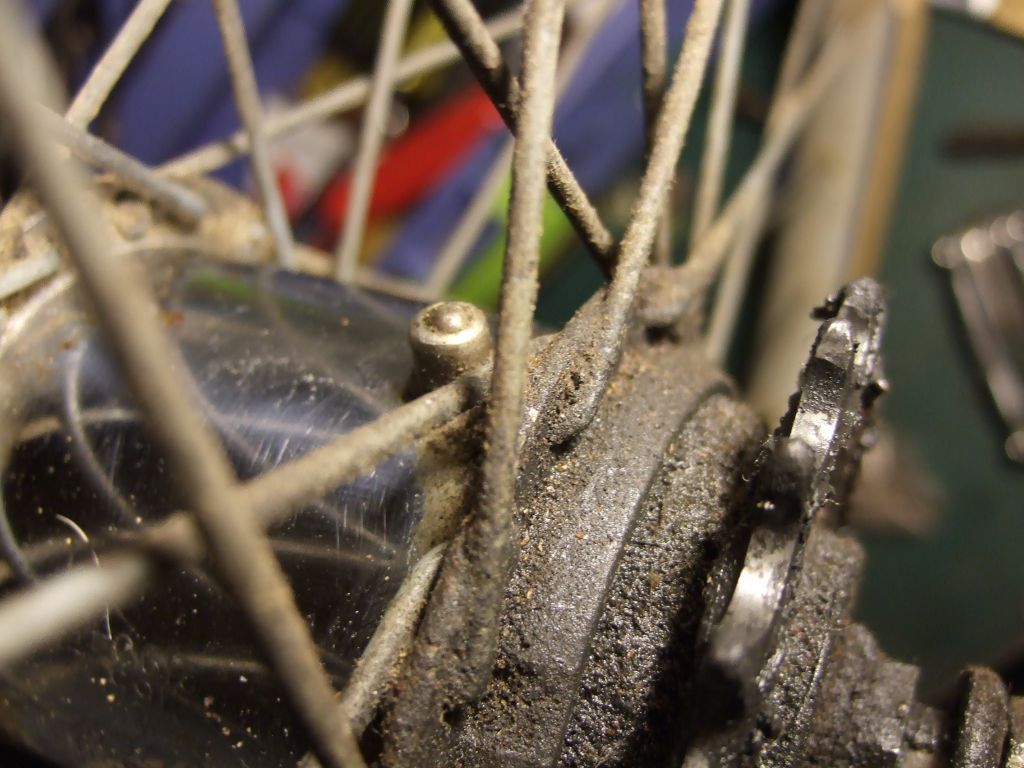

The Sturmey Archer AW hub works fine but it is filthy - and since it is working OK and I have no prior experience with these hubs, I was advised that it would be better NOT to disassemble it, and instead just flush it and fill it with 20-weight oil.

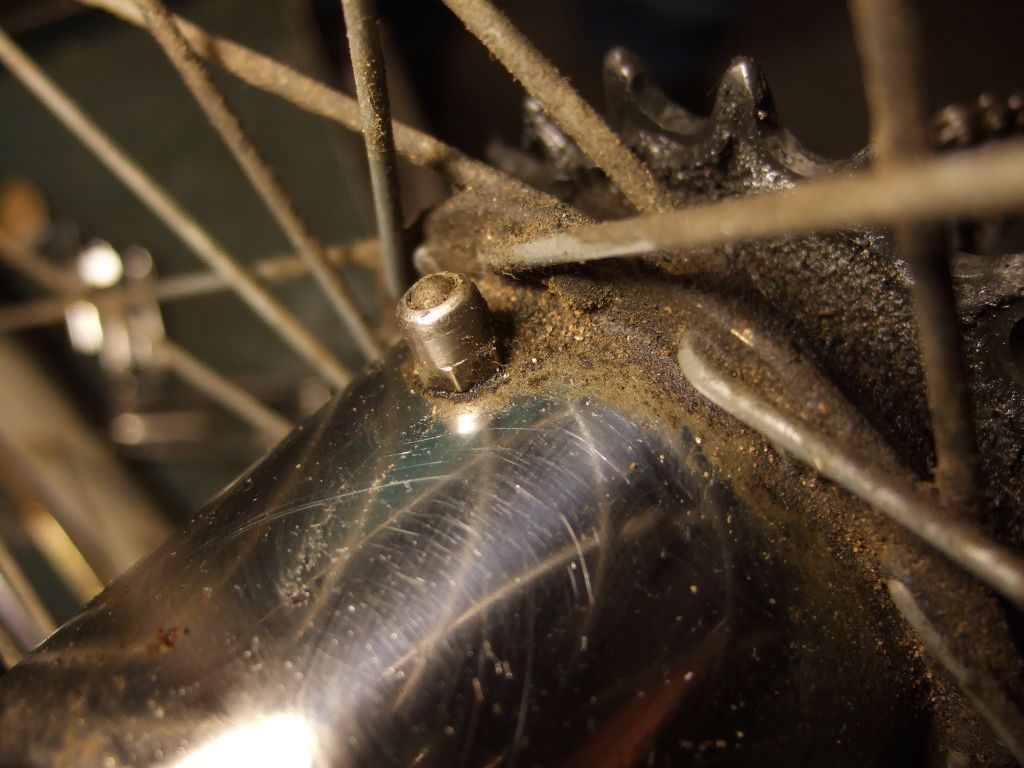

Unfortunately, all it has is this lone Zerk fitting -
- So how am supposed to flush and fill it?



__________________
- Auchen
auchencrow is offline
Old 04-11-11, 07:33 PM
  #2
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,686

Bikes: Several, mostly not name brands.

Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 2633 Post(s)
Liked 1,292 Times in 807 Posts
Unscrew the Zerk from the hub and use an oil can or syringe to infuse a light solvent into the hub (i.e. WD-40, kerosene, etc). Spin the wheel and work it through the gears. When things are moving internally again, infuse a decent lubricant (i.e. 20W oil) into the hub to replace the solvent. Things will be messy for a while until everything works its way through.

N.B. What's the problem with just opening it up and cleaning things up nice & proper? AW hubs are not that complicated, and replacement parts can be scavenged pretty easily if you don't want to get NOS parts from e.g. Harris Cyclery or Yellow Jersey.
JohnDThompson is offline
Old 04-11-11, 08:18 PM
  #3
auchencrow
Senior Member
Thread Starter

auchencrow's Avatar

Join Date: Apr 2009
Location: Detroit
Posts: 10,327
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 11 Times in 9 Posts
Originally Posted by JohnDThompson View Post
Unscrew the Zerk from the hub and use an oil can or syringe to infuse a light solvent into the hub (i.e. WD-40, kerosene, etc). Spin the wheel and work it through the gears. When things are moving internally again, infuse a decent lubricant (i.e. 20W oil) into the hub to replace the solvent. Things will be messy for a while until everything works its way through.

N.B. What's the problem with just opening it up and cleaning things up nice & proper? AW hubs are not that complicated, and replacement parts can be scavenged pretty easily if you don't want to get NOS parts from e.g. Harris Cyclery or Yellow Jersey.

Thanks John. The reason is that I have never serviced one and the instructions in the on-line service manuals are less than clear - and so I was fearful I'd mess up a good original hub.

I found a terrific picture of an AW hub though - and now I am rethinking it.

(Apart from ball bearings) will I have to install some kind of new parts once I crack it open? -Or can I just clean and reuse what's there?
__________________
- Auchen
auchencrow is offline
Old 04-11-11, 09:02 PM
  #4
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,320 Times in 830 Posts
Or ignore the fitting in the hub shell , and take out the indicator chain
and run your kerosene rinse thru hollow Axle hole..
maybe take off that axle nut, too.
then after washed out and evaporated , Phil Tenacious oil ,
just a squirt, is good. not a Fill.
I take out the axle cones and grease the hub bearings..
keeps the lighter oil in better too.

My 94 AW3 hub has no oiler in the shell , thats what I did.

Last edited by fietsbob; 04-11-11 at 09:07 PM.
fietsbob is offline
Old 04-12-11, 06:00 AM
  #5
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 6,577

Bikes: 1980 Mike Melton, 1982 Stumpjumper, 1982 Santana, 1984 Alex Moulton AM, 2008 BikeFriday tikit T-♾, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2019 Surly ˝DT14, 2021 Motobecane Turino 1x12

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 834 Post(s)
Liked 356 Times in 232 Posts
That's actually not a Zerk (grease gun) fitting - it's a fancy lubricator (oil cap) with a spring loaded ball stopper. Most of the hubs had the S545 metal or HSA106 plastic oil caps.

it is working OK...
Any chance you could just leave it alone and not muck with it beyond adding a couple drops of fresh oil?
tcs is offline
Old 04-12-11, 06:27 AM
  #6
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,715
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 750 Post(s)
Liked 287 Times in 178 Posts
Originally Posted by tcs View Post
Any chance you could just leave it alone and not muck with it beyond adding a couple drops of fresh oil?
Agreed. The best fix for a working AW hub is no fix. Just lube it and go.
Dan Burkhart is online now
Old 04-13-11, 09:32 AM
  #7
auchencrow
Senior Member
Thread Starter

auchencrow's Avatar

Join Date: Apr 2009
Location: Detroit
Posts: 10,327
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 11 Times in 9 Posts
Originally Posted by Dan Burkhart View Post
Agreed. The best fix for a working AW hub is no fix. Just lube it and go.
Thanks guys - but it seems there is no consensus on whether to crack it open or not.

On one hand, it would be prudent "not to fix what ain't broke" but on the other hand "an ounce of prevention is worth a pound of cure".

- So how is a Sturmy-Archer newb supposed to choose between cliche's like that?
__________________
- Auchen
auchencrow is offline
Old 04-13-11, 09:50 AM
  #8
Amesja
Cottered Crank

Amesja's Avatar

Join Date: Aug 2010
Location: Chicago
Posts: 3,493

Bikes: 1954 Raleigh Sports 1974 Raleigh Competition 1969 Raleigh Twenty 1964 Raleigh LTD-3

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Crack it open. It is not hard at all -if you can open up and reassemble a regular bicycle hub and repack the bearings then opening up the AW is no harder. You will be amazed at just how filthy the insides are on an older hub. A simple flush isn't going to do it right IMHO and maybe make things worth as it'll leak more when all the old grease is flushed out of the bearing races.

You do not HAVE to pull apart all the parts in the insides if you don't want to. All you really need to do is remove the bearing cone an locknut on the non-drive side which is like any hub cone and then unscrew the ball retainer cup on the drive side and the entire guts come out in one big assembly. It is as simple as that and you really don't have to take the rest apart if you don't feel it is that dirty. You could simply flush it out of the bike and flush the insides of the hub shell and reassemble. The whole job doesn't require any special tools but ordinary cone wrenches, a vise (not really required) and a hammer and punch (an old junky screwdriver will work of you don't care about it.)

Here is a good video showing just how simple it is. Ignore the part where he fully disassembles it and just watch how easy the guts come out of the shell. Also, you he has a bare hub in this video but you can do it with a whole wheel. He is just demonstrating on a hub that isn't built up because it is easier to show on the video.


It really is this simple but as you take more stuff apart it gets more complicated. If you decide to pull it all apart just be methodical. I would advise against taking the pawls out as that gets more difficult and easy to lose the tiny spring and putting them back in is more finicky. There really is no reason to remove them unless the teeth are broke or the springs are shot.

Just flushing it out on the hub is not going to help the grease in the bearings which should be replaced. Not only do the bearings deserve new grease on a 50 year old bike but without this grease the oil inside the hub is going to be constantly dripping out of the hub and down onto your rim. This grease really helps keep the oil in.

Just do it. Anyone who claims to be any kind of home mechanic can pull it apart and you will slap yourself for being afraid of doing this. It is not nearly as hard as I feared and feel silly for being apprehensive about it before I tried it. It is NOT a big deal. No harder than working on a regular hub, BB, or headset -just a little different. If you do nothing more than pull out the guts and repack the bearings it is really a cakewalk.
Amesja is offline
Old 04-13-11, 08:22 PM
  #9
auchencrow
Senior Member
Thread Starter

auchencrow's Avatar

Join Date: Apr 2009
Location: Detroit
Posts: 10,327
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 11 Times in 9 Posts
Originally Posted by Amesja View Post
Crack it open. .......
Just do it. Anyone who claims to be any kind of home mechanic can pull it apart and you will slap yourself for being afraid of doing this. It is not nearly as hard as I feared and feel silly for being apprehensive about it before I tried it. It is NOT a big deal. No harder than working on a regular hub, BB, or headset -just a little different. If you do nothing more than pull out the guts and repack the bearings it is really a cakewalk.

Amesja - Thank you VERY much for that! - and that Video is tremendous. Based on what I saw there, I should be able to do it handily. Reading through old service manuals referring to the various parts I don't even know the names of was intimidating - but that video makes it all clear.

Thanks so much.
__________________
- Auchen
auchencrow is offline
Old 04-14-11, 06:46 AM
  #10
oldroads
OldBikeGuide.com

oldroads's Avatar

Join Date: Feb 2002
Location: Massachusetts
Posts: 686
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 7 Times in 6 Posts
I say just flush it, add a few drops of 30 weight, and ride it. No need to open it up.
We see 25 to 50 3-speeds a week.
These hubs are bomb-proof.
oldroads is offline
Old 04-14-11, 07:22 AM
  #11
Amesja
Cottered Crank

Amesja's Avatar

Join Date: Aug 2010
Location: Chicago
Posts: 3,493

Bikes: 1954 Raleigh Sports 1974 Raleigh Competition 1969 Raleigh Twenty 1964 Raleigh LTD-3

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Originally Posted by oldroads View Post
I say just flush it, add a few drops of 30 weight, and ride it. No need to open it up.
We see 25 to 50 3-speeds a week.
These hubs are bomb-proof.
If you want to put up with clunky shifting, more crunchy noises/louder pawl ticking, and oil constantly oozing past the bearings because the 60 year old grease is long gone or dried to a filthy & crusty earwax I guess you aren't going to hurt the AW since, as you correctly said, it IS bombproof.

I'd rather just do the 30 minute job and act like a real bicycle mechanic rather than "bombing" a part by failing to do the proper routine simple maintenance that the bike deserves after sitting around for a half century that only takes 30 minutes to do.

Working on the hub is less work than working on a non-cartridge BB -especially dealing with the cottered cranks to get at the BB on an old 26tpi English 3-speed. I suppose you could just "flush it and go" with the BB as well and it would work OK -they are pretty bomb-proof too. Many of the older bikes have oil ports on them so it would be possible. If that's the kind of bike mechanic you are then go for it.
Amesja is offline
Old 04-14-11, 06:36 PM
  #12
oldroads
OldBikeGuide.com

oldroads's Avatar

Join Date: Feb 2002
Location: Massachusetts
Posts: 686
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 7 Times in 6 Posts
>> If that's the kind of bike mechanic you are then go for it.

Ah the Interwebs...
The OP says they have "no prior experience with these hubs".
The hub is functioning fine right now, as it will for another decade or two of daily use.
S/he was given GREAT advise when told NOT to take it apart.
This person believed the oil port was a zerk, and you’re telling them to open up the thing for no reason at all…


>> You will be amazed at just how filthy the insides are on an older hub

I'd say you'd be amazed at just how CLEAN the insides are on an older hub

Flush it, add some 20 or 30 weight motor oil and get out on the road.

I’d listen to your LOCAL mechanic who makes a living doing this stuff.
oldroads is offline
Old 04-14-11, 06:44 PM
  #13
Amesja
Cottered Crank

Amesja's Avatar

Join Date: Aug 2010
Location: Chicago
Posts: 3,493

Bikes: 1954 Raleigh Sports 1974 Raleigh Competition 1969 Raleigh Twenty 1964 Raleigh LTD-3

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Originally Posted by oldroads View Post
>> If that's the kind of bike mechanic you are then go for it.

Ah the Interwebs...
The OP says they have "no prior experience with these hubs".
The hub is functioning fine right now, as it will for another decade or two of daily use.
S/he was given GREAT advise when told NOT to take it apart.
This person believed the oil port was a zerk, and you’re telling them to open up the thing for no reason at all…


>> You will be amazed at just how filthy the insides are on an older hub

I'd say you'd be amazed at just how CLEAN the insides are on an older hub

Flush it, add some 20 or 30 weight motor oil and get out on the road.

I’d listen to your LOCAL mechanic who makes a living doing this stuff.
Knowledge of the correct terminology in bicycle mechanics != mechanical aptitude. There are many people who can spout chapter and verse using all the correct words who I wouldn't trust airing my tires while there are many competent mechs that can't speak a word of campo-slang who could figure anything out. If someone can't figure out how to loosen the ball-retainer and remove the guts of an SW hub they have no business working on any bike.

I've never seen a 60 year old hub that was clean -or many other parts. Grease and oil just doesn't last that long -no matter how many times it was "flushed."

I stand by my words. What kind of mechanic are you?
Amesja is offline
Old 04-15-11, 10:27 AM
  #14
mike
Senior Member

mike's Avatar

Join Date: Jul 2000
Location: Snowy midwest
Posts: 5,392
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Other posts have given this advice, but I will second them.

You have to use grease on the bearings and oil for the internal transmission inside the hub.

If you flush the hub with solvent, it will ruin the grease, so you have to plan for that.

I have seen old SA hubs with oil that gets so dried and crusty that it looks like old dried varnish. So, if you really want to bring the bike to life, do flush it. I use gasoline or mineral spirits because it evaporates. You should give the hub at least a week for the solvent to evaporate after flushing.

Don't take the hub completely apart. It is a mess to get together.

DO take of the covers of the hub so you can access the bearings and grease them. Take meticulous notes as you dis-assemble.
mike is offline
Old 04-16-11, 07:54 AM
  #15
AChristie
Senior Member

Join Date: Apr 2011
Posts: 87
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I would ride it.
Then plan to overhaul the entire bike at some point, maybe over the winter.

If you want to keep the look, wait until the hub stops working. Maybe it never will.
AChristie is offline
Old 04-17-11, 08:22 AM
  #16
KNguyen
Junior Member

Join Date: Sep 2008
Location: Lee's Summit
Posts: 9

Bikes: 07 Gaint FCR3

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hi!

I am trying to put an old bike together. Took this hub apart to clean, then I found out that the big thin bearing was broken. Do you know where I can get this bearing. I tried google it but got no where. :-(

Thanks
KNguyen is offline
Old 04-17-11, 03:38 PM
  #17
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,503
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 523 Post(s)
Likes: 0
Liked 128 Times in 108 Posts
I had one years ago and they are not hard to take apart if you need to. Find an older Sutherland's Handbook at the local library. I think it was number 6. It had a good step-by-step how-to on the SA hub.
If it's working I would clean the outside and begin putting 20 weight oil into it. It flowed out of the hub I had. This is as good a way to flush it as any.
davidad is offline
Old 04-17-11, 03:40 PM
  #18
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,503
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 523 Post(s)
Likes: 0
Liked 128 Times in 108 Posts
Originally Posted by KNguyen View Post
Hi!

I am trying to put an old bike together. Took this hub apart to clean, then I found out that the big thin bearing was broken. Do you know where I can get this bearing. I tried google it but got no where. :-(

Thanks
https://sheldonbrown.com/harris/sturm...tml#smallparts
davidad is offline
Old 04-17-11, 05:26 PM
  #19
FLYcrash
Senior Member

Join Date: Mar 2008
Location: Chicago, IL, USA
Posts: 307

Bikes: 1974 Raleigh Sports

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hi Auchen,

I'm ambivalent as to whether or not to open it up. It really isn't too bad even to do a full rebuild down to the last ball bearing, and I find them fun to do, but you can get away without it remarkably often. These hubs are fantastically reliable, more so given that you have a '50s specimen that was made with fewer cost-cutting measures than my '70s hub. One thing to think about is that you're putting wear on some delicate parts whenever you mess with the hub or even take off the wheel. The dust caps are easily marred by prying them off. There is a thin locknut in the assembly, and the axle has flats milled into it, both of which encourage stripping. A new axle I'd put into my AW broke some threads rather quickly. It's hardened steel, but I think it might have had a bad heat treatment. And I've certainly stripped a locknut and axle nut at least once (each).

Here's how I'd decide. If the shifting is clean and reliable and there is no discernible drag in the hub when driving it forward or freewheeling it, just put a few drops of car engine oil into the hub, wipe off the hub shell for self-respect, and go ride. Remember you can change an indicator chain without disassembly if it's been damaged by a right-side crash.

If you feel the hub is not performing up to its potential, do a full overhaul. Likely you'll find dried-up grease and enough wear on the clutch (and maybe other parts, such as the sun pinion on the axle) to warrant replacement. The pawl springs will probably be a little feeble from hundreds of thousands of ticks; I replace these as a matter of routine. Strip off all the muck (I soak/brush in undiluted Simple Green and then rinse/dry, but organic solvent is more traditional), replace what needs replacing, and put it back together with grease in the bearings and oil elsewhere. Unless you're a lucky one who can get AW small parts locally, Harris Cyclery will get a lot of your money. But these things bounce back like none other. You'll typically get several thousand high-quality all-weather miles between overhauls.

One thing I've learned through many AW overhauls: use penetrating oil (I use WD-40) to assist opening the big threaded ring on the right side (I forget the proper name). Also, use a robust, fat punch to get it open, as it can take some major force to get it started. Pedaling torque tightens this fastener, so it can get extremely tight.

Good luck and congratulations on owning one of the greatest pieces of cycling kit since the pneumatic tire!

Last edited by FLYcrash; 04-17-11 at 05:35 PM. Reason: Extra details...
FLYcrash is offline
Old 04-17-11, 06:17 PM
  #20
smoothness
Senior Member

Join Date: Jul 2009
Location: Hub of the Universe, MA
Posts: 541

Bikes: Centurions, Shoguns, and Stumpjumpers

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
Background on me: the first time I took a 3-speed hub apart was when it was the only 3 speed hub that I had, on a slightly rare Dutch bike. AKA: I'd be screwed if I didn't do it right.

Now I know that a Sachs hub isn't a Sturmey Archer hub, but as someone who completely took apart and re-assembled a 3 speed hub last summer, it's really not that hard. All you need to have is a clean table, some string, a piece of paper with a marker, and patience.

First thing is to print out that giant picture of the AW hub. The second thing is to make sure you have the right tools, as in box wrenches, cone wrenches, etc. all readily handy. Third is to just methodically take apart the hub from one side to the other, while carefully placing the pieces IN ORDER across the table, or drawing them on that piece of paper while stringing them together to keep them in order. I did both. Third is to just methodically go through it, making sure you understand what does what.

This is a great way for you to learn about tools and hubs - you'll gain mechanical skills, as well as a tangible product!

Other solution: get another 3 speed wheel and do a test run on it. I'm sure you'll find a bunch in the ghost town that is Detroit.
smoothness is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Dayton Duo
Bicycle Mechanics
8
05-09-15 10:58 AM
adlai
Bicycle Mechanics
3
08-21-14 07:32 AM
G1nko
Bicycle Mechanics
5
06-18-12 09:45 PM
southpawboston
Bicycle Mechanics
8
01-02-12 09:11 PM
Dzrtrat
Bicycle Mechanics
4
05-19-10 01:42 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
