Bending RD and RD Hanger Back Into Place?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Bending RD and RD Hanger Back Into Place?

Old 05-03-11, 03:46 PM
  #1
Senior Member
Thread Starter

TromboneAl's Avatar

Join Date: Jun 2008
Location: Far, Far Northern California
Posts: 2,873

Bikes: 1997 Specialized M2Pro

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Bending RD and RD Hanger Back Into Place?

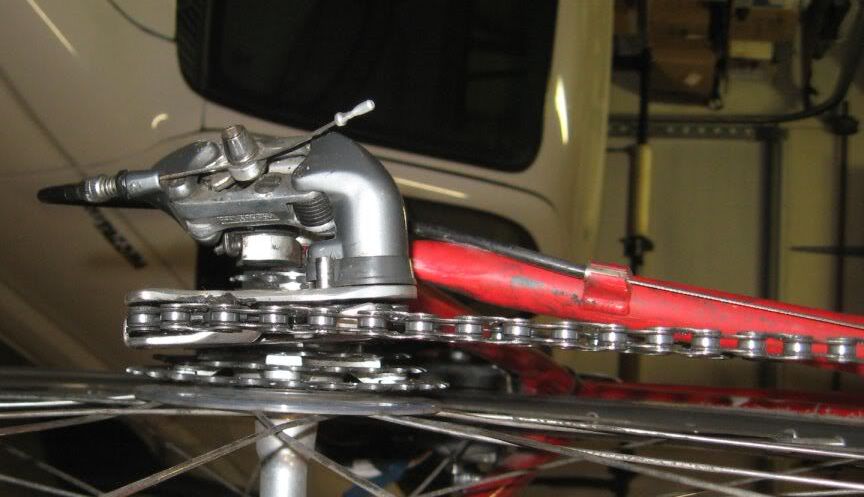

Sorry I can't get pictures that show the damage better, but here's my RD after a crash and after doing some on-the-road-bending to allow me to finish a ride:





Essentially, I think the RD hanger was bent back, plus the RD itself was bent. I'd take the bike down from the ceiling to get better photos, but my body hasn't healed enough to do that yet.

So, can I fix this myself with judicious bending, or do I need to take it in or get a replacement?

Thanks!
TromboneAl is offline
Old 05-03-11, 04:42 PM
  #2
Senior Member

Join Date: Oct 2007
Location: West Yorkshire, United Kingdom
Posts: 5,773
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 454 Post(s)
Liked 104 Times in 87 Posts
Replace, the hangers are designed to break off, saving the frame from damage, if you bend it, it will weaken it further.
jimc101 is offline
Old 05-03-11, 04:53 PM
  #3
Senior Member

Join Date: Sep 2004
Location: boston, ma
Posts: 2,896
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 1 Time in 1 Post
no way to know if the hanger will survive the alignment process without throwing the hanger alignment tool on. if the rd is bent then toss it. new hangers will also need alignment
reptilezs is offline
Old 05-03-11, 04:57 PM
  #4
30 YR Wrench

BikeWise1's Avatar

Join Date: Aug 2005
Location: Oxford, OH
Posts: 2,006

Bikes: Waterford R-33, Madone 6.5, Trek 520

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
^^^Well put. If I could get a hanger tool on it on get a feel for the amount of yield in it, then I would know. Most of the time, they can be straightened once. But if the derailleur is exactly straight it'll never shift right....
BikeWise1 is offline
Old 05-03-11, 05:09 PM
  #5
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,225

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1572 Post(s)
Liked 644 Times in 365 Posts
What kind of bike and how many rear gears does it have?

From the picture it looks to me like a steel frame with maybe a 7-speed cassette. If that's the case, I'd just eyeball it back into line. 7-speeds aren't nearly as picky about perfect alignment as 9 and 10-speeds.

Steel frames don't generally have replaceable derailleur hangers so your only options are to leave it like it is or try to bend it straight. If you don't want to ride it like it is, you have nothing to lose by trying to bend it straight.
Retro Grouch is offline
Old 05-03-11, 06:31 PM
  #6
Constant tinkerer

FastJake's Avatar

Join Date: May 2010
Location: Wisconsin
Posts: 7,954
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 185 Post(s)
Liked 92 Times in 75 Posts
+1. Before you buy anything bend it the best you can and see if you're satisfied. If the frame doesn't have a replaceable hanger, you can try to bend it yourself with a large adjustable wrench. Or take it to a shop, which will have a special tool that screws into the hanger and is very long. It can be rotated around the rear wheel and will get it just the way it should be.

There's not too much you can do about the derailer. Bend it if you can, replace it if you can't. Good luck, and heal fast.
FastJake is offline
Old 05-03-11, 06:41 PM
  #7
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 24,854

Bikes: Several, mostly not name brands.

Mentioned: 154 Post(s)
Tagged: 0 Thread(s)
Quoted: 3618 Post(s)
Liked 3,457 Times in 1,963 Posts
It looks like a steel frame to me. Most dropouts on steel frames are forged or stamped from mild steel so they can tolerate rebending from accidents like this. The traditional tool to re-align the hanger is the Campagnolo "R" tool:



It threads into the hanger and the arm is used to bend the hanger back into alignment so it lies equidistant from the rim all along the rim circumference.

If this is an indexed shifting system, these are much more fussy than friction systems and a more precise tool is often needed, but the principle is the same:

JohnDThompson is offline
Old 05-03-11, 07:41 PM
  #8
Senior Member

Join Date: Feb 2009
Posts: 6,660
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 582 Post(s)
Liked 171 Times in 138 Posts
A spare rear wheel will screw into the Der. hanger and can be used as a lever to align the hanger. Use the extra wheel as a guide. Both wheels will be parallel when the hanger is straight.
From the pic. the Der. itself looks OK.
davidad is offline
Old 05-03-11, 09:49 PM
  #9
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 10,560

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 2756 Post(s)
Liked 3,427 Times in 2,075 Posts
I use a 3" bolt in 10mm and a short pipe along with the adj wrench depending on how it needs tweaking. If It's indexed and I have problems after that I'll get the dropouts aligned too.
dedhed is offline
Old 05-04-11, 06:09 AM
  #10
Shop Wench

Join Date: Mar 2009
Location: California
Posts: 284
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Retro Grouch
Steel frames don't generally have replaceable derailleur hangers so your only options are to leave it like it is or try to bend it straight. If you don't want to ride it like it is, you have nothing to lose by trying to bend it straight.

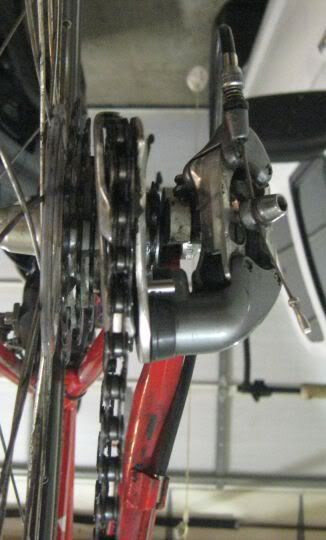

I agree with the frame looking like steel. But - it clearly has an aluminum replaceable hanger. In the second picture, look at the silver part the B-tension screw pushes against.
laura* is offline
Old 05-04-11, 09:10 AM
  #11
Senior Member
Thread Starter

TromboneAl's Avatar

Join Date: Jun 2008
Location: Far, Far Northern California
Posts: 2,873

Bikes: 1997 Specialized M2Pro

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
It's a 1997 Specialized M2 Pro (aluminum).

Attached Images
File Type: jpg
TromboneAl is offline
Old 05-04-11, 09:34 AM
  #12
Senior Member

Join Date: Jun 2010
Location: Pearland, Texas
Posts: 7,579

Bikes: Cannondale, Trek, Raleigh, Santana

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 5 Times in 5 Posts
Al, With a little luck only the replaceable hanger is bent. Remove it and place it on a flat surface to check.

Brad
bradtx is offline
Old 05-04-11, 10:09 AM
  #13
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,360 Times in 866 Posts
I don't see a replaceable RD, in #11 picture , unless it's painted over ,
take the RD loose send that picture, to dissuade me..

Al may just have to go shopping for another frame or bike.

Good luck

always crash on your left side, in the future..
fietsbob is offline
Old 05-04-11, 10:30 AM
  #14
Senior Member

liquefied's Avatar

Join Date: Aug 2008
Location: San Francisco
Posts: 1,332

Bikes: 1989 Team Miyata, 1989 Miyata 1400, 1989 Miyata 1400, 1986 Miyata 610, 2007 Specialized Stumpjumper Hardtail

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I've used a crescent wrench clamped down across the hanger to bend it back. Seemed to work well.
