How to replace a threadless bottom bracket on this old tandem

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

How to replace a threadless bottom bracket on this old tandem

Old 03-10-12, 05:50 PM
  #1
UnknownTandem
Newbie
Thread Starter

Join Date: Mar 2012
Location: Minneapolis
Posts: 2

Bikes: Schwinn Word Sport / Unknown Tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

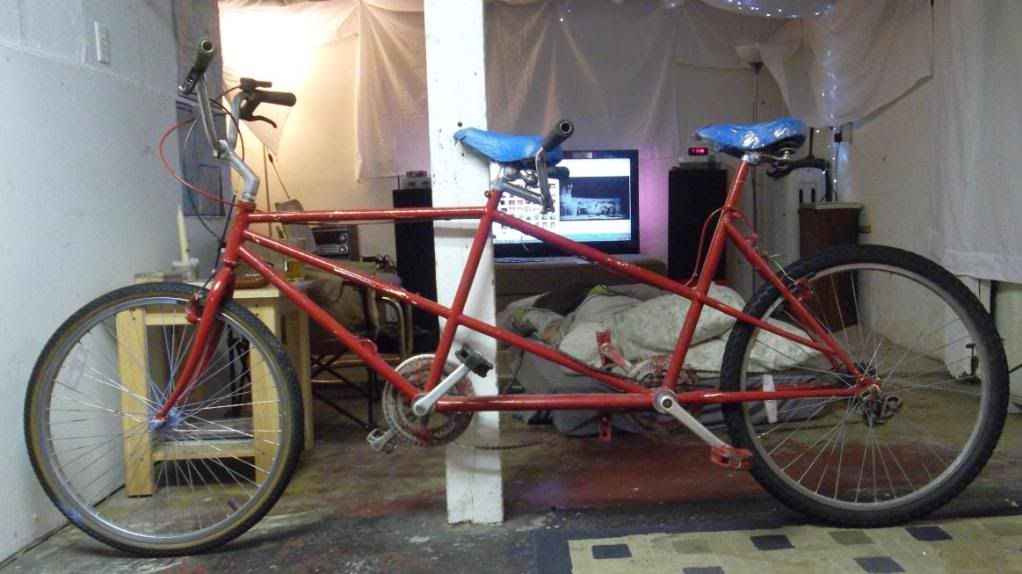

How to replace a threadless bottom bracket on this old tandem





I want to replace the bottom bracket and I don't have any idea what kind of bottom bracket that would fit in this shell since there are no threads.

The length of the shell is 73 mm. The inner most diameter is 38 mm and the outer diameter is about 45 mm.

The bottom bracket that was in there was the old style with a 127 mm spindle.

Also, can anyone idenify the maker of this tandem? There are no markings beside the serial number, A91A40293, on the bottom side of the bottom bracket shell.
UnknownTandem is offline
Old 03-10-12, 05:56 PM
  #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,273
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 209 Times in 166 Posts
that's a standard ashtabula bb. I assume the parts are still available, but there had to be some kind of adapter to use the cranks you have. The bb was made for one piece cranks
unterhausen is offline
Old 03-10-12, 06:54 PM
  #3
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,209
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 524 Post(s)
Liked 105 Times in 81 Posts
Originally Posted by unterhausen View Post
that's a standard Ashtabula bb. I assume the parts are still available, but there had to be some kind of adapter to use the cranks you have. The bb was made for one piece cranks
+1. Any BMX shop will have the bearings, cups and cones for the BB, and possibly the conversion spindle, too.
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Old 03-10-12, 09:11 PM
  #4
Fissile
Senior Member

Fissile's Avatar

Join Date: Nov 2007
Posts: 548
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Jeff Wills View Post
+1. Any BMX shop will have the bearings, cups and cones for the BB, and possibly the conversion spindle, too.
+1 That's BMX stuff you're looking at there.

You could also get one of these Truvativ adapters and convert the ashtabula BB to cartridge BB.

Fissile is offline
Old 03-10-12, 09:31 PM
  #5
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,273
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 209 Times in 166 Posts
you can only link images from a limited number of sites. The adapter is this one: link
unterhausen is offline
Old 03-11-12, 08:31 AM
  #6
Anthropy
Knotty Guy

Anthropy's Avatar

Join Date: Nov 2010
Posts: 291
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The adaptors work just fine. You should be happy with them.


Tom
Anthropy is offline
Old 03-11-12, 01:35 PM
  #7
VELOGLOCK
Senior Member

Join Date: May 2011
Posts: 70

Bikes: 2007 Trek Navigator 3.0 2008 Specialized Sequoia Elite

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 1 Time in 1 Post

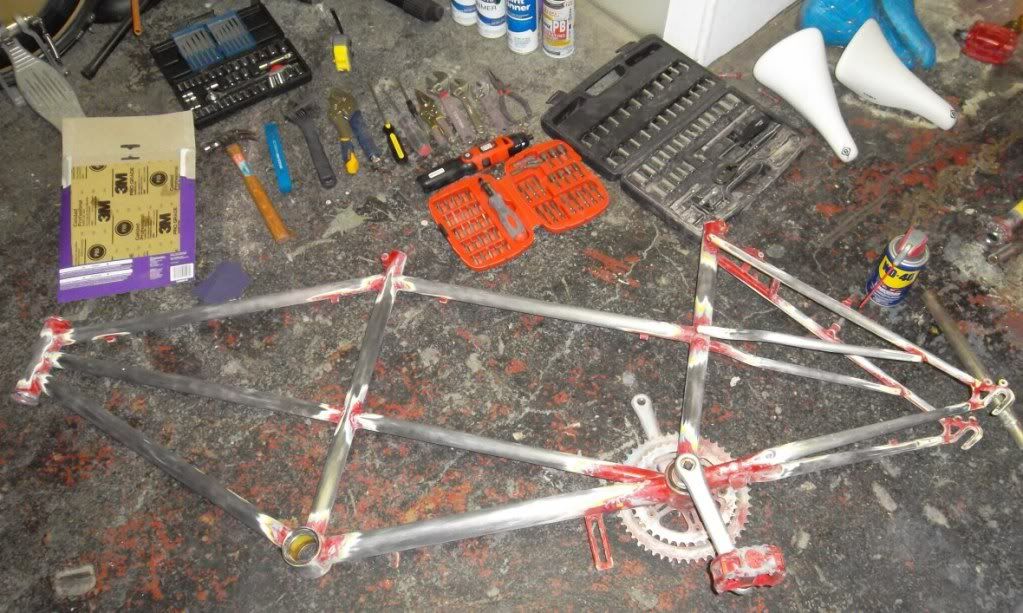

Is that your bedroom or garage ? (I hope the latter)
VELOGLOCK is offline
Old 03-11-12, 07:03 PM
  #8
UnknownTandem
Newbie
Thread Starter

Join Date: Mar 2012
Location: Minneapolis
Posts: 2

Bikes: Schwinn Word Sport / Unknown Tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

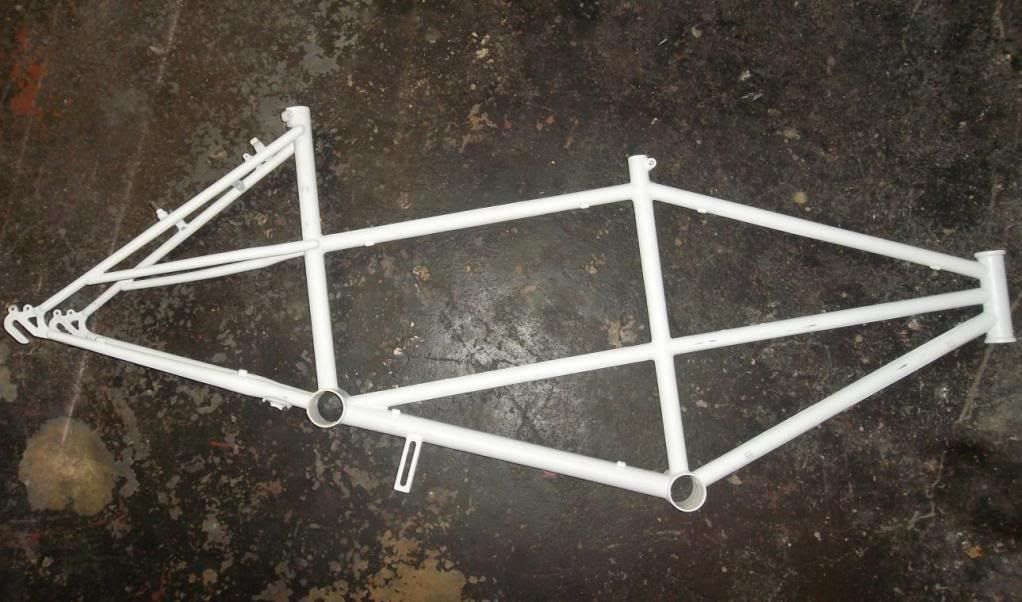

Well I've ordered 2 of those Truvativ Bottom Bracket Converters, took a hacksaw to that rear spindle that was molten on there, and put on a coat of primer.

Now I just need to pick out two 68 mm / 127 mm bottom brackets and two cranksets. I'm not quite sure what would be appropriate for this old tandem. I suppose it's time to do some research.

And yes VELOGLOCK, that is my bedroom. Dirt cheap rent in this college town.
UnknownTandem is offline
Old 03-11-12, 07:30 PM
  #9
Fissile
Senior Member

Fissile's Avatar

Join Date: Nov 2007
Posts: 548
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by UnknownTandem View Post


And yes VELOGLOCK, that is my bedroom. Dirt cheap rent in this college town.
Do you sand those old frames in your bedroom? Depending on how old that frame is, the paint could contain lead.
