What do LBS's actually have to do assemble new bikes?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

What do LBS's actually have to do assemble new bikes?

Old 04-30-12, 05:27 AM
  #1
jethro56
Watching and waiting.
Thread Starter

jethro56's Avatar

Join Date: Oct 2010
Location: Mattoon,Ill
Posts: 2,023

Bikes: Trek 7300 Trek Madone 4.5 Surly Cross Check

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
What do LBS's actually have to do assemble new bikes?

I wonder how much assembly the LBS does for the major brands. Like Trek,Cannondale and Giant.
jethro56 is offline
Old 04-30-12, 05:58 AM
  #2
JonathanGennick
Senior Member

JonathanGennick's Avatar

Join Date: Apr 2007
Location: Munising, Michigan, USA
Posts: 4,008

Bikes: Priority 600, Priority Continuum, Devinci Dexter

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 635 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
I bet there are other threads that get into this question in painful detail. There's a ton of packaging material to remove. Then you must deal with all the space-saving measures taken when the bike is packed. Front wheels usually are not installed. Forks can be turned sideways or backwards, and maybe not even be installed into the stem. Handlebars will be sideways. Seat probably is not installed.

Someone with shop experience can probably give a better blow-by-blow, but think in terms of removing a bunch of packing material and "unfolding" the bike and installing all the parts that would otherwise have forced the shipping box to be larger. Then you must test and adjust everything to be sure the bike is functional.
JonathanGennick is offline
Old 04-30-12, 06:13 AM
  #3
StanSeven
Administrator

Join Date: Feb 2005
Location: Delaware shore
Posts: 13,079

Bikes: Cervelo C5, Guru Photon, Waterford, Specialized CX

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 582 Post(s)
Liked 32 Times in 29 Posts
It depends on the bike. The post above answered for most high production, low to moderate cost bikes. Higher end are often shipped without the comnponets installed so the LBS essentially builds the bike up from scratch. This includes all the fun things like running the cables through the frame.
StanSeven is offline
Old 04-30-12, 06:20 AM
  #4
ncfisherman
Senior Member

ncfisherman's Avatar

Join Date: Mar 2011
Location: Chapel Hill
Posts: 457

Bikes: Canfield Yelli Screamy, Pivot Mach5, Specialized Roubaix, '65 Hercules, '79 Schwinn Stingray Lil Chic, '68 Schwinn Stingray Fastback, '89 Specialized Allez Epic, '86 Battaglin World Champion

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Jonathan has it pretty well covered. Bikes are pretty much assembled in the box - crank installed, rear wheel installed, cables/housing run, chain, etc.

There is some times a check list included with bikes. This can include: wheel truing, derailleur hanger alignment, checking torque for various bolts, greasing various parts...basically a full/complete run-down. There is a bit more involved than just pulling the bike out of the box, bolting up the bars, installing seatpost, and riding.
ncfisherman is offline
Old 04-30-12, 06:29 AM
  #5
jethro56
Watching and waiting.
Thread Starter

jethro56's Avatar

Join Date: Oct 2010
Location: Mattoon,Ill
Posts: 2,023

Bikes: Trek 7300 Trek Madone 4.5 Surly Cross Check

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The reason I posted this was I'm trying to figure out cable routing and lengths for my first build of a Surly Cross Check. As I read thru different articles on this I notice a lack of attention to detail in how my Trek 4.5 Madone was assembled. If the LBS did this I can see how this may be less than ideal. From the factory, I'd think maybe I don't understand the material as well as I should.
jethro56 is offline
Old 04-30-12, 07:02 AM
  #6
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 7,948

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Liked 17 Times in 14 Posts
This reminds me of something I'd like to know:

How much scope is there when ordering a bike worth say, $2.5k+ to spec it yourself? I know this depends hugely on who you're dealing with, but surely a lot of the same parameters would apply generally.

For a start, surely you can ask for a different bar, seat, pedals, stem angle/length, crank length and ratios, right? And if the shop doesn't carry some bit of gear, can you get em to just leave that bit out?

Can you ask for em to get SRAM gruippo when they usually only do Shimano or Campy, and do it for the same sort of price? Like, the price of a bike, rather than per part? Ever? Somehow?

Can you then get em to skip buiding it, and just give it to you as parts, which should actually cost less? Unpainted, even?

Now, I realise this is a pretty big wish list, but is there any possible way a business could be organised to do this? Is it any kind of possibility at all, or a pipe dream?
Kimmo is offline
Old 04-30-12, 07:17 AM
  #7
JonathanGennick
Senior Member

JonathanGennick's Avatar

Join Date: Apr 2007
Location: Munising, Michigan, USA
Posts: 4,008

Bikes: Priority 600, Priority Continuum, Devinci Dexter

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 635 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
Originally Posted by jethro56 View Post
The reason I posted this was I'm trying to figure out cable routing and lengths for my first build of a Surly Cross Check. As I read thru different articles on this I notice a lack of attention to detail in how my Trek 4.5 Madone was assembled. If the LBS did this I can see how this may be less than ideal. From the factory, I'd think maybe I don't understand the material as well as I should.
What specifically did you notice?
JonathanGennick is offline
Old 04-30-12, 07:42 AM
  #8
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Valley of the Sun.
Posts: 32,499

Bikes: everywhere

Mentioned: 54 Post(s)
Tagged: 1 Thread(s)
Quoted: 3898 Post(s)
Liked 61 Times in 46 Posts
Originally Posted by jethro56 View Post
The reason I posted this was I'm trying to figure out cable routing and lengths for my first build of a Surly Cross Check. As I read thru different articles on this I notice a lack of attention to detail in how my Trek 4.5 Madone was assembled. If the LBS did this I can see how this may be less than ideal. From the factory, I'd think maybe I don't understand the material as well as I should.
Most production bikes ship with way too much cable housing. Some shops might be nice enough to trim down the extra housing. What's wrong with the routing on your Trek? I suppose it might wind up kinda wack if they put a junior associate on your rig.
LesterOfPuppets is offline
Old 04-30-12, 08:35 AM
  #9
mechBgon
Senior Member

mechBgon's Avatar

Join Date: Jul 2002
Posts: 6,957
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I wonder how much assembly the LBS does for the major brands. Like Trek,Cannondale and Giant.
Here you go, grab a drink and snacks:


Last edited by mechBgon; 04-30-12 at 09:38 AM.
mechBgon is offline
Old 04-30-12, 08:38 AM
  #10
mechBgon
Senior Member

mechBgon's Avatar

Join Date: Jul 2002
Posts: 6,957
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Kimmo View Post
This reminds me of something I'd like to know:

How much scope is there when ordering a bike worth say, $2.5k+ to spec it yourself? I know this depends hugely on who you're dealing with, but surely a lot of the same parameters would apply generally.

For a start, surely you can ask for a different bar, seat, pedals, stem angle/length, crank length and ratios, right? And if the shop doesn't carry some bit of gear, can you get em to just leave that bit out?

Can you ask for em to get SRAM gruippo when they usually only do Shimano or Campy, and do it for the same sort of price? Like, the price of a bike, rather than per part? Ever? Somehow?

Can you then get em to skip buiding it, and just give it to you as parts, which should actually cost less? Unpainted, even?

Now, I realise this is a pretty big wish list, but is there any possible way a business could be organised to do this? Is it any kind of possibility at all, or a pipe dream?
Trek's "Project One" would let you order certain Treks in that fashion. http://www.trekbikes.com/us/en/colle...ct_one/models/
mechBgon is offline
Old 04-30-12, 09:05 AM
  #11
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,492

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1142 Post(s)
Likes: 0
Liked 21 Times in 20 Posts
Originally Posted by Kimmo View Post
This reminds me of something I'd like to know:

How much scope is there when ordering a bike worth say, $2.5k+ to spec it yourself? I know this depends hugely on who you're dealing with, but surely a lot of the same parameters would apply generally.

For a start, surely you can ask for a different bar, seat, pedals, stem angle/length, crank length and ratios, right? And if the shop doesn't carry some bit of gear, can you get em to just leave that bit out?

Can you ask for em to get SRAM gruippo when they usually only do Shimano or Campy, and do it for the same sort of price? Like, the price of a bike, rather than per part? Ever? Somehow?

Can you then get em to skip buiding it, and just give it to you as parts, which should actually cost less? Unpainted, even?

Now, I realise this is a pretty big wish list, but is there any possible way a business could be organised to do this? Is it any kind of possibility at all, or a pipe dream?
To get what you propose you would probably have to order a bare frame and fork and a "build kit". I did just that with my first Litespeed (a 1996 Catalyst).

I bought the frame and fork from my dealer and then we spec'ed a parts kit through QBP that let me choose each item individually including crank length, bar width, stem length, wheels, saddle, etc, etc. I actually built it up myself but the dealer would have done so for a modest cost if I had asked.

Colorado Cyclist will do something similar if you buy a frame and fork through them. They offer complete build kits with various groups and wheels and let the buyer customize sizes and substitute some of the components for a cost adjustment. They will build it up for you or just send the order as parts for you to assemble.
HillRider is online now
Old 04-30-12, 09:40 AM
  #12
jethro56
Watching and waiting.
Thread Starter

jethro56's Avatar

Join Date: Oct 2010
Location: Mattoon,Ill
Posts: 2,023

Bikes: Trek 7300 Trek Madone 4.5 Surly Cross Check

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
It rained this morning so the bike is still gritty.

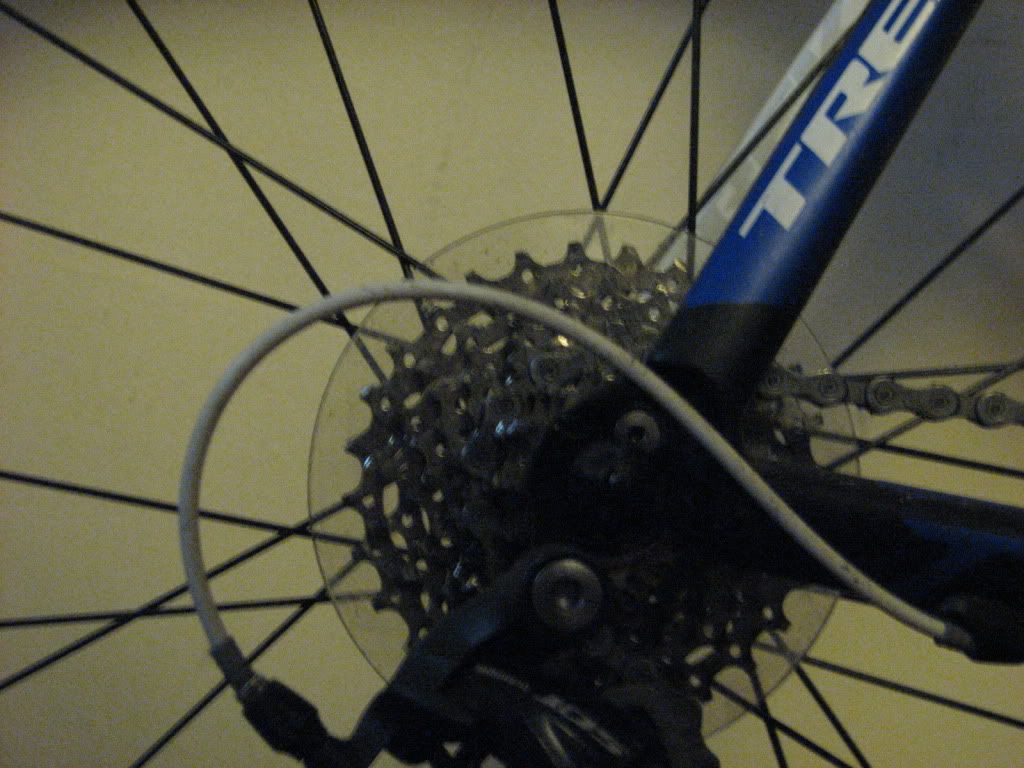

The first Picture I think the shifter cable is too short.






This picture I think the Brake cable is too long.




The handlebar picture didn't come out too well but the rear shift cable is too long. The cables are all on the front of the bar even though there's a groove for cabling in the back. They don't lay flat against the bar as they cross over each other.
jethro56 is offline
Old 04-30-12, 09:47 AM
  #13
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 8,614

Bikes: Klein, Merckx, Trek

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 2195 Post(s)
Liked 31 Times in 18 Posts
Originally Posted by mechBgon View Post
Here you go, grab a drink and snacks:
That was great!
DiabloScott is offline
Old 04-30-12, 09:49 AM
  #14
mechBgon
Senior Member

mechBgon's Avatar

Join Date: Jul 2002
Posts: 6,957
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I don't see a protective sticker where your cable housings are likely to abrade your paint (and eventually your carbon) as the brake and RD actuate, either. Make sure to get those, the Trek dealer will have them (and should've installed them during assembly). Make sure to add them to the head tube as well.

You can also remove those little duct-tape patches from your brake calipers, they're not necessary.

That was great!
Thanks we had a local mountaineering store buy about 25 bikes for their employees and they were wondering about what we do to them, so I put out my webcam and made them that impromptu video rundown. Turned out good

Last edited by mechBgon; 04-30-12 at 09:55 AM.
mechBgon is offline
Old 04-30-12, 10:02 AM
  #15
jethro56
Watching and waiting.
Thread Starter

jethro56's Avatar

Join Date: Oct 2010
Location: Mattoon,Ill
Posts: 2,023

Bikes: Trek 7300 Trek Madone 4.5 Surly Cross Check

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I just watched the video and I can say they did not pull the crank. The crank developed a click after about 200 miles. The first 120 mile round trip they tightened the pedals and said "These cheap pedals (which they sold me) have a lot of problems. " The click returned after 5 miles. I took it back and They pulled the crank and found almost no grease.
jethro56 is offline
Old 04-30-12, 10:08 AM
  #16
jethro56
Watching and waiting.
Thread Starter

jethro56's Avatar

Join Date: Oct 2010
Location: Mattoon,Ill
Posts: 2,023

Bikes: Trek 7300 Trek Madone 4.5 Surly Cross Check

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
mechBgon: What about the cable lengths?
jethro56 is offline
Old 04-30-12, 10:11 AM
  #17
FastJake
Constant tinkerer

FastJake's Avatar

Join Date: May 2010
Location: Madison, Wisconsin
Posts: 7,640
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by jethro56 View Post
mechBgon: What about the cable lengths?
You're correct. Shifter cable is short, brake cable is a bit long.
FastJake is offline
Old 04-30-12, 10:13 AM
  #18
mechBgon
Senior Member

mechBgon's Avatar

Join Date: Jul 2002
Posts: 6,957
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by jethro56 View Post
I just watched the video and I can say they did not pull the crank. The crank developed a click after about 200 miles. The first 120 mile round trip they tightened the pedals and said "These cheap pedals (which they sold me) have a lot of problems. " The click returned after 5 miles. I took it back and They pulled the crank and found almost no grease.
And that's a perfect example of two schools of thought in LBS bike assembly. One is "if a problem crops up, then we'll cross that bridge when we come to it, or catch it at the free break-in tune-up. For now, let's just crank out some units." The other is "let's proactively prevent as many known, predictable issues as practical; the customer will have a better experience and we won't have to fix it later." Where I work, the store owner obviously subscribes to the second theory, but is paying about 3x as much labor for assemblies as a consequence (paying a full-fledged mechanic rather than a noOb at starter wages; taking longer due to all the extra steps; and the opportunity cost of tying up a mechanic doing assemblies rather than profitable repairs).

Last edited by mechBgon; 04-30-12 at 10:21 AM.
mechBgon is offline
Old 04-30-12, 10:16 AM
  #19
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Valley of the Sun.
Posts: 32,499

Bikes: everywhere

Mentioned: 54 Post(s)
Tagged: 1 Thread(s)
Quoted: 3898 Post(s)
Liked 61 Times in 46 Posts
Rear derailer loop looks a little short to me also. Hard for me to judge the seatcluster brake cable housing run, since I'm only really familiar with bikes having round metal tubes.
LesterOfPuppets is offline
Old 04-30-12, 11:14 AM
  #20
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 8,614

Bikes: Klein, Merckx, Trek

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 2195 Post(s)
Liked 31 Times in 18 Posts
Originally Posted by mechBgon View Post
Thanks we had a local mountaineering store buy about 25 bikes for their employees and they were wondering about what we do to them, so I put out my webcam and made them that impromptu video rundown. Turned out good
Rivendell did a video of the reverse process. I suppose most new bike companies do something similar knowing that a mechanic at the shop will put the bike together but the Rivendell pack is intended for the buyer to DIY.

DiabloScott is offline
Old 04-30-12, 11:35 AM
  #21
StanSeven
Administrator

Join Date: Feb 2005
Location: Delaware shore
Posts: 13,079

Bikes: Cervelo C5, Guru Photon, Waterford, Specialized CX

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 582 Post(s)
Liked 32 Times in 29 Posts
Originally Posted by Kimmo View Post
This reminds me of something I'd like to know:

How much scope is there when ordering a bike worth say, $2.5k+ to spec it yourself? I know this depends hugely on who you're dealing with, but surely a lot of the same parameters would apply generally.

Now, I realise this is a pretty big wish list, but is there any possible way a business could be organised to do this? Is it any kind of possibility at all, or a pipe dream?
My LBS,which is a large store, does this. They will take any bike and switch components and give you credit for the parts you don't want. I did that for wheels and bars. They also let me choose the group.
StanSeven is offline
Old 04-30-12, 11:54 AM
  #22
WickedThump
Senior Member

WickedThump's Avatar

Join Date: Mar 2012
Location: Aurora, Colorado
Posts: 542

Bikes: Kona JTS Frankenbike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
When I worked at a discount dept store in the 70's, the bikes came in with the wheels off, the pedals off, and the seat removed from the post. I did most of the assembly, then the chains' licensed bike guy would come in and adjust the brakes and derailluer, and give it a final check out.
WickedThump is offline
Old 04-30-12, 01:05 PM
  #23
bobotech
Senior Member

Join Date: Jan 2012
Location: Spokane, WA
Posts: 2,253

Bikes: Specialized Sequoia Elite/Motobecane Fantom Cross Team Ti/'85 Trek 520

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by mechBgon View Post
Here you go, grab a drink and snacks:

Cool video! I think there is a bike shop near my house called Two Wheel Transit. I wonder if that is the same shop. Is that anywhere near Spokane, WA?
bobotech is offline
Old 04-30-12, 01:28 PM
  #24
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,928

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6836 Post(s)
Likes: 0
Liked 215 Times in 179 Posts
Re #12 ... NB rear derailleur cable drag, inside the housing, is less with a larger radius curve
than a short tight one..

And as the brake housing pushes down on 1 arm and the cable pulls up on the other
to rotate it around it's pivot..

I see much ado about nothing..
fietsbob is offline
Old 04-30-12, 02:30 PM
  #25
mechBgon
Senior Member

mechBgon's Avatar

Join Date: Jul 2002
Posts: 6,957
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by bobotech View Post
Cool video! I think there is a bike shop near my house called Two Wheel Transit. I wonder if that is the same shop. Is that anywhere near Spokane, WA?
Correct, that's where I work but I'm the guy you never see, since I work in the basement.
mechBgon is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
