Is my frame poorly constructed? Can't center rear wheel perfectly!

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Is my frame poorly constructed? Can't center rear wheel perfectly!

Old 08-31-12, 09:54 AM
  #1
DScience
Registered User
Thread Starter

Join Date: Aug 2012
Posts: 109
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Is my frame poorly constructed? Can't center rear wheel perfectly!

Hello,

I recently put together a new single speed track bike. I had a hell of a time trying to center the rear wheel. It rides perfect, and I can't notice any disturbances while riding. However, upon closer inspection I realized the problem:

First, the wheel can't be centered between the chain stay and the seat stay. I flipped the bike upside down, and aligned the rear tire with the seat tube/BB and tightened the nuts. Now when the bike is right side up, I found that the space between the tire and rear forks (chain stay and seat stay areas) is not equal. Now, I have a digital caliper and it's a matter of mm. There may be 1-2 mm difference of space on one side.

Now, is this a problem? Is there normal variation in frames? Will this affect the ride or the normal wear of components? I just want to see if this is an issue big enough to try and return the frame.

I heard in other threads that Kilo TT frames are commonly variable in their fork/frame construction. So should I not worry too much? If pictures would help, let me know.

Thanks for the help!
DScience is offline
Old 08-31-12, 10:03 AM
  #2
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 20,966

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 757 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Perhaps the wheel is not dished correctly. Put the wheel in backwards, with the cogs on the wrong side. Is it now off center the other direction ?
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: http://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 08-31-12, 10:13 AM
  #3
DScience
Registered User
Thread Starter

Join Date: Aug 2012
Posts: 109
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Homebrew01 View Post
Perhaps the wheel is not dished correctly. Put the wheel in backwards, with the cogs on the wrong side. Is it now off center the other direction ?
When I first got bike I had a LBS true the wheels, which leads me to think that they are okay. I did try the above procedure, and yes it's off center in the other direction, just as slightly.
DScience is offline
Old 08-31-12, 10:23 AM
  #4
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 20,966

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 757 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Then although it is true (no wobble) it is not dished correctly. That means that the rim is not centered exactly between the locknuts. It's a simple fix. Spoke tension needs to be adjusted slightly to center the rim. The shop probably should have checked the dish when truing it. Or maybe they thought it was "close enough"
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: http://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 08-31-12, 10:26 AM
  #5
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 8,501

Bikes: Klein, Merckx, Trek

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 2102 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Homebrew01 View Post
Then although it is true (no wobble) it is not dished correctly. That means that the rim is not centered exactly between the locknuts. It's a simple fix. Spoke tension needs to be adjusted slightly to center the rim. The shop probably should have checked the dish when truing it. Or maybe they thought it was "close enough"
It's a single speed with track nuts - he can just move the axle over a smidge and leave the spokes alone.

Last edited by DiabloScott; 08-31-12 at 10:30 AM.
DiabloScott is offline
Old 08-31-12, 10:38 AM
  #6
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Posts: 36,049

Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter

Mentioned: 121 Post(s)
Tagged: 1 Thread(s)
Quoted: 4331 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by DiabloScott View Post
It's a single speed with track nuts - he can just move the axle over a smidge and leave the spokes alone.
Yes, moving the axle will do the trick, but it isn't the axle itself, but the spacers between the lock nuts and bearings that count. The object is to change the shell to locknut distance. This only works on threaded axles where a spacer can be added to removed to change the shell to locknut distance. It may not work on many hubs with alloy prespaced axles. For thos a thin spacer can be added outside the locknut on one side but you'll lose the serration that has the locknut bite into the dropout and slippage can occur, especially if it's on the right side.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline
Old 08-31-12, 11:23 AM
  #7
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 20,966

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 757 Post(s)
Likes: 0
Liked 1 Time in 1 Post
So, 4 options I think (ok, just 3).

1) Get it dished. 1/4 turn or so tighter of the spokes on the side that has the bigger gap to pull the rim over.
2) Respace the locknuts
3) Say "good enough" and just ride it, as long as you have plenty of clearance between the tire & frame.
4) bend the frame to create a bigger gap so both sides match ....
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: http://www.bikeforums.net/forum-sugg...ad-please.html

Last edited by Homebrew01; 08-31-12 at 11:26 AM.
Homebrew01 is offline
Old 08-31-12, 11:49 AM
  #8
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,949

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1816 Post(s)
Liked 0 Times in 0 Posts
Seems like it would be best practice to "un-dish" the wheel if that is in fact the problem -- if the OP were using a flip-flop hub, he'd need to futz with moving spacers around if he wanted to use the other cog.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498

Last edited by ThermionicScott; 08-31-12 at 11:52 AM.
ThermionicScott is offline
Old 08-31-12, 12:10 PM
  #9
DScience
Registered User
Thread Starter

Join Date: Aug 2012
Posts: 109
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Homebrew01 View Post
So, 4 options I think (ok, just 3).

1) Get it dished. 1/4 turn or so tighter of the spokes on the side that has the bigger gap to pull the rim over.
2) Respace the locknuts
3) Say "good enough" and just ride it, as long as you have plenty of clearance between the tire & frame.
4) bend the frame to create a bigger gap so both sides match ....
Honestly I haven't responded because I know this is a little over my head and I don't want to get flamed.

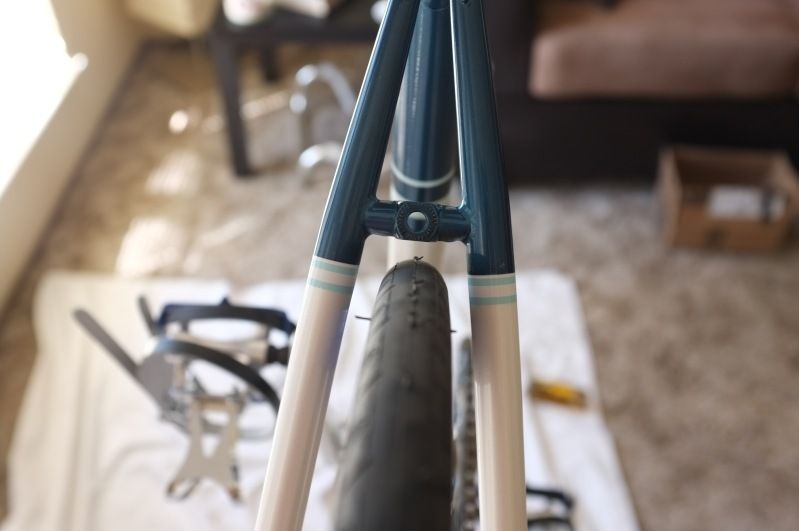

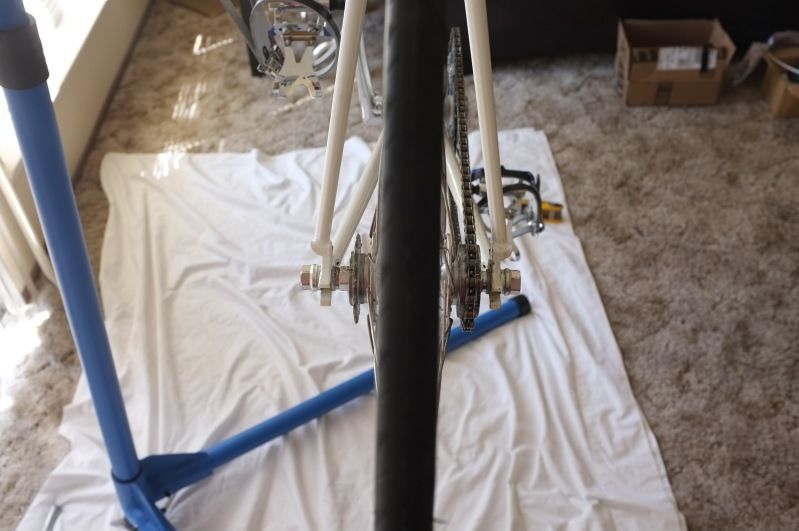

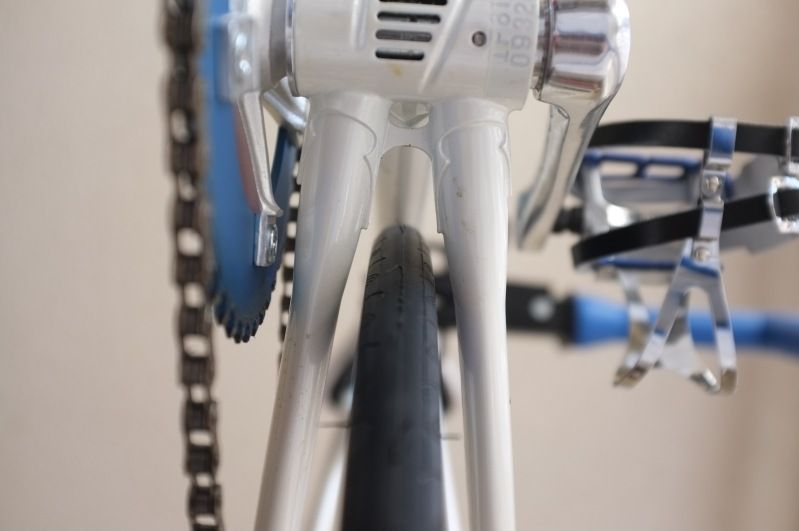

Anyway, I investigated further and I have pics included. I believe the frame is slightly off.

Considering the following pics, would you say I should just stop being so picky?

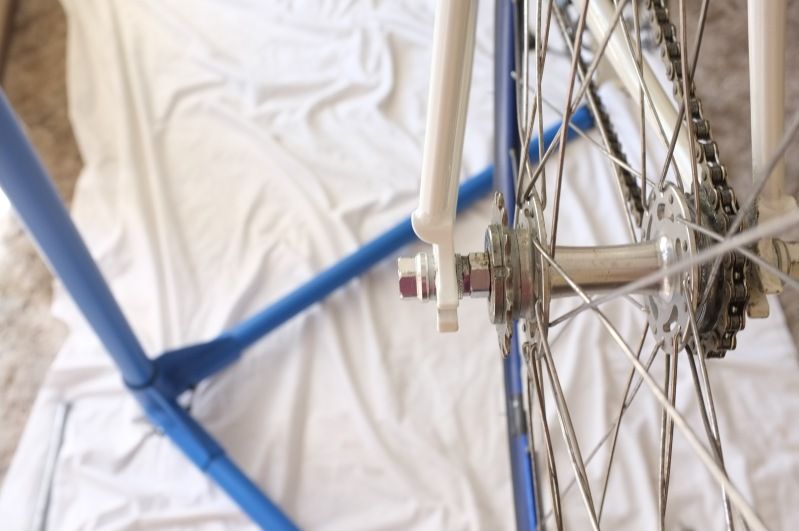

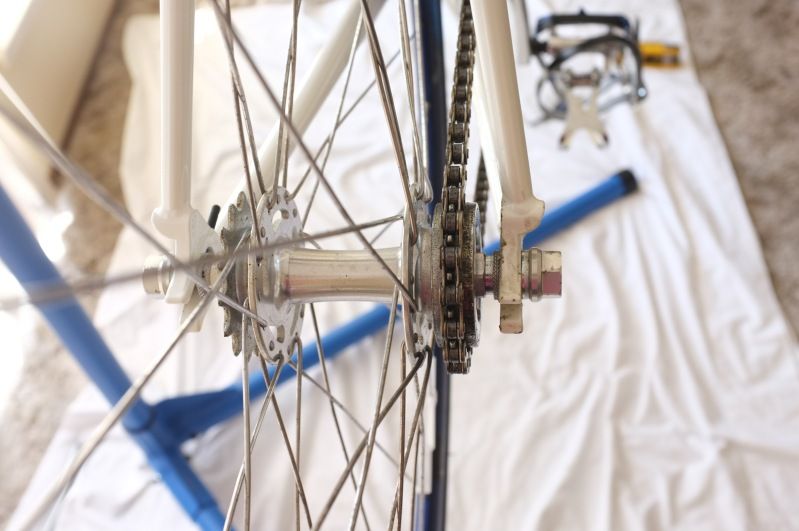

I checked the spacing and this is spot on: same distance between locknuts and shell.


DScience is offline
Old 08-31-12, 12:11 PM
  #10
mrrabbit
Senior Member

mrrabbit's Avatar

Join Date: Dec 2007
Location: San Jose, California
Posts: 3,323

Bikes: 2001 Tommasini Sintesi w/ Campagnolo Daytona 10 Speed

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
1. Why "band aid" things when you can just do it right to begin with and dish the wheel properly. (Furthermore a flip-flop hub will work exactly as designed in the first place.)
2. Also, it wouldn't hurt to have the rear dropout alignment checked - 5 minute job. This will reduce dropout influenced wheel slip when tightening down the mounting nuts.

=8-)
__________________
5000+ wheels built since 1984...

Disclaimer:

1. I do not claim to be an expert in bicycle mechanics despite my experience.
2. I like anyone will comment in other areas.
3. I do not own the preexisting concepts of DISH and ERD.
4. I will provide information as I always have to others that I believe will help them protect themselves from unscrupulous mechanics.
5. My all time favorite book is:

Kahane, Howard. Logic and Contemporary Rhetoric: The Use of Reason in Everyday Life
mrrabbit is offline
Old 08-31-12, 12:18 PM
  #11
DScience
Registered User
Thread Starter

Join Date: Aug 2012
Posts: 109
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by mrrabbit View Post
1. Why "band aid" things when you can just do it right to begin with and dish the wheel properly. (Furthermore a flip-flop hub will work exactly as designed in the first place.)
2. Also, it wouldn't hurt to have the rear dropout alignment checked - 5 minute job. This will reduce dropout influenced wheel slip when tightening down the mounting nuts.

=8-)
I'm not trying to "band aid" things, but I don't KNOW for certain that the wheel NEEDS to be dished! Second, I don't have rear drop outs. It's a track bike, with rear fork ends and I've checked that those are aligned and to the best of my knowledge they are.
DScience is offline
Old 08-31-12, 12:20 PM
  #12
DScience
Registered User
Thread Starter

Join Date: Aug 2012
Posts: 109
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by ThermionicScott View Post
Seems like it would be best practice to "un-dish" the wheel if that is in fact the problem -- if the OP were using a flip-flop hub, he'd need to futz with moving spacers around if he wanted to use the other cog.
Okay, it does have a flip flop wheel, but both sides have equal number of spacers. I'm using the free wheel, which is how the bike was shipped to me. Here are more pics of that:




DScience is offline
Old 08-31-12, 12:22 PM
  #13
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,316

Bikes: 8

Mentioned: 179 Post(s)
Tagged: 0 Thread(s)
Quoted: 6358 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
So you checked the wheel against a dish stick?,

When I first got bike I had a LBS true the wheels, which leads me to think that they are okay. I did try the above procedure, and yes it's off center in the other direction, just as slightly.
reads like they did not, at the shop..

and you ascertained the dropouts are precisely the same distance
from the center line of the frame?

... would you say I should just stop being so picky?
Probably, but, You are not alone, OCD gets expressed frequently, here.

NB: Real frame alignments are done on a precisely machined flat table
Granite or heavy steel.
with dial indicators taking measurements .

Last edited by fietsbob; 09-02-12 at 10:57 AM.
fietsbob is offline
Old 08-31-12, 12:29 PM
  #14
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 8,501

Bikes: Klein, Merckx, Trek

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 2102 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by fietsbob View Post
Probably, but, You are not alone, OCD gets expressed frequently, here.
If he has OCD, he should splurge on a dishing tool.

If the rim is centered between the locknuts (as shown by the tool) but the rim isn't centered in the frame when mounted both fixed and free, then it's a frame alignment problem...
DiabloScott is offline
Old 08-31-12, 12:38 PM
  #15
cranky old road
Let your bike be the tool

cranky old road's Avatar

Join Date: Jun 2006
Location: NC/SC border
Posts: 841

Bikes: '66 Raleigh Carlton, '70 Ron Cooper, '95 Bianchi CD'I, Zonal Frame with Xenon gruppo, Carbon Frame with Record Gruppo, Columbia Twosome, Terry Classic, Bianchi SX, Gravity SS/FG

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by DScience View Post
I did try the above procedure, and yes it's off center in the other direction, just as slightly.
Dish
__________________
Never try to teach a pig to sing...
cranky old road is offline
Old 08-31-12, 12:50 PM
  #16
BCRider
Senior Member

BCRider's Avatar

Join Date: Mar 2008
Location: The 'Wack, BC, Canada
Posts: 5,466

Bikes: Norco (2), Miyata, Canondale, Soma, Redline

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by DScience View Post
I'm not trying to "band aid" things, but I don't KNOW for certain that the wheel NEEDS to be dished! Second, I don't have rear drop outs. It's a track bike, with rear fork ends and I've checked that those are aligned and to the best of my knowledge they are.
When you flipped the wheel around and found that the offset was flipped as well that was total proof that the wheel isn't dished correctly. If it was anything else the amount of offset to the other side would not have been the same amount as the first way.

Now if you flipped the wheel around and found that it was absolutely centered where it was offset as shown in your pictures then you'd have TWO things at play. One would be that the wheel wasn't perfectly dished and the other that the dropout stops were not quite absolutely square on. If you then zeroed out the dish in the wheel you'd find that there would still be a small amount of offset but that it would stay the same when the wheel was flipped. The remaining FIXED SIDE offset would be due to the dropout stops not being set identically.

This, of course, assumes that your dropouts have the stop screws which you can set. Not all bikes have those. Now if you're using axle tugs and the offset switches when you flip the wheel then you really don't know if the issue is with the wheel dish or if the axle tugs are not set spot on since you flipped BOTH the wheel AND the axle tugs. When you switch two things you can't tell which of the two is the issue.

And keep in mind that when you flip the wheel around to test this you're seeing DOUBLE the difference. The amount you need to pull the dish is only going to be half of the total difference from the flip.

For more than a few shops 2mm is likely felt to be good enough. Or possibly they didn't do a last minute dish check. Either fine tune it yourself or take it back and ask for it to be zeroed out for dish.

The key is in correctly interpreting what you see when you do such tests and what the test is designed to indicate.
BCRider is offline
Old 08-31-12, 12:57 PM
  #17
IthaDan
Senior Member

IthaDan's Avatar

Join Date: Jan 2012
Location: Ithaca, NY
Posts: 4,905

Bikes: Click on the #YOLO

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Just tighten each of your fixed side spokes a quarter turn. Start at the valve, work your way around. Then do it again. Should be about right.

Should.
__________________

Shimano : Click :: Campy :: Snap :: SRAM : Bang
IthaDan is offline
Old 08-31-12, 01:35 PM
  #18
bobotech
Senior Member

Join Date: Jan 2012
Location: Spokane, WA
Posts: 2,253

Bikes: Specialized Sequoia Elite/Motobecane Fantom Cross Team Ti/'85 Trek 520

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by DScience View Post
I'm not trying to "band aid" things, but I don't KNOW for certain that the wheel NEEDS to be dished! .
You do know that you have to dish the wheel. You proved it to yourself when you flipped the wheel. That *is* the non-shop way of checking for proper dish.
bobotech is offline
Old 08-31-12, 01:45 PM
  #19
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,949

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1816 Post(s)
Liked 0 Times in 0 Posts
Since this is a SS/symmetrical wheel, it really shouldn't be dished.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 08-31-12, 01:49 PM
  #20
cranky old road
Let your bike be the tool

cranky old road's Avatar

Join Date: Jun 2006
Location: NC/SC border
Posts: 841

Bikes: '66 Raleigh Carlton, '70 Ron Cooper, '95 Bianchi CD'I, Zonal Frame with Xenon gruppo, Carbon Frame with Record Gruppo, Columbia Twosome, Terry Classic, Bianchi SX, Gravity SS/FG

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by ThermionicScott View Post
Since this is a SS/symmetrical wheel, it really shouldn't be dished.
Very well then, the wheel needs to be "undished."
__________________
Never try to teach a pig to sing...
cranky old road is offline
Old 08-31-12, 02:11 PM
  #21
bobotech
Senior Member

Join Date: Jan 2012
Location: Spokane, WA
Posts: 2,253

Bikes: Specialized Sequoia Elite/Motobecane Fantom Cross Team Ti/'85 Trek 520

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by cranky old road View Post
Very well then, the wheel needs to be "undished."
Good one!
bobotech is offline
Old 08-31-12, 02:19 PM
  #22
DScience
Registered User
Thread Starter

Join Date: Aug 2012
Posts: 109
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
LOL omg so confused. To dish, or not to dish, that is the question! LOL

Anyway, I went to a LBS and talked to the guy who trued my wheels. He said that in his opinion, it looks fine. I asked if he thought we should take the wheels off and use a dish stick to check and he didn't think so. He looked closely at my bike all the way through, and felt it was properly aligned.
DScience is offline
Old 08-31-12, 02:20 PM
  #23
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 8,501

Bikes: Klein, Merckx, Trek

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 2102 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by ThermionicScott View Post
Since this is a SS/symmetrical wheel, it really shouldn't be dished.
Incorrect, it has symmetrical dish... or should have.
DiabloScott is offline
Old 08-31-12, 02:21 PM
  #24
DScience
Registered User
Thread Starter

Join Date: Aug 2012
Posts: 109
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Also I should note that don't base your opinions off the assumption that I did the "acid test" (flip flopping the wheel) correctly. Honestly, I don't totally understand the test and the parameters so the "test" may not have actually showed that dishing the wheel is necessary.
DScience is offline
Old 08-31-12, 02:23 PM
  #25
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Posts: 36,049

Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter

Mentioned: 121 Post(s)
Tagged: 1 Thread(s)
Quoted: 4331 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by DScience View Post
I'm not trying to "band aid" things, but I don't KNOW for certain that the wheel NEEDS to be dished! Second, I don't have rear drop outs. It's a track bike, with rear fork ends and I've checked that those are aligned and to the best of my knowledge they are.
If you look below my signature, you'll see my quote that an ounce of diagnosis is worth a pound of cure.

Don't fix anything (including dishing the wheel) without first confirming that it's the actual problem. The flip-flop in the frame is a rough indicator of a possible dish error, but that's all it is. Go buy 2 bottles of decent beer, then bring them and your wheel to a decent mechanic (leave the bike home) and ask that he check the wheel dish with a wheel dishing gauge. Agree with him in advance that if it needs dishing, you pay him to do that, but if it doesn't he gets the beers as a thank you.

Once the wheel is dished, then you can eliminate that as a problem and if it's still off a bit, you can decide to live with it, or deal with the frame. The frame could have one dropout (the top surface) higher than the other, which is fixable with a file, or could have the chainstays not squared up, or some combination of both. It's easy to misdiagnose the actual frame problem so I suggest that if the bike handles well (rides no hands without compensating) you leave it alone.

BTW- I've seen perfectly aligned frames and perfectly dished wheels look like yours so unless you have a performance problem that you can identify (ie. always needs to be compensated slightly to the left) you leave it alone, since it's about whether it rides right, not whether it looks right that counts.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
