Want to put drop handlebars on Next MTB

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Want to put drop handlebars on Next MTB

Old 06-16-13, 11:21 AM
  #1
Mwc01l88
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Lerna, IL
Posts: 5

Bikes: Next MTN Bike 26", Raleigh Capri 410

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Want to put drop handlebars on Next MTB

I want to convert mine and my son's MTB's over to drop bars. What measurments do I need to know in order to do this, and can it be done? We want to do this, but do not wish to break the bank doing it. I am figuring Ebay will help us out for most of the parts, just need some guidance. Any suggestions would be welcomed. Thanks
Mwc01l88 is offline
Old 06-16-13, 11:39 AM
  #2
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,346 Times in 853 Posts
Do you have a MTB now, do you have a road bike that fits ? can you measure and report ?


AFAIK, "NEXT" is a brand that is less than Quality , mainly Cheap.. send a picture to confirm
or refute this.

Trekking Bars are an easier swap as You keep all the levers you have now.

Accommodating a headwind is a far rather than a down reach. those bars are about $20./

Last edited by fietsbob; 06-16-13 at 05:46 PM.
fietsbob is offline
Old 06-16-13, 11:54 AM
  #3
bobotech
Senior Member

Join Date: Jan 2012
Location: Spokane, WA
Posts: 2,255

Bikes: Specialized Sequoia Elite/Motobecane Fantom Cross Team Ti/'85 Trek 520

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
I would look for a better quality used bike on CL to put drop bars on or start with a used drop bar bike if you really want drop bars. Something without a name that is sold at Walmart.

Drop bars just really aren't suited to pseudo full suspension bikes or even front suspension bikes.

I like the trekking bars idea, cheaper and you can keep your existing shifters.

What exactly are you hoping to accomplish with this conversion, your end goal?
bobotech is offline
Old 06-16-13, 12:17 PM
  #4
Mwc01l88
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Lerna, IL
Posts: 5

Bikes: Next MTN Bike 26", Raleigh Capri 410

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
we are changing the MTB tires out for street tires, for less rolling resistance. we saw the handlebars on ebay and thought why not try to get ourselves down out of the wind a little bit. the end goal is to gain a bike that is easier to ride for not much money. my son is 16 and so this little bike fetish we have recently discovered may go away as quick as it came on. so we don't want to sink much money into something that may be short lived. if that makes sense. would like to know more about the trekking bars, they sound like they are more of what we need. also having a hard time finding road tires to fit my son's 24" MTB, they are 24x1.95, any leads on tires would be helpful.
Mwc01l88 is offline
Old 06-16-13, 12:32 PM
  #5
DX-MAN
Banned

Join Date: Jun 2009
Posts: 4,788
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Dump the Walmart crap and get a couple cyclocross bikes. Seriously. Walmart bikes (NEXT is their 'house brand') are like Bic lighters -- disposable. You'd have to be a near-mechanic with access to free parts to make any sort of 'upgrade' worthwhile.

13 years of dealing with that garbage every day has taught me that, in case you're wondering.
DX-MAN is offline
Old 06-16-13, 02:13 PM
  #6
ncrnelson
Senior Member

ncrnelson's Avatar

Join Date: Jul 2010
Location: Champlin, MN
Posts: 210

Bikes: 1983 Cannondale ST500, 1987 Cannondale SM400 with SA 3 speed hub, 1987 Schwinn Tempo, 1982 Schwinn Voyageur SP, 1992 Kona Explosif

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
A 24" department store bike is a child's bike and is probably too small for a 16 year old, you'd be far better off finding a decent used road bike. The shifters you have now, despite being low quality wont fit drop bars anyway, nor the brakes and most likely the stem. This kind of transformation is often prohibitively expensive even for quality bikes. Check craigslist, it's full of cheap 10 speed road bikes that would be far better suited to your needs.
ncrnelson is offline
Old 06-16-13, 02:20 PM
  #7
Wilfred Laurier
Seor Member

Wilfred Laurier's Avatar

Join Date: Feb 2013
Posts: 5,064
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 647 Post(s)
Liked 287 Times in 211 Posts
sadly all responses are correct
bike is not worth sinking any money into
and it is a kids bike

to repeat
find a used road bike
even a 10 speed with steel wheels would be a lot better
except for braking

how tall is your son and do you think he is finished growing
Wilfred Laurier is offline
Old 06-16-13, 02:27 PM
  #8
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,688
Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1074 Post(s)
Liked 292 Times in 219 Posts
You can get a pair of drop bar ends. That'll give you that "out of the wind" position you're asking for. If you've got wire-operated brakes, there are brake levers that can reasonably easy be fitted to the drop bar ends. Keep your shifting where it is at the moment.
dabac is offline
Old 06-16-13, 03:07 PM
  #9
sreten
Banned.

Join Date: Feb 2013
Location: Brighton UK
Posts: 1,662

Bikes: 20" Folder, Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hi,

Forget drops, its too complicated and expensive, add bar ends
for a bit more reach, (but really for more hand positions too).
Set the bars as low as they will go generally, set the seat as high as it will
go without rocking your hips generally, set the seat for more reach generally.

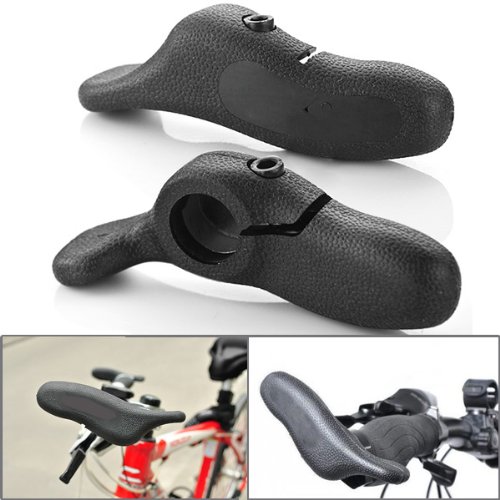

https://www.amazon.com/Resistance-Erg...grips+bar+ends



Search for 24" x 1.75" / 47mm x 507mm street tires for the smaller bike.

Kenda seem to do the smoothest tread at a reasonable price :

https://www.bikepartsusa.com/tire-24i...0psi-tire.html

That is it, change the tires and add bar ends, fiddle with the set up of
each bike. Anything else is pretty much a waste of time and expense.

rgds, sreten.

Check your chains for wear (google), replace if necessary, lube otherwise.
Generally lube up your bike. I'm not a maintenance fanatic, but I use
my chain lube into the wheel bearings, bottom bracket, pedals, head set,
derailleur pulleys, v brake pivots. WD40 for everything else,
cables, brake pivots (calipers), derailleur, brake levers etc.
I use WD40 to clean the chain then apply some proper chain lube.

Last edited by sreten; 06-16-13 at 04:14 PM.
sreten is offline
Old 06-16-13, 04:55 PM
  #10
jim hughes
Senior Member

Join Date: May 2010
Posts: 461
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by DX-MAN
Walmart bikes (NEXT is their 'house brand') are like Bic lighters -- disposable.
This is an insult to the fine people at Bic. Their lighters are exactly as good as they need to be. Walmart bikes on the other hand are exactly 1/2 as good as they need to be.
jim hughes is offline
Old 06-16-13, 07:18 PM
  #11
JBHoren
Living 'n Dying in -Time

JBHoren's Avatar

Join Date: Dec 2008
Location: Greenacres, FL
Posts: 642
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 4 Times in 2 Posts
I believe this 2009 posting from Mountain Bike Tires <dot-com> is appropriate: Why I Ride Dropbars

(towards the end, the author discusses size and setup)
JBHoren is offline
Old 06-16-13, 07:52 PM
  #12
sreten
Banned.

Join Date: Feb 2013
Location: Brighton UK
Posts: 1,662

Bikes: 20" Folder, Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by JBHoren
I believe this 2009 posting from Mountain Bike Tires
<dot-com> is appropriate: Why I Ride Dropbars

(towards the end, the author discusses size and setup)
Hi,

Not really at all when you factor in cost for the OP.

The bars he is using are not remotely standard drops.

rgds, sreten.
sreten is offline
Old 06-17-13, 05:25 PM
  #13
byrd48
Full Member

Join Date: May 2012
Location: Atlanta, GA
Posts: 335

Bikes: Dave Kirk Custom, Clockwork Bikes Custom, Batavus Course Specialized HardRock x2 Trek 700 MultiTrack 1991 Trek 950 SingleTrack. Miyata Three Ten

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I'm doing such a conversion now, and it likely will cost more than you paid for your bike (I bought a used 90's mtn bike off CL for $125, so it will also cost more than I paid for mine). That's not a bad thing, just be prepared for it.
I don't know the specs of your bike, how upgradeable it is. If you have a local bike co-op, maybe take your bikes there and they can take some measurements and give you advice. They probably have a box of dropbars lying around and may be able to get you set up (or help you help yourself so to speak) for not much $$.
byrd48 is offline
Old 06-17-13, 05:47 PM
  #14
gyozadude
Senior Member

gyozadude's Avatar

Join Date: Jun 2011
Location: Sunnyvale, California
Posts: 1,180

Bikes: Bridgestone RB-1, 600, T700, MB-6 w/ Dirt Drops, MB-Zip, Bianchi Limited, Nashbar Hounder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
If these are the standard Next 24 and 26 inch MTB BSOs with pseudo-suspension, I'd be +200 on all the comments above to junk it and move on. Basically, aerodynamics aren't going to be too much help for you. Granted, with head winds, aerodynamics always helps, but the main issue is that these bikes rob you of energy because you're going to heat up the suspension components. The front fork is too soft and has no lock-out, and the frame suspension just robs you of energy. My son used to ride a 24 inch NeXT and we did a very simple dirt trail with a few miles of uphill grades, and he died from exhaustion on that one. Swapped him out to a cheap Bridgestone CB2 from CL for $50 which I overhauled and replaced front/rear rims with new dirt cheap Alex x202s and had two sets of tires. A cheap set of Nashbar City slicks 26 x 1.5inch for commuting, and 26x1.75 maxxis tires for dirt trails. He had no issues with the bike and he just got the best time in all 7th/8th grade for the cycling segment of their end-of-year team triathlon on that dirt cheap CB2.

He grew up on grip-shifts so I replaced the thumb shifters with cheap SRAM units that were Shimano compatible. A new HG 6 speed freewheel and chain, and new Tektro 316AG levers and front/rear set of Acera V-brakes and the bike rides great on the flats, and he's in the lead on our group 50 milers with other youth. So he doesn't need a really expensive bike yet. But deals are there on CL. You just gotta wait for them and know what you're buying.
gyozadude is offline
Old 06-17-13, 06:05 PM
  #15
sreten
Banned.

Join Date: Feb 2013
Location: Brighton UK
Posts: 1,662

Bikes: 20" Folder, Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hi,

Finding drop bars is the least of the problems.

Generally a nightmare to convert to drops regarding shifting and the brake levers.

New tyres, dropping the stem, flipping the bars for more drop, adding bar
ends and possibly a new longer seat-tube to allow for the right seat height.

rgds, sreten.
sreten is offline
Old 06-17-13, 06:16 PM
  #16
Yo Spiff
Carpe Velo

Yo Spiff's Avatar

Join Date: Dec 2011
Location: Fort Worth, Texas
Posts: 2,520

Bikes: 2000 Bianchi Veloce, '88 Schwinn Prologue, '90 Bianchi Volpe,'94 Yokota Grizzly Peak, Yokota Enterprise, '16 Diamondback Haanjo, '91 Bianchi Boardwalk, Ellsworth cruiser

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 13 Times in 12 Posts
Originally Posted by sreten
Generally a nightmare to convert to drops regarding shifting and the brake levers.
Depends on what you want. If you want brifters, yes, it can be a PITA. If some sort of friction shifter is acceptable, then it's a fairly easy conversion. I have Suntour barcons and Tektro levers on mine. I wouldn't waste the effort and $ on a Wally World bike, however. If all you want is some better hand positions and speed, then, as suggested, lower the stem, then put some cheap bar ends and street tires on it.

Since nobody else has mentioned it yet, there is an ongoing thread in the C&V forum about drop bar mountain bikes. Lots of good info and inspiration in this thread. They make comfortable and bomb-proof city bikes, tourers and utility bikes.
Show-Your-Vintage-MTB-Drop-Bar-Conversions
Yo Spiff is offline
Old 06-17-13, 07:43 PM
  #17
sreten
Banned.

Join Date: Feb 2013
Location: Brighton UK
Posts: 1,662

Bikes: 20" Folder, Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hi,

In terms of the OP I don't know why your even discussing it.

It is a very bad idea if we are talking $100 "NEXT" MTB's.

Which sadly, though I have no problems with cheap basic
bikes, a bit heavy and basic but they work, I do have
some issues with dual suspension MTB's under $100.

What can I say ? Useless offroad and even worse onroad ?

$100 no suspension MTB styled bikes can be great cheap
road bikes fitted with decent tyres, they are really city
bikes and good tyres transform them into that role.

rgds, sreten.

Last edited by sreten; 06-17-13 at 08:07 PM.
sreten is offline
Old 06-18-13, 08:15 PM
  #18
Mwc01l88
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Lerna, IL
Posts: 5

Bikes: Next MTN Bike 26", Raleigh Capri 410

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
How does the suspension rob you of energy? Not questioning your statement, just really want to know how. I was so curious that I had my neighbor machine me a solid steel bar (if it makes a difference will replace with an aluminum bar)to replace the center spring, and the bike definately rides different, but I don't know if it is better. Have no fix for the forks though. Changed the MTB tires for some narrower street/comfort tires. Bike is definately rolling better.
Mwc01l88 is offline
Old 06-18-13, 08:43 PM
  #19
likebike23
Rides Majestic

Join Date: Jan 2013
Location: Westfield, MA
Posts: 1,357

Bikes: 1983 Univega Gran Turismo, 1970 Schwinn Super Sport, 2001 Univega Modo Vincere, Self-Built Nashbar Touring, 1974 Peugeot U08, 1974 Atala Grand Prix, 1986 Ross Mt. Hood, 80's Maruishi MT-18

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
I also want to put drop bars on my next MTB, not my Next MTB.
likebike23 is offline
Old 06-19-13, 01:06 AM
  #20
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,688
Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1074 Post(s)
Liked 292 Times in 219 Posts
Originally Posted by Mwc01l88
How does the suspension rob you of energy?
If you're sitting down, and pedalling with a very nice and smooth technique - not much. But as soon as you get out of the saddle(if not sooner) a lot of the pedaling turns into the rider stomping down on the pedals. and the bike, poor thing, can't see the difference between the ground moving up (as when you hit a bump) and the bike moving down (as the rider stomping on the pedals), so it lets the suspension compress. And the task of the suspension, or particularly the shocks, is to soak up energy associated with the bike suddenly moving in the vertical.

In a rigid bike, pretty much all of the energy the rider puts in that stomp down is converted into forward motion. In a suspension bike, particulary an inexpensive one, an important part is soaked up by the suspension.
dabac is offline
Old 06-19-13, 05:58 AM
  #21
clydeosaur
Senior Member

clydeosaur's Avatar

Join Date: Aug 2009
Location: Central PA
Posts: 629

Bikes: Cannondale Six5, Specialized Stumpjumper FSR & old Hard Rock

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 1 Time in 1 Post
In all seriousness, look around on craigslist, yard sales, etc..for either an older roadbike, 26' rigid mountain bike or sport hybrid. Any of these can be had rather cheap. Parts will be easier to find and cheap as well. If you go with the mtb or hybrid, you can get drop bar extensions to mount your flatbars. That way you have the drop bar with no change in shifters of brakes for $25. THis will be far cheaper than adding bars, shifters, cables, etc to the current bike.
clydeosaur is offline
Old 06-19-13, 08:20 PM
  #22
bobotech
Senior Member

Join Date: Jan 2012
Location: Spokane, WA
Posts: 2,255

Bikes: Specialized Sequoia Elite/Motobecane Fantom Cross Team Ti/'85 Trek 520

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
I remember one day switching bikes with my buddy a year or two ago. He had at the time a cheap crappy Mongoose full suspension bike similar in quality and design to the Next bikes. I at the time was using a rather nicely converted to flat bar mid 80's Schwinn Traveler which has no suspension. When I rode his bike, it was awful. I had to pedal so much harder to keep up with him when he was on my bike. I couldn't believe how much energy was absorbed by the cheap suspension.
bobotech is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
cyber.snow
Touring
73
06-23-18 12:41 PM
Carson Dyle
Commuting
25
08-24-15 10:22 AM
CenturionIM
Touring
12
08-24-13 09:17 AM
siggy2xc
Mountain Biking
7
10-01-12 04:31 PM
SoreFeet
Classic & Vintage
1
03-28-10 11:41 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
