Dangers of one less chainring bolt

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Dangers of one less chainring bolt

Old 09-14-13, 11:20 AM
  #1
jdefran
Senior Member
Thread Starter

jdefran's Avatar

Join Date: Feb 2011
Posts: 344
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Dangers of one less chainring bolt

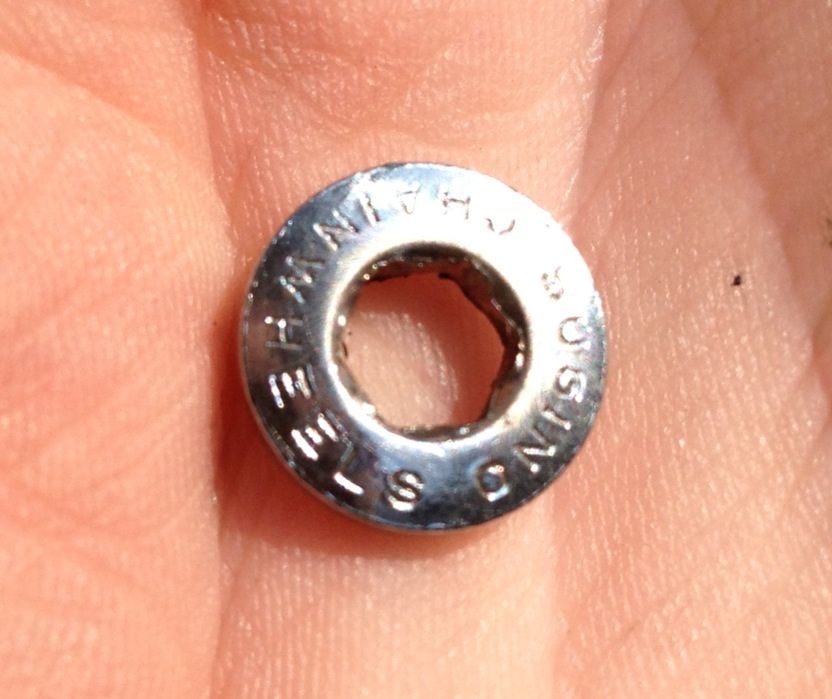

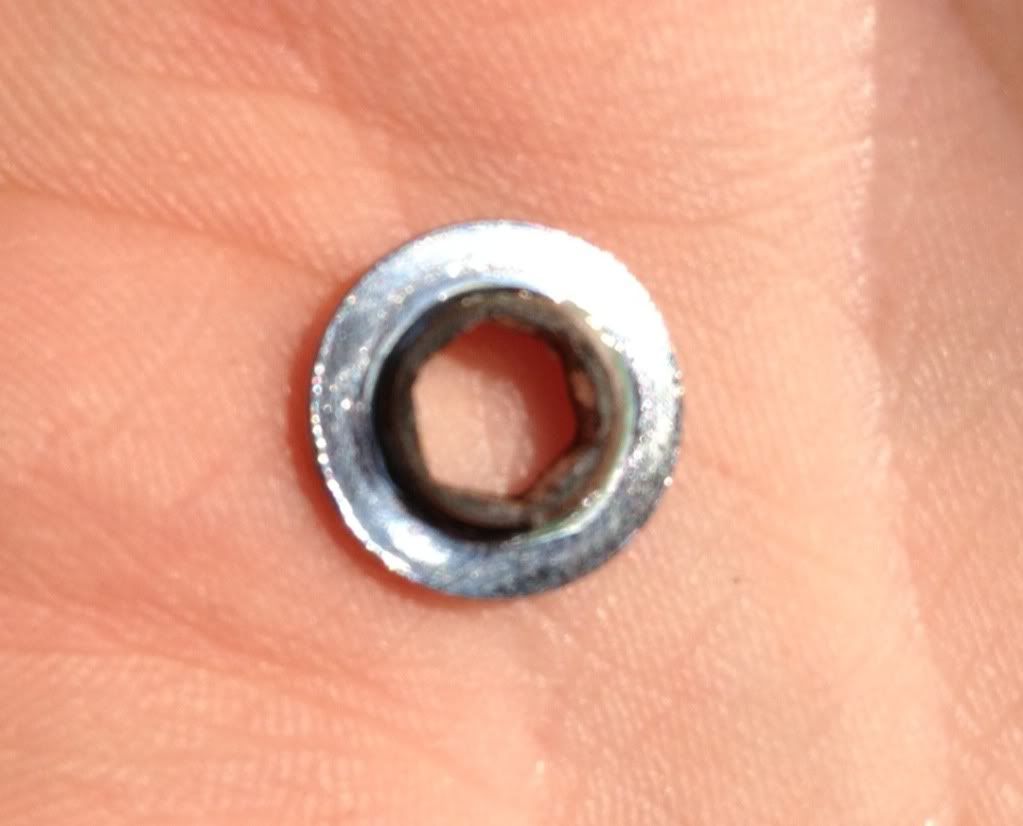

This bolt was located on the inner part of the crankarm for the small ring of a triple. Is it dangerous to ride with just four bolts holding the inner ring? I figure there isn't a whole lot of torque in that gear so I would think it's fine. I really don't want to mess it taking it out. Do you have an experience to share?

jdefran is offline
Old 09-14-13, 11:43 AM
  #2
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Posts: 36,049

Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter

Mentioned: 121 Post(s)
Tagged: 1 Thread(s)
Quoted: 4338 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Not really dangerous, but not a good thing either. I wouldn't worry, but would plan of completing the set th the first opportunity.

The effect and importance depends on which bolt and how you ride.

The stress on the chainring is greatest when cranks are horizontal, where the chain is loading the top of the chairning, so the least important bolt is the one that lies inline with the cranks. How you ride is also a factor, since there's very little load on the rings when spinning on flat ground. But if you like to sprint up short steep hills, or have long grinding climbs, this missing bolt can be your proverbial missing horseshoe nail.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline
Old 09-14-13, 11:44 AM
  #3
AnkleWork
Senior Member

Join Date: Jan 2013
Location: Llano Estacado
Posts: 3,290

Bikes: old clunker

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 523 Post(s)
Likes: 0
Liked 18 Times in 12 Posts
Originally Posted by jdefran View Post
This bolt was located on the inner part of the crankarm for the small ring of a triple. Is it dangerous to ride with just four bolts holding the inner ring? I figure there isn't a whole lot of torque in that gear so I would think it's fine. . .
Torque input is the same in each gear. Chain tension is the crank's output and is highest in the smallest ring. I would not use a small ring with a broken bolt.
AnkleWork is offline
Old 09-14-13, 11:49 AM
  #4
jdefran
Senior Member
Thread Starter

jdefran's Avatar

Join Date: Feb 2011
Posts: 344
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Instead of troubleshoot first I ran you smart folk..I removed the crank and found the bolt was long enough to simply unthread and replace. Thanks for to responses though
jdefran is offline
Old 09-14-13, 12:15 PM
  #5
Wilfred Laurier
Señor Member

Wilfred Laurier's Avatar

Join Date: Feb 2013
Posts: 4,173
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 288 Post(s)
Liked 25 Times in 19 Posts
i have on a couple of occasions
ridden with one missing chainring bolt
on the small ring

on each of these occasions
the small ring has folded over
or broken in half
Wilfred Laurier is offline
