CAAD8 Sora upgrade to bb30?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

CAAD8 Sora upgrade to bb30?

Old 08-03-14, 06:59 PM
  #1
pmagnani
Newbie
Thread Starter

Join Date: Aug 2014
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
CAAD8 Sora upgrade to bb30?

Hello - I have a CAAD8 Sora with a FSA VERO, 50/39/30 crank with FSA Cartridge (68mm, threaded - I believe) bottom bracket.

I have a SRAM Force bb30 crankset and bb that I'd like to use on the CAAD. Some of the CAAD8's use bb30. However, at the Sora level it's the cartridge. Same frame, I believe, but I don't know if it's been altered and won't accept a bb30. Anyone out there know? I've searched but couldn't find a clear answer.

I have the 2013 version of this bike. Looks like it's the same - CAAD8 7 Sora - CAAD8 - Elite Race - ROAD - BIKES - 2014

Thanks for any help!

Paul
pmagnani is offline
Old 08-03-14, 07:57 PM
  #2
Slash5
Senior Member

Join Date: Feb 2014
Location: Southern Ontario
Posts: 1,890
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 258 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
If it's a threaded BB then a BB30 crank will not work - unless it has an adapter to convert it to threaded. I think you are going to have to pull the crank and have a look.

Last edited by Slash5; 08-03-14 at 08:01 PM.
Slash5 is offline
Old 08-03-14, 08:48 PM
  #3
pmagnani
Newbie
Thread Starter

Join Date: Aug 2014
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks for the reply Slash. Bottom brackets are about as complex as genetics it seems.
pmagnani is offline
Old 08-03-14, 10:05 PM
  #4
hueyhoolihan
Senior Member

Join Date: Dec 2010
Location: Above ground, Walnut Creek, Ca
Posts: 6,686

Bikes: 8 ss bikes, 1 5-speed touring bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 86 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
BB30 bottom bracket bearings have an ID of 30mm and an OD of 41mm. shimano threaded BB's, IIRC, use bearings with an ID of 24mm and OD of about 37mm?. bearings are only made in a limited variety of sizes and combinations of ID and OD. there is no cartridge bearing made with a suitable OD that fits a threaded BB shell (37mm?) with an ID greater than 24mm. apparently, there is not enough room for an inside race, ball bearings and an outside race.

and if it hasn't been mentioned, Shimano one-piece cranks, i think, have 24mm spindles.

Last edited by hueyhoolihan; 08-03-14 at 10:24 PM.
hueyhoolihan is offline
Old 08-04-14, 05:24 AM
  #5
jimc101
Senior Member

Join Date: Oct 2007
Location: West Yorkshire, United Kingdom
Posts: 5,447
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 290 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by pmagnani View Post
Thanks for the reply Slash. Bottom brackets are about as complex as genetics it seems.
Not really, the frame determines the BB type, which then determines the type of crank used. simples...
jimc101 is offline
Old 08-05-14, 01:49 AM
  #6
e_guevara
Senior Member

Join Date: Oct 2004
Posts: 699

Bikes: Cannondale CAAD10 Team, Giant TCR

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The CAAD8 is BB30.

The FSA Vero crank has a square-taper spindle that uses a threaded cartridge BB.

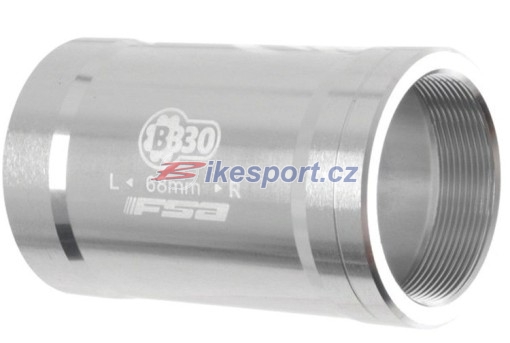

To fit the square taper crank/BB onto a BB30 shell, a threaded sleeve that is pressed into the shell is used.



It is possible to tap out the sleeve using a mallet and a PVC pipe.

The OP needs to buy a BB30 bearing set - bearings, bearing shields, wave washers, spacers, and c-clips (circlips), install everything correctly, so that he could use the SRAM Force BB30 crank.


Last edited by e_guevara; 08-05-14 at 01:53 AM.
e_guevara is offline
