Help identifying missing head plate

Old 11-23-16, 07:38 PM
  #1
oldfrenchbike
Junior Member
Thread Starter

Join Date: Nov 2016
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Help identifying missing head plate

I found this old frame with a number of french parts on it. Other forum members have been great in helping id it, but the head plate remains a mystery. 3 holes in the pattern, 2 on top and one one the bottom. Left rear dropout has A2421 stamped on it ( campy brev.) Looks like the original paint was green? Attached photos show what I have found so far. Any help would be appreciated.

Thanks,

https://flic.kr/s/aHskNxnqWr
oldfrenchbike is offline
Old 11-23-16, 09:24 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,224
Mentioned: 291 Post(s)
Tagged: 1 Thread(s)
Quoted: 2347 Post(s)
Liked 598 Times in 489 Posts
-----

Follis had a nameplate with this pattern of fasteners. Not asserting an identity.

For readers who may have missed it here is the earlier discussion on this frameset:

https://www.bikeforums.net/classic-vi...campy-dos.html



Alas, it is the wrong shape for the ghost image of the plate on the frame's head tube.

The ghost image of a transfer on the frame's seat tube is a valuable clue. A knowledgeable reader may recognise it.

Member @Filochard may be of help here...

-----

Last edited by juvela; 11-23-16 at 10:27 PM. Reason: addition
juvela is online now
Old 11-23-16, 11:26 PM
  #3
oldfrenchbike
Junior Member
Thread Starter

Join Date: Nov 2016
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks,

The ghost image on the headtube is an outline that I made, it was not there originally. I did get the fork out, no maker label inside or ser. number on the fork. The Follis pattern seems to match.
oldfrenchbike is offline
Old 11-24-16, 10:41 AM
  #4
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,224
Mentioned: 291 Post(s)
Tagged: 1 Thread(s)
Quoted: 2347 Post(s)
Liked 598 Times in 489 Posts
-----

If you feel the Follis a plausible identification one confirmation investigation you could make would be to look at some sixties era Follis cycles online to see if you can find any with a similar serial format and placement.

Follis serials are all over the map. Differing formats and placements. They also produced a great many machines with no serial.

Another check would be to measure distances between fastener holes.

-----
juvela is online now
Old 11-26-16, 09:43 AM
  #5
Pogliaghi
Senior Member

Pogliaghi's Avatar

Join Date: Jul 2005
Posts: 408
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 10 Times in 3 Posts
Just measured my Follis headbadge (paper following the contours of the tubing) rivet head to rivet head - across the top 38mm and along one of the sides 37.5mm. See how that matches your rivet holes. Forgot to say looks like it is most likely a 472 or a 572

Last edited by Pogliaghi; 11-26-16 at 09:48 AM.
Pogliaghi is offline
Old 11-26-16, 09:53 AM
  #6
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,224
Mentioned: 291 Post(s)
Tagged: 1 Thread(s)
Quoted: 2347 Post(s)
Liked 598 Times in 489 Posts
Originally Posted by Pogliaghi View Post
Just measured my Follis headbadge (paper following the contours of the tubing) rivet head to rivet head - across the top 38mm and along one of the sides 37.5mm. See how that matches your rivet holes. Forgot to say looks like it is most likely a 472 or a 572
Thank you!

We have an identification right down to the model number.

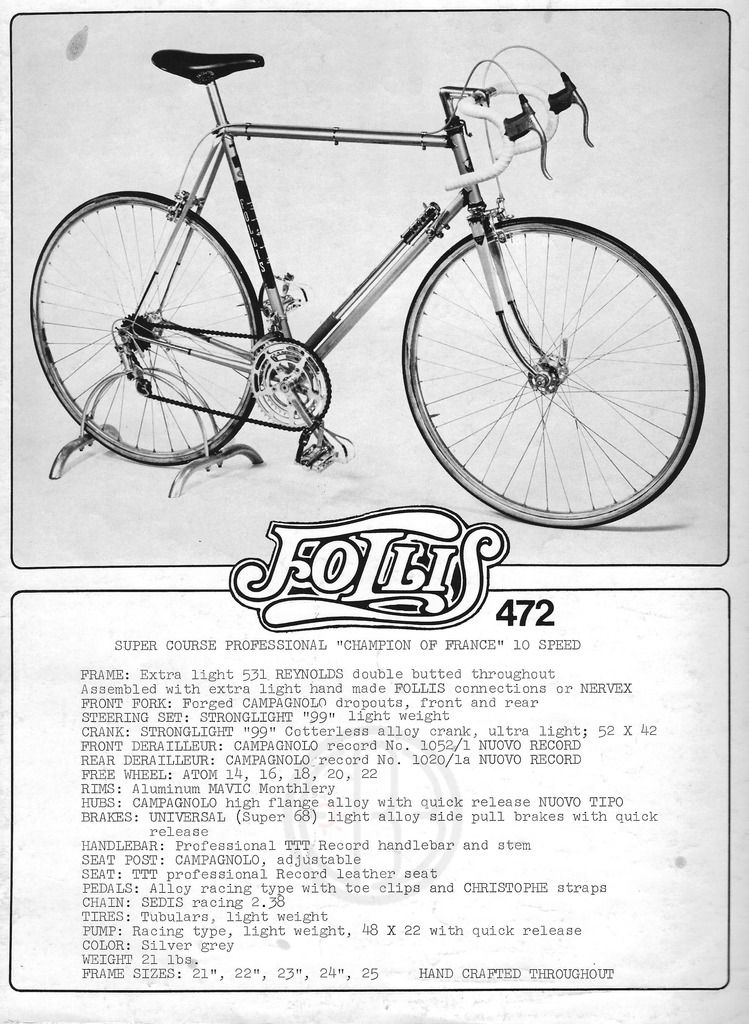

Cycle in illustration cannot be earlier than 1971 because of 3TTT Record stem/bar set.

Hilary Stone gives a launch date of 1970 for its Stronglight 99 chainset; had previously thought this date a bit later. Since poster's bike came with a NERVAR Star chainset it is likely to be somewhat earlier.

Interesting to note that it displays a front centrepull hanger even though equipped with sidepull brakes. The Stronglight V-4 headset uses a serrated lock washer so it is not one of the ones which needs a serrated centrepull hanger.

-----

Last edited by juvela; 11-26-16 at 11:22 AM. Reason: addition
juvela is online now
