Alan Record Carbonio Year?

Old 07-18-17, 04:32 PM
  #1
jfracer03
Member
Thread Starter

Join Date: Jan 2014
Location: NJ
Posts: 31

Bikes: Javelin Brunello, Pinarello Treviso, Alan Record Carbonio, Bianchi Campione D' Italia, Ciocc Designer 84

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 3 Times in 1 Post
Alan Record Carbonio Year?

I recently purchased an Alan Record Carbonio off ebay. Unfortunately the previous owner turned in into a fixie and removed the downtube braze on shifter mounts. That aside, I contacted Alan to try and figure out the year of the frame. They told me it was from their 1985-1986 run. I'm skeptical about this due to the frame having 130mm spacing in the rear. Based on my research, 130mm spacing is for 8-11 speed and Shimano didn't introduce 8 speed until 1988 and Campagnolo didn't introduce one until 1991.

Is this bike really from 85-86 or newer?
Attached Images
File Type: jpg
File Type: jpg
File Type: jpg
jfracer03 is offline
Old 07-18-17, 05:01 PM
  #2
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,866
Mentioned: 434 Post(s)
Tagged: 1 Thread(s)
Quoted: 2491 Post(s)
Likes: 0
Liked 74 Times in 67 Posts
The Alan aluminum frames had a date code, format (m)myy, stamped into the upper seat tube. To the best of my knowledge, there was no correlation to the serial number. Obviously they wouldn't want to do this to a carbon fibre tube but I also think that would continue the practice. Maybe there is an ink stamp on the top of the seat tube or a stamp impression on an aluminum section of the frame?

I don't think that there was much change to the frames themselves during the mid-1980s to the early 1990s. Certainly your frasme is consistent with the mid-1980s frames I've seen. Regarding the spacing, your logic makes sense to me.

So, the previous owner took the trouble to remove the lever bosses but didn't remove the derailleur hanger? I don't whether to laugh or cry.
T-Mar is offline
Old 07-18-17, 07:20 PM
  #3
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,772
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 973 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
Looks like an 86 to me.....just like mine!
Too bad about the drew job done on the shifter bosses. Not sure how ALAN anchored the shifters on the DT, but if it had a thin bolt going across from one boss to the other through the DT, a few C&V bikes from the 80's used such, and you might be able to adapt it over to your frame, if you cannoy find a set made by ALAN.
Otherwise, a clamp on from Simplex or Campy would look good too.
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)

Last edited by Chombi1; 07-18-17 at 07:26 PM.
Chombi1 is offline
Old 07-18-17, 08:57 PM
  #4
jfracer03
Member
Thread Starter

Join Date: Jan 2014
Location: NJ
Posts: 31

Bikes: Javelin Brunello, Pinarello Treviso, Alan Record Carbonio, Bianchi Campione D' Italia, Ciocc Designer 84

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 3 Times in 1 Post
Originally Posted by Chombi1 View Post
Looks like an 86 to me.....just like mine!
Too bad about the drew job done on the shifter bosses. Not sure how ALAN anchored the shifters on the DT, but if it had a thin bolt going across from one boss to the other through the DT, a few C&V bikes from the 80's used such, and you might be able to adapt it over to your frame, if you cannoy find a set made by ALAN.
Otherwise, a clamp on from Simplex or Campy would look good too.
Does your 86 have 130mm spacing?
jfracer03 is offline
Old 07-18-17, 09:36 PM
  #5
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,772
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 973 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
No, 126mm....
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 07-20-17, 07:15 PM
  #6
jfracer03
Member
Thread Starter

Join Date: Jan 2014
Location: NJ
Posts: 31

Bikes: Javelin Brunello, Pinarello Treviso, Alan Record Carbonio, Bianchi Campione D' Italia, Ciocc Designer 84

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 3 Times in 1 Post
I can't find any date code on the frame. Hopefully someone will be able to tell me what year this is at some point. It still makes sense to think it's around 91 if it was an 8 speed Campy equipped bike considering the 130mm spacing.
jfracer03 is offline
Old 07-20-17, 11:00 PM
  #7
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,772
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 973 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
I'll try to take new pics of you Carbonio this weekend and post them up for you to see the same details on it.
I based my dating on my Carbonio on others I have seen posted in the net with mention of production dates from the other owners. The Carbonio with the same loose CF weave pattern, pointed end lugs and the distinctive gold bands on the upper seat stays always came up as 1986 Carbonios.
The lugs lost their points (just straight cut lug ends) on the next gen Carbonio and I believe the CF tube diameters increased slightly for more stiffness..... Our Carbonio IMO, looks much better and is much stiffer than other bikes contemporary to it, like the Vitus Carbone. At least that's my experience when I ride my Vitus Plus Carbone 7 and Alan Record Carbonio, back to back. The Alan definitely handles much better too.
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)

Last edited by Chombi1; 07-20-17 at 11:07 PM.
Chombi1 is offline
Old 07-21-17, 11:59 AM
  #8
jfracer03
Member
Thread Starter

Join Date: Jan 2014
Location: NJ
Posts: 31

Bikes: Javelin Brunello, Pinarello Treviso, Alan Record Carbonio, Bianchi Campione D' Italia, Ciocc Designer 84

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 3 Times in 1 Post
It's just the spacing for the rear wheel that throws me off. I even tried to see if my vintage wheelset would fit, obviously it's not wide enough and there is no way that someone could have opened it up. I will admit that there are a lot of similarities to the 85 and 86 carbonios.

Chombi1, I would really like to see your Alan! I'm also happy to know that these frames ride really nice. How does it compare to your Pinarello? I have an 84 Treviso that I can't even compare to anything I've ridden so far.
jfracer03 is offline
Old 07-24-17, 02:35 AM
  #9
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,772
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 973 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
Hi, jfracer03,
Here are pics of my 1986 ALAN Record Carbonio I also just re-posted on the C&V forum:










Every time I pull this bike out of my stable, I get reminded of how it seems to be one of the most attractive C&V CF bike made in the 80's.
Hope you enjoy building up and riding your own ALAN Carbonio soon!
Keep us in the C&V forum posted on how the build goes and do not hesitate to ask any questions as you go.
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 07-24-17, 10:56 AM
  #10
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,866
Mentioned: 434 Post(s)
Tagged: 1 Thread(s)
Quoted: 2491 Post(s)
Likes: 0
Liked 74 Times in 67 Posts
Don't the Word Championships stripes list the victory years? If so, that should provide a 'no older than' date.
T-Mar is offline
Old 07-24-17, 01:46 PM
  #11
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,772
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 973 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
Originally Posted by T-Mar View Post
Don't the Word Championships stripes list the victory years? If so, that should provide a 'no older than' date.
World championship band as used on these frames lists victories up to 1985, thus a model year no earlier than 1986. I suspect the championships were for Cyclecross.
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 07-24-17, 04:32 PM
  #12
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,866
Mentioned: 434 Post(s)
Tagged: 1 Thread(s)
Quoted: 2491 Post(s)
Likes: 0
Liked 74 Times in 67 Posts
Originally Posted by Chombi1 View Post
World championship band as used on these frames lists victories up to 1985, thus a model year no earlier than 1986. I suspect the championships were for Cyclecross.
Yes, they are almost certainly cyclcocross references for the most part, as Alan (aluminum) were popular cyclocross frames, though many champions' bicycles were rebadged. It is worth noting that the 1986 pro cyclocross world champion was Albert Zweifel riding a Gerber, which was a rebadged Alan. Given that this isn't listed on the decal would make me suspect you have a 1985-1986 model, as the the Cyclocross World Championships are typically held early in the calendar year
T-Mar is offline
Old 07-25-17, 01:11 AM
  #13
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,772
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 973 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
Originally Posted by T-Mar View Post
Yes, they are almost certainly cyclcocross references for the most part, as Alan (aluminum) were popular cyclocross frames, though many champions' bicycles were rebadged. It is worth noting that the 1986 pro cyclocross world champion was Albert Zweifel riding a Gerber, which was a rebadged Alan. Given that this isn't listed on the decal would make me suspect you have a 1985-1986 model, as the the Cyclocross World Championships are typically held early in the calendar year
Interesting thing is, Lucho Herrera was riding the Carbonio frame in the 1984 TDF for the Cafe de Colombia team,..... maybe as a production prototype?
Here's a pic of him on the Mavic SSC equipped Alan Carbonio, on his way to win stages in the alps during that TDF:
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 07-25-17, 01:02 PM
  #14
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,866
Mentioned: 434 Post(s)
Tagged: 1 Thread(s)
Quoted: 2491 Post(s)
Likes: 0
Liked 74 Times in 67 Posts
Originally Posted by Chombi1 View Post
Interesting thing is, Lucho Herrera was riding the Carbonio frame in the 1984 TDF for the Cafe de Colombia team,..... maybe as a production prototype?
Here's a pic of him on the Mavic SSC equipped Alan Carbonio, on his way to win stages in the alps during that TDF:
I believe that is actually a 1985 photo. In 1984 the team was Pilas Varta-Colombia and Luis Herrera won the Alpe d'Huez stage. Here's a 1984 Alpe d'Huez photo of him (on the left) contending Hinault and Fignon. This photo is confirmed 1984 because that was the first year for the Hinault's La Vie Claaire team and the jersey does the not have the secondary sponsors, Radar and Wonder, which added in 1985. In 1984 Herrera and his team rode Varta branded Vitus.
Attached Images
File Type: jpg
Herrera 1984.jpg (41.9 KB, 167 views)
T-Mar is offline
Old 07-30-17, 02:07 PM
  #15
jfracer03
Member
Thread Starter

Join Date: Jan 2014
Location: NJ
Posts: 31

Bikes: Javelin Brunello, Pinarello Treviso, Alan Record Carbonio, Bianchi Campione D' Italia, Ciocc Designer 84

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 3 Times in 1 Post
Thanks for all the information! I keep getting more and more excited for this build. I'm slowly selling parts from my previous build and anything else I can find to fund this one. My plan is to use more modern components and make it a comfortable bike that I want to ride. I plan on going with campy, not sure if I will go 9, 10, or 11 speed. I do already have a nice carbon crank from my previous build so I just need the rest of the drivetrain. It mostly depends on what I can find for a good price.

Chombi1, your Alan is beautiful! Such a nice group of components on there! I really like those bladed spokes and that mavic groupset. I feel like it makes that bike even more special and obviously so much nicer to look at!
jfracer03 is offline
Old 12-20-17, 09:48 PM
  #16
jim dandy
Senior Member

jim dandy's Avatar

Join Date: Jul 2014
Location: Carrollton, Tx
Posts: 203

Bikes: '89 Centurion Dave Scott Master, '13 Cannondale Caad8 '87 Nishiki International, '98 Cannondale R300,'87 Cannondale Black Lightning, 1986 Alan Record Carbonio

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Liked 9 Times in 7 Posts
1986 Alan Carbonio ...

Picked this up from a senior rider who was going to put it out on the curb in order to clean out garage ...
The picture is as received about 10 days ago, so needs a semi restoration. This 57-58cm w a 125-126mm chain stay spacing is going up in the garage until fall as my winter project ...

Regards,
JD, Dallas
Attached Images
File Type: jpg
jim dandy is offline
Old 08-06-18, 11:52 AM
  #17
BGF
Newbie

Join Date: Aug 2018
Posts: 1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
My Record Carbonio

Originally Posted by jfracer03 View Post
I recently purchased an Alan Record Carbonio off ebay. Unfortunately the previous owner turned in into a fixie and removed the downtube braze on shifter mounts. That aside, I contacted Alan to try and figure out the year of the frame. They told me it was from their 1985-1986 run. I'm skeptical about this due to the frame having 130mm spacing in the rear. Based on my research, 130mm spacing is for 8-11 speed and Shimano didn't introduce 8 speed until 1988 and Campagnolo didn't introduce one until 1991.

Is this bike really from 85-86 or newer?
I bought my Record Carbonio new in 1996. It has an 8-gear freewheel. I bought it through a local shop; Alan send the frame and fork only, and they built it up for me. It's possible that the frame was built in 1995, but almost impossible to imagine it built before that. FWIW, the Serial number on the bottom bracket is (I think) 243614. If yours is much lower than that, it could be earlier; if it's close, it's probably around 1996. Hope that helps.
BGF is offline
Old 01-30-19, 05:37 PM
  #18
jim dandy
Senior Member

jim dandy's Avatar

Join Date: Jul 2014
Location: Carrollton, Tx
Posts: 203

Bikes: '89 Centurion Dave Scott Master, '13 Cannondale Caad8 '87 Nishiki International, '98 Cannondale R300,'87 Cannondale Black Lightning, 1986 Alan Record Carbonio

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Liked 9 Times in 7 Posts
It's all Chombi1's fault ...

So,
i managed to get my two year old Winter project done ... Chombi1's pictures shamed me into it ... He still sets the benchmark ...
The Italian Job ...



As received in '17


Resto Mod finished ... Garage Door Stage


Ready to Ride -20lbs.
jim dandy is offline
Old 01-30-19, 05:45 PM
  #19
jim dandy
Senior Member

jim dandy's Avatar

Join Date: Jul 2014
Location: Carrollton, Tx
Posts: 203

Bikes: '89 Centurion Dave Scott Master, '13 Cannondale Caad8 '87 Nishiki International, '98 Cannondale R300,'87 Cannondale Black Lightning, 1986 Alan Record Carbonio

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Liked 9 Times in 7 Posts
It's All Chombi1's Fault ... Part Two ...

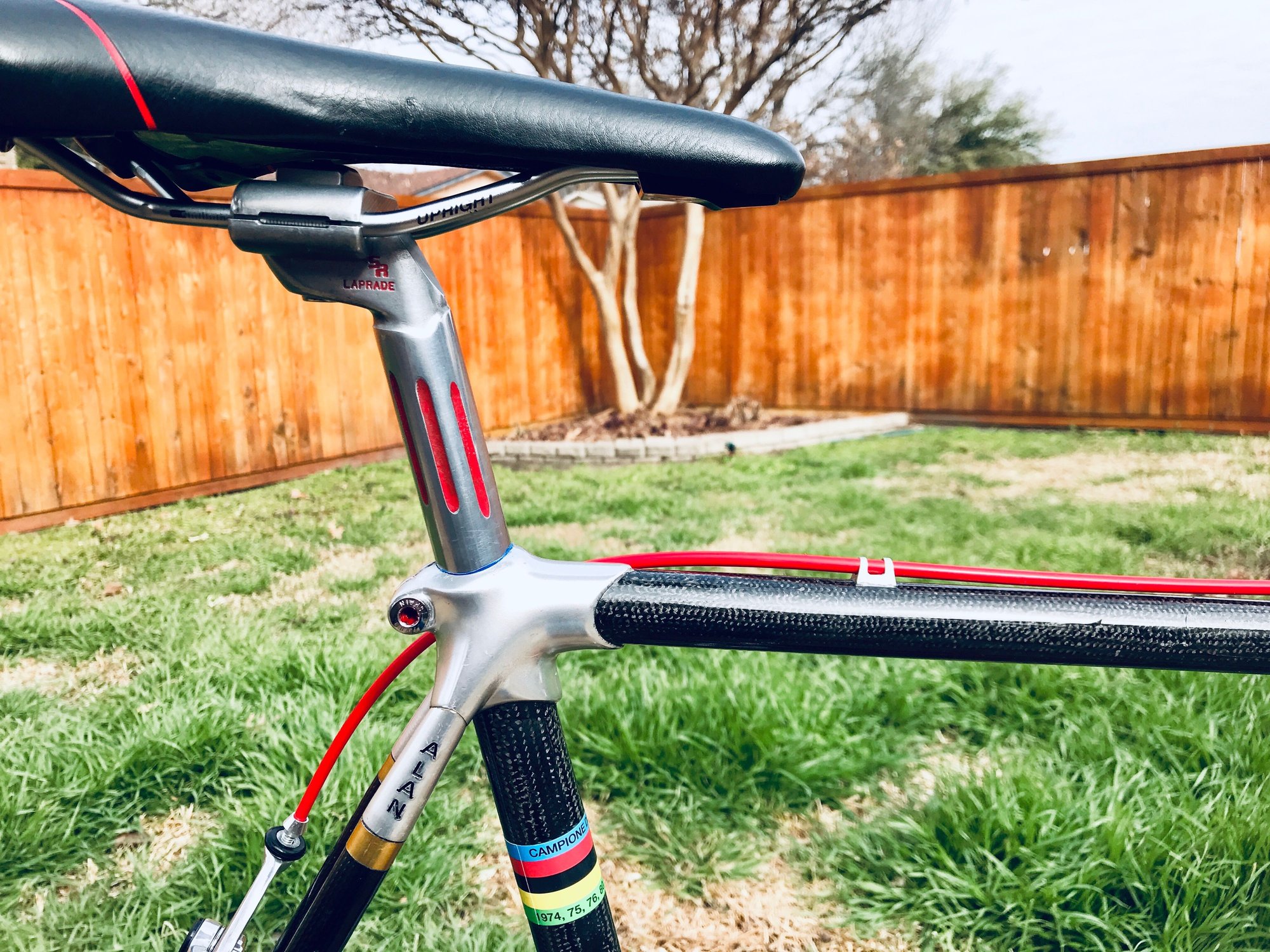

Detail#1


Detail#2


Detail#3


Detail#4


Detail#5
jim dandy is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Winfried
Folding Bikes
5
04-27-16 11:37 AM
tiiger
Cyclocross and Gravelbiking (Recreational)
5
03-03-16 04:11 PM
tompetch
Classic and Vintage Bicycles: Whats it Worth? Appraisals.
7
08-12-15 01:17 PM
Panza
Road Cycling
4
04-15-15 05:27 AM
Ottorange
Introductions
4
07-01-13 07:25 PM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
