A "coffee" bike I know little about

In the late 80's Montgomery Ward went out of business. The main store in downtown Baltimore was closing it's doors that evening I went to see the last minute sales.
I saw this bike which was marked for a tall person ( six foot and above) and it had been slashed down so many times you could not see the price they were asking.
I rolled it over to the cashier and asked what it cost? No idea was the answer....there is no box,no tools,no manual, not sure who made it, was the floor walkers answer. I offered 50 bucks and they took it.
I know nothing about the bike, let alone who made it? It rides well and for its day is fairly light weight. The derailer is very smooth to shift and the brakes work well enough that you better have control of the bike if you really set them.
I'd like to know any helpful info about the bike, who really made it, and any value it may have?
Thanks.
Rob.





Rapidrob is offline
Old 05-08-18, 05:27 PM
  #2
cb400bill
Administrator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 16,427

Bikes: Fuji SL 2.1 (carbon fiber), Pinarello Stelvio (steel), Cannondale Synapse (aluminum)

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1244 Post(s)
Liked 34 Times in 24 Posts
Monkey Wards near me were around until the late 90's.

Looks like the handlebars were swapped making it into a town bike.

Badge is reminiscent of a mid 80's Panasonic.

cb400bill is offline
Old 05-08-18, 05:50 PM
  #3
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,814
Mentioned: 430 Post(s)
Tagged: 1 Thread(s)
Quoted: 2469 Post(s)
Likes: 0
Liked 57 Times in 53 Posts
The serial number may tell us the year and manufacturer. Tange Mangaloy forks, chromed dropout flats and cables running above the BB shell, but clamp shift levers suggest circa 1982-1985 and lower mid-range. What is the decal at the top of the seat tube? Components suggest it was frankenbiked (i.e SunTour Power shifter with mid-1980s Shimano Z-series rear derailleur and very late 1980s Shimano 600 Ultegra front derailleur).
T-Mar is offline
Old 05-08-18, 05:56 PM
  #4
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,928

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6832 Post(s)
Likes: 0
Liked 211 Times in 176 Posts
Looks Adequate, probably need a secure lock on it, for while you are having that coffee in a Cafe/Bistro.
fietsbob is offline
Old 05-08-18, 07:14 PM
  #5
Rapidrob
Junior Member
Thread Starter

Rapidrob's Avatar

Join Date: May 2018
Location: Edgewood,New Mexico
Posts: 19

Bikes: Schwinn 100 year Anna. Phantom, Lotus road bike, Espresso road bike, Thor mountain bike, Huffy 1955 Crusier,others

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

Thank you for the replies. I did change the bars out a few years ago to make it a little easier on my spine.

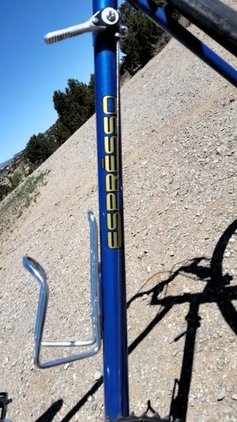

I tried to get a photo of the upright sticker.
Rapidrob is offline
Old 05-09-18, 05:31 AM
  #6
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,814
Mentioned: 430 Post(s)
Tagged: 1 Thread(s)
Quoted: 2469 Post(s)
Likes: 0
Liked 57 Times in 53 Posts
Tange 900 was a seamed version of Tange #2 . Using seamed tubes brought butted tubing down to a lower price level. A seamed, butted CrMo main triangle with lesser grade CMn stays and forks was a practice that started in the early 1980s on lower mid-range frames. The Tange 900 & Mangaloy combination was common in the mid-1980s.

The frankenbike nature is likely due due to the policy of robbing components from one one bicycle to repair another for a customer. This was was fairly common in the retail chains which did not have an in-house bicycle shop and did not stock repair parts. It was quite common to see warehouses with a row bicycles that had been partially stripped of components for this purpose. Every few years they would order parts to rebuild the bicycles and dispose of them on sale.

I've just noticed that both quick release levers for the wheels appear to be improperly adjusted. The rear does not appear to be in the fully locked position while the front appears to have been fastened by tightening the nut and not using the cam action of the lever, as the lever is pointed in the wrong direction.

Did you get the serial number? I'd appreciate it, so that I can add another brand to my serial number guide. TIA.
T-Mar is offline
Old 05-15-18, 05:21 PM
  #7
Rapidrob
Junior Member
Thread Starter

Rapidrob's Avatar

Join Date: May 2018
Location: Edgewood,New Mexico
Posts: 19

Bikes: Schwinn 100 year Anna. Phantom, Lotus road bike, Espresso road bike, Thor mountain bike, Huffy 1955 Crusier,others

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The number is 60 80438
Rapidrob is offline
Old 05-16-18, 07:23 AM
  #8
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,814
Mentioned: 430 Post(s)
Tagged: 1 Thread(s)
Quoted: 2469 Post(s)
Likes: 0
Liked 57 Times in 53 Posts
Curiously, the serial number format is not consistent with M-a-t-s-u-s-h-i-t-a (hyphens added to circumvent auto-censor) who owned the Panasonic brand.. The two numeral prefix is characteristic a Taiwanese manufacturer named Dodsun but they typically also stamped the bottom bracket with DS or DSBM and I would expect a longer string to main body of the serial number. If it is Dodsun, it would indicate August 1986 manufacture. It's a bit later than I expected but not unrealistic.
T-Mar is offline
Old 05-21-18, 07:08 AM
  #9
Rapidrob
Junior Member
Thread Starter

Rapidrob's Avatar

Join Date: May 2018
Location: Edgewood,New Mexico
Posts: 19

Bikes: Schwinn 100 year Anna. Phantom, Lotus road bike, Espresso road bike, Thor mountain bike, Huffy 1955 Crusier,others

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks for the info. I know nothing about bike makers nor their markings.
Rapidrob is offline
Old 08-18-18, 05:08 PM
  #10
Lulu3251
Newbie

Join Date: Aug 2018
Posts: 1
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Same bike in Florida!

Hello there, my husband and I recently purchased the same exact bike from a pawn shop in Titusville, FL. It has Shimano everything.
Lulu3251 is offline
Old 08-19-18, 05:37 AM
  #11
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,621

Bikes: Too many to list here check my signature.

Mentioned: 93 Post(s)
Tagged: 2 Thread(s)
Quoted: 1260 Post(s)
Liked 37 Times in 28 Posts
A Tin Can Sailor! You don't hear that much anymore Thank You
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Old 08-19-18, 07:11 AM
  #12
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,115
Mentioned: 213 Post(s)
Tagged: 1 Thread(s)
Quoted: 1618 Post(s)
Liked 26 Times in 23 Posts
Originally Posted by T-Mar View Post
Curiously, the serial number format is not consistent with M-a-t-s-u-s-h-i-t-a (hyphens added to circumvent auto-censor) who owned the Panasonic brand.. The two numeral prefix is characteristic a Taiwanese manufacturer named Dodsun but they typically also stamped the bottom bracket with DS or DSBM and I would expect a longer string to main body of the serial number. If it is Dodsun, it would indicate August 1986 manufacture. It's a bit later than I expected but not unrealistic.
-----

Thanks so much for all of this great information T-Mar!

Much appreciated here.

If a Dodsun product they had certainly come a long way from the bottom ender department store fare they were producing at launch.

​​​​​​​-----
juvela is offline
Old 08-19-18, 12:04 PM
  #13
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,814
Mentioned: 430 Post(s)
Tagged: 1 Thread(s)
Quoted: 2469 Post(s)
Likes: 0
Liked 57 Times in 53 Posts
Originally Posted by juvela View Post
....If a Dodsun product they had certainly come a long way from the bottom ender department store fare they were producing at launch.

Still, they hadn't progressed anywhere near as far as two other Taiwanese manufacturers who had started out the same year year - Giant & Merida. By the late 1980s both were producing for major brands (Schwinn and Raleigh respectively) and were about to introduce eponymous brands that that would become two of the leading players on the world's stage.


Hopefully, @Lulu3251 will post their serial number, so we can progress beyond a sample of one and confirm Dodsun as the manufacturer. If so, then I can add yet another Asian brand to the serial number guide.
T-Mar is offline
Old 08-19-18, 12:19 PM
  #14
GrainBrain
Senior Member

GrainBrain's Avatar

Join Date: Aug 2017
Location: Central Io-way
Posts: 1,221

Bikes: LeMond Zurich, Giant Talon 29er

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 638 Post(s)
Likes: 0
Liked 32 Times in 21 Posts
Originally Posted by T-Mar View Post
The serial number may tell us the year and manufacturer. Tange Mangaloy forks, chromed dropout flats and cables running above the BB shell, but clamp shift levers suggest circa 1982-1985 and lower mid-range. What is the decal at the top of the seat tube? Components suggest it was frankenbiked (i.e SunTour Power shifter with mid-1980s Shimano Z-series rear derailleur and very late 1980s Shimano 600 Ultegra front derailleur).
That's a nice frame for a Dept store rebrand! The front derailleur and crank look like 6500 series? At least the front derailleur is 9 speed Ultegra
GrainBrain is offline
