Peugeot identification and help with BB model fitting

Classic and Vintage Bicycles: Whats it Worth? Appraisals. Use this subforum for all requests as to "How much is this vintage bike worth?"Do NOT try to sell it in here, use the Marketplaces.

Peugeot identification and help with BB model fitting

Old 07-24-18, 01:12 PM
  #26
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,273

Bikes: old ones

Mentioned: 226 Post(s)
Tagged: 0 Thread(s)
Quoted: 14532 Post(s)
Liked 71 Times in 61 Posts
Originally Posted by Fearslol View Post
Id say around 1250 , i dont have any preferences regarding to triple or double , 10 speed would please me. i live in a flat area so that would be perfect. i just want to keep the frame vintage , rest has to be new but black.

https://www.cafr.ebay.ca/itm/183098012004
https://www.cafr.ebay.ca/itm/391365155143
those are the 2 only parts i bough so far !
....I honestly don't think you have the background or experience to make your project feasible at this point.
I'm relatively certain the stem you bought, though black, will not fit your bike frame's steerer.

I don't recall what size post those take, but if your 22.2 seat post fits, I'd be very surprised.

My advice at this point would be to find someone nearby in the real world who has some experience with older French bicycles and modifying them.

Enthusiasm for a new project bike is great, but I'm dubious that anyone here can talk you through everything you need to know on the internet. And every time you buy something that is a mistake, it further drives up the price of your project. Honestly, I wish I could be more positive. I don't enjoy raining on parades. Anyway, good luck, godspeed, and maybe someone else can talk you through it.
3alarmer is offline
Old 07-24-18, 03:47 PM
  #27
Fearslol
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by 3alarmer View Post
....I honestly don't think you have the background or experience to make your project feasible at this point.
I'm relatively certain the stem you bought, though black, will not fit your bike frame's steerer.

I don't recall what size post those take, but if your 22.2 seat post fits, I'd be very surprised.

My advice at this point would be to find someone nearby in the real world who has some experience with older French bicycles and modifying them.

Enthusiasm for a new project bike is great, but I'm dubious that anyone here can talk you through everything you need to know on the internet. And every time you buy something that is a mistake, it further drives up the price of your project. Honestly, I wish I could be more positive. I don't enjoy raining on parades. Anyway, good luck, godspeed, and maybe someone else can talk you through it.

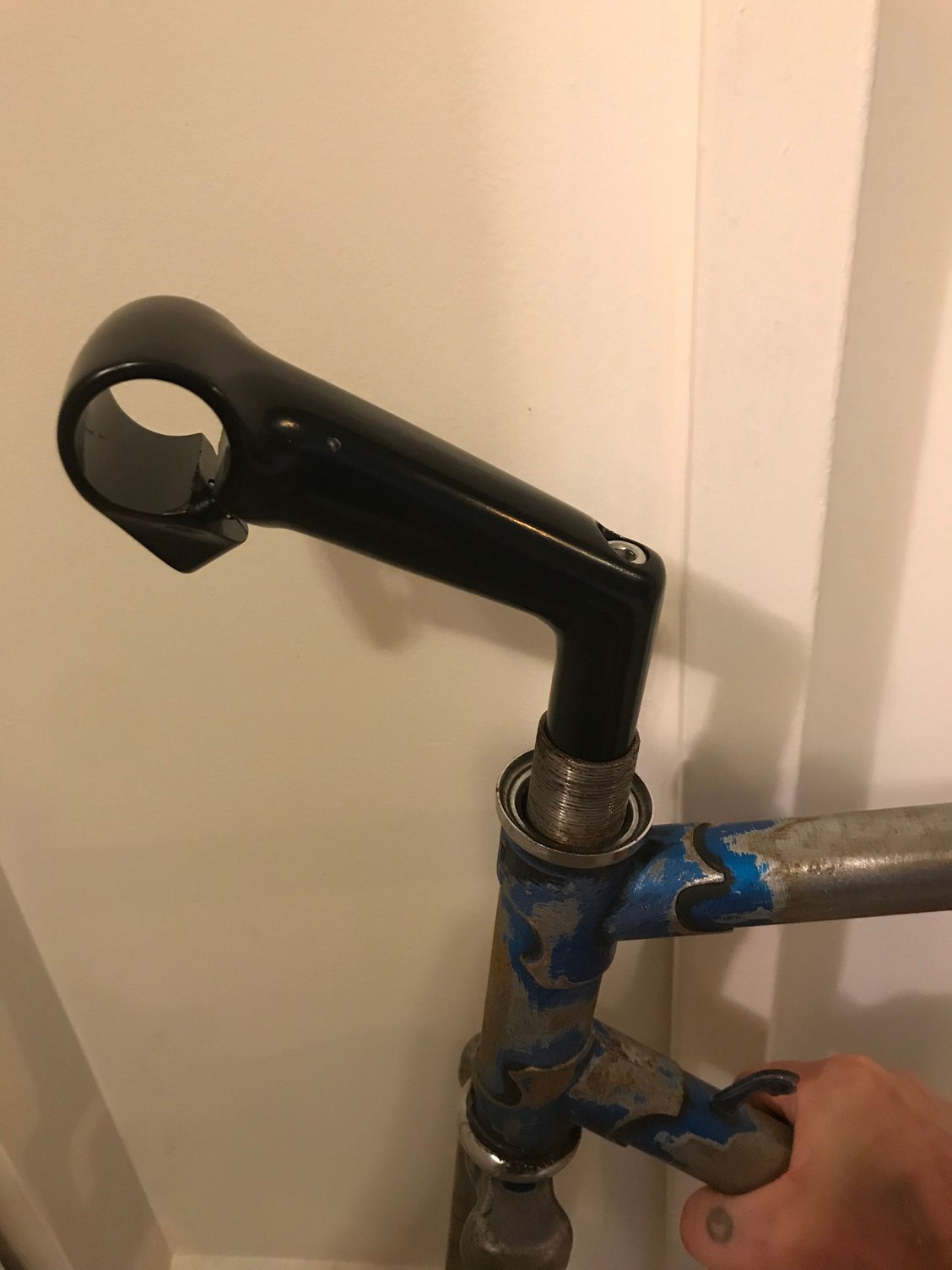

The stem on the fork is 21mm and the one i bought is 21.1mm so yes i will have to make it happen, maybe san it a bit down. You sure dont like to rain on parade but you do. Trying to get as much info as i need to get started. The seatpost is a bit smaller actualy there is not many option around option im aware thanks. If you have any advice on what to get you're more than welcome. thanks
Fearslol is offline
Old 07-24-18, 06:38 PM
  #28
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,273

Bikes: old ones

Mentioned: 226 Post(s)
Tagged: 0 Thread(s)
Quoted: 14532 Post(s)
Liked 71 Times in 61 Posts
Compatible Parts for Vintage Peugeot
French Bikes


...it's a relatively well covered topic. Google is your friend.
3alarmer is offline
Old 07-24-18, 08:06 PM
  #29
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,947
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 16 Times in 13 Posts
A French steerer tube takes a 22 mm stem rather than the 22.2 stem of modern bikes. It is not that hard to sand down a 22.2 stem to fit a Peugeot. If your new stem is indeed 21mm, it may actually be a bit sloppy.

Many inexpensive French bikes came with an insert at the top of the seat tube. With the insert, the interior diameter of the bikes I have measured is 24mm. My AO-8 pictured above did not have an insert and had an impossible-to-find interior diameter of 25.5. I was able to get seatposts in 25.4 (too small) and 25.6 (too large.) I went with the 24.4 and a thin shim. It has been perfectly solid. On the bikes with the insert, I bought Kalloy seat tubes in 24mm.

Fearslol, you won’t have any trouble finding parts that will fit, but you may have difficulty finding them in Black. What I suggest is finding a skilled powdercoater who can coat the parts with black paint. That way you can get what works best for your bike, and then customize it.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 07-24-18, 08:41 PM
  #30
BarryCW
Member

Join Date: Jul 2018
Location: West Coast, New Zealand
Posts: 26

Bikes: 1986 Peugeot PSV10. 1996 KHS Aero Turbo. 1985 Healing Triathlete. 1985 Bosomworth. 1980's Nishiki Cresta Repco. 1980's Nishiki Tri-A. 1985 Miyata 912. 1976 Holdsworth 531 Special. 1985 Kuwahara Siera G.Trek 1979 Frame 730. 1990's Bauer Momentum 4000.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Excuse my ignorance what are the things on the spokes? Those fenders are spectacular
BarryCW is offline
Old 07-24-18, 09:41 PM
  #31
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,947
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 16 Times in 13 Posts
Originally Posted by BarryCW View Post
Excuse my ignorance what are the things on the spokes? Those fenders are spectacular
Salzmann spoke reflectors. They are great for visibility at night.

The fenders are hammered From Velo Orange. Honjo makes fenders like that as well.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 07-25-18, 06:44 AM
  #32
Fearslol
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by 3alarmer View Post
Compatible Parts for Vintage Peugeot
French Bikes


...it's a relatively well covered topic. Google is your friend.

indeed .. and a far better than you ! im sorry but dont try to sound nice when you aren't. Have a good day sir !
Fearslol is offline
Old 07-25-18, 06:51 AM
  #33
Fearslol
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Aubergine View Post
A French steerer tube takes a 22 mm stem rather than the 22.2 stem of modern bikes. It is not that hard to sand down a 22.2 stem to fit a Peugeot. If your new stem is indeed 21mm, it may actually be a bit sloppy.

Many inexpensive French bikes came with an insert at the top of the seat tube. With the insert, the interior diameter of the bikes I have measured is 24mm. My AO-8 pictured above did not have an insert and had an impossible-to-find interior diameter of 25.5. I was able to get seatposts in 25.4 (too small) and 25.6 (too large.) I went with the 24.4 and a thin shim. It has been perfectly solid. On the bikes with the insert, I bought Kalloy seat tubes in 24mm.

Fearslol, you won’t have any trouble finding parts that will fit, but you may have difficulty finding them in Black. What I suggest is finding a skilled powdercoater who can coat the parts with black paint. That way you can get what works best for your bike, and then customize it.
It may result in this ! well see the parts are on the way , i dont want it to be sloppy that for sure. You're making me doubt here , i measured and re measured. But your bike is pretty awesome so and you went there before me. Looks liek you had the same struggle before me
Fearslol is offline
Old 07-25-18, 08:36 AM
  #34
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 22,010

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 648 Post(s)
Likes: 0
Liked 37 Times in 32 Posts
Originally Posted by Fearslol
and ill be able to put on most of the new cranks on it ?

Originally Posted by Aubergine View Post

Yes, indeed you will.
Disagree, most of the new stuff will not mount to that BB. Vintage stuff sure, most will mount. But then you need to get the right spindle length which is based on the crankset you use, not the bike you put it on.

As a first project, french bikes have uniqueness that makes everything more complicated and more costly. The look you are seeking can be achieved with a myriad of bikes, one with standard sizing will be easier to accomplish.

Last edited by wrk101; 07-25-18 at 08:40 AM.
wrk101 is offline
Old 07-25-18, 08:48 AM
  #35
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,947
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 16 Times in 13 Posts
Originally Posted by Fearslol View Post
It may result in this ! well see the parts are on the way , i dont want it to be sloppy that for sure. You're making me doubt here , i measured and re measured. But your bike is pretty awesome so and you went there before me. Looks liek you had the same struggle before me
Thank you. Do you have a good micrometer? That helps a ton with getting the right fit for parts. I have heard that the frame tubing can vary in thickness, for one thing, so that what worked for one bike would not fit in another. Another thing to look out for with old frames is to make sure the seat tube has not been pinched together at the binding bolt. Look at the slot in the rear and make sure the sides are parallel. If they are pinched together at the top, you would need to open them up before trying to measure the interior diameter of the tube.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 07-25-18, 08:53 AM
  #36
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,947
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 16 Times in 13 Posts
Originally Posted by wrk101 View Post
Originally Posted by Fearslol
Disagree, most of the new stuff will not mount to that BB. Vintage stuff sure, most will mount. But then you need to get the right spindle length which is based on the crankset you use, not the bike you put it on.
Yes, I have to admit I was thinking of only modern square taper cranks. But there are a lot of those available.
As a first project, french bikes have uniqueness that makes everything more complicated and more costly. The look you are seeking can be achieved with a myriad of bikes, one with standard sizing will be easier to accomplish.
Not more costly, and only a bit more complicated. As long as you know the differences, French bikes are easy to build to a modern standard using the same basic bits as any other bike.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 07-25-18, 09:33 AM
  #37
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,273

Bikes: old ones

Mentioned: 226 Post(s)
Tagged: 0 Thread(s)
Quoted: 14532 Post(s)
Liked 71 Times in 61 Posts
...that guy who said, "Experience is the best teacher," had a point.
3alarmer is offline
Old 07-25-18, 10:07 AM
  #38
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 22,010

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 648 Post(s)
Likes: 0
Liked 37 Times in 32 Posts
Originally Posted by Aubergine View Post

Yes, I have to admit I was thinking of only modern square taper cranks. But there are a lot of those available.

Not more costly, and only a bit more complicated. As long as you know the differences, French bikes are easy to build to a modern standard using the same basic bits as any other bike.



Cost example: Typical Shimano UN26 cartridge BB: $10. VO French cartridge BB: $50. Phil Wood French BB: >$150. French sized stem, French handlebar clamp size, and French headset are also unique. Reusing existing parts is a great way to limit the cost impact. Given the picture of a bike the OP is aspiring to build, I don't see a lot of reuse. I keep a box full of unique French parts just for this purpose.

At least some parts already on order.

To the experienced vintage bike person, French uniqueness is not that big of a deal. To someone new to the pastime, it can be challenging.

Last edited by wrk101; 07-25-18 at 10:15 AM.
wrk101 is offline
Old 07-25-18, 05:38 PM
  #39
Fearslol
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

Originally Posted by Aubergine View Post

Thank you. Do you have a good micrometer? That helps a ton with getting the right fit for parts. I have heard that the frame tubing can vary in thickness, for one thing, so that what worked for one bike would not fit in another. Another thing to look out for with old frames is to make sure the seat tube has not been pinched together at the binding bolt. Look at the slot in the rear and make sure the sides are parallel. If they are pinched together at the top, you would need to open them up before trying to measure the interior diameter of the tube.
I dont have this tool no ! It did went in very easily. It should tight very well too. Didnt had to touch it at all. Sorry for the ****ty picture , frame isnt done yet. He isnt pinched no , ive saw this happen in a video , im watching a few tutorials on restoring bike, but dont hesitate to give me hints on whats good to look for on mine i appreciate. Will post some further pictures of the progress if there's interest too.

Last edited by Fearslol; 07-25-18 at 05:49 PM.
Fearslol is offline
