Storage Wars Find - Packed In Grease Duarte w/Campy Neovo Record Derailleurs, Frame

Classic and Vintage Bicycles: Whats it Worth? Appraisals. Use this subforum for all requests as to "How much is this vintage bike worth?"Do NOT try to sell it in here, use the Marketplaces.

Storage Wars Find - Packed In Grease Duarte w/Campy Neovo Record Derailleurs, Frame

Reply

Old 11-06-18, 11:40 AM
  #1
miamibeachcg
Senior Member
Thread Starter

Join Date: May 2014
Posts: 347
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Storage Wars Find - Packed In Grease Duarte w/Campy Neovo Record Derailleurs, Frame

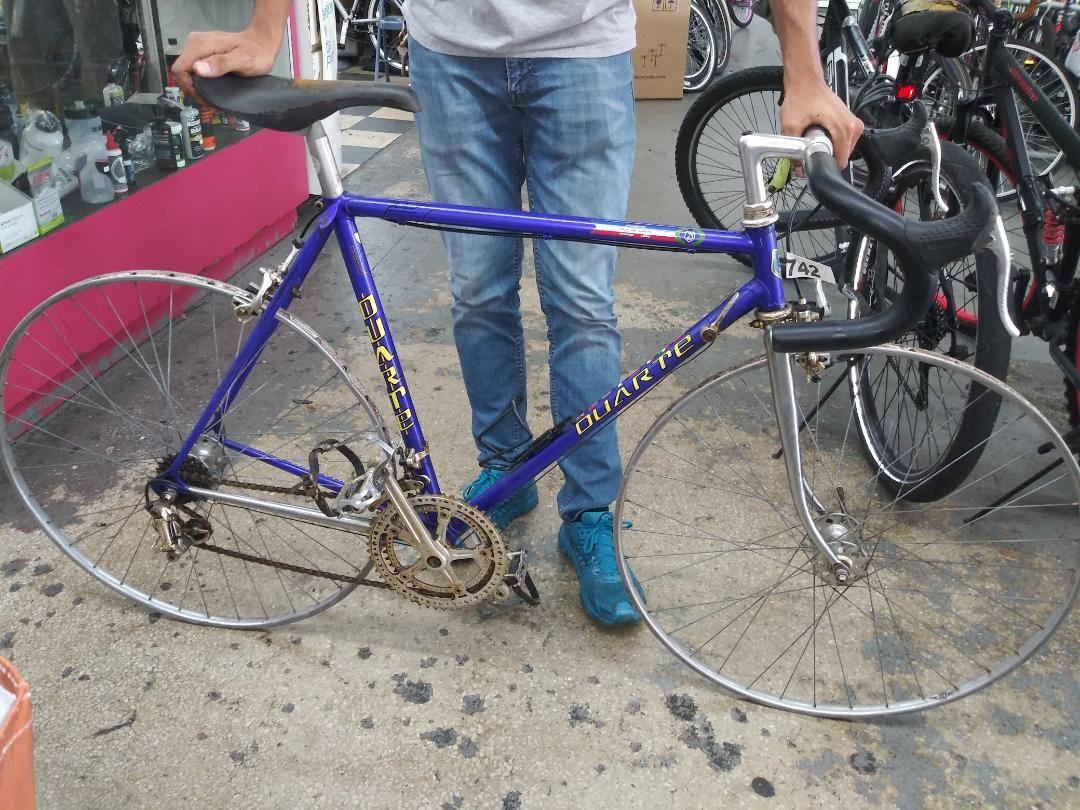

I found this in a little Cuban thrift store here in Miami. They told me they found it in a storage unit they won at auction. They also told me that the derailleurs & other metal parts had been covered in grease & wrapped with saran wrap to protect them from rust (or our humidity?).
I asked what they wanted for it & the lady said she wasn't sure, but she would check & I could come back tomorrow. I didn't want to take a chance of losing it so I asked her if she would take $200 cash now, and she said "sure" - and we were both happy!
Now I just need to know what I have & that I made a good deal!

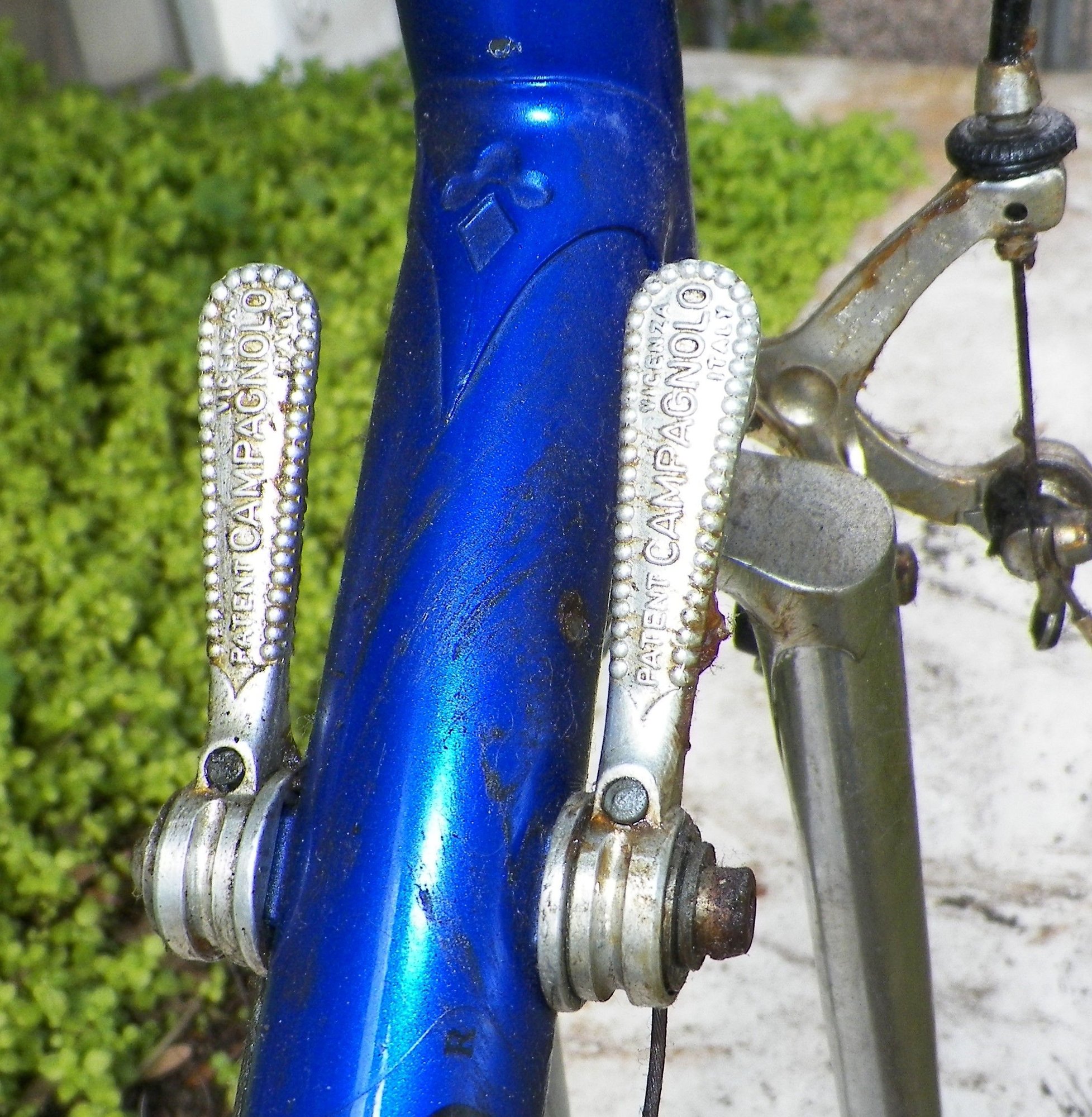

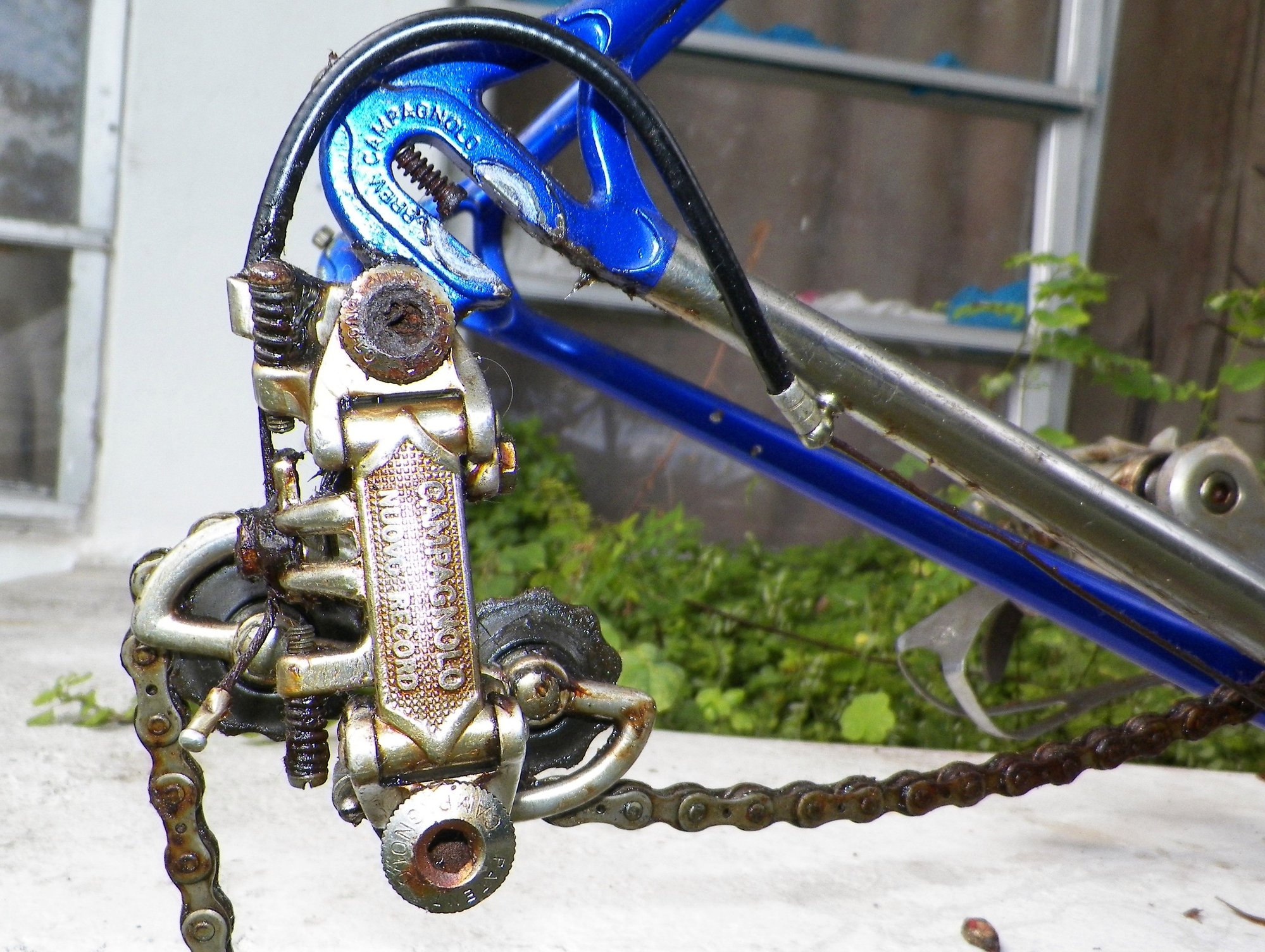

The derailleurs & shifters are Campagnolo Nuovo Record, the brakes are Shimano 600, and both front & rear forks are Brev Campagnolo. Also the rims' hubs are Campagnolo.
Is the frame Campagnolo?
What model is it?
What year is it?

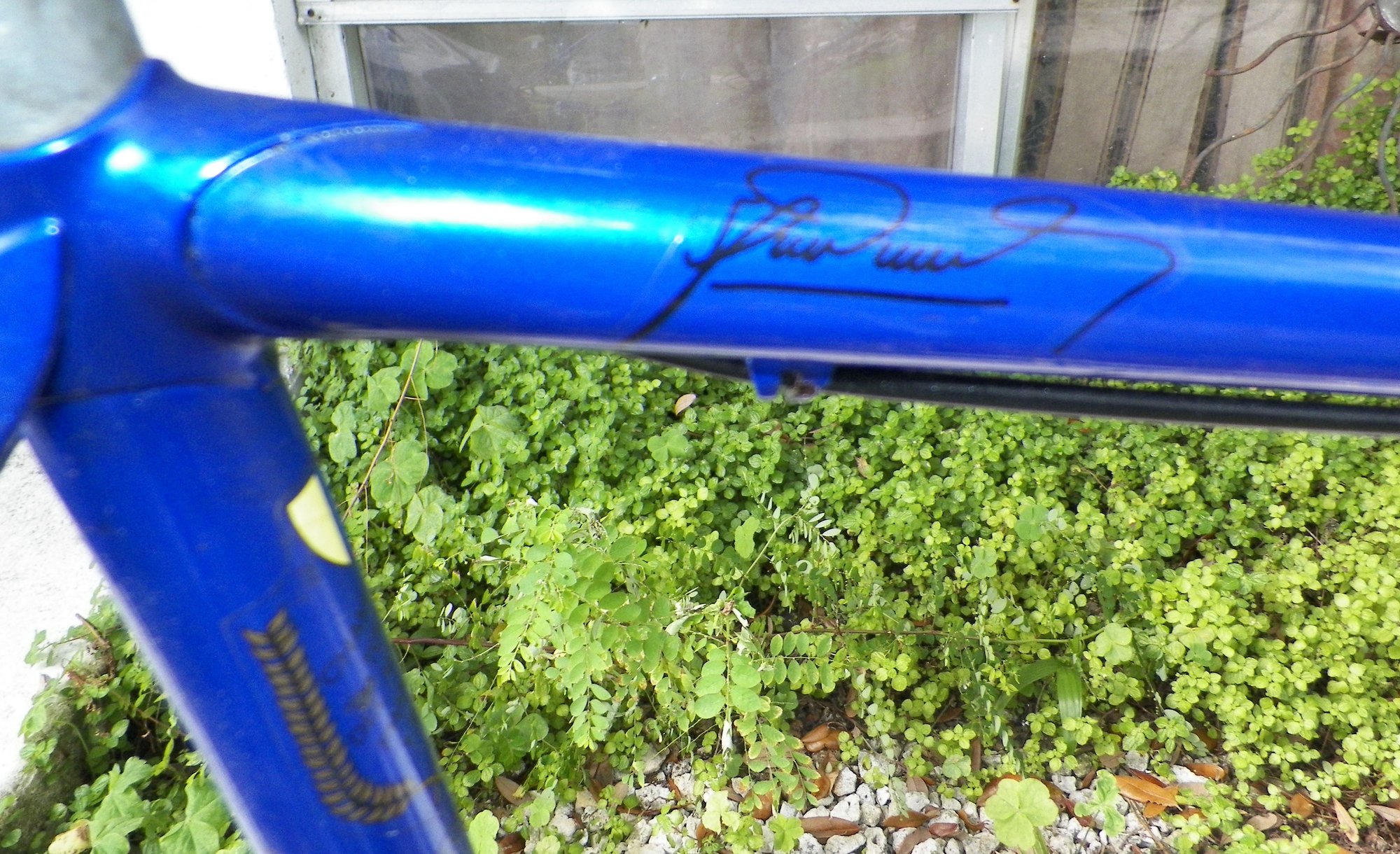

There is a signature on the top tube by the seat - who/what is that?
What is it worth?
Finally, what is best way to remove the grease? (I'm thinking of taking it to a local bike shop & pau them to clean it)
Thanks all; I appreciate any help with this.








Last edited by miamibeachcg; 11-06-18 at 11:43 AM.
miamibeachcg is offline
Reply With Quote
Old 11-06-18, 11:42 AM
  #2
miamibeachcg
Senior Member
Thread Starter

Join Date: May 2014
Posts: 347
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Found edit & added pic above so I deleted photo here - sorry
miamibeachcg is offline
Reply With Quote
Old 11-06-18, 12:27 PM
  #3
rando_couche
Senior Member

Join Date: Jul 2013
Posts: 918
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Google turns up a shop in Bogota, Colombia, but their web address is dead. IIRC, Duarte bikes were indeed made in/near Bogota and very highly regarded. I'd love to have a Colombian bike, but probably not many of them around in my size (61-64cm).

SP
OC, OR
rando_couche is offline
Reply With Quote
Old 11-06-18, 12:45 PM
  #4
Kevindale
Senior Member

Kevindale's Avatar

Join Date: Apr 2013
Location: Amsterdam
Posts: 1,634

Bikes: 1980 Koga-Miyata Gentsluxe-S, 1998 Eddy Merckx Corsa 01, 1983 Tommasini Racing, 2012 Gulf Western CAAD10, 1980 Univega Gran Premio

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 581 Post(s)
This thread should be useful. What are the date codes on the back side of the crank and the rear derailleur? Looks well made, thought the bubbling of paint under the top of the seat stay is concerning. I have a feeling the components might be as valuable as the frame, since it's such an unknown builder.

I defer to others regarding the grease. You can be fairly aggressive with the alloy components, but on the paint and decals you might do some damage with a strong degreaser or too aggressive rubbing. Really depends on how dried out that grease is. I'd say proceed cautiously there.
Kevindale is offline
Reply With Quote
Old 11-06-18, 12:46 PM
  #5
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 19,691
Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 6889 Post(s)
Wow, that chain is greasy, but perhaps a good thing for long term storage.

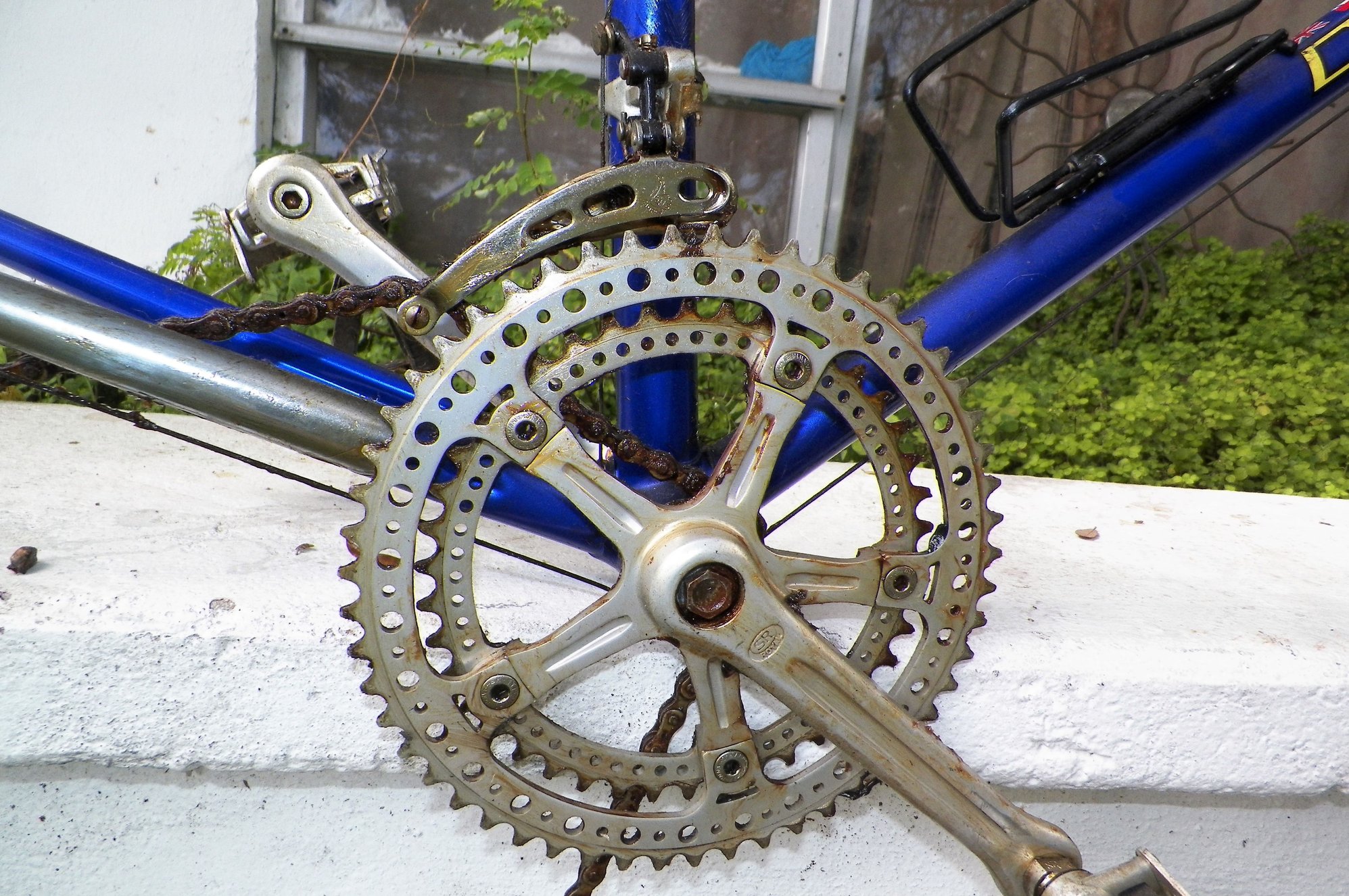

You have a pretty mixed groupset. Cranks are SR. Rear Derailleur is Nuovo Record. Front Derailleur is second generation Super Record (3 hole).

Pedals?

However, everything also appears to be well done.

Obviously you are short a wheelset, but otherwise $200 sounds like a decent deal for the parts + a "free frame".
CliffordK is offline
Reply With Quote
Old 11-06-18, 12:59 PM
  #6
Kevindale
Senior Member

Kevindale's Avatar

Join Date: Apr 2013
Location: Amsterdam
Posts: 1,634

Bikes: 1980 Koga-Miyata Gentsluxe-S, 1998 Eddy Merckx Corsa 01, 1983 Tommasini Racing, 2012 Gulf Western CAAD10, 1980 Univega Gran Premio

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 581 Post(s)
Also, the dropouts are Campagnolo, but the frame isn't. It's likely Columbus steel. Look inside the steerer tube (hold bike upside down, shine a flashlight into the hole between the forks). If you see 5 spiral ridges, it's Columbus SL or SLX.

Kevindale is offline
Reply With Quote
Old 11-06-18, 01:05 PM
  #7
miamibeachcg
Senior Member
Thread Starter

Join Date: May 2014
Posts: 347
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
I have the wheels - they have campy hubs but no marks on the rims themselves
miamibeachcg is offline
Reply With Quote
Old 11-06-18, 01:24 PM
  #8
cb400bill
Administrator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 15,663

Bikes: Fuji SL 2.1 (carbon fiber), Pinarello Stelvio(steel), Cannondale Synapse(aluminum)

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1031 Post(s)
Please stop typing your thread titles in all caps
cb400bill is offline
Reply With Quote
Old 11-06-18, 01:35 PM
  #9
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 16,552
Mentioned: 350 Post(s)
Tagged: 1 Thread(s)
Quoted: 1956 Post(s)

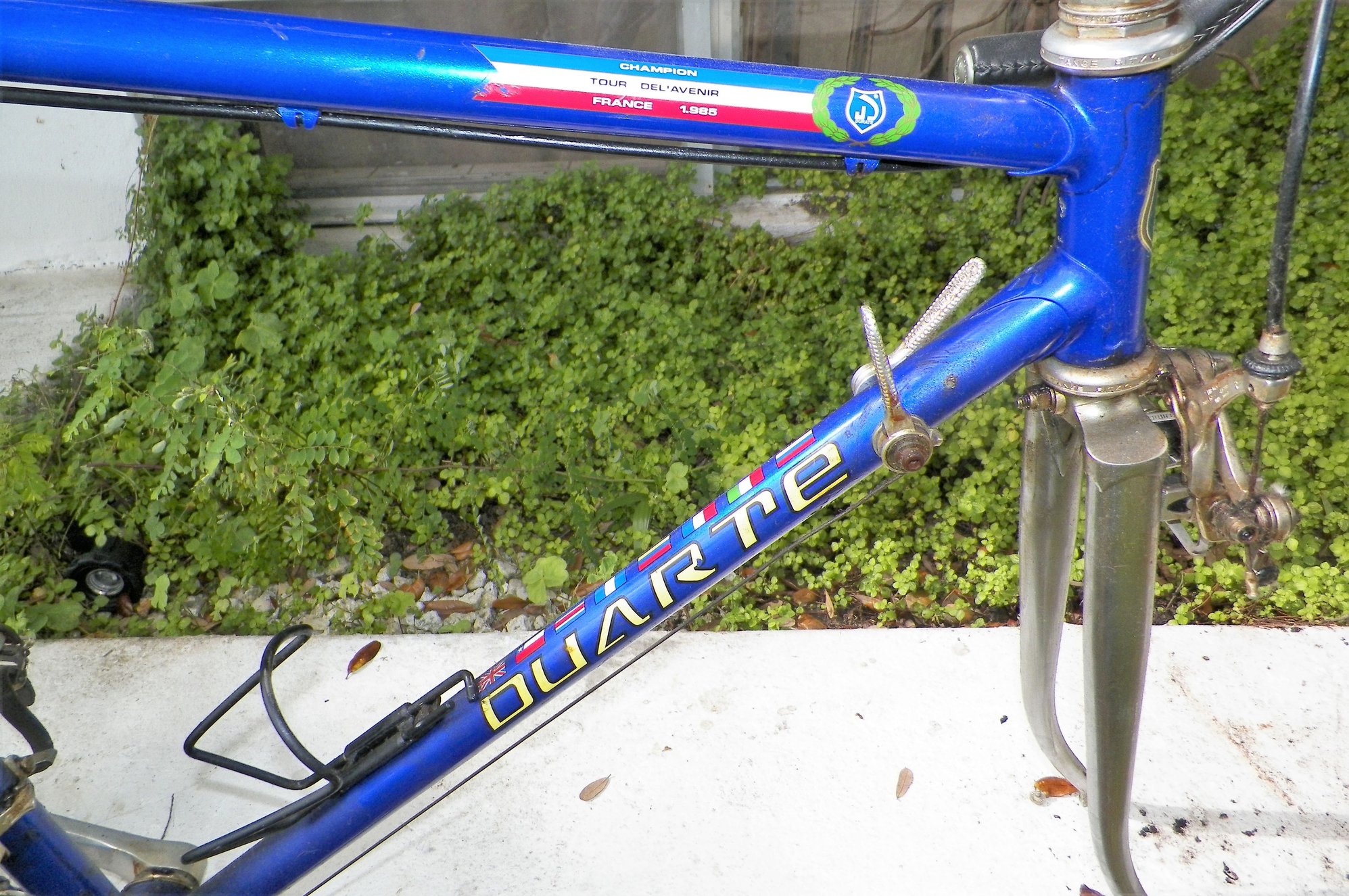

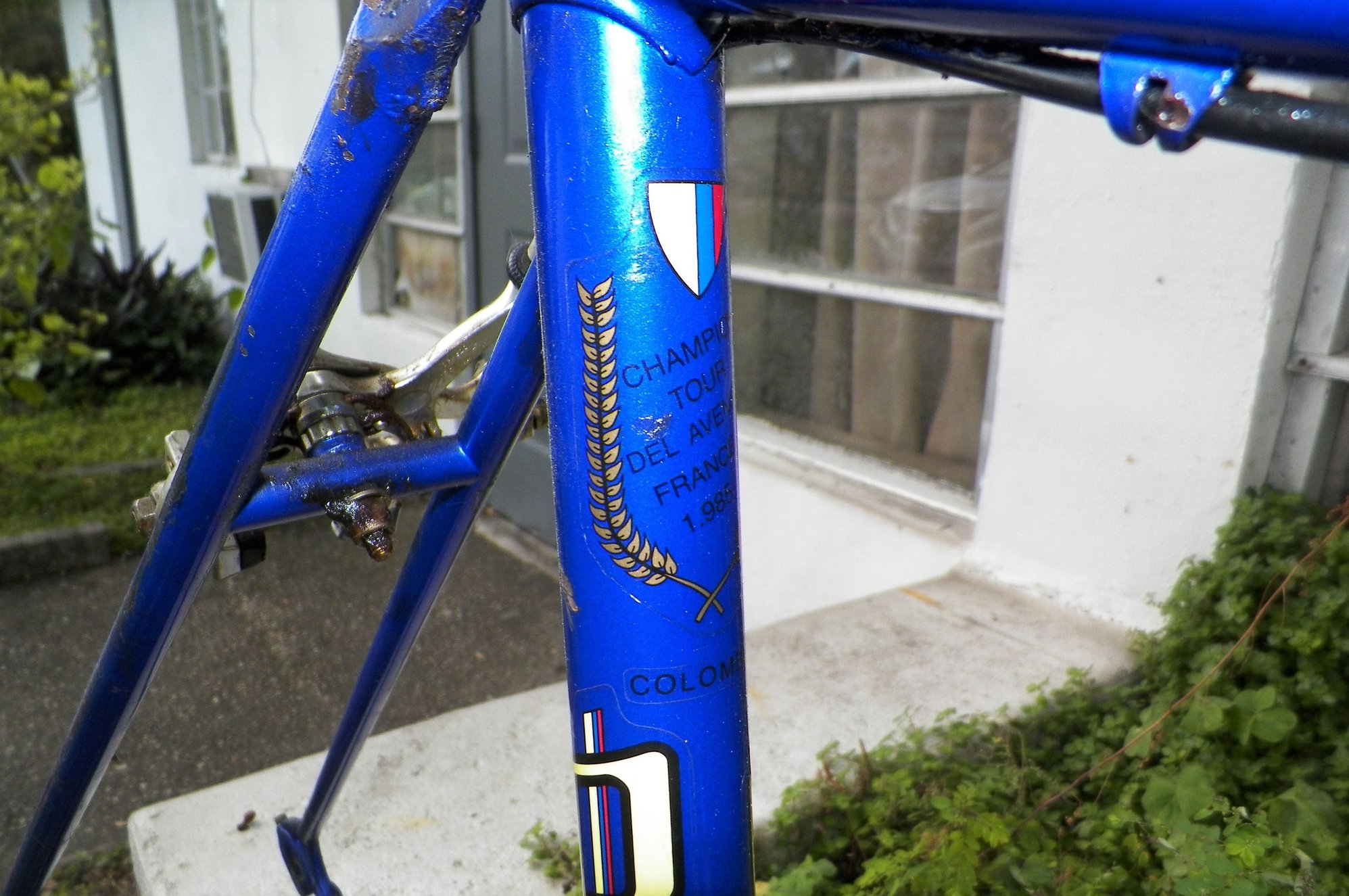

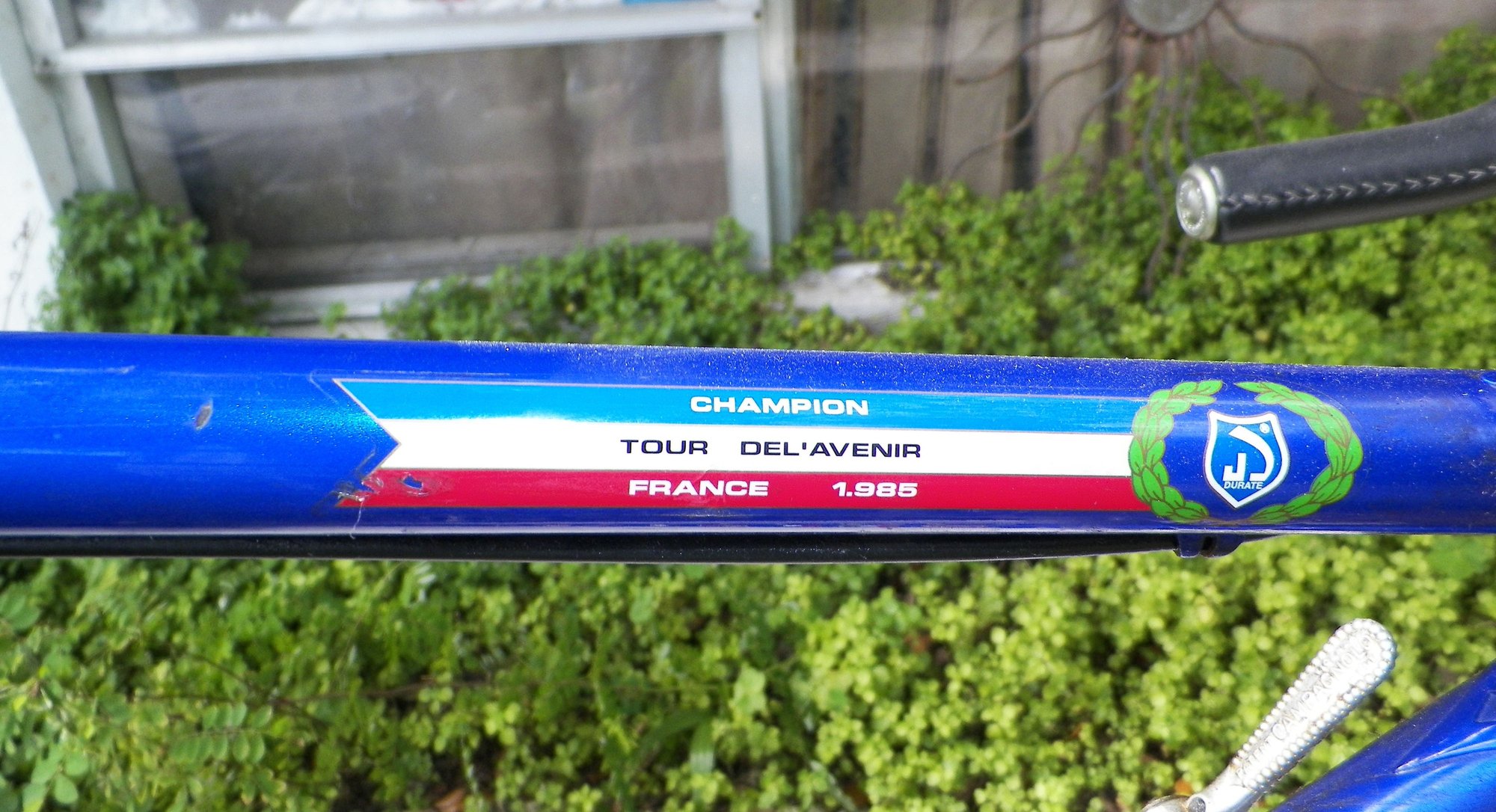

The frame itself is no earlier than 1985 per the palmares decals. This is consistent with the post-Portacatena Campagnolo 1010B dropouts. The crankset and rear derailleur look too old for the frame. The components that best match the the apparent age are the Shimano New 600EX calipers (1984-1987).

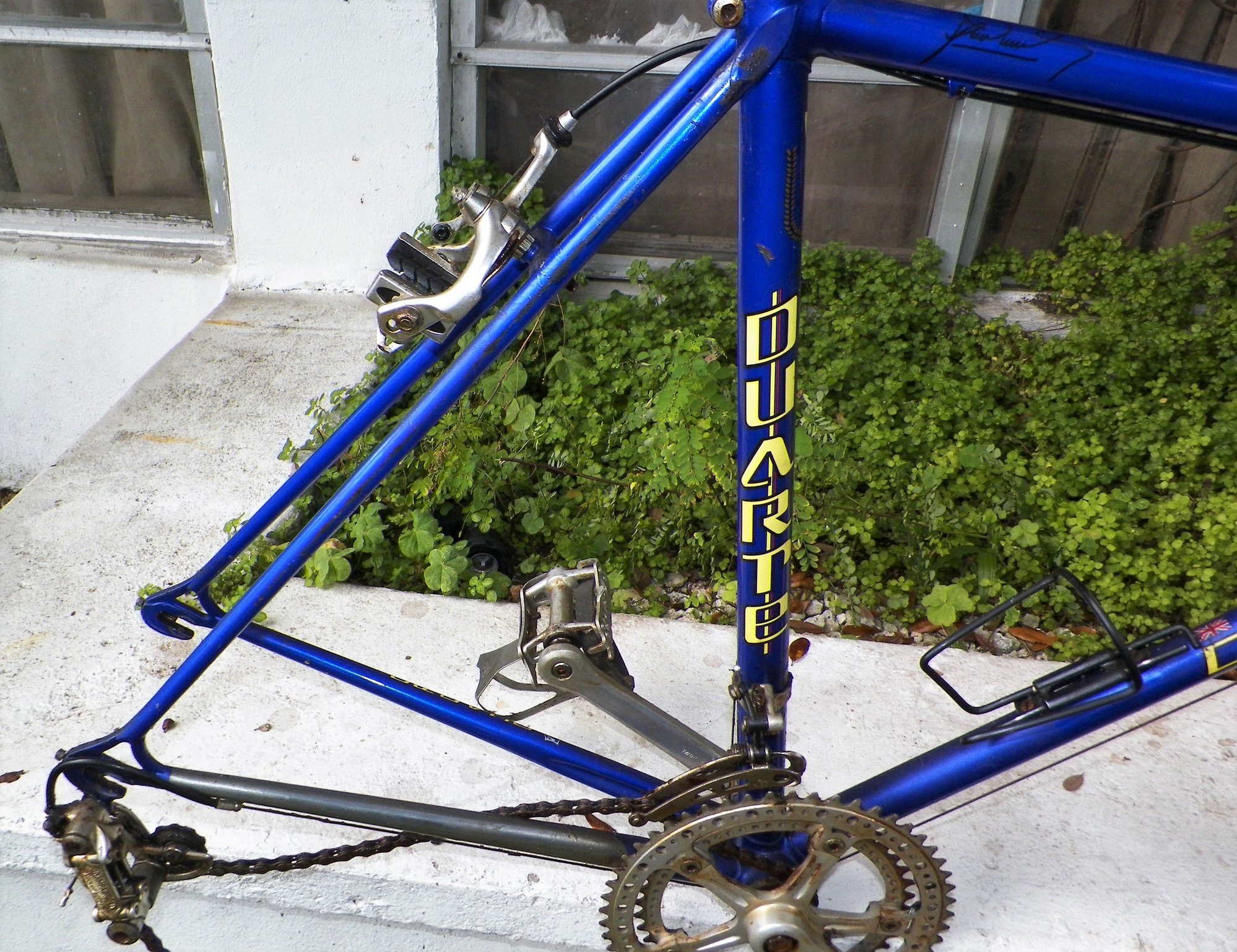

The frame has some nice finishing at the stay ends and thinned lugs. While it has Campagnolo dropouts, it lacks other features that I would expect on a high grade frame of the era, such as a front derailleur tab, bridge tangs, recesses for brake nuts etc. Given the age, my overall impression is a low mid-range frame with a higher than typical level of workmanship. In addition to checking the fork's steerer column for helical ridges, the seat post diameter may provide another clue to the tubeset brand and grade.
T-Mar is offline
Reply With Quote
Old 11-06-18, 07:00 PM
  #10
miamibeachcg
Senior Member
Thread Starter

Join Date: May 2014
Posts: 347
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
I didn't see any spirals but didn't get a clear look. It's at bike shop being cleaned.
Speaking of old - the guy at the shop told me it has Campagnolo rims that the tube was glued? to the rim? (I can't remember what he called it, but they didn't have much of a edge around the rim; very low? Anyone know what kind I'm trying to say?
I'll post pic of all when I get it back
Thanks for the help!
miamibeachcg is offline
Reply With Quote
Old 11-06-18, 07:10 PM
  #11
miamibeachcg
Senior Member
Thread Starter

Join Date: May 2014
Posts: 347
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)

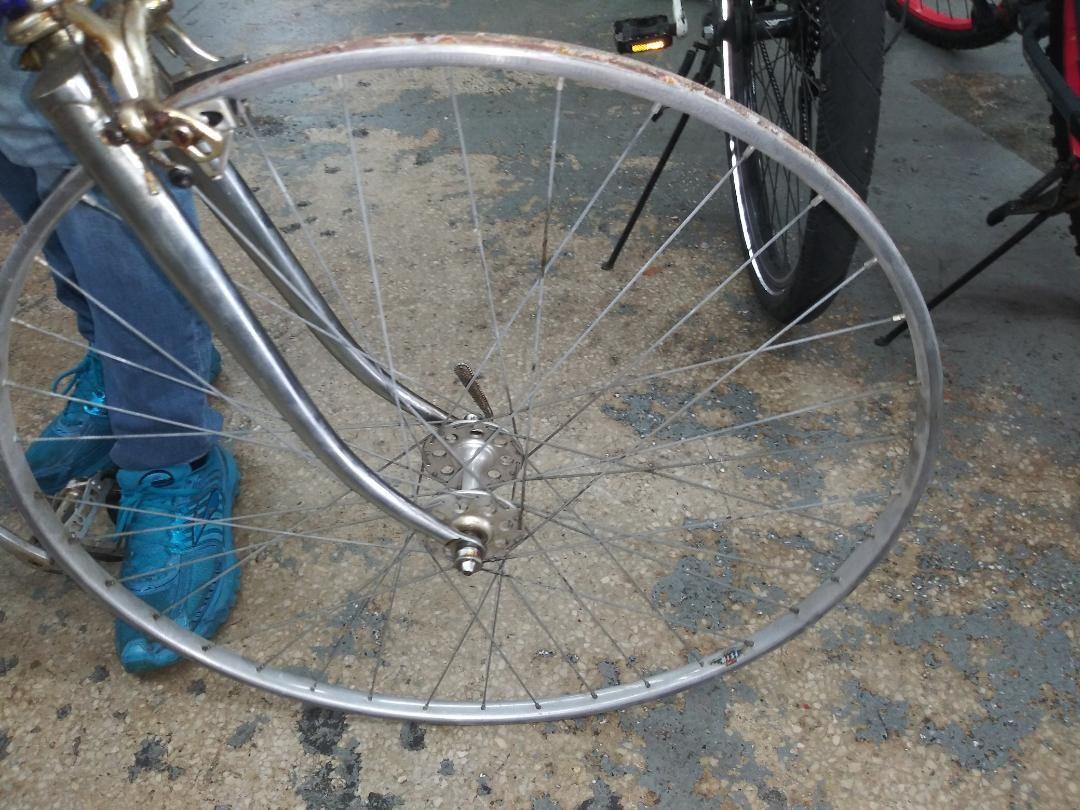

Here is part of the rim from pic I took with others above, but it didn't show the Campagnolo mark on the hub so I didn't post it - maybe you can tell what kind of rim it is from it?
Why the old rims, derailleurs & crank on a newer, handmade bike? That large crank was for racing, right?
Thanks again all
miamibeachcg is offline
Reply With Quote
Old 11-06-18, 11:06 PM
  #12
Drillium Dude
Takin' a break...

Drillium Dude's Avatar

Join Date: Jul 2009
Location: Bothell, WA
Posts: 9,058

Bikes: 73 Colnago Super, 73 Colnago Super art study, 79 Medici Pro Strada, 79 Dennis Sparrow, 80 Alpina, 81 Bill Davidson custom, 83 Colnago Mexico, 85 Somec Super Corsa, 02 Bill Davidson custom

Mentioned: 150 Post(s)
Tagged: 0 Thread(s)
Quoted: 879 Post(s)

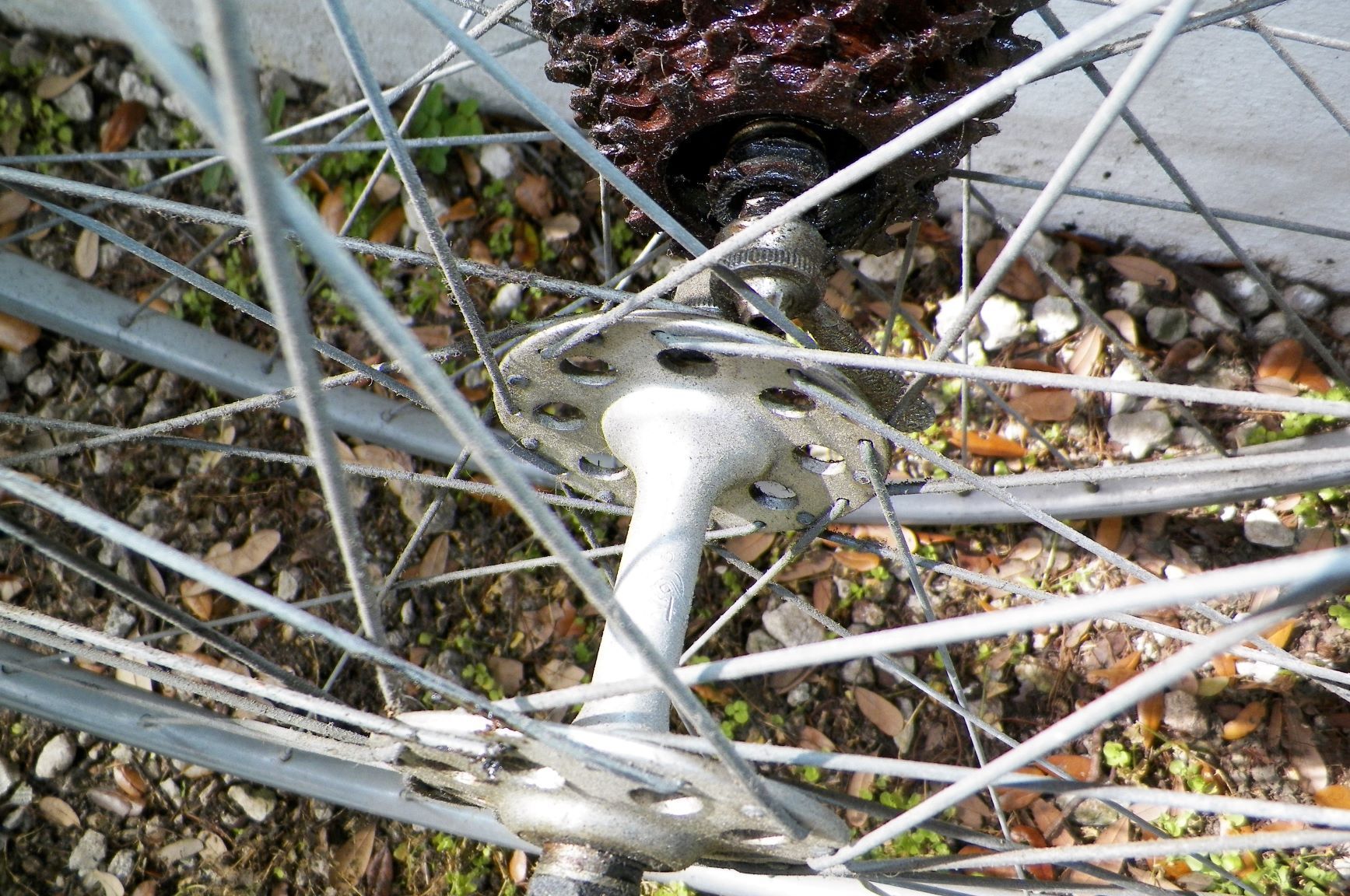

Campagnolo Tipo hubs. Can't tell the rim maker from your photo, though. And I think the guy at the shop was trying to say it has tubular tires (tube sew inside tire casing) as opposed to clinchers (separate tube and tire).

These frames are not common and are pretty highly regarded. I love the details and wouldn't at all mind finding and riding one myself someday.

DD
__________________
My Flickr pics: http://www.flickr.com/photos/[email protected]/

Drillium Dude is offline
Reply With Quote
Old 11-06-18, 11:22 PM
  #13
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,096
Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 673 Post(s)
Lugwork looks really good for just a mid level bike.....
I would love to have such a unique bike in my stable!
Much more interesting than the usual Euro C&V bikes that collectors fight over and pay big bucks for....
Chombi1 is online now
Reply With Quote
Old 11-07-18, 02:06 AM
  #14
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 19,691
Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 6889 Post(s)
Originally Posted by miamibeachcg View Post
It's at bike shop being cleaned.
Speaking of old - the guy at the shop told me it has Campagnolo rims that the tube was glued? to the rim? (I can't remember what he called it, but they didn't have much of a edge around the rim; very low? Anyone know what kind I'm trying to say?
Fixing up an old bike can be a money pit if you're paying someone else to do it, but a good mechanic can do nice work too. The other thing, is that a shop may not spend the time to buy quality era correct used replacement parts.

As far as the tires, there are two basic types of bicycle tires:
  • Clincher Tires (like car tires, bead hooks to sides of rim).
  • Tubular Tires (also called sewup tires). They GLUE to the rim.
    These were popular racing and performance riding tires form the 70's and 80's (or earlier). And, are still popular with racing.

For clincher tires, a few subtypes.
  • Normal Clincher Tires
  • Tubeless Tires (not to be confused with tublar).
    Tire seals to the rim, and no tube is needed.
  • Open Tubular. Not sure if that is just hype, or something unique. Designed to be supple tires with an outstanding ride.

Likewise, for tubular (glued) tires:
  • Sewups: Casing sewn at bottom. The proper way to fix a flat is to cut apart the tire, pull a section of tube out, patch, then sew back up
  • Integrated??? TUFO tires. The tube can't be separated from the casing.

Now, patching the old tubular tires was a pain. But, a few things have happened. More puncture resistant tires? Gatorskins?

Using sealants with the tubulars. Generally the same sealants as used with the tubeless. These can make permanent repairs, especially in the integrated TUFO style tires.

Now, for a "collector" bike, keep the tubulars.
For a daily rider, you might experiment with the tubulars, or convert to clinchers by either rebuilding the wheelset, or acquiring spares.
CliffordK is offline
Reply With Quote
Old 11-07-18, 08:52 AM
  #15
TakingMyTime
Senior Member

Join Date: Aug 2012
Location: Los Alamitos, Calif.
Posts: 1,042

Bikes: Trek 7.4 FX, 5200 & 7700

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 197 Post(s)
To the OP,

I think one of the unspoken themes in this thread is that you have a very nice bike, you should learn more about it, find out what needs to be done to make it road-worthy and move ahead slowly with your decisions. You have a great item to learn from, many people here to help you along and it could be a great journey to understanding more about your bike and what you have there.
TakingMyTime is offline
Reply With Quote
Old 11-08-18, 05:35 AM
  #16
miamibeachcg
Senior Member
Thread Starter

Join Date: May 2014
Posts: 347
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
I spoke with someone who has a few of these - and who knows Mr. Duarte's wife! Here is what he said I had (Plus photo of bike at shop with rims on - which the man who wrote me below later told me (after seeing pics below) they are campagnolo nuovo tipo high flange hubs
Bike Info
Regarding the bike, is definitely an early Duarte. Mr Duarte acquired a pantograph later and that’s the reason why the early ones does not have any engravings. I assume that you have a “Tour del’Avenir” model which was an entry level bike, also the mix of parts was very common in those bikes. I’m worried about the rusted parts (pic attached), I have had bad experiences with that model. I’ve called mr. Duarte’s wife and she told me that the bike is around 1983-85.

Thank you all for the help!


miamibeachcg is offline
Reply With Quote
Old 11-08-18, 06:16 PM
  #17
Poguemahone
Vello Kombi, baby

Poguemahone's Avatar

Join Date: Dec 2002
Location: Je suis ici
Posts: 5,265

Bikes: 1973 Eisentraut; 1970s Richard Sachs; 1978 Alfio Bonnano; 1967 Peugeot PX10

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
i'd buy it for 200$, no problem. You did okay.
__________________
"It's always darkest right before it goes completely black"

Waste your money! Buy my comic book!
