Miyata 512 - Ugly Duck or hidden swan ?

Old 04-22-19, 07:54 PM
  #1
S28546
Member
Thread Starter

Join Date: Sep 2015
Location: Arlington, VA
Posts: 48

Bikes: 1974 Raleigh Super Course Mk II, 1982 Trek 510, 2016 Velo Orange Polyvalent

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Miyata 512 - Ugly Duck or hidden swan ?

I picked up a Miyata the other day intending to use the frame as the basis for a 650B conversion. Miyata 512, splined triple butted tubes, 63cm.



Ugly duckling


In 700c format, it has clearance for 25mm, tires - maybe 28s. I saw it had some surface rust and lots of parts I'd donate to the coop, but I have plenty of bits to hang on the frame that would make this an easy conversion.

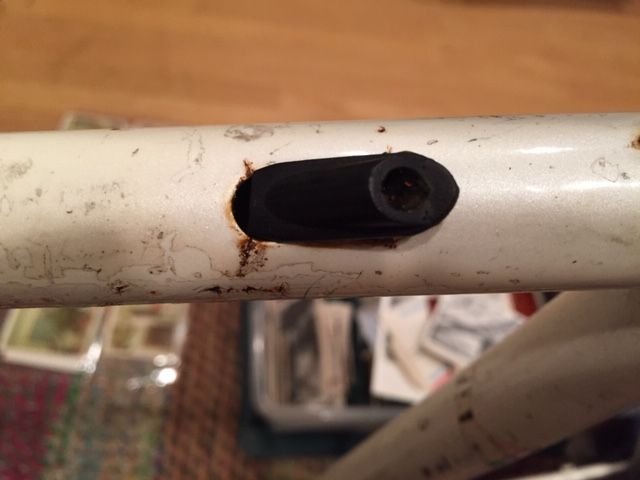

But after stripping it of parts and cables, I paid attention to this surface rusting around the forward rear brake cable entry hole into the top tube:


And then this rust and what appears to be the start of radial cracking of the top tube at the exit hole of the brake cable.



I had hopes of making a swan from this, but I'm wondering if it is too far gone to be reasonably fixed.

How serious is this cracking? Can the top tube be repaired or replaced? Is the frame otherwise potentially worth the effort to do that? Or should I just move on to the next frame? Any ideas or suggestions?

Last edited by S28546; 04-22-19 at 08:57 PM. Reason: Add details of what is shown
S28546 is offline
Old 04-22-19, 08:12 PM
  #2
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: 10% Atlanta GA 90% Fernandina FL
Posts: 2,459

Bikes: Vintage Japanese Bicycles

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 397 Post(s)
Likes: 0
Liked 8 Times in 6 Posts
Whats dat? A hole or something?
ramzilla is online now
Old 04-22-19, 08:18 PM
  #3
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 7,260

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 17 Post(s)
Tagged: 1 Thread(s)
Quoted: 283 Post(s)
Likes: 0
Liked 9 Times in 8 Posts
You can't really reasonably replace the top tube but you could just pull the plugs seal an touch up over and use a couple of classic cable clamps these are really tough well built frames so there shouldnty be an issue unless it's rusted through, That said I think this bike should be fixed up and road close to stock it is not a good candidate for 650b conversion you would have issues with brake reach.,crank strick on turns and still really wouldn't have clearance for fenders or bigger tires
zukahn1 is online now
Old 04-23-19, 06:13 AM
  #4
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 902

Bikes: old school 531c & campy

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 371 Post(s)
Liked 48 Times in 34 Posts
Gonna go "ugly duck" on this one. Part out and cut your losses.
SurferRosa is offline
Old 04-23-19, 06:25 AM
  #5
Lemond1985
Sophomore Member

Lemond1985's Avatar

Join Date: Jan 2019
Posts: 1,427
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 796 Post(s)
Liked 151 Times in 109 Posts
Are these cracks? Because this is the exact location where they form on these frames, very bad engineering decision to use them. Miyata only used them for a couple of years. Once the cracks start, they grow each time the frame flexes.



Assuming no damage, these splined triple butted frames are rare enough to save, and worthy of a repaint, IMO.
Lemond1985 is offline
Old 04-23-19, 12:55 PM
  #6
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 22,019

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 656 Post(s)
Likes: 0
Liked 43 Times in 37 Posts
Those are cracks, Save the fork, headset and other parts, and toss the main frame. It's toast. Sure, it can be repaired by a frame builder. Price of repair will exceed the value of the frame, unless you can get a buddy price.

Last edited by wrk101; 04-24-19 at 07:36 AM.
wrk101 is offline
Old 04-23-19, 09:03 PM
  #7
ddeand
Senior Member

ddeand's Avatar

Join Date: Jul 2004
Location: Twin Cities
Posts: 687
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Liked 3 Times in 3 Posts
I had the same crack issue with a Miyata 312 frame. The cracks didn’t appear until I stripped the oaint from the frame. Everyone here was pretty adament that the frame was dangerous and shouldn’t be ridden with the cracks. So . . . I had the holes patched by a frame builder. The bike now belongs to my grandson.
__________________
Some days, it's not even worth gnawing through the restraints.
ddeand is offline
Old 04-23-19, 10:24 PM
  #8
Cougrrcj
Over forty victim of Fate

Cougrrcj's Avatar

Join Date: Jul 2011
Location: NE Ohio
Posts: 3,002

Bikes: A few...

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 3 Times in 3 Posts
Unless you can have the cable-routing holes welded up, I'd put this frame into the trash -- maybe cutting it up first so nobody tries to use it as is. IDK what Miyata was thinking with putting holes in the toptube without some sort of tubing doubler welded on to spread the stress. And WHY have the holes on the top of the toptube where rain water can get into the frame???
__________________
'75 Fuji S-10S bought new, 52k+ miles and still going!
'84 Univega Gran Tourismo
'84 Univega Viva Sport
'86 Miyata 710
'90 Schwinn Woodlands
Huffy MTB - for trips to corner store
MTB of questionable lineage aka 'Mutt Trail Bike'
Cougrrcj is offline
Old 04-25-19, 09:39 PM
  #9
S28546
Member
Thread Starter

Join Date: Sep 2015
Location: Arlington, VA
Posts: 48

Bikes: 1974 Raleigh Super Course Mk II, 1982 Trek 510, 2016 Velo Orange Polyvalent

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks for all the feedback - ugly duck it is. I noticed the tubing around the rear cable hole has deformed in addition to cracking. I've decided to cut bait with this frame..
